Minimotor - XC worm Gear Motor

High quality, designed from the ground up to IP65 rated compact gear motor.



Physically smaller than the majority of similar powered gear motors due to the use of high quality components in precision manufacturing.



Ideally suited to many applications, including label and packaging machines, conveyors, pharmaceutical and medical machinery



MOTOR: asynchronous three phase with 2 or 4 poles, totally enclosed with external ventilation. Class F winding.

IP65 protection according to CEI EN 60529.



GEAR UNIT: with die-cast aluminium casing.

Centre distance 38 mm. CARO bronze ring 120-160 HB hardness.

Hardened steel screw with ground thread rotating on ball and roller bearings. Lubrication with special long life oil.

Sealing rings made in special rubber for high temperatures. 7 gear ratios (i) available, from 5 to 100. Rated torque 35 Nm. Version B3 and B5. B5/S left version - B5/D right version.

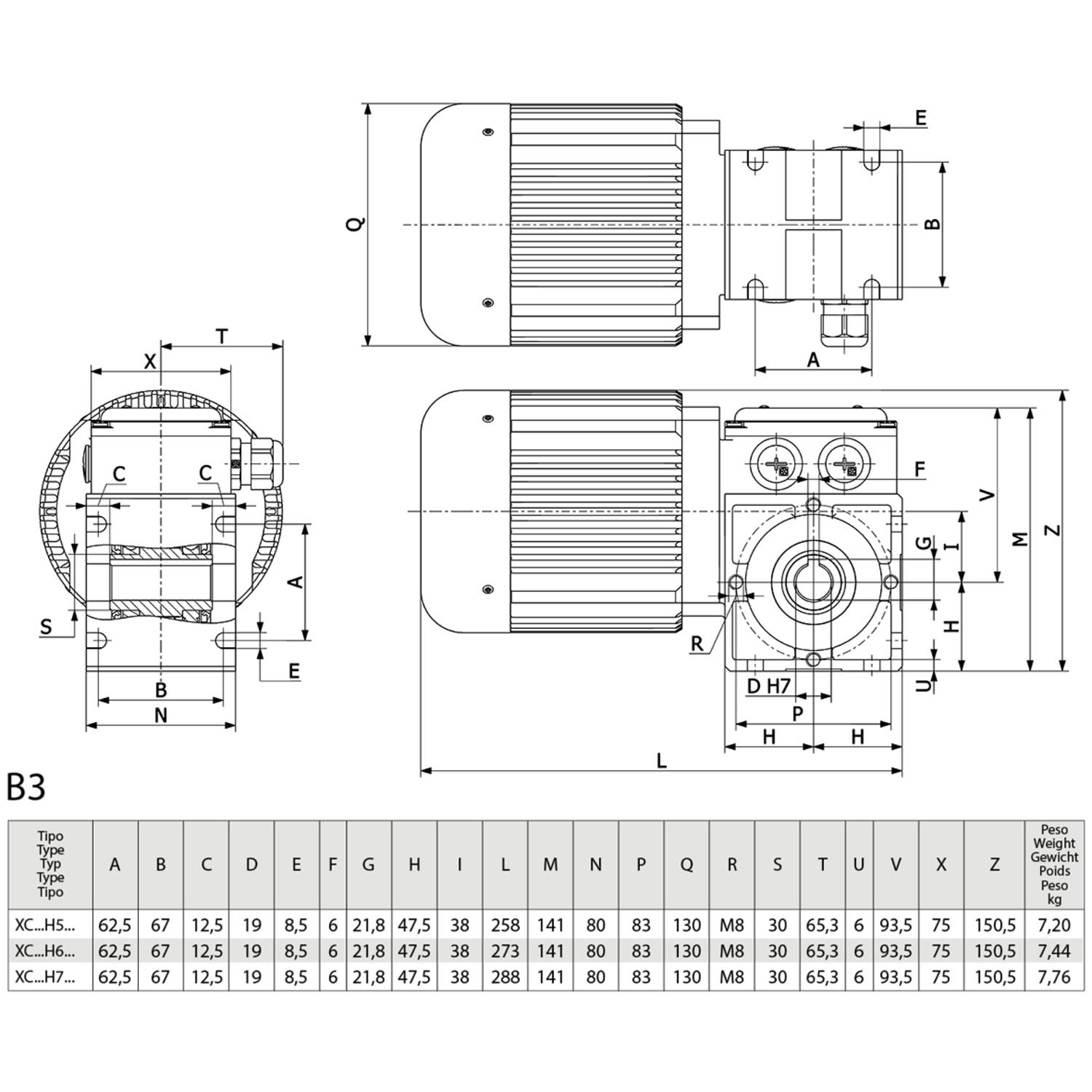

Please click here for 2D and 3D drawings





Read more
  • Compact
  • Up to 750W
  • Up to 35Nm rated torque
  • IP65 as standard
  • IP65 as standard

Selected variant

Available in several variants

Selected variant

Technical data

Input voltage ac 230Δ/400Y
IP class IP65
Nominal speed 590 rpm
Nominal torque 5.8
Output power 370 W
Rated current 1.47Δ/0.85Y
Ratio 5:1

Product description

High quality, designed from the ground up to IP65 rated compact gear motor.



Physically smaller than the majority of similar powered gear motors due to the use of high quality components in precision manufacturing.



Ideally suited to many applications, including label and packaging machines, conveyors, pharmaceutical and medical machinery



MOTOR: asynchronous three phase with 2 or 4 poles, totally enclosed with external ventilation. Class F winding.

IP65 protection according to CEI EN 60529.



GEAR UNIT: with die-cast aluminium casing.

Centre distance 38 mm. CARO bronze ring 120-160 HB hardness.

Hardened steel screw with ground thread rotating on ball and roller bearings. Lubrication with special long life oil.

Sealing rings made in special rubber for high temperatures. 7 gear ratios (i) available, from 5 to 100. Rated torque 35 Nm. Version B3 and B5. B5/S left version - B5/D right version.



Please click here for 2D and 3D drawings
