Minimotor - PC worm gear motor

High quality, designed from the ground up to IP65 rated compact gear motor.



Physically smaller than the majority of similar powered gear motors due to the use of high quality components in precision manufacturing.



Ideally suited to many applications, including label and packaging machines, conveyors, pharmaceutical and medical machinery



MOTOR: Asynchronous single or three phase with 2 or 4 poles, totally enclosed with external ventilation. Thermal safety cutout on single phase model. Class F winding. IP65 protection according to CEI EN 60529.

GEAR UNIT: Die-cast aluminium casing. Centre distance 32 mm. CARO bronze ring 120-160 HB hardness. Hardened steel screw with ground thread rotating on ball and roller bearings. Lubrication with special long life oil. Sealing rings made in special rubber for high temperatures. 9 gear ratios (i) available, from 7 to 100. Rated torque 20 Nm. Version B3 or B5. B5/S left version - B5/D right version.



Please click here for 2D and 3D drawings

Read more
  • Single or three phase
  • 44 to 270W delivered power
  • Up to 20Nm rated torque
  • B3 foot or B5 flange mounting
  • IP65 as standard

Selected variant

Available in several variants
MINIMOTOR.eps

Save page as PDF

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

4967_Rated current (A) 1.03A
Capacitor 8μF
Input voltage ac 230V
IP class IP65
Nominal speed 400 rpm
Nominal torque 3.3
Output power 140 W
Ratio 7:1

Downloads

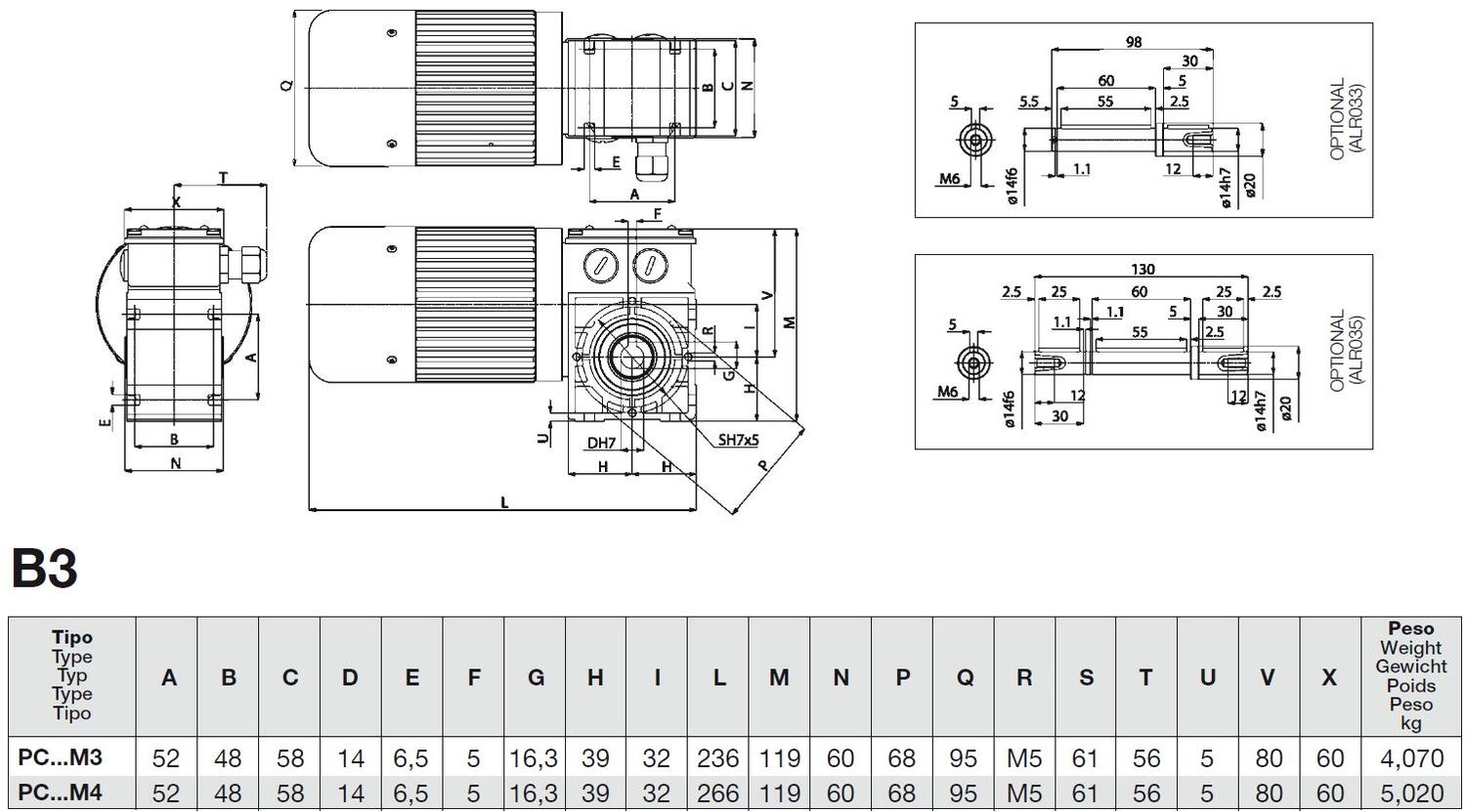

Measurements and connections

Product description

High quality, designed from the ground up to IP65 rated compact gear motor.



Physically smaller than the majority of similar powered gear motors due to the use of high quality components in precision manufacturing.



Ideally suited to many applications, including label and packaging machines, conveyors, pharmaceutical and medical machinery



MOTOR: Asynchronous single or three phase with 2 or 4 poles, totally enclosed with external ventilation. Thermal safety cutout on single phase model. Class F winding. IP65 protection according to CEI EN 60529.

GEAR UNIT: Die-cast aluminium casing. Centre distance 32 mm. CARO bronze ring 120-160 HB hardness. Hardened steel screw with ground thread rotating on ball and roller bearings. Lubrication with special long life oil. Sealing rings made in special rubber for high temperatures. 9 gear ratios (i) available, from 7 to 100. Rated torque 20 Nm. Version B3 or B5. B5/S left version - B5/D right version.



Please click here for 2D and 3D drawings

Accessories

Related

Various motor types from Oriental Motor, Minimotor and Doga - How to select the right motor
Learning hub

How to select the right motor

Determining what motor to use is quite a daunting task. Our Motors experts have developed a guide to show the steps to determine a suitable motor.

synchronous motors
Product news Blog

Synchronous Motors

Do you have a light duty motor requirement requiring a very stable output rpm ? If so, Crouzet synchronous motors are could well provide you ideal solution…

IATECH, the industrial automation technology exhibition OEM automatic
Company news

Recap of IATECH

Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.

IATECH industrial automation components exhibition in at leicester marriott hotel by OEM Automatic
Company news

OEM introduces IATECH - The Industrial Automation Technology Expo

We are thrilled to announce the launch of IATECH, THe Industrial Automation Technology expo at Leicester Marriott Hotel on 23rd October. The ultimate platform for showcasing our extensive product range and broad business areas, featuring over 50 leading suppliers under one roof!

automation components for specialist vehicles
Blog

Automation Components for Specialist Vehicles

The specialist vehicle industry can include automotive and EV, heavy vehicles such as agriculture and rail, and marine.  This email takes you through some of the various products we offer for specialist vehicle applications.

Drive wheels AGV's AMR'S
Product news Blog

Wheel motor drives for AGVs

AGV drive wheel motors cover a wide range of options – from a miniature unit on a small 20kg robot, tasked to move on a perfectly level and smooth indoor surface, up to passenger vehicle-sized robots working outside over fields and varying terrain.

Parts 4967_Rated current (A) Capacitor Input voltage ac Nominal speed Nominal torque Output power Ratio Price
251381_877.tif
230V 1 ph 400rpm 3.3Nm B3 mount
Art:
PC240M3B3-400 Copied
1.03A
8μF
230V
400 rpm
3.3
140 W
7:1
251381_877.tif
230V 1 ph 400rpm 3.3Nm B5 mount
Art:
PC240M3B5-400 Copied
1.03A
8μF
230V
400 rpm
3.3
140 W
7:1
251381_877.tif
230V 1 ph 400rpm 4.6Nm B3 mount
Art:
PC330M4B3-400 Copied
1.5A
10μF
230V
400 rpm
4.6
210 W
7:1
251381_877.tif
230V 1 ph 400rpm 4.6Nm B5 mount
Art:
PC330M4B5-400 Copied
1.5A
10μF
230V
140 rpm
4.6
210 W
7:1
251381_877.tif
230V 1 ph 200rpm 2.3Nm B3 mount
Art:
PC165M3B3-200 Copied
0.53A
4μF
230V
200 rpm
2.3
44 W
7:1
251381_877.tif
230V 1 ph 200rpm 2.3Nm B5 mount
Art:
PC165M3B5-200 Copied
0.53A
4μF
230V
200 rpm
2.3
44 W
7:1
251381_877.tif
230V 1 ph 200rpm 3.3Nm B3 mount
Art:
PC220M4B3-200 Copied
0.7A
5μF
230V
200 rpm
3.3
70 W
7:1
251381_877.tif
230V 1 ph 200rpm 3.3Nm B5 mount
Art:
PC220M4B5-200 Copied
0.7A
5μF
230V
200 rpm
3.3
70 W
7:1
251381_877.tif
230/400V 3 ph 400rpm 4.2Nm B3 mount
Art:
PC440M3TB3-400 Copied
0.9AΔ / 0.52AY
230Δ / 400Y
400 rpm
4.2
180 W
7:1
251381_877.tif
230/400V 3 ph 400rpm 4.2Nm B5 mount
Art:
PC440M3TB5-400 Copied
0.9AΔ / 0.52AY
230Δ / 400Y
400 rpm
4.2
180 W
7:1
251381_877.tif
230/400V 3 ph 400rpm 6.2Nm B3 mount
Art:
PC530M4TB3-400 Copied
1.4AΔ / 0.81AY
230Δ / 400Y
400 rpm
6.2
270 W
7:1
251381_877.tif
230/400V 3 ph 400rpm 6.2Nm B5 mount
Art:
PC530M4TB5-400 Copied
1.4AΔ / 0.81AY
230Δ / 400Y
400 rpm
6.2
270 W
7:1
251381_877.tif
230/400V 3 ph 200rpm 3.3Nm B3 mount
Art:
PC230M3TB3-200 Copied
0.58AΔ / 0.34AY
230Δ / 400Y
200 rpm
3.3
63 W
7:1
251381_877.tif
230/400V 3 ph 200rpm 3.3Nm B5 mount
Art:
PC230M3TB5-200 Copied
0.58AΔ / 0.34AY
230Δ / 400Y
200 rpm
3.3
63 W
7:1
251381_877.tif
230/400V 3 ph 200rpm 4.6Nm B3 mount
Art:
PC310M4TB3-200 Copied
0.78AΔ / 0.45AY
230Δ / 400Y
200 rpm
4.6
91 W
7:1
251381_877.tif
230/400V 3 ph 200rpm 4.6Nm B5 mount
Art:
PC310M4TB5-200 Copied
0.78AΔ / 0.45AY
230Δ / 400Y
200 rpm
4.6
91 W
7:1
251381_877.tif
230V 1 ph 140rpm 8Nm B3 mount
Art:
PC240M3B3-140 Copied
1.03A
8μF
230V
140 rpm
8
140 W
20:1
251381_877.tif
230V 1 ph 140rpm 8Nm B5 mount
Art:
PC240M3B5-140 Copied
1.03A
8μF
230V
140 rpm
8
140 W
20:1
251381_877.tif
230V 1 ph 140rpm 11.4Nm B5 mount
Art:
PC330M4B5-140 Copied
1.5A
10μF
230V
40 rpm
11.4
210 W
20:1
251381_877.tif
230V 1 ph 70rpm 5.6Nm B3 mount
Art:
PC165M3B3-70 Copied
0.53A
4μF
230V
70 rpm
5.6
44 W
20:1
251381_877.tif
230V 1 ph 70rpm 5.6Nm B5 mount
Art:
PC165M3B5-70 Copied
0.53A
4μF
230V
70 rpm
5.6
44 W
20:1
251381_877.tif
230V 1 ph 70rpm 8Nm B5 mount
Art:
PC220M4B5-70 Copied
0.7A
5μF
230V
70 rpm
8
70 W
20:1
251381_877.tif
230/400V 3 ph 140rpm 10.4Nm B3 mount
Art:
PC440M3TB3-140 Copied
0.9AΔ / 0.52AY
230Δ / 400Y
140 rpm
10.4
180 W
20:1
251381_877.tif
230/400V 3 ph 140rpm 10.4Nm B5 mount
Art:
PC440M3TB5-140 Copied
0.9AΔ / 0.52AY
230Δ / 400Y
140 rpm
10.4
180 W
20:1
251381_877.tif
230/400V 3 ph 140rpm 15.4Nm B3 mount
Art:
PC530M4TB5-140 Copied
1.4AΔ / 0.81AY
230Δ / 400Y
140 rpm
15.4
270 W
20:1
251381_877.tif
230/400V 3 ph 70rpm 11.2Nm B3 mount
Art:
PC310M4TB3-70 Copied
0.78AΔ / 0.45AY
230Δ / 400Y
70 rpm
11.2
91 W
20:1
251381_877.tif
230/400V 3 ph 70rpm 11.2Nm B5 mount
Art:
PC310M4TB5-70 Copied
0.78AΔ / 0.45AY
230Δ / 400Y
70 rpm
11.2
91 W
20:1
251381_877.tif
230V 1 ph 140rpm 11.4Nm B3 mount
Art:
PC330M4B3-140 Copied
1.5A
10μF
230V
40 rpm
11.4
210 W
20:1
251381_877.tif
230V 1 ph 70rpm 8Nm B3 mount
Art:
PC220M4B3-70 Copied
0.7A
5μF
230V
70 rpm
8
70 W
20:1
251381_877.tif
230/400V 3 ph 140rpm 15.4Nm B3 mount
Art:
PC530M4TB3-140 Copied
1.4AΔ / 0.81AY
230Δ / 400Y
140 rpm
15.4
270 W
20:1
251381_877.tif
230/400V 3 ph 70rpm 8Nm B3 mount
Art:
PC230M3TB3-70 Copied
0.58AΔ / 0.34AY
230Δ / 400Y
70 rpm
8
63 W
20:1
251381_877.tif
230/400V 3 ph 70rpm 8Nm B5 mount
Art:
PC230M3TB5-70 Copied
0.58AΔ / 0.34AY
230Δ / 400Y
70 rpm
8
63 W
20:1
251381_877.tif
230V 1 ph 93rpm 11Nm B3 mount
Art:
PC240M3B3-93 Copied
1.03A
8μF
230V
93 rpm
11
140 W
30:1
251381_877.tif
230V 1 ph 93rpm 11Nm B5 mount
Art:
PC240M3B5-93 Copied
1.03A
8μF
230V
93 rpm
11
140 W
30:1
251381_877.tif
230V 1 ph 93rpm 15.5Nm B3 mount
Art:
PC330M4B3-93 Copied
1.5A
10μF
230V
93 rpm
15.5
210 W
30:1
251381_877.tif
230V 1 ph 93rpm 15.5Nm B5 mount
Art:
PC330M4B5-93 Copied
1.5A
10μF
230V
93 rpm
15.5
210 W
30:1
251381_877.tif
230V 1 ph 46.5rpm 7.7Nm B3 mount
Art:
PC165M3B3-46.5 Copied
0.53A
4μF
230V
46.5 rpm
7.7
44 W
30:1
251381_877.tif
230V 1 ph 46.5rpm 7.7Nm B5 mount
Art:
PC165M3B5-46.5 Copied
0.53A
4μF
230V
46.5 rpm
7.7
44 W
30:1
251381_877.tif
230V 1 ph 46.5rpm 11Nm B3 mount
Art:
PC220M4B3-46.5 Copied
0.7A
5μF
230V
46.5 rpm
11
70 W
30:1
251381_877.tif
230V 1 ph 46.5rpm 11Nm B5 mount
Art:
PC220M4B5-46.5 Copied
0.7A
5μF
230V
46.5 rpm
11
70 W
30:1
251381_877.tif
230/400V 3 ph 93rpm 14.2Nm B5 mount
Art:
PC440M3TB3-93 Copied
0.9AΔ / 0.52AY
230Δ / 400Y
93 rpm
14.2
180 W
30:1
251381_877.tif
230/400V 3 ph 93rpm 14.2Nm B5 mount
Art:
PC440M3TB5-93 Copied
0.9AΔ / 0.52AY
230Δ / 400Y
93 rpm
14.2
180 W
30:1
251381_877.tif
230/400V 3 ph 93rpm 20Nm B3 mount
Art:
PC530M4TB3-93 Copied
1.4AΔ / 0.81AY
230Δ / 400Y
93 rpm
20
270 W
30:1
251381_877.tif
230/400V 3 ph 93rpm 20Nm B5 mount
Art:
PC530M4TB5-93 Copied
1.4AΔ / 0.81AY
230Δ / 400Y
93 rpm
20
270 W
30:1
251381_877.tif
230/400V 3 ph 46.5rpm 11Nm B3 mount
Art:
PC230M3TB3-46.5 Copied
0.58AΔ / 0.34AY
230Δ / 400Y
46.5 rpm
11
63 W
30:1
251381_877.tif
230/400V 3 ph 46.5rpm 11Nm B5 mount
Art:
PC230M3TB5-46.5 Copied
0.58AΔ / 0.34AY
230Δ / 400Y
46.5 rpm
11
63 W
30:1
251381_877.tif
230/400V 3 ph 46.5rpm 15.3Nm B3 mount
Art:
PC310M4TB3-46.5 Copied
0.78AΔ / 0.45AY
230Δ / 400Y
46.5 rpm
15.3
91 W
30:1
251381_877.tif
230/400V 3 ph 46.5rpm 15.3Nm B5 mount
Art:
PC310M4TB5-46.5 Copied
0.78AΔ / 0.45AY
230Δ / 400Y
46.5 rpm
15.3
91 W
30:1
251381_877.tif
230V 1 ph 70rpm 13.8Nm B3 mount
Art:
PC240M3B3-70 Copied
1.03A
8μF
230V
70 rpm
13.8
140 W
40:1
251381_877.tif
230V 1 ph 70rpm 13.8Nm B5 mount
Art:
PC240M3B5-70 Copied
1.03A
8μF
230V
70 rpm
13.8
140 W
40:1
251381_877.tif
230V 1 ph 70rpm 19.6Nm B3 mount
Art:
PC330M4B3-70 Copied
1.5A
10μF
230V
70 rpm
19.6
210 W
40:1
251381_877.tif
230V 1 ph 70rpm 19.6Nm B5 mount
Art:
PC330M4B5-70 Copied
1.5A
10μF
230V
70 rpm
19.6
210 W
40:1
251381_877.tif
230V 1 ph 35rpm 7.7Nm B3 mount
Art:
PC165M3B3-35 Copied
0.53A
4μF
230V
35 rpm
7.7
44 W
40:1
251381_877.tif
230V 1 ph 35rpm 7.7Nm B5 mount
Art:
PC165M3B5-35 Copied
0.53A
4μF
230V
35 rpm
7.7
44 W
40:1
251381_877.tif
230V 1 ph 35rpm 13.8Nm B3 mount
Art:
PC220M4B3-35 Copied
0.7A
5μF
230V
35 rpm
13.8
70 W
40:1
251381_877.tif
230V 1 ph 35rpm 13.8Nm B5 mount
Art:
PC220M4B5-35 Copied
0.7A
5μF
230V
35 rpm
13.8
70 W
40:1
251381_877.tif
230/400V 3 ph 70rpm 18Nm B5 mount
Art:
PC440M3TB3-70 Copied
0.9AΔ / 0.52AY
230Δ / 400Y
70 rpm
18
180 W
40:1
251381_877.tif
230/400V 3 ph 70rpm 18Nm B5 mount
Art:
PC440M3TB5-70 Copied
0.9AΔ / 0.52AY
230Δ / 400Y
70 rpm
18
180 W
40:1
251381_877.tif
230/400V 3 ph 70rpm 18Nm B3 mount
Art:
PC530M4TB3-70 Copied
1.4AΔ / 0.81AY
230Δ / 400Y
70 rpm
18
270 W
40:1
251381_877.tif
230/400V 3 ph 70rpm 18Nm B5 mount
Art:
PC530M4TB5-70 Copied
1.4AΔ / 0.81AY
230Δ / 400Y
70 rpm
18
270 W
40:1
251381_877.tif
230/400V 3 ph 35rpm 13.8Nm B3 mount
Art:
PC230M3TB3-35 Copied
0.58AΔ / 0.34AY
230Δ / 400Y
35 rpm
13.8
63 W
40:1
251381_877.tif
230/400V 3 ph 35rpm 13.8Nm B5 mount
Art:
PC230M3TB5-35 Copied
0.58AΔ / 0.34AY
230Δ / 400Y
35 rpm
13.8
63 W
40:1
251381_877.tif
230/400V 3 ph 35rpm 19.4Nm B3 mount
Art:
PC310M4TB3-35 Copied
0.78AΔ / 0.45AY
230Δ / 400Y
35 rpm
19.4
91 W
40:1
251381_877.tif
230V 1 ph 56rpm 16.8Nm B3 mount
Art:
PC240M3B3-56 Copied
1.03A
8μF
230V
56 rpm
16.8
140 W
50:1
251381_877.tif
230V 1 ph 56rpm 16.8Nm B5 mount
Art:
PC240M3B5-56 Copied
1.03A
8μF
230V
56 rpm
16.8
140 W
50:1
251381_877.tif
230V 1 ph 56rpm 20Nm B3 mount
Art:
PC330M4B3-56 Copied
1.5A
10μF
230V
56 rpm
20
210 W
50:1
251381_877.tif
230V 1 ph 56rpm 20Nm B5 mount
Art:
PC330M4B5-56 Copied
1.5A
10μF
230V
56 rpm
20
210 W
50:1
251381_877.tif
230V 1 ph 28rpm 11.7Nm B3 mount
Art:
PC165M3B3-28 Copied
0.53A
4μF
230V
28 rpm
11.7
44 W
50:1
251381_877.tif
230V 1 ph 28rpm 11.7Nm B5 mount
Art:
PC165M3B5-28 Copied
0.53A
4μF
230V
28 rpm
11.7
44 W
50:1
251381_877.tif
230V 1 ph 28rpm 17Nm B3 mount
Art:
PC220M4B3-28 Copied
0.7A
5μF
230V
28 rpm
17
70 W
50:1
251381_877.tif
230V 1 ph 28rpm 17Nm B5 mount
Art:
PC220M4B5-28 Copied
0.7A
5μF
230V
28 rpm
17
70 W
50:1
251381_877.tif
230/400V 3 ph 56rpm 20Nm B3 mount
Art:
PC440M3TB3-56 Copied
0.9AΔ / 0.52AY
230Δ / 400Y
56 rpm
20
180 W
50:1
251381_877.tif
230/400V 3 ph 28rpm 16.7Nm B3 mount
Art:
PC230M3TB3-28 Copied
0.58AΔ / 0.34AY
230Δ / 400Y
28 rpm
16.7
63 W
50:1
251381_877.tif
230/400V 3 ph 28rpm 16.7Nm B5 mount
Art:
PC230M3TB5-28 Copied
0.58AΔ / 0.34AY
230Δ / 400Y
28 rpm
16.7
63 W
50:1
251381_877.tif
230/400V 3 ph 28rpm 20Nm B3 mount
Art:
PC310M4TB3-28 Copied
0.78AΔ / 0.45AY
230Δ / 400Y
28 rpm
20
91 W
50:1
251381_877.tif
230/400V 3 ph 28rpm 20Nm B5 mount
Art:
PC310M4TB5-28 Copied
0.78AΔ / 0.45AY
230Δ / 400Y
28 rpm
20
91 W
50:1
251381_877.tif
230V 1 ph 46rpm 18Nm B3 mount
Art:
PC240M3B3-46 Copied
1.03A
8μF
230V
46 rpm
18
140 W
60:1
251381_877.tif
230V 1 ph 46rpm 18Nm B5 mount
Art:
PC240M3B5-46 Copied
1.03A
8μF
230V
46 rpm
18
140 W
60:1
251381_877.tif
230V 1 ph 23rpm 14Nm B3 mount
Art:
PC165M3B3-23 Copied
0.53A
4μF
230V
23 rpm
14
44 W
60:1
251381_877.tif
230V 1 ph 23rpm 14Nm B5 mount
Art:
PC165M3B5-23 Copied
0.53A
4μF
230V
23 rpm
14
44 W
60:1
251381_877.tif
230V 1 ph 23rpm 18Nm B3 mount
Art:
PC220M4B3-23 Copied
0.7A
5μF
230V
23 rpm
18
70 W
60:1
251381_877.tif
230V 1 ph 23rpm 18Nm B5 mount
Art:
PC220M4B5-23 Copied
0.7A
5μF
230V
23 rpm
18
70 W
60:1
251381_877.tif
230/400V 3 ph 46rpm 18Nm B3 mount
Art:
PC440M3TB3-46 Copied
0.9AΔ / 0.52AY
230Δ / 400Y
46 rpm
18
180 W
60:1
251381_877.tif
230/400V 3 ph 46rpm 18Nm B5 mount
Art:
PC440M3TB5-46 Copied
0.9AΔ / 0.52AY
230Δ / 400Y
46 rpm
18
180 W
60:1
251381_877.tif
230/400V 3 ph 23rpm 18Nm B3 mount
Art:
PC230M3TB3-23 Copied
0.58AΔ / 0.34AY
230Δ / 400Y
23 rpm
18
63 W
60:1
251381_877.tif
230/400V 3 ph 23rpm 18Nm B5 mount
Art:
PC230M3TB5-23 Copied
0.58AΔ / 0.34AY
230Δ / 400Y
23 rpm
18
63 W
60:1
251381_877.tif
230V 1 ph 40rpm 17Nm B3 mount
Art:
PC240M3B3-40 Copied
1.03A
8μF
230V
40 rpm
17
140 W
70:1
251381_877.tif
230V 1 ph 40rpm 17Nm B5 mount
Art:
PC240M3B5-40 Copied
1.03A
8μF
230V
40 rpm
17
140 W
70:1
251381_877.tif
230V 1 ph 20rpm 14.4Nm B3 mount
Art:
PC165M3B3-20 Copied
0.53A
4μF
230V
20 rpm
14.4
44 W
70:1
251381_877.tif
230V 1 ph 20rpm 14.4Nm B5 mount
Art:
PC165M3B5-20 Copied
0.53A
4μF
230V
20 rpm
14.4
44 W
70:1
251381_877.tif
230/400V 3 ph 40rpm 17Nm B3 mount
Art:
PC440M3TB3-40 Copied
0.9AΔ / 0.52AY
230Δ / 400Y
40 rpm
17
180 W
70:1
251381_877.tif
230/400V 3 ph 40rpm 17Nm B5 mount
Art:
PC440M3TB5-40 Copied
0.9AΔ / 0.52AY
230Δ / 400Y
40 rpm
17
180 W
70:1
251381_877.tif
230/400V 3 ph 20rpm 17Nm B3 mount
Art:
PC230M3TB3-20 Copied
0.58AΔ / 0.34AY
230Δ / 400Y
20 rpm
17
63 W
70:1
251381_877.tif
230/400V 3 ph 20rpm 17Nm B5 mount
Art:
PC230M3TB5-20 Copied
0.58AΔ / 0.34AY
230Δ / 400Y
20 rpm
17
63 W
70:1
251381_877.tif
230V 1 ph 28rpm 13Nm B3 mount
Art:
PC240M3B3-28 Copied
1.03A
8μF
230V
28 rpm
13
140 W
100:1
251381_877.tif
230V 1 ph 28rpm 13Nm B5 mount
Art:
PC240M3B5-28 Copied
1.03A
8μF
230V
28 rpm
13
140 W
100:1
251381_877.tif
230V 1 ph 14rpm 13Nm B3 mount
Art:
PC165M3B3-14 Copied
0.53A
4μF
230V
14 rpm
13
44 W
100:1
251381_877.tif
230V 1 ph 14rpm 13Nm B5 mount
Art:
PC165M3B5-14 Copied
0.53A
4μF
230V
14 rpm
13
44 W
100:1
251381_877.tif
230/400V 3 ph 28rpm 17Nm B3 mount
Art:
PC440M3TB3-28 Copied
0.9AΔ / 0.52AY
230Δ / 400Y
28 rpm
17
180 W
100:1
251381_877.tif
230/400V 3 ph 28rpm 17Nm B5 mount
Art:
PC440M3TB5-28 Copied
0.9AΔ / 0.52AY
230Δ / 400Y
28 rpm
17
180 W
100:1
251381_877.tif
230/400V 3 ph 14rpm 13Nm B3 mount
Art:
PC230M3TB3-14 Copied
0.58AΔ / 0.34AY
230Δ / 400Y
14 rpm
13
63 W
100:1
251381_877.tif
230/400V 3 ph 14rpm 13Nm B5 mount
Art:
PC230M3TB5-14 Copied
0.58AΔ / 0.34AY
230Δ / 400Y
14 rpm
13
63 W
100:1

Selected variant

Select a variant in the list

Contact us
If you need any help, you can contact us in one of the following ways:
0116 284 9900
Send e-mail
Use live chat
Do you need help?
