MINIMOTOR

Minimotor - MCE worm gear motor with planetary reduction

High quality, designed from the ground up to IP65 rated compact gear motor.



Physically smaller than the majority of similar powered gear motors due to the use of high quality components in precision manufacturing.



Ideally suited to many applications, including label and packaging machines, conveyors, pharmaceutical and medical machinery



MOTOR: Asynchronous single or three phase with 2 or 4 poles, totally enclosed with external ventilation. Thermal safety cutout on single phase model. Class F winding. IP65 protection according to CEI EN 60529.

GEAR UNIT: Die-cast aluminium casing in the first reduction stage, with worm screw and steel casing in the second planetary stage, with CARO bronze ring, 120÷160 HB hardness. Hardened steel screw with ground thread rotating on ball and roller bearings. Lubrication with special long life oil. Sealing rings made in special rubber for high temperatures. 9 gear ratios (i) available, from 37.5 to 400. Rated torque 23.5 Nm. Version B3 or B5. B5/S left version - B5/D right version.



Please click here for 2D and 3D drawings

Read more
  • Single or three phase
  • 14 to 180W delivered power
  • Up to 23.5Nm rated torque
  • B3 foot or B5 flange mounting
  • IP65 as standard

Selected variant

Available in several variants
MINIMOTOR.eps

Save page as PDF

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

Capacitor 3.15μF
Input voltage ac 230V
IP class IP65
Nominal speed 74 rpm
Nominal torque 3,8
Output power 35 W
Rated current 0.41A
Ratio 37.5:1

Downloads

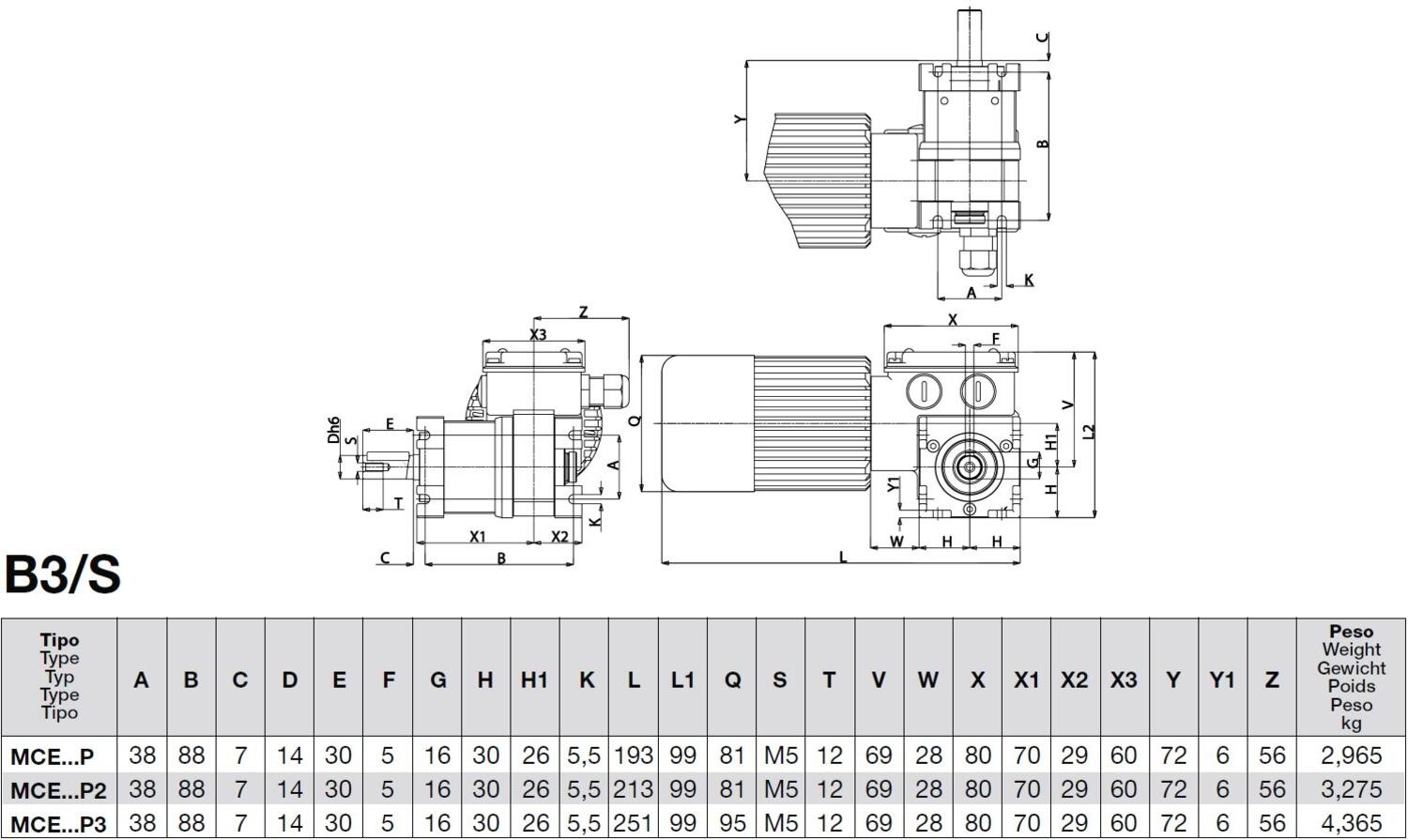

Measurements and connections

Product description

High quality, designed from the ground up to IP65 rated compact gear motor.



Physically smaller than the majority of similar powered gear motors due to the use of high quality components in precision manufacturing.



Ideally suited to many applications, including label and packaging machines, conveyors, pharmaceutical and medical machinery



MOTOR: Asynchronous single or three phase with 2 or 4 poles, totally enclosed with external ventilation. Thermal safety cutout on single phase model. Class F winding. IP65 protection according to CEI EN 60529.

GEAR UNIT: Die-cast aluminium casing in the first reduction stage, with worm screw and steel casing in the second planetary stage, with CARO bronze ring, 120÷160 HB hardness. Hardened steel screw with ground thread rotating on ball and roller bearings. Lubrication with special long life oil. Sealing rings made in special rubber for high temperatures. 9 gear ratios (i) available, from 37.5 to 400. Rated torque 23.5 Nm. Version B3 or B5. B5/S left version - B5/D right version.



Please click here for 2D and 3D drawings

Accessories

Related

synchronous motors
Product news Blog

Synchronous Motors

Do you have a light duty motor requirement requiring a very stable output rpm ? If so, Crouzet synchronous motors are could well provide you ideal solution…

IATECH, the industrial automation technology exhibition OEM automatic
Company news

Recap of IATECH

Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.

IATECH industrial automation components exhibition in at leicester marriott hotel by OEM Automatic
Company news

OEM introduces IATECH - The Industrial Automation Technology Expo

We are thrilled to announce the launch of IATECH, THe Industrial Automation Technology expo at Leicester Marriott Hotel on 23rd October. The ultimate platform for showcasing our extensive product range and broad business areas, featuring over 50 leading suppliers under one roof!

automation components for specialist vehicles
Blog

Automation Components for Specialist Vehicles

The specialist vehicle industry can include automotive and EV, heavy vehicles such as agriculture and rail, and marine.  This email takes you through some of the various products we offer for specialist vehicle applications.

Drive wheels AGV's AMR'S
Product news Blog

Wheel motor drives for AGVs

AGV drive wheel motors cover a wide range of options – from a miniature unit on a small 20kg robot, tasked to move on a perfectly level and smooth indoor surface, up to passenger vehicle-sized robots working outside over fields and varying terrain.

electro pneumatic control box customised bespoke solutions
Case studies

Case Study - Electro Pneumatic Control Box

At OEM Automatic, we can supply a series of components for your one project. All under one roof. This case study discusses how we supplied several components for our customer's new electro-pneumatic control box.

Parts Capacitor Input voltage ac Nominal speed Nominal torque Output power Rated current Ratio Price
251378_877.tif
230V 1 ph 74rpm 3.8Nm B3 mount
Art:
MCE100PB3-74 Copied
3.15μF
230V
74 rpm
3,8
35 W
0.41A
37.5:1
251378_877.tif
230V 1 ph 74rpm 3.8Nm B5 mount
Art:
MCE100PB5-74 Copied
3.15μF
230V
74 rpm
3,8
35 W
0.41A
37.5:1
251378_877.tif
230V 1 ph 74rpm 7.1Nm B3 mount
Art:
MCE160P2B3-74 Copied
4μF
230V
74 rpm
7,1
60 W
0.54A
37.5:1
251378_877.tif
230V 1 ph 74rpm 7.1Nm B5 mount
Art:
MCE160P2B5-74 Copied
4μF
230V
74 rpm
7,1
60 W
0.54A
37.5:1
251378_877.tif
230V 1 ph 74rpm 16.4Nm B3 mount
Art:
MCE240P3B3-74 Copied
8μF
230V
74 rpm
16,4
140 W
1.03A
37.5:1
251378_877.tif
230V 1 ph 74rpm 16.4Nm B5 mount
Art:
MCE240P3B5-74 Copied
8μF
230V
74 rpm
16,4
140 W
1.03A
37.5:1
251378_877.tif
230V 1 ph 37rpm 3.8Nm B3 mount
Art:
MCE80PB3-37 Copied
4μF
230V
37 rpm
3,8
15 W
0.33A
37.5:1
251378_877.tif
230V 1 ph 37rpm 3.8Nm B5 mount
Art:
MCE80PB5-37 Copied
4μF
230V
37 rpm
3,8
15 W
0.33A
37.5:1
251378_877.tif
230V 1 ph 37rpm 4.8Nm B3 mount
Art:
MCE110P2B3-37 Copied
5μF
230V
37 rpm
4,8
19 W
0.41A
37.5:1
251378_877.tif
230V 1 ph 37rpm 4.8Nm B5 mount
Art:
MCE110P2B5-37 Copied
5μF
230V
37 rpm
4,8
19 W
0.41A
37.5:1
251378_877.tif
230V 1 ph 37rpm 11.2Nm B3 mount
Art:
MCE165P3B3-37 Copied
4μF
230V
37 rpm
11,2
44 W
0.53A
37.5:1
251378_877.tif
230V 1 ph 37rpm 11.2Nm B5 mount
Art:
MCE165P3B5-37 Copied
4μF
230V
37 rpm
11,2
44 W
0.53A
37.5:1
251378_877.tif
230/400V 3 ph 74rpm 5.8Nm B3 mount
Art:
MCE244PTB3-74 Copied
230/400V
74 rpm
5,8
49 W
0.52Δ/0.30Y
37.5:1
251378_877.tif
230/400V 3 ph 74rpm 5.8Nm B5 mount
Art:
MCE244PTB5-74 Copied
230/400V
74 rpm
5,8
49 W
0.52Δ/0.30Y
37.5:1
251378_877.tif
230/400V 3 ph 74rpm 8.7Nm B3 mount
Art:
MCE320P2TB3-74 Copied
230/400V
74 rpm
8,7
74 W
0.62Δ/0.36Y
37.5:1
251378_877.tif
230/400V 3 ph 74rpm 8.7Nm B5 mount
Art:
MCE320P2TB5-74 Copied
230/400V
74 rpm
8,7
74 W
0.62Δ/0.36Y
37.5:1
251378_877.tif
230/400V 3 ph 74rpm 21.3Nm B3 mount
Art:
MCE440P3TB3-74 Copied
230/400V
74 rpm
21,3
180 W
0.90Δ/0.52Y
37.5:1
251378_877.tif
230/400V 3 ph 74rpm 21.3Nm B5 mount
Art:
MCE440P3TB5-74 Copied
230/400V
74 rpm
21,3
180 W
0.90Δ/0.52Y
37.5:1
251378_877.tif
230/400V 3 ph 37rpm 3.4Nm B3 mount
Art:
MCE110PTB3-37 Copied
230/400V
37 rpm
3,4
14 W
0.25Δ/0.14Y
37.5:1
251378_877.tif
230/400V 3 ph 37rpm 3.4Nm B5 mount
Art:
MCE110PTB5-37 Copied
230/400V
37 rpm
3,4
14 W
0.25Δ/0.14Y
37.5:1
251378_877.tif
230/400V 3 ph 37rpm 4.4Nm B3 mount
Art:
MCE145P2TB3-37 Copied
230/400V
37 rpm
4,4
18 W
0.32Δ/0.18Y
37.5:1
251378_877.tif
230/400V 3 ph 37rpm 4.4Nm B5 mount
Art:
MCE145P2TB5-37 Copied
230/400V
37 rpm
4,4
18 W
0.32Δ/0.18Y
37.5:1
251378_877.tif
230/400V 3 ph 37rpm 16.4Nm B3 mount
Art:
MCE230P3TB3-37 Copied
230/400V
37 rpm
16,4
63 W
0.58Δ/0.34Y
37.5:1
251378_877.tif
230/400V 3 ph 37rpm 16.4Nm B5 mount
Art:
MCE230P3TB5-37 Copied
230/400V
37 rpm
16,4
63 W
0.58Δ/0.34Y
37.5:1
251378_877.tif
230V 1 ph 56rpm 5.3Nm B3 mount
Art:
MCE100PB3-56 Copied
3.15μF
230V
56 rpm
5,3
35 W
0.41A
50:1
251378_877.tif
230V 1 ph 56rpm 5.3Nm B5 mount
Art:
MCE100PB5-56 Copied
3.15μF
230V
56 rpm
5,3
35 W
0.41A
50:1
251378_877.tif
230V 1 ph 56rpm 9.2Nm B3 mount
Art:
MCE160P2B3-56 Copied
4μF
230V
56 rpm
9,2
60 W
0.54A
50:1
251378_877.tif
230V 1 ph 56rpm 9.2Nm B5 mount
Art:
MCE160P2B5-56 Copied
4μF
230V
56 rpm
9,2
60 W
0.54A
50:1
251378_877.tif
230V 1 ph 56rpm 21.2Nm B3 mount
Art:
MCE240P3B3-56 Copied
8μF
230V
56 rpm
21,2
140 W
1.03A
50:1
251378_877.tif
230V 1 ph 56rpm 21.2Nm B5 mount
Art:
MCE240P3B5-56 Copied
8μF
230V
56 rpm
21,2
140 W
1.03A
50:1
251378_877.tif
230V 1 ph 28rpm 4.8Nm B3 mount
Art:
MCE80PB3-28 Copied
4μF
230V
28 rpm
4,8
15 W
0.33A
50:1
251378_877.tif
230V 1 ph 28rpm 4.8Nm B5 mount
Art:
MCE80PB5-28 Copied
4μF
230V
28 rpm
4,8
15 W
0.33A
50:1
251378_877.tif
230V 1 ph 28rpm 6.2Nm B3 mount
Art:
MCE110P2B3-28 Copied
5μF
230V
28 rpm
6,2
19 W
0.41A
50:1
251378_877.tif
230V 1 ph 28rpm 6.2Nm B5 mount
Art:
MCE110P2B5-28 Copied
5μF
230V
28 rpm
6,2
19 W
0.41A
50:1
251378_877.tif
230V 1 ph 28rpm 15Nm B3 mount
Art:
MCE165P3B3-28 Copied
4μF
230V
28 rpm
15
44 W
0.53A
50:1
251378_877.tif
230V 1 ph 28rpm 15Nm B5 mount
Art:
MCE165P3B5-28 Copied
4μF
230V
28 rpm
15
44 W
0.53A
50:1
251378_877.tif
230/400V 3 ph 56rpm 7.7Nm B3 mount
Art:
MCE244PTB3-56 Copied
230/400V
56 rpm
7,7
49 W
0.52Δ/0.30Y
50:1
251378_877.tif
230/400V 3 ph 56rpm 7.7Nm B5 mount
Art:
MCE244PTB5-56 Copied
230/400V
56 rpm
7,7
49 W
0.52Δ/0.30Y
50:1
251378_877.tif
230/400V 3 ph 56rpm 11.6Nm B3 mount
Art:
MCE320P2TB3-56 Copied
230/400V
56 rpm
11,6
74 W
0.62Δ/0.36Y
50:1
251378_877.tif
230/400V 3 ph 56rpm 11.6Nm B5 mount
Art:
MCE320P2TB5-56 Copied
230/400V
56 rpm
11,6
74 W
0.62Δ/0.36Y
50:1
251378_877.tif
230/400V 3 ph 56rpm 23.5Nm B3 mount
Art:
MCE440P3TB3-56 Copied
230/400V
56 rpm
23,5
180 W
0.90Δ/0.52Y
50:1
251378_877.tif
230/400V 3 ph 56rpm 23.5Nm B5 mount
Art:
MCE440P3TB5-56 Copied
230/400V
56 rpm
23,5
180 W
0.90Δ/0.52Y
50:1
251378_877.tif
230/400V 3 ph 28rpm 4.4Nm B3 mount
Art:
MCE110PTB3-28 Copied
230/400V
28 rpm
4,4
14 W
0.25Δ/0.14Y
50:1
251378_877.tif
230/400V 3 ph 28rpm 4.4Nm B5 mount
Art:
MCE110PTB5-28 Copied
230/400V
28 rpm
4,4
14 W
0.25Δ/0.14Y
50:1
251378_877.tif
230/400V 3 ph 28rpm 5.8Nm B3 mount
Art:
MCE145P2TB3-28 Copied
230/400V
28 rpm
5,8
18 W
0.32Δ/0.18Y
50:1
251378_877.tif
230/400V 3 ph 28rpm 5.8Nm B5 mount
Art:
MCE145P2TB5-28 Copied
230/400V
28 rpm
5,8
18 W
0.32Δ/0.18Y
50:1
251378_877.tif
230/400V 3 ph 28rpm 21.3Nm B3 mount
Art:
MCE230P3TB3-28 Copied
230/400V
28 rpm
21,3
63 W
0.58Δ/0.34Y
50:1
251378_877.tif
230/400V 3 ph 28rpm 21.3Nm B5 mount
Art:
MCE230P3TB5-28 Copied
230/400V
28 rpm
21,3
63 W
0.58Δ/0.34Y
50:1
251378_877.tif
230V 1 ph 37rpm 7.7Nm B3 mount
Art:
MCE100PB3-37 Copied
3.15μF
230V
37 rpm
7,7
35 W
0.41A
75:1
251378_877.tif
230V 1 ph 37rpm 7.7Nm B5 mount
Art:
MCE100PB5-37 Copied
3.15μF
230V
37 rpm
7,7
35 W
0.41A
75:1
251378_877.tif
230V 1 ph 37rpm 13.5Nm B3 mount
Art:
MCE160P2B3-37 Copied
4μF
230V
37 rpm
13,5
60 W
0.54A
75:1
251378_877.tif
230V 1 ph 37rpm 13.5Nm B5 mount
Art:
MCE160P2B5-37 Copied
4μF
230V
37 rpm
13,5
60 W
0.54A
75:1
251378_877.tif
230V 1 ph 37rpm 23.5Nm B3 mount
Art:
MCE240P3B3-37 Copied
8μF
230V
37 rpm
23,5
140 W
1.03A
75:1
251378_877.tif
230V 1 ph 37rpm 23.5Nm B5 mount
Art:
MCE240P3B5-37 Copied
8μF
230V
37 rpm
23,5
140 W
1.03A
75:1
251378_877.tif
230V 1 ph 18.5rpm 7.2Nm B3 mount
Art:
MCE80PB3-18.5 Copied
4μF
230V
18,5 rpm
7,2
15 W
0.33A
75:1
251378_877.tif
230V 1 ph 18.5rpm 7.2Nm B5 mount
Art:
MCE80PB5-18.5 Copied
4μF
230V
18,5 rpm
7,2
15 W
0.33A
75:1
251378_877.tif
230V 1 ph 18.5rpm 9.2Nm B3 mount
Art:
MCE110P2B3-18.5 Copied
5μF
230V
18,5 rpm
9,2
19 W
0.41A
75:1
251378_877.tif
230V 1 ph 18.5rpm 9.2Nm B5 mount
Art:
MCE110P2B5-18.5 Copied
5μF
230V
18,5 rpm
9,2
19 W
0.41A
75:1
251378_877.tif
230V 1 ph 18.5rpm 21.8Nm B3 mount
Art:
MCE165P3B3-18.5 Copied
4μF
230V
18,5 rpm
21,8
44 W
0.53A
75:1
251378_877.tif
230V 1 ph 18.5rpm 21.8Nm B5 mount
Art:
MCE165P3B5-18.5 Copied
4μF
230V
18,5 rpm
21,8
44 W
0.53A
75:1
251378_877.tif
230/400V 3 ph 37rpm 11.1Nm B3 mount
Art:
MCE244PTB3-37 Copied
230/400V
37 rpm
11,1
49 W
0.52Δ/0.30Y
75:1
251378_877.tif
230/400V 3 ph 37rpm 11.1Nm B5 mount
Art:
MCE244PTB5-37 Copied
230/400V
37 rpm
11,1
49 W
0.52Δ/0.30Y
75:1
251378_877.tif
230/400V 3 ph 37rpm 16.4Nm B3 mount
Art:
MCE320P2TB3-37 Copied
230/400V
37 rpm
16,4
74 W
0.62Δ/0.36Y
75:1
251378_877.tif
230/400V 3 ph 37rpm 16.4Nm B5 mount
Art:
MCE320P2TB5-37 Copied
230/400V
37 rpm
16,4
74 W
0.62Δ/0.36Y
75:1
251378_877.tif
230/400V 3 ph 37rpm 23.5Nm B3 mount
Art:
MCE440P3TB3-37 Copied
230/400V
37 rpm
23,5
180 W
0.90Δ/0.52Y
75:1
251378_877.tif
230/400V 3 ph 37rpm 23.5Nm B5 mount
Art:
MCE440P3TB5-37 Copied
230/400V
37 rpm
23,5
180 W
0.90Δ/0.52Y
75:1
251378_877.tif
230/400V 3 ph 18.5rpm 6.8Nm B3 mount
Art:
MCE110PTB3-18.5 Copied
230/400V
18,5 rpm
6,8
14 W
0.25Δ/0.14Y
75:1
251378_877.tif
230/400V 3 ph 18.5rpm 6.8Nm B5 mount
Art:
MCE110PTB5-18.5 Copied
230/400V
18,5 rpm
6,8
14 W
0.25Δ/0.14Y
75:1
251378_877.tif
230/400V 3 ph 18.5rpm 8.7Nm B3 mount
Art:
MCE145P2TB3-18.5 Copied
230/400V
18,5 rpm
8,7
18 W
0.32Δ/0.18Y
75:1
251378_877.tif
230/400V 3 ph 18.5rpm 8.7Nm B5 mount
Art:
MCE145P2TB5-18.5 Copied
230/400V
18,5 rpm
8,7
18 W
0.32Δ/0.18Y
75:1
251378_877.tif
230/400V 3 ph 18.5rpm 23.5Nm B3 mount
Art:
MCE230P3TB3-18.5 Copied
230/400V
18,5 rpm
23,5
63 W
0.58Δ/0.34Y
75:1
251378_877.tif
230/400V 3 ph 18.5rpm 23.5Nm B5 mount
Art:
MCE230P3TB5-18.5 Copied
230/400V
18,5 rpm
23,5
63 W
0.58Δ/0.34Y
75:1
251378_877.tif
230V 1 ph 28rpm 11.5Nm B3 mount
Art:
MCE100PB3-28 Copied
3.15μF
230V
28 rpm
11,5
35 W
0.41A
100:1
251378_877.tif
230V 1 ph 28rpm 11.5Nm B5 mount
Art:
MCE100PB5-28 Copied
3.15μF
230V
28 rpm
11,5
35 W
0.41A
100:1
251378_877.tif
230V 1 ph 28rpm 16.4Nm B3 mount
Art:
MCE160P2B3-28 Copied
4μF
230V
18 rpm
16,4
60 W
0.54A
150:1
251378_877.tif
230V 1 ph 28rpm 16.4Nm B5 mount
Art:
MCE160P2B5-28 Copied
4μF
230V
18 rpm
16,4
60 W
0.54A
150:1
251378_877.tif
230V 1 ph 28rpm 23.5Nm B3 mount
Art:
MCE240P3B3-28 Copied
8μF
230V
28 rpm
23,5
140 W
1.03A
100:1
251378_877.tif
230V 1 ph 28rpm 23.5Nm B5 mount
Art:
MCE240P3B5-28 Copied
8μF
230V
28 rpm
23,5
140 W
1.03A
100:1
251378_877.tif
230V 1 ph 14rpm 8.7Nm B3 mount
Art:
MCE80PB3-14 Copied
4μF
230V
14 rpm
8,7
15 W
0.33A
100:1
251378_877.tif
230V 1 ph 14rpm 8.7Nm B5 mount
Art:
MCE80PB5-14 Copied
4μF
230V
14 rpm
8,7
15 W
0.33A
100:1
251378_877.tif
230V 1 ph 14rpm 11.1Nm B3 mount
Art:
MCE110P2B3-14 Copied
5μF
230V
14 rpm
11,1
19 W
0.41A
100:1
251378_877.tif
230V 1 ph 14rpm 11.1Nm B5 mount
Art:
MCE110P2B5-14 Copied
5μF
230V
14 rpm
11,1
19 W
0.41A
100:1
251378_877.tif
230V 1 ph 14rpm 23.5Nm B3 mount
Art:
MCE165P3B3-14 Copied
4μF
230V
14 rpm
23,5
44 W
0.53A
100:1
251378_877.tif
230V 1 ph 14rpm 23.5Nm B5 mount
Art:
MCE165P3B5-14 Copied
4μF
230V
14 rpm
23,5
44 W
0.53A
100:1
251378_877.tif
230/400V 3 ph 28rpm 13.5Nm B3 mount
Art:
MCE244PTB3-28 Copied
230/400V
28 rpm
13,5
49 W
0.52Δ/0.30Y
100:1
251378_877.tif
230/400V 3 ph 28rpm 13.5Nm B5 mount
Art:
MCE244PTB5-28 Copied
230/400V
28 rpm
13,5
49 W
0.52Δ/0.30Y
100:1
251378_877.tif
230/400V 3 ph 28rpm 20.3Nm B3 mount
Art:
MCE320P2TB3-28 Copied
230/400V
28 rpm
20,3
74 W
0.62Δ/0.36Y
100:1
251378_877.tif
230/400V 3 ph 28rpm 20.3Nm B5 mount
Art:
MCE320P2TB5-28 Copied
230/400V
28 rpm
20,3
74 W
0.62Δ/0.36Y
100:1
251378_877.tif
230/400V 3 ph 28rpm 23.5Nm B3 mount
Art:
MCE440P3TB3-28 Copied
230/400V
28 rpm
23,5
180 W
0.90Δ/0.52Y
100:1
251378_877.tif
230/400V 3 ph 28rpm 23.5Nm B5 mount
Art:
MCE440P3TB5-28 Copied
230/400V
28 rpm
23,5
180 W
0.90Δ/0.52Y
100:1
251378_877.tif
230/400V 3 ph 14rpm 8.2Nm B3 mount
Art:
MCE110PTB3-14 Copied
230/400V
14 rpm
8,2
14 W
0.25Δ/0.14Y
100:1
251378_877.tif
230/400V 3 ph 14rpm 8.2Nm B5 mount
Art:
MCE110PTB5-14 Copied
230/400V
14 rpm
8,2
14 W
0.25Δ/0.14Y
100:1
251378_877.tif
230/400V 3 ph 14rpm 10.6Nm B3 mount
Art:
MCE145P2TB3-14 Copied
230/400V
14 rpm
10,6
18 W
0.32Δ/0.18Y
100:1
251378_877.tif
230/400V 3 ph 14rpm 10.6Nm B5 mount
Art:
MCE145P2TB5-14 Copied
230/400V
14 rpm
10,6
18 W
0.32Δ/0.18Y
100:1
251378_877.tif
230/400V 3 ph 14rpm 23.5Nm B3 mount
Art:
MCE230P3TB3-14 Copied
230/400V
14 rpm
23,5
63 W
0.58Δ/0.34Y
100:1
251378_877.tif
230/400V 3 ph 14rpm 23.5Nm B5 mount
Art:
MCE230P3TB5-14 Copied
230/400V
14 rpm
23,5
63 W
0.58Δ/0.34Y
100:1
251378_877.tif
230V 1 ph 18rpm 13.5Nm B3 mount
Art:
MCE100PB3-18 Copied
3.15μF
230V
18 rpm
13,5
35 W
0.41A
150:1
251378_877.tif
230V 1 ph 18rpm 13.5Nm B5 mount
Art:
MCE100PB5-18 Copied
3.15μF
230V
18 rpm
13,5
35 W
0.41A
150:1
251378_877.tif
230V 1 ph 18rpm 23.2Nm B3 mount
Art:
MCE160P2B3-18 Copied
4μF
230V
18 rpm
23,2
60 W
0.54A
150:1
251378_877.tif
230V 1 ph 18rpm 23.2Nm B5 mount
Art:
MCE160P2B5-18 Copied
4μF
230V
18 rpm
23,2
60 W
0.54A
150:1
251378_877.tif
230V 1 ph 9rpm 12.6Nm B3 mount
Art:
MCE80PB3-9 Copied
4μF
230V
9 rpm
12,6
15 W
0.33A
150:1
251378_877.tif
230V 1 ph 9rpm 12.6Nm B5 mount
Art:
MCE80PB5-9 Copied
4μF
230V
9 rpm
12,6
15 W
0.33A
150:1
251378_877.tif
230V 1 ph 9rpm 23.5Nm B3 mount
Art:
MCE165P3B3-9 Copied
4μF
230V
9 rpm
23,5
44 W
0.53A
150:1
251378_877.tif
230V 1 ph 9rpm 23.5Nm B5 mount
Art:
MCE165P3B5-9 Copied
4μF
230V
9 rpm
23,5
44 W
0.53A
150:1
251378_877.tif
230V 1 ph 9rpm 15.5Nm B3 mount
Art:
MCE110P2B3-9 Copied
5μF
230V
9 rpm
15,5
19 W
0.41A
150:1
251378_877.tif
230V 1 ph 9rpm 15.5Nm B5 mount
Art:
MCE110P2B5-9 Copied
5μF
230V
9 rpm
15,5
19 W
0.41A
150:1
251378_877.tif
230/400V 3 ph 18rpm 18.8Nm B3 mount
Art:
MCE244PTB3-18 Copied
230/400V
18 rpm
18,8
49 W
0.52Δ/0.30Y
150:1
251378_877.tif
230/400V 3 ph 18rpm 18.8Nm B5 mount
Art:
MCE244PTB5-18 Copied
230/400V
18 rpm
18,8
49 W
0.52Δ/0.30Y
150:1
251378_877.tif
230/400V 3 ph 18rpm 23.5Nm B3 mount
Art:
MCE320P2TB3-18 Copied
230/400V
18 rpm
23,5
74 W
0.62Δ/0.36Y
150:1
251378_877.tif
230/400V 3 ph 18rpm 23.5Nm B5 mount
Art:
MCE320P2TB5-18 Copied
230/400V
18 rpm
23,5
74 W
0.62Δ/0.36Y
150:1
251378_877.tif
230/400V 3 ph 9rpm 11.6Nm B3 mount
Art:
MCE110PTB3-9 Copied
230/400V
9 rpm
11,6
14 W
0.25Δ/0.14Y
150:1
251378_877.tif
230/400V 3 ph 9rpm 11.6Nm B5 mount
Art:
MCE110PTB5-9 Copied
230/400V
9 rpm
11,6
14 W
0.25Δ/0.14Y
150:1
251378_877.tif
230/400V 3 ph 9rpm 14.5Nm B3 mount
Art:
MCE145P2TB3-9 Copied
230/400V
9 rpm
14,5
18 W
0.32Δ/0.18Y
150:1
251378_877.tif
230/400V 3 ph 9rpm 14.5Nm B5 mount
Art:
MCE145P2TB5-9 Copied
230/400V
9 rpm
14,5
18 W
0.32Δ/0.18Y
150:1
251378_877.tif
230V 1 ph 14rpm 17Nm B3 mount
Art:
MCE100PB3-14 Copied
3.15μF
230V
14 rpm
17
35 W
0.41A
200:1
251378_877.tif
230V 1 ph 14rpm 17Nm B5 mount
Art:
MCE100PB5-14 Copied
3.15μF
230V
14 rpm
17
35 W
0.41A
200:1
251378_877.tif
230V 1 ph 14rpm 23.5Nm B3 mount
Art:
MCE160P2B3-14 Copied
4μF
230V
14 rpm
23,5
60 W
0.54A
200:1
251378_877.tif
230V 1 ph 14rpm 23.5Nm B5 mount
Art:
MCE160P2B5-14 Copied
4μF
230V
14 rpm
23,5
60 W
0.54A
200:1
251378_877.tif
230V 1 ph 7rpm 15.5Nm B3 mount
Art:
MCE80PB3-7 Copied
4μF
230V
7 rpm
15,5
15 W
0.33A
200:1
251378_877.tif
230V 1 ph 7rpm 15.5Nm B5 mount
Art:
MCE80PB5-7 Copied
4μF
230V
7 rpm
15,5
15 W
0.33A
200:1
251378_877.tif
230V 1 ph 7rpm 23.5Nm B3 mount
Art:
MCE165P3B3-7 Copied
4μF
230V
7 rpm
23,5
44 W
0.53A
200:1
251378_877.tif
230V 1 ph 7rpm 23.5Nm B5 mount
Art:
MCE165P3B5-7 Copied
4μF
230V
7 rpm
23,5
44 W
0.53A
200:1
251378_877.tif
230V 1 ph 7rpm 19.3Nm B3 mount
Art:
MCE110P2B3-7 Copied
5μF
230V
7 rpm
19,3
19 W
0.41A
200:1
251378_877.tif
230V 1 ph 7rpm 19.3Nm B5 mount
Art:
MCE110P2B5-7 Copied
5μF
230V
7 rpm
19,3
19 W
0.41A
200:1
251378_877.tif
230/400V 3 ph 14rpm 23.2Nm B3 mount
Art:
MCE244PTB3-14 Copied
230/400V
14 rpm
23,2
49 W
0.52Δ/0.30Y
200:1
251378_877.tif
230/400V 3 ph 14rpm 23.2Nm B5 mount
Art:
MCE244PTB5-14 Copied
230/400V
14 rpm
23,2
49 W
0.52Δ/0.30Y
200:1
251378_877.tif
230/400V 3 ph 14rpm 23.5Nm B3 mount
Art:
MCE320P2TB3-14 Copied
230/400V
14 rpm
23,5
74 W
0.62Δ/0.36Y
200:1
251378_877.tif
230/400V 3 ph 14rpm 23.5Nm B5 mount
Art:
MCE320P2TB5-14 Copied
230/400V
14 rpm
23,5
74 W
0.62Δ/0.36Y
200:1
251378_877.tif
230/400V 3 ph 7rpm 14.5Nm B3 mount
Art:
MCE110PTB3-7 Copied
230/400V
7 rpm
14,5
14 W
0.25Δ/0.14Y
200:1
251378_877.tif
230/400V 3 ph 7rpm 14.5Nm B5 mount
Art:
MCE110PTB5-7 Copied
230/400V
7 rpm
14,5
14 W
0.25Δ/0.14Y
200:1
251378_877.tif
230/400V 3 ph 7rpm 18.3Nm B3 mount
Art:
MCE145P2TB3-7 Copied
230/400V
7 rpm
18,3
18 W
0.32Δ/0.18Y
200:1
251378_877.tif
230/400V 3 ph 7rpm 18.3Nm B5 mount
Art:
MCE145P2TB5-7 Copied
230/400V
7 rpm
18,3
18 W
0.32Δ/0.18Y
200:1
251378_877.tif
230V 1 ph 9rpm 23.5Nm B3 mount
Art:
MCE100PB3-9 Copied
3.15μF
230V
9 rpm
23,5
35 W
0.41A
300:1
251378_877.tif
230V 1 ph 9rpm 23.5Nm B5 mount
Art:
MCE100PB5-9 Copied
3.15μF
230V
9 rpm
23,5
35 W
0.41A
300:1
251378_877.tif
230V 1 ph 4.5rpm 22.2Nm B3 mount
Art:
MCE80PB3-4.5 Copied
4μF
230V
4,5 rpm
22,2
15 W
0.33A
300:1
251378_877.tif
230V 1 ph 4.5rpm 22.2Nm B5 mount
Art:
MCE80PB5-4.5 Copied
4μF
230V
4,5 rpm
22,2
15 W
0.33A
300:1
251378_877.tif
230V 1 ph 4.5rpm 23.5Nm B3 mount
Art:
MCE110P2B3-4.5 Copied
5μF
230V
4,5 rpm
23,5
19 W
0.41A
300:1
251378_877.tif
230V 1 ph 4.5rpm 23.5Nm B5 mount
Art:
MCE110P2B5-4.5 Copied
5μF
230V
4,5 rpm
23,5
19 W
0.41A
300:1
251378_877.tif
230/400V 3 ph 9rpm 23.5Nm B3 mount
Art:
MCE244PTB3-9 Copied
230/400V
9 rpm
23,5
49 W
0.52Δ/0.30Y
300:1
251378_877.tif
230/400V 3 ph 9rpm 23.5Nm B5 mount
Art:
MCE244PTB5-9 Copied
230/400V
9 rpm
23,5
49 W
0.52Δ/0.30Y
300:1
251378_877.tif
230/400V 3 ph 4.5rpm 20.3Nm B3 mount
Art:
MCE110PTB3-4.5 Copied
230/400V
4,5 rpm
20,3
14 W
0.25Δ/0.14Y
300:1
251378_877.tif
230/400V 3 ph 4.5rpm 20.3Nm B5 mount
Art:
MCE110PTB5-4.5 Copied
230/400V
4,5 rpm
20,3
14 W
0.25Δ/0.14Y
300:1
251378_877.tif
230/400V 3 ph 4.5rpm 23.5Nm B3 mount
Art:
MCE145P2TB3-4.5 Copied
230/400V
4,5 rpm
23,5
18 W
0.32Δ/0.18Y
300:1
251378_877.tif
230/400V 3 ph 4.5rpm 23.5Nm B5 mount
Art:
MCE145P2TB5-4.5 Copied
230/400V
4,5 rpm
23,5
18 W
0.32Δ/0.18Y
300:1
251378_877.tif
230V 1 ph 8rpm 23.5Nm B3 mount
Art:
MCE100PB3-8 Copied
3.15μF
230V
8 rpm
23,5
35 W
0.41A
350:1
251378_877.tif
230V 1 ph 8rpm 23.5Nm B5 mount
Art:
MCE100PB5-8 Copied
3.15μF
230V
8 rpm
23,5
35 W
0.41A
350:1
251378_877.tif
230V 1 ph 4rpm 23.5Nm B3 mount
Art:
MCE80PB3-4 Copied
4μF
230V
4 rpm
23,5
15 W
0.33A
350:1
251378_877.tif
230V 1 ph 4rpm 23.5Nm B5 mount
Art:
MCE80PB5-4 Copied
4μF
230V
4 rpm
23,5
15 W
0.33A
350:1
251378_877.tif
230/400V 3 ph 8rpm 23.5Nm B3 mount
Art:
MCE244PTB3-8 Copied
230/400V
8 rpm
23,5
49 W
0.52Δ/0.30Y
350:1
251378_877.tif
230/400V 3 ph 8rpm 23.5Nm B5 mount
Art:
MCE244PTB5-8 Copied
230/400V
8 rpm
23,5
49 W
0.52Δ/0.30Y
350:1
251378_877.tif
230/400V 3 ph 4rpm 21.7Nm B3 mount
Art:
MCE110PTB3-4 Copied
230/400V
4 rpm
21,7
14 W
0.25Δ/0.14Y
350:1
251378_877.tif
230/400V 3 ph 4rpm 21.7Nm B5 mount
Art:
MCE110PTB5-4 Copied
230/400V
4 rpm
21,7
14 W
0.25Δ/0.14Y
350:1
251378_877.tif
230V 1 ph 7rpm 23.5Nm B3 mount
Art:
MCE100PB3-7 Copied
3.15μF
230V
7 rpm
23,5
35 W
0.41A
400:1
251378_877.tif
230V 1 ph 7rpm 23.5Nm B5 mount
Art:
MCE100PB5-7 Copied
3.15μF
230V
7 rpm
23,5
35 W
0.41A
400:1
251378_877.tif
230V 1 ph 3.5rpm 23.5Nm B3 mount
Art:
MCE80PB3-3.5 Copied
4μF
230V
3,5 rpm
23,5
15 W
0.33A
400:1
251378_877.tif
230V 1 ph 3.5rpm 23.5Nm B5 mount
Art:
MCE80PB5-3.5 Copied
4μF
230V
3,5 rpm
23,5
15 W
0.33A
400:1
251378_877.tif
230/400V 3 ph 7rpm 23.5Nm B3 mount
Art:
MCE244PTB3-7 Copied
230/400V
7 rpm
23,5
49 W
0.52Δ/0.30Y
400:1
251378_877.tif
230/400V 3 ph 7rpm 23.5Nm B5 mount
Art:
MCE244PTB5-7 Copied
230/400V
7 rpm
23,5
49 W
0.52Δ/0.30Y
400:1
251378_877.tif
230/400V 3 ph 3.5rpm 23.2Nm B3 mount
Art:
MCE110PTB3-3.5 Copied
230/400V
3,5 rpm
23,2
14 W
0.25Δ/0.14Y
400:1

Selected variant

Select a variant in the list

Contact us
If you need any help, you can contact us in one of the following ways:
0116 284 9900
Send e-mail
Use live chat
Do you need help?
Logo

Cookie settings for OEM.CO.UK

Cookies help us improve your experience with us, so in order to be able to handle login information, offer you personalised content and for basic functionality of this website, we use some cookies.

We will never sell on any information about you.

You can accept all cookies or personalise your cookies preferences, you can also change your cookie preferences at any time by visiting our contact page.

Necessary Cookies

These cookies are necessary for the website to work and can not be turned off in our systems. They are usually used only in response to actions you have taken in connection with a service request, for example when setting personal preferences, logging in or filling out a form.

Analysis and measurement cookies

These cookies allow us to count the number of visits and traffic sources so that we can measure and improve our website performance. They help us know which pages are more or less popular and how visitors navigate around the site. The information that these cookies collect is aggregated and therefore completely anonymous. If you do not allow these cookies, we do not know when you have visited our website.

Marketing cookies

These cookies can be added by our partners. They can use them to create a profile of you, based on your interests, to show you more relevant information. They do not store any personal information - only information about your browser and device. If you do not accept these cookies, you will have a more general and less customized user experience.
