MINIMOTOR

Minimotor - MC worm gear motor

High quality, designed from the ground up to IP65 rated compact gear motor.



Physically smaller than the majority of similar powered gear motors due to the use of high quality components in precision manufacturing.



Ideally suited to many applications, including label and packaging machines, conveyors, pharmaceutical and medical machinery



MOTOR: Asynchronous single or three phase with 2 or 4 poles. Totally enclosed with external ventilation. Thermal safety cutout on single phase model. Class F winding. IP65 protection according to CEI EN 60529.

GEAR UNIT: Die-cast aluminium casing. Centre distance 26 mm. CARO bronze ring, 120÷160 HB hardness. Hardened steel screw with ground thread rotating on ball and roller bearings. Lubrication with special long life oil. Sealing rings made in special rubber for high temperatures. 9 gear ratios (i) available, from 7.5 to 80. Rated torque 9 Nm. Version B3 or B5. B5/S left version - B5/D right version.



Please click here for 2D and 3D drawings



Read more
  • Single or three phase
  • 14 to 180W delivered power
  • Up to 9Nm rated torque
  • B3 foot or B5 flange mounting
  • IP65 as standard

Selected variant

Available in several variants
MINIMOTOR.eps

Save page as PDF

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

Capacitor 4μF
Input voltage ac 230V
IP class IP65
Nominal speed 373 rpm
Nominal torque 1.5
Output power 60 W
Rated current 0.54A
Ratio 7.5:1

Downloads

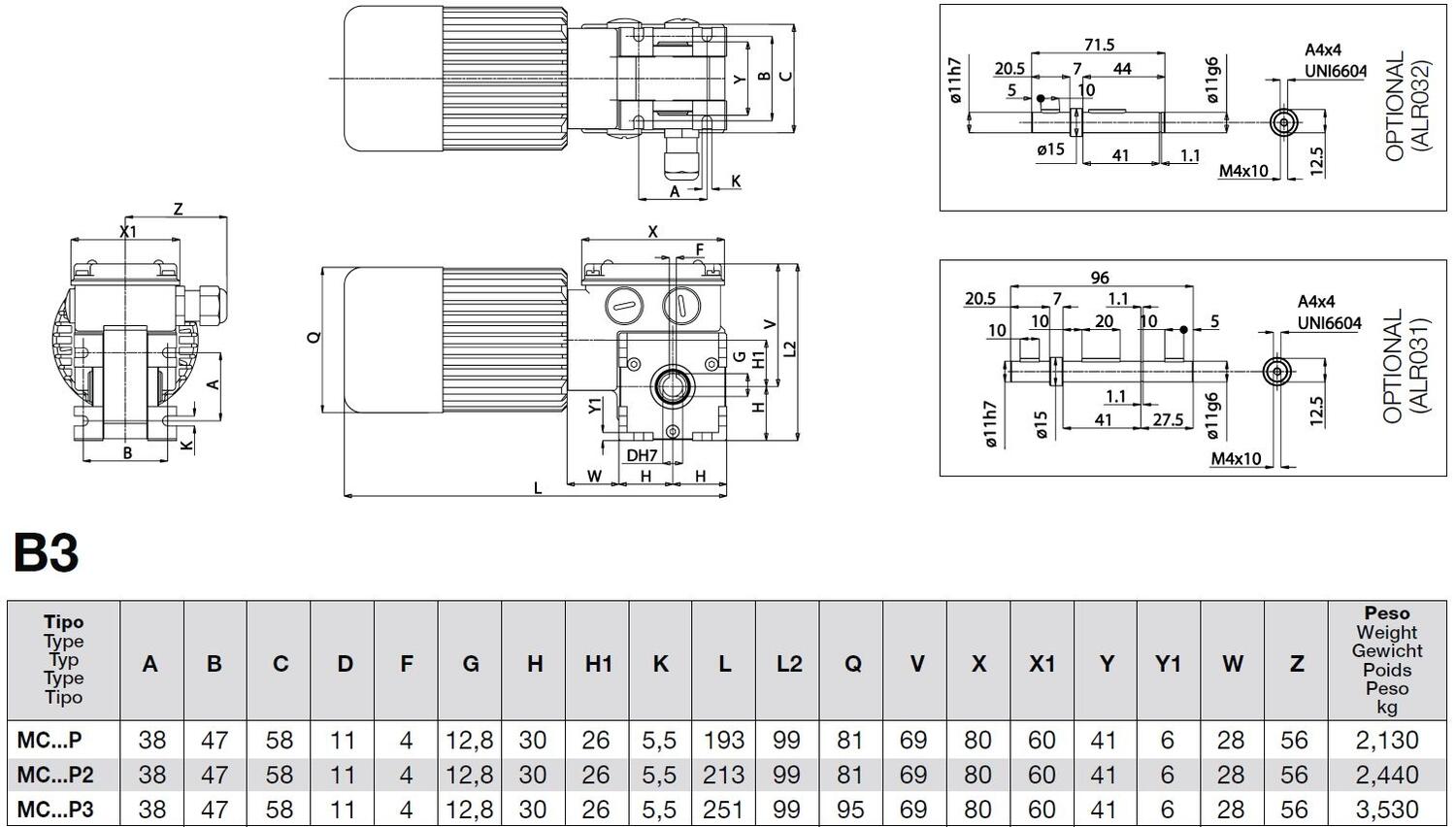

Measurements and connections

Product description

High quality, designed from the ground up to IP65 rated compact gear motor.



Physically smaller than the majority of similar powered gear motors due to the use of high quality components in precision manufacturing.



Ideally suited to many applications, including label and packaging machines, conveyors, pharmaceutical and medical machinery



MOTOR: Asynchronous single or three phase with 2 or 4 poles. Totally enclosed with external ventilation. Thermal safety cutout on single phase model. Class F winding. IP65 protection according to CEI EN 60529.

GEAR UNIT: Die-cast aluminium casing. Centre distance 26 mm. CARO bronze ring, 120÷160 HB hardness. Hardened steel screw with ground thread rotating on ball and roller bearings. Lubrication with special long life oil. Sealing rings made in special rubber for high temperatures. 9 gear ratios (i) available, from 7.5 to 80. Rated torque 9 Nm. Version B3 or B5. B5/S left version - B5/D right version.



Please click here for 2D and 3D drawings



Accessories

Related

synchronous motors
Product news Blog

Synchronous Motors

Do you have a light duty motor requirement requiring a very stable output rpm ? If so, Crouzet synchronous motors are could well provide you ideal solution…

IATECH, the industrial automation technology exhibition OEM automatic
Company news

Recap of IATECH

Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.

IATECH industrial automation components exhibition in at leicester marriott hotel by OEM Automatic
Company news

OEM introduces IATECH - The Industrial Automation Technology Expo

We are thrilled to announce the launch of IATECH, THe Industrial Automation Technology expo at Leicester Marriott Hotel on 23rd October. The ultimate platform for showcasing our extensive product range and broad business areas, featuring over 50 leading suppliers under one roof!

automation components for specialist vehicles
Blog

Automation Components for Specialist Vehicles

The specialist vehicle industry can include automotive and EV, heavy vehicles such as agriculture and rail, and marine.  This email takes you through some of the various products we offer for specialist vehicle applications.

Drive wheels AGV's AMR'S
Product news Blog

Wheel motor drives for AGVs

AGV drive wheel motors cover a wide range of options – from a miniature unit on a small 20kg robot, tasked to move on a perfectly level and smooth indoor surface, up to passenger vehicle-sized robots working outside over fields and varying terrain.

electro pneumatic control box customised bespoke solutions
Case studies

Case Study - Electro Pneumatic Control Box

At OEM Automatic, we can supply a series of components for your one project. All under one roof. This case study discusses how we supplied several components for our customer's new electro-pneumatic control box.

Parts Capacitor Input voltage ac Nominal speed Nominal torque Output power Rated current Ratio Price
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 373rpm 1.5Nm B3 mount
Art:
MC160P2B3-373 Copied
4μF
230V
373 rpm
1.5
60 W
0.54A
7.5:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 373rpm 1.5Nm B5 mount
Art:
MC160P2B5-373 Copied
4μF
230V
373 rpm
1.5
60 W
0.54A
7.5:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 373rpm 3.4Nm B3 mount
Art:
MC240P3B3-373 Copied
8μF
230V
373 rpm
3.4
140 W
1.03A
7.5:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 373rpm 3.4Nm B5 mount
Art:
MC240P3B5-373 Copied
8μF
230V
373 rpm
3.4
140 W
1.03A
7.5:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 186rpm 0.8Nm B3 mount
Art:
MC80PB3-186 Copied
4μF
230V
186 rpm
0.8
15 W
0.33A
7.5:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 186rpm 0.8Nm B5 mount
Art:
MC80PB5-186 Copied
4μF
230V
186 rpm
0.8
15 W
0.33A
7.5:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 186rpm 1Nm B3 mount
Art:
MC110P2B3-186 Copied
5μF
230V
186 rpm
1
19 W
0.41A
7.5:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 186rpm 1Nm B5 mount
Art:
MC110P2B5-186 Copied
5μF
230V
186 rpm
1
19 W
0.41A
7.5:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 186rpm 2.3Nm B3 mount
Art:
MC165P3B3-186 Copied
4μF
230V
186 rpm
2.3
44 W
0.53A
7.5:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 186rpm 2.3Nm B5 mount
Art:
MC165P3B5-186 Copied
4μF
230V
186 rpm
2.3
44 W
0.53A
7.5:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 373rpm 1.2Nm B3 mount
Art:
MC244PTB3-373 Copied
230/400V
373 rpm
1.2
49 W
0.52Δ/0.30Y
7.5:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 373rpm 1.2Nm B5 mount
Art:
MC244PTB5-373 Copied
230/400V
373 rpm
1.2
49 W
0.52Δ/0.30Y
7.5:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 373rpm 1.8Nm B3 mount
Art:
MC320P2TB3-373 Copied
230/400V
373 rpm
1.8
74 W
0.62Δ/0.36Y
7.5:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 373rpm 1.8Nm B5 mount
Art:
MC320P2TB5-373 Copied
230/400V
373 rpm
1.8
74 W
0.62Δ/0.36Y
7.5:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 373rpm 4.4Nm B3 mount
Art:
MC440P3TB3-373 Copied
230/400V
373 rpm
4.4
180 W
0.90Δ/0.52Y
7.5:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 373rpm 4.4Nm B5 mount
Art:
MC440P3TB5-373 Copied
230/400V
373 rpm
4.4
180 W
0.90Δ/0.52Y
7.5:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 186rpm 0.7Nm B3 mount
Art:
MC110PTB3-186 Copied
230/400V
186 rpm
0.7
14 W
0.25Δ/0.14Y
7.5:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 186rpm 0.7Nm B5 mount
Art:
MC110PTB5-186 Copied
230/400V
186 rpm
0.7
14 W
0.25Δ/0.14Y
7.5:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 186rpm 0.9Nm B3 mount
Art:
MC145P2TB3-186 Copied
230/400V
186 rpm
0.9
18 W
0.32Δ/0.18Y
7.5:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 186rpm 0.9Nm B5 mount
Art:
MC145P2TB5-186 Copied
230/400V
186 rpm
0.9
18 W
0.32Δ/0.18Y
7.5:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 186rpm 3.4Nm B3 mount
Art:
MC230P3TB3-186 Copied
230/400V
186 rpm
3.4
63 W
0.58Δ/0.34Y
7.5:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 186rpm 3.4Nm B5 mount
Art:
MC230P3TB5-186 Copied
230/400V
186 rpm
3.4
63 W
0.58Δ/0.34Y
7.5:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 280rpm 1.1Nm B3 mount
Art:
MC100PB3-280 Copied
3.15μF
230V
280 rpm
1.1
35 W
0.41A
10:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 280rpm 1.1Nm B5 mount
Art:
MC100PB5-280 Copied
3.15μF
230V
280 rpm
1.1
35 W
0.41A
10:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 280rpm 1.9Nm B3 mount
Art:
MC160P2B3-280 Copied
4μF
230V
280 rpm
1.9
60 W
0.54A
10:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 280rpm 1.9Nm B5 mount
Art:
MC160P2B5-280 Copied
4μF
230V
280 rpm
1.9
60 W
0.54A
10:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 280rpm 4.4Nm B3 mount
Art:
MC240P3B3-280 Copied
8μF
230V
280 rpm
4.4
140 W
1.03A
10:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 280rpm 4.4Nm B5 mount
Art:
MC240P3B5-280 Copied
8μF
230V
280 rpm
4.4
140 W
1.03A
10:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 140rpm 1Nm B3 mount
Art:
MC80PB3-140 Copied
4μF
230V
140 rpm
1
15 W
0.33A
10:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 140rpm 1Nm B5 mount
Art:
MC80PB5-140 Copied
4μF
230V
140 rpm
1
15 W
0.33A
10:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 140rpm 1.3Nm B5 mount
Art:
MC110P2B5-140 Copied
5μF
230V
140 rpm
1.3
19 W
0.41A
10:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 140rpm 3.1Nm B3 mount
Art:
MC165P3B3-140 Copied
4μF
230V
140 rpm
3.1
44 W
0.53A
10:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 140rpm 3.1Nm B5 mount
Art:
MC165P3B5-140 Copied
4μF
230V
140 rpm
3.1
44 W
0.53A
10:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 280rpm 1.6Nm B3 mount
Art:
MC244PTB3-280 Copied
230/400V
280 rpm
1.6
49 W
0.52Δ/0.30Y
10:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 280rpm 1.6Nm B5 mount
Art:
MC244PTB5-280 Copied
230/400V
280 rpm
1.6
49 W
0.52Δ/0.30Y
10:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 280rpm 2.4Nm B3 mount
Art:
MC320P2TB3-280 Copied
230/400V
280 rpm
2.4
74 W
0.62Δ/0.36Y
10:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 280rpm 5.8Nm B3 mount
Art:
MC440P3TB3-280 Copied
230/400V
280 rpm
5.8
180 W
0.90Δ/0.52Y
10:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 280rpm 5.8Nm B5 mount
Art:
MC440P3TB5-280 Copied
230/400V
280 rpm
5.8
180 W
0.90Δ/0.52Y
10:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 140rpm 0.9Nm B3 mount
Art:
MC110PTB3-140 Copied
230/400V
140 rpm
0.9
14 W
0.25Δ/0.14Y
10:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 140rpm 0.9Nm B5 mount
Art:
MC110PTB5-140 Copied
230/400V
140 rpm
0.9
14 W
0.25Δ/0.14Y
10:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 140rpm 1.2Nm B3 mount
Art:
MC145P2TB3-140 Copied
230/400V
140 rpm
1.2
18 W
0.32Δ/0.18Y
10:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 140rpm 1.2Nm B5 mount
Art:
MC145P2TB5-140 Copied
230/400V
140 rpm
1.2
18 W
0.32Δ/0.18Y
10:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 140rpm 4.4Nm B3 mount
Art:
MC230P3TB3-140 Copied
230/400V
140 rpm
4.4
63 W
0.58Δ/0.34Y
10:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 140rpm 4.4Nm B5 mount
Art:
MC230P3TB5-140 Copied
230/400V
140 rpm
4.4
63 W
0.58Δ/0.34Y
10:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 186rpm 1.6Nm B3 mount
Art:
MC100PB3-186 Copied
3.15μF
230V
186 rpm
1.6
35 W
0.41A
15:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 186rpm 1.6Nm B5 mount
Art:
MC100PB5-186 Copied
3.15μF
230V
186 rpm
1.6
35 W
0.41A
15:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 186rpm 2.8Nm B3 mount
Art:
MC160P2B3-186 Copied
4μF
230V
186 rpm
2.8
60 W
0.54A
15:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 186rpm 2.8Nm B5 mount
Art:
MC160P2B5-186 Copied
4μF
230V
186 rpm
2.8
60 W
0.54A
15:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 186rpm 6.4Nm B3 mount
Art:
MC240P3B3-186 Copied
8μF
230V
186 rpm
6.4
140 W
1.03A
15:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 186rpm 6.4Nm B5 mount
Art:
MC240P3B5-186 Copied
8μF
230V
186 rpm
6.4
140 W
1.03A
15:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 93rpm 1.5Nm B3 mount
Art:
MC80PB3-93 Copied
4μF
230V
93 rpm
1.5
15 W
0.33A
15:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 93rpm 1.5Nm B5 mount
Art:
MC80PB5-93 Copied
4μF
230V
93 rpm
1.5
15 W
0.33A
15:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 93rpm 4.5Nm B3 mount
Art:
MC165P3B3-93 Copied
4μF
230V
93 rpm
4.5
44 W
0.53A
15:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 93rpm 4.5Nm B5 mount
Art:
MC165P3B5-93 Copied
4μF
230V
93 rpm
4.5
44 W
0.53A
15:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 186rpm 2.3Nm B3 mount
Art:
MC244PTB3-186 Copied
230/400V
186 rpm
2.3
49 W
0.52Δ/0.30Y
15:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 186rpm 2.3Nm B5 mount
Art:
MC244PTB5-186 Copied
230/400V
186 rpm
2.3
49 W
0.52Δ/0.30Y
15:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 186rpm 3.4Nm B3 mount
Art:
MC320P2TB3-186 Copied
230/400V
186 rpm
3.4
74 W
0.62Δ/0.36Y
15:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 186rpm 3.4Nm B5 mount
Art:
MC320P2TB5-186 Copied
230/400V
186 rpm
3.4
74 W
0.62Δ/0.36Y
15:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 186rpm 8.4Nm B3 mount
Art:
MC440P3TB3-186 Copied
230/400V
186 rpm
8.4
180 W
0.90Δ/0.52Y
15:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 186rpm 8.4Nm B5 mount
Art:
MC440P3TB5-186 Copied
230/400V
186 rpm
8.4
180 W
0.90Δ/0.52Y
15:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 93rpm 1.4Nm B3 mount
Art:
MC110PTB3-93 Copied
230/400V
93 rpm
1.4
14 W
0.25Δ/0.14Y
15:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 93rpm 1.4Nm B5 mount
Art:
MC110PTB5-93 Copied
230/400V
93 rpm
1.4
14 W
0.25Δ/0.14Y
15:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 93rpm 1.8Nm B3 mount
Art:
MC145P2TB3-93 Copied
230/400V
93 rpm
1.8
18 W
0.32Δ/0.18Y
15:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 93rpm 1.8Nm B5 mount
Art:
MC145P2TB5-93 Copied
230/400V
93 rpm
1.8
18 W
0.32Δ/0.18Y
15:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 140rpm 2Nm
Art:
MC100PB3-140 Copied
3.15μF
230V
140 rpm
2
35 W
0.41A
20:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 140rpm 2Nm B5 mount
Art:
MC100PB5-140 Copied
3.15μF
230V
140 rpm
2
35 W
0.41A
20:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 140rpm 3.4Nm B3 mount
Art:
MC160P2B3-140 Copied
4μF
230V
140 rpm
3.4
60 W
0.54A
20:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 140rpm 3.4Nm B5 mount
Art:
MC160P2B5-140 Copied
4μF
230V
140 rpm
3.4
60 W
0.54A
20:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 140rpm 7.9Nm B3 mount
Art:
MC240P3B3-140 Copied
8μF
230V
140 rpm
7.9
140 W
1.03A
20:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 140rpm 7.9Nm B5 mount
Art:
MC240P3B5-140 Copied
8μF
230V
140 rpm
7.9
140 W
1.03A
20:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 70rpm 1.8Nm B3 mount
Art:
MC80PB3-70 Copied
4μF
230V
70 rpm
1.8
15 W
0.33A
20:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 70rpm 1.8Nm B5 mount
Art:
MC80PB5-70 Copied
4μF
230V
70 rpm
1.8
15 W
0.33A
20:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 70rpm 2.3Nm B3 mount
Art:
MC110P2B3-70 Copied
5μF
230V
70 rpm
2.3
19 W
0.41A
20:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 70rpm 2.3Nm B5 mount
Art:
MC110P2B5-70 Copied
5μF
230V
70 rpm
2.3
19 W
0.41A
20:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 70rpm 5.5Nm B3 mount
Art:
MC165P3B3-70 Copied
4μF
230V
70 rpm
5.5
44 W
0.53A
20:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 70rpm 5.5Nm B5 mount
Art:
MC165P3B5-70 Copied
4μF
230V
70 rpm
5.5
44 W
0.53A
20:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 140rpm 2.8Nm B3 mount
Art:
MC244PTB3-140 Copied
230/400V
140 rpm
2.8
49 W
0.52Δ/0.30Y
20:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 140rpm 2.8Nm B5 mount
Art:
MC244PTB5-140 Copied
230/400V
140 rpm
2.8
49 W
0.52Δ/0.30Y
20:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 140rpm 4.2Nm B3 mount
Art:
MC320P2TB3-140 Copied
230/400V
140 rpm
4.2
74 W
0.62Δ/0.36Y
20:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 140rpm 4.2Nm B5 mount
Art:
MC320P2TB5-140 Copied
230/400V
140 rpm
4.2
74 W
0.62Δ/0.36Y
20:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 140rpm 9Nm B3 mount
Art:
MC440P3TB3-140 Copied
230/400V
140 rpm
9
180 W
0.90Δ/0.52Y
20:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 140rpm 9Nm B5 mount
Art:
MC440P3TB5-140 Copied
230/400V
140 rpm
9
180 W
0.90Δ/0.52Y
20:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 70rpm 1.7Nm B3 mount
Art:
MC110PTB3-70 Copied
230/400V
70 rpm
1.7
14 W
0.25Δ/0.14Y
20:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 70rpm 1.7Nm B5 mount
Art:
MC110PTB5-70 Copied
230/400V
70 rpm
1.7
14 W
0.25Δ/0.14Y
20:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 70rpm 2.2Nm B3 mount
Art:
MC145P2TB3-70 Copied
230/400V
70 rpm
2.2
18 W
0.32Δ/0.18Y
20:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 70rpm 2.2Nm B5 mount
Art:
MC145P2TB5-70 Copied
230/400V
70 rpm
2.2
18 W
0.32Δ/0.18Y
20:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 70rpm 7.9Nm B3 mount
Art:
MC230P3TB3-70 Copied
230/400V
70 rpm
7.9
63 W
0.58Δ/0.34Y
20:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 70rpm 7.9Nm B5 mount
Art:
MC230P3TB5-70 Copied
230/400V
70 rpm
7.9
63 W
0.58Δ/0.34Y
20:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 93rpm 2.8Nm B3 mount
Art:
MC100PB3-93 Copied
3.15μF
230V
93 rpm
2.8
35 W
0.41A
30:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 93rpm 2.8Nm B5 mount
Art:
MC100PB5-93 Copied
3.15μF
230V
93 rpm
2.8
35 W
0.41A
30:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 93rpm 4.8Nm B3 mount
Art:
MC160P2B3-93 Copied
4μF
230V
93 rpm
4.8
60 W
0.54A
30:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 93rpm 4.8Nm B5 mount
Art:
MC160P2B5-93 Copied
4μF
230V
93 rpm
4.8
60 W
0.54A
30:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 93rpm 9Nm B3 mount
Art:
MC240P3B3-93 Copied
8μF
230V
93 rpm
9
140 W
1.03A
30:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 46.5rpm 2.6Nm B3 mount
Art:
MC80PB3-46.5 Copied
4μF
230V
46.5 rpm
2.6
15 W
0.33A
30:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 46.5rpm 2.6Nm B5 mount
Art:
MC80PB5-46.5 Copied
4μF
230V
46.5 rpm
2.6
15 W
0.33A
30:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 46.5rpm 3.2Nm B3 mount
Art:
MC110P2B3-46.5 Copied
5μF
230V
46.5 rpm
3.2
19 W
0.41A
30:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 46.5rpm 3.2Nm B5 mount
Art:
MC110P2B5-46.5 Copied
5μF
230V
46.5 rpm
3.2
19 W
0.41A
30:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 46.5rpm 7.6Nm B3 mount
Art:
MC165P3B3-46.5 Copied
4μF
230V
46.5 rpm
7.6
44 W
0.53A
30:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 46.5rpm 7.6Nm B5 mount
Art:
MC165P3B5-46.5 Copied
4μF
230V
46.5 rpm
7.6
44 W
0.53A
30:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 93rpm 3.9Nm B3 mount
Art:
MC244PTB3-93 Copied
230/400V
93 rpm
3.9
49 W
0.52Δ/0.30Y
30:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 93rpm 3.9Nm B5 mount
Art:
MC244PTB5-93 Copied
230/400V
93 rpm
3.9
49 W
0.52Δ/0.30Y
30:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 93rpm 5.9Nm B3 mount
Art:
MC320P2TB3-93 Copied
230/400V
93 rpm
5.9
74 W
0.62Δ/0.36Y
30:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 93rpm 9Nm B3 mount
Art:
MC440P3TB3-93 Copied
230/400V
93 rpm
9
180 W
0.90Δ/0.52Y
30:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 93rpm 9Nm B5 mount
Art:
MC440P3TB5-93 Copied
230/400V
93 rpm
9
180 W
0.90Δ/0.52Y
30:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 46.5rpm 2.4Nm B3 mount
Art:
MC110PTB3-46.5 Copied
230/400V
46.5 rpm
2.4
14 W
0.25Δ/0.14Y
30:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 46.5rpm 2.4Nm B5 mount
Art:
MC110PTB5-46.5 Copied
230/400V
46.5 rpm
2.4
14 W
0.25Δ/0.14Y
30:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 46.5rpm 3Nm B3 mount
Art:
MC145P2TB3-46.5 Copied
230/400V
46.5 rpm
3
18 W
0.32Δ/0.18Y
30:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 46.5rpm 3Nm B5 mount
Art:
MC145P2TB5-46.5 Copied
230/400V
46.5 rpm
3
18 W
0.32Δ/0.18Y
30:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 46.5rpm 9Nm B3 mount
Art:
MC230P3TB3-46.5 Copied
230/400V
46.5 rpm
9
63 W
0.58Δ/0.34Y
30:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 46.5rpm 9Nm B5 mount
Art:
MC230P3TB5-46.5 Copied
230/400V
46.5 rpm
9
63 W
0.58Δ/0.34Y
30:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 70rpm 3.5Nm B3 mount
Art:
MC100PB3-70 Copied
3.15μF
230V
70 rpm
3.5
35 W
0.41A
40:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 70rpm 3.5Nm B5 mount
Art:
MC100PB5-70 Copied
3.15μF
230V
70 rpm
3.5
35 W
0.41A
40:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 70rpm 5.9Nm B3 mount
Art:
MC160P2B3-70 Copied
4μF
230V
70 rpm
5.9
60 W
0.54A
40:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 70rpm 5.9Nm B5 mount
Art:
MC160P2B5-70 Copied
4μF
230V
70 rpm
5.9
60 W
0.54A
40:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 70rpm 9Nm B3 mount
Art:
MC240P3B3-70 Copied
8μF
230V
70 rpm
9
140 W
1.03A
40:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 70rpm 9Nm B5 mount
Art:
MC240P3B5-70 Copied
8μF
230V
70 rpm
9
140 W
1.03A
40:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 35rpm 3.2Nm B3 mount
Art:
MC80PB3-35 Copied
4μF
230V
35 rpm
3.2
15 W
0.33A
40:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 35rpm 3.2Nm B5 mount
Art:
MC80PB5-35 Copied
4μF
230V
35 rpm
3.2
15 W
0.33A
40:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 35rpm 4Nm B3 mount
Art:
MC110P2B3-35 Copied
5μF
230V
35 rpm
4
19 W
0.41A
40:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 35rpm 4Nm B5 mount
Art:
MC110P2B5-35 Copied
5μF
230V
35 rpm
4
19 W
0.41A
40:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 35rpm 9Nm B3 mount
Art:
MC165P3B3-35 Copied
4μF
230V
35 rpm
9
44 W
0.53A
40:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 35rpm 9Nm B5 mount
Art:
MC165P3B5-35 Copied
4μF
230V
35 rpm
9
44 W
0.53A
40:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 70rpm 4.8Nm B3 mount
Art:
MC244PTB3-70 Copied
230/400V
70 rpm
4.8
49 W
0.52Δ/0.30Y
40:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 70rpm 4.8Nm B5 mount
Art:
MC244PTB5-70 Copied
230/400V
70 rpm
4.8
49 W
0.52Δ/0.30Y
40:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 70rpm 7.3Nm B3 mount
Art:
MC320P2TB3-70 Copied
230/400V
70 rpm
7.3
74 W
0.62Δ/0.36Y
40:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 70rpm 7.3Nm B5 mount
Art:
MC320P2TB5-70 Copied
230/400V
70 rpm
7.3
74 W
0.62Δ/0.36Y
40:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 70rpm 9Nm B3 mount
Art:
MC440P3TB3-70 Copied
230/400V
70 rpm
9
180 W
0.90Δ/0.52Y
40:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 70rpm 9Nm B5 mount
Art:
MC440P3TB5-70 Copied
230/400V
70 rpm
9
180 W
0.90Δ/0.52Y
40:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 35rpm 3Nm B3 mount
Art:
MC110PTB3-35 Copied
230/400V
35 rpm
3
14 W
0.25Δ/0.14Y
40:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 35rpm 3Nm B5 mount
Art:
MC110PTB5-35 Copied
230/400V
35 rpm
3
14 W
0.25Δ/0.14Y
40:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 35rpm 3.8Nm B3 mount
Art:
MC145P2TB3-35 Copied
230/400V
35 rpm
3.8
18 W
0.32Δ/0.18Y
40:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 35rpm 3.8Nm B5 mount
Art:
MC145P2TB5-35 Copied
230/400V
35 rpm
3.8
18 W
0.32Δ/0.18Y
40:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 35rpm 9Nm B3 mount
Art:
MC230P3TB3-35 Copied
230/400V
35 rpm
9
63 W
0.58Δ/0.34Y
40:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 35rpm 9Nm B5 mount
Art:
MC230P3TB5-35 Copied
230/400V
35 rpm
9
63 W
0.58Δ/0.34Y
40:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 46rpm 5Nm B3 mount
Art:
MC100PB3-46 Copied
3.15μF
230V
46 rpm
5
35 W
0.41A
60:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 46rpm 5Nm B5 mount
Art:
MC100PB5-46 Copied
3.15μF
230V
46 rpm
5
35 W
0.41A
60:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 46rpm 8.5Nm B3 mount
Art:
MC160P2B3-46 Copied
4μF
230V
46 rpm
8.5
60 W
0.54A
60:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 46rpm 8.5Nm B5 mount
Art:
MC160P2B5-46 Copied
4μF
230V
46 rpm
8.5
60 W
0.54A
60:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 23rpm 4.6Nm B3 mount
Art:
MC80PB3-23 Copied
4μF
230V
23 rpm
4.6
15 W
0.33A
60:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 23rpm 4.6Nm B5 mount
Art:
MC80PB5-23 Copied
4μF
230V
23 rpm
4.6
15 W
0.33A
60:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 23rpm 5.8Nm B3 mount
Art:
MC110P2B3-23 Copied
5μF
230V
23 rpm
5.8
19 W
0.41A
60:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 23rpm 5.8Nm B5 mount
Art:
MC110P2B5-23 Copied
5μF
230V
23 rpm
5.8
19 W
0.41A
60:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 23rpm 9Nm B3 mount
Art:
MC165P3B3-23 Copied
4μF
230V
23 rpm
9
44 W
0.53A
60:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 23rpm 9Nm B5 mount
Art:
MC165P3B5-23 Copied
4μF
230V
23 rpm
9
44 W
0.53A
60:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 46rpm 7Nm B3 mount
Art:
MC244PTB3-46 Copied
230/400V
46 rpm
7
49 W
0.52Δ/0.30Y
60:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 46rpm 7Nm B5 mount
Art:
MC244PTB5-46 Copied
230/400V
46 rpm
7
49 W
0.52Δ/0.30Y
60:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 46rpm 9Nm B3 mount
Art:
MC320P2TB3-46 Copied
230/400V
46 rpm
9
74 W
0.62Δ/0.36Y
60:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 46rpm 9Nm B5 mount
Art:
MC320P2TB5-46 Copied
230/400V
46 rpm
9
74 W
0.62Δ/0.36Y
60:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 23rpm 4.2Nm B3 mount
Art:
MC110PTB3-23 Copied
230/400V
23 rpm
4.2
14 W
0.25Δ/0.14Y
60:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 23rpm 4.2Nm B5 mount
Art:
MC110PTB5-23 Copied
230/400V
23 rpm
4.2
14 W
0.25Δ/0.14Y
60:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 23rpm 5.7Nm B3 mount
Art:
MC145P2TB3-23 Copied
230/400V
23 rpm
5.7
18 W
0.32Δ/0.18Y
60:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 23rpm 5.7Nm B5 mount
Art:
MC145P2TB5-23 Copied
230/400V
23 rpm
5.7
18 W
0.32Δ/0.18Y
60:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 40rpm 9Nm B3 mount
Art:
MC160P2B3-40 Copied
4μF
230V
40 rpm
9
60 W
0.54A
70:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 40rpm 9Nm B5 mount
Art:
MC160P2B5-40 Copied
4μF
230V
40 rpm
9
60 W
0.54A
70:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 20rpm 4.9Nm B3 mount
Art:
MC80PB3-20 Copied
4μF
230V
20 rpm
4.9
15 W
0.33A
70:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 20rpm 4.9Nm B5 mount
Art:
MC80PB5-20 Copied
4μF
230V
20 rpm
4.9
15 W
0.33A
70:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 20rpm 6.1Nm B3 mount
Art:
MC110P2B3-20 Copied
5μF
230V
20 rpm
6.1
19 W
0.41A
70:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 20rpm 6.1Nm B5 mount
Art:
MC110P2B5-20 Copied
5μF
230V
20 rpm
6.1
19 W
0.41A
70:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 40rpm 7.4Nm B3 mount
Art:
MC244PTB3-40 Copied
230/400V
40 rpm
7.4
49 W
0.52Δ/0.30Y
70:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 40rpm 7.4Nm B5 mount
Art:
MC244PTB5-40 Copied
230/400V
40 rpm
7.4
49 W
0.52Δ/0.30Y
70:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 40rpm 9Nm B3 mount
Art:
MC320P2TB3-40 Copied
230/400V
40 rpm
9
74 W
0.62Δ/0.36Y
70:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 40rpm 9Nm B5 mount
Art:
MC320P2TB5-40 Copied
230/400V
40 rpm
9
74 W
0.62Δ/0.36Y
70:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 20rpm 4.5Nm B3 mount
Art:
MC110PTB3-20 Copied
230/400V
20 rpm
4.5
14 W
0.25Δ/0.14Y
70:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 20rpm 4.5Nm B5 mount
Art:
MC110PTB5-20 Copied
230/400V
20 rpm
4.5
14 W
0.25Δ/0.14Y
70:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 20rpm 5.7Nm B3 mount
Art:
MC145P2TB3-20 Copied
230/400V
20 rpm
5.7
18 W
0.32Δ/0.18Y
70:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 20rpm 5.7Nm B5 mount
Art:
MC145P2TB5-20 Copied
230/400V
20 rpm
5.7
18 W
0.32Δ/0.18Y
70:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 35rpm 5.7Nm B3 mount
Art:
MC100PB3-35 Copied
3.15μF
230V
35 rpm
5.7
35 W
0.41A
80:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 35rpm 5.7Nm B5 mount
Art:
MC100PB5-35 Copied
3.15μF
230V
35 rpm
5.7
35 W
0.41A
80:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 35rpm 9Nm B3 mount
Art:
MC160P2B3-35 Copied
4μF
230V
35 rpm
9
60 W
0.54A
80:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 35rpm 9Nm B5 mount
Art:
MC160P2B5-35 Copied
4μF
230V
35 rpm
9
60 W
0.54A
80:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 17.5rpm 5.2Nm B3 mount
Art:
MC80PB3-17.5 Copied
4μF
230V
17.5 rpm
5.2
15 W
0.33A
80:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 17.5rpm 5.2Nm B5 mount
Art:
MC80PB5-17.5 Copied
4μF
230V
17.5 rpm
5.2
15 W
0.33A
80:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 17.5rpm 6.6Nm B3 mount
Art:
MC110P2B3-17.5 Copied
5μF
230V
17.5 rpm
6.6
19 W
0.41A
80:1
Minimotor MC series worm gear motor, right angle gearbox
230V 1 ph 17.5rpm 6.6Nm B5 mount
Art:
MC110P2B5-17.5 Copied
5μF
230V
17.5 rpm
6.6
19 W
0.41A
80:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 35rpm 7.9Nm B3 mount
Art:
MC244PTB3-35 Copied
230/400V
35 rpm
7.9
49 W
0.52Δ/0.30Y
80:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 35rpm 7.9Nm B5 mount
Art:
MC244PTB5-35 Copied
230/400V
35 rpm
7.9
49 W
0.52Δ/0.30Y
80:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 35rpm 9Nm B3 mount
Art:
MC320P2TB3-35 Copied
230/400V
35 rpm
9
74 W
0.62Δ/0.36Y
80:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 35rpm 9Nm B5 mount
Art:
MC320P2TB5-35 Copied
230/400V
35 rpm
9
74 W
0.62Δ/0.36Y
80:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 17.5rpm 4.8Nm B3 mount
Art:
MC110PTB3-17.5 Copied
230/400V
17.5 rpm
4.8
14 W
0.25Δ/0.14Y
80:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 17.5rpm 4.8Nm B5 mount
Art:
MC110PTB5-17.5 Copied
230/400V
17.5 rpm
4.8
14 W
0.25Δ/0.14Y
80:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 17.5rpm 6.1Nm B3 mount
Art:
MC145P2TB3-17.5 Copied
230/400V
17.5 rpm
6.1
18 W
0.32Δ/0.18Y
80:1
Minimotor MC series worm gear motor, right angle gearbox
230/400V 3 ph 17.5rpm 6.1Nm B5 mount
Art:
MC145P2TB5-17.5 Copied
230/400V
17.5 rpm
6.1
18 W
0.32Δ/0.18Y
80:1

Selected variant

Select a variant in the list

Contact us
If you need any help, you can contact us in one of the following ways:
0116 284 9900
Send e-mail
Use live chat
Do you need help?
Logo

Cookie settings for OEM.CO.UK

Cookies help us improve your experience with us, so in order to be able to handle login information, offer you personalised content and for basic functionality of this website, we use some cookies.

We will never sell on any information about you.

You can accept all cookies or personalise your cookies preferences, you can also change your cookie preferences at any time by visiting our contact page.

Necessary Cookies

These cookies are necessary for the website to work and can not be turned off in our systems. They are usually used only in response to actions you have taken in connection with a service request, for example when setting personal preferences, logging in or filling out a form.

Analysis and measurement cookies

These cookies allow us to count the number of visits and traffic sources so that we can measure and improve our website performance. They help us know which pages are more or less popular and how visitors navigate around the site. The information that these cookies collect is aggregated and therefore completely anonymous. If you do not allow these cookies, we do not know when you have visited our website.

Marketing cookies

These cookies can be added by our partners. They can use them to create a profile of you, based on your interests, to show you more relevant information. They do not store any personal information - only information about your browser and device. If you do not accept these cookies, you will have a more general and less customized user experience.
