MINIMOTOR

Minimotor - PAE - coaxial gear motor with aditional planetary gear

High quality, designed from the ground up to IP65 rated compact gear motor.

Physically smaller than the majority of similar powered gear motors due to the use of high quality components in precision manufacturing.

Ideally suited to many applications, including label and packaging machines, conveyors, pharmaceutical and medical machinery

MOTOR: Asynchronous single or three phase with 2 or 4 poles, totally enclosed with external ventilation. Thermal safety cutout on single phase model. Class F winding. IP65 protection according to CEI EN 60529.

GEAR UNIT: First stage with die-cast aluminium casing, second stage in steel. Case-hardened and hardened gear pairs with shafts rotating on roller bearings. Lubrication with long life oil. Sealing rings made in special rubber for high temperatures. 13 gear ratios (i) available, from 48.7 to 1770.9. Rated torque 90 Nm. Version B3 or B5.

Please click here for 2D and 3D drawings

Single or three phase
34 to 180W delivered power
Up to 90Nm rated torque
B3 foot or B5 flange mounting
IP65 as standard

Selected variant

Save page as PDF

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

4967_Rated current (A)	0.33Δ/0.19Y
Input voltage ac	230/400V
Nominal speed	16.5 rpm
Nominal torque	18
Output power	38 W
Ratio	83.6:1

Downloads

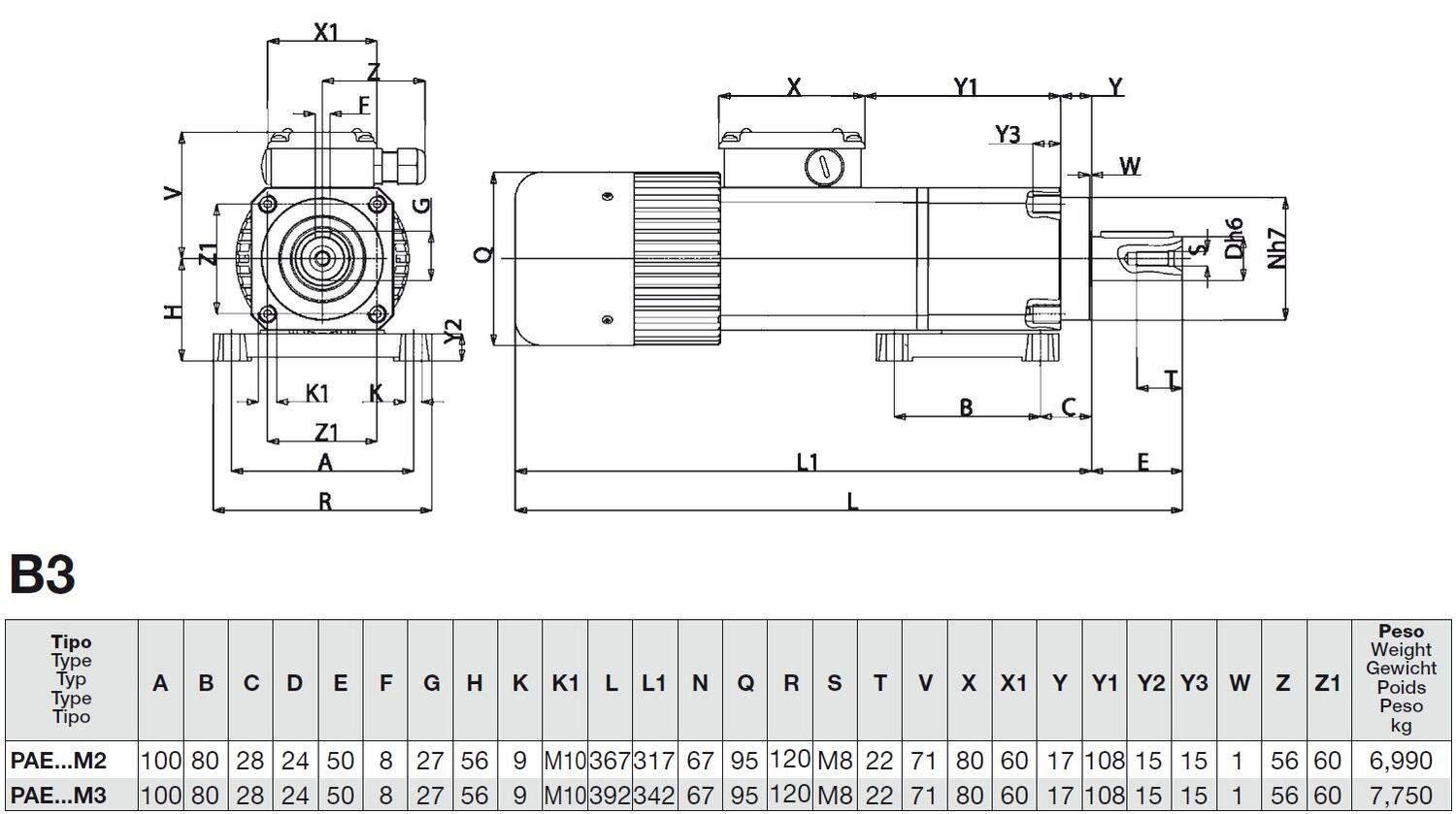

Measurements and connections

Product description

High quality, designed from the ground up to IP65 rated compact gear motor.

Physically smaller than the majority of similar powered gear motors due to the use of high quality components in precision manufacturing.

Ideally suited to many applications, including label and packaging machines, conveyors, pharmaceutical and medical machinery

Please click here for 2D and 3D drawings

Accessories

Learning hub

How to select the right motor

Determining what motor to use is quite a daunting task. Our Motors experts have developed a guide to show the steps to determine a suitable motor.

Product news Blog

Synchronous Motors

Do you have a light duty motor requirement requiring a very stable output rpm ? If so, Crouzet synchronous motors are could well provide you ideal solution…

IATECH, the industrial automation technology exhibition OEM automatic

Company news

Recap of IATECH

Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.

IATECH industrial automation components exhibition in at leicester marriott hotel by OEM Automatic

Company news

OEM introduces IATECH - The Industrial Automation Technology Expo

We are thrilled to announce the launch of IATECH, THe Industrial Automation Technology expo at Leicester Marriott Hotel on 23rd October. The ultimate platform for showcasing our extensive product range and broad business areas, featuring over 50 leading suppliers under one roof!

Blog

Automation Components for Specialist Vehicles

The specialist vehicle industry can include automotive and EV, heavy vehicles such as agriculture and rail, and marine. This email takes you through some of the various products we offer for specialist vehicle applications.

Product news Blog

Wheel motor drives for AGVs

AGV drive wheel motors cover a wide range of options – from a miniature unit on a small 20kg robot, tasked to move on a perfectly level and smooth indoor surface, up to passenger vehicle-sized robots working outside over fields and varying terrain.

Parts	4967_Rated current (A)	Capacitor	Input voltage ac	Nominal speed	Nominal torque	Output power	Ratio
230/400V 3 ph 16.5rpm 18 Nm B3 mount Art: PAE 140M2TB3-16.5 Copied	0.33Δ/0.19Y		230/400V	16.5 rpm	18	38 W	83.6:1
230/400V 3 ph 20.7rpm 15.3 Nm B3 mount Art: PAE 140M2TB3-20.7 Copied	0.33Δ/0.19Y		230/400V	20.7 rpm	15.3	38 W	67:1
230/400V 3 ph 4.7rpm 64 Nm B3 mount Art: PAE 140M2TB3-4.7 Copied	0.33Δ/0.19Y		230/400V	4.7 rpm	64	38 W	293.9:1
230/400V 3 ph 16.5rpm 18 Nm B5 mount Art: PAE 140M2TB5-16.5 Copied	0.33Δ/0.19Y		230/400V	16.5 rpm	18	38 W	83.6:1
230/400V 3 ph 20.7rpm 15.3 Nm B5 mount Art: PAE 140M2TB5-20.7 Copied	0.33Δ/0.19Y		230/400V	20.7 rpm	15.3	38 W	67:1
230/400V 3 ph 4.7rpm 64 Nm B5 mount Art: PAE 140M2TB5-4.7 Copied	0.33Δ/0.19Y		230/400V	4.7 rpm	64	38 W	293.9:1
230V 1 ph 16.5rpm 22.1 Nm B3 mount Art: PAE 165M3B3-16.5 Copied	0.53A	4μF	230V 50Hz	16.5 rpm	22.1	44 W	83.6:1
230V 1 ph 20.7rpm 18 Nm B3 mount Art: PAE 165M3B3-20.7 Copied	0.53A	4μF	230V 50Hz	20.7 rpm	18	44 W	67:1
230V 1 ph 16.5rpm 22.1 Nm B5 mount Art: PAE 165M3B5-16.5 Copied	0.53A	4μF	230V 50Hz	16.5 rpm	22.1	44 W	83.6:1
230V 1 ph 20.7rpm 18 Nm B5 mount Art: PAE 165M3B5-20.7 Copied	0.53A	4μF	230V 50Hz	20.7 rpm	18	44 W	67:1
230/400V 3 ph 11.5rpm 48.7 Nm B3 mount Art: PAE 230M3TB3-11.5 Copied	0.58Δ/0.34Y		230/400V	11.5 rpm	48.7	63 W	119.7:1
230/400V 3 ph 16.5rpm 33.8 Nm B3 mount Art: PAE 230M3TB3-16.5 Copied	0.58Δ/0.34Y		230/400V	16.5 rpm	33.8	63 W	83.6:1
230/400V 3 ph 20.7rpm 27.5 Nm B3 mount Art: PAE 230M3TB3-20.7 Copied	0.58Δ/0.34Y		230/400V	20.7 rpm	27.5	63 W	67:1
230/400V 3 ph 3.4rpm 90 Nm B3 mount Art: PAE 230M3TB3-3.4 Copied	0.58Δ/0.34Y		230/400V	3.4 rpm	90	63 W	404.1:1
230/400V 3 ph 4.7rpm 90 Nm B3 mount Art: PAE 230M3TB3-4.7 Copied	0.58Δ/0.34Y		230/400V	4.7 rpm	90	63 W	293.9:1
230/400V 3 ph 6.8rpm 83.9 Nm B3 mount Art: PAE 230M3TB3-6.8 Copied	0.58Δ/0.34Y		230/400V	6.8 rpm	83.9	63 W	205.2:1
230/400V 3 ph 8.5rpm 67.2 Nm B3 mount Art: PAE 230M3TB3-8.5 Copied	0.58Δ/0.34Y		230/400V	8.5 rpm	67.2	63 W	164.6:1
230/400V 3 ph 11.5rpm 48.7 Nm B5 mount Art: PAE 230M3TB5-11.5 Copied	0.58Δ/0.34Y		230/400V	11.5 rpm	48.7	63 W	119.7:1
230/400V 3 ph 16.5rpm 33.8 Nm B5 mount Art: PAE 230M3TB5-16.5 Copied	0.58Δ/0.34Y		230/400V	16.5 rpm	33.8	63 W	83.6:1
230/400V 3 ph 20.7rpm 27.5 Nm B5 mount Art: PAE 230M3TB5-20.7 Copied	0.58Δ/0.34Y		230/400V	20.7 rpm	27.5	63 W	67:1
230/400V 3 ph 3.4rpm 90 Nm B5 mount Art: PAE 230M3TB5-3.4 Copied	0.58Δ/0.34Y		230/400V	3.4 rpm	90	63 W	404.1:1
230/400V 3 ph 4.7rpm 90 Nm B5 mount Art: PAE 230M3TB5-4.7 Copied	0.58Δ/0.34Y		230/400V	4.7 rpm	90	63 W	293.9:1
230/400V 3 ph 6.8rpm 83.9 Nm B5 mount Art: PAE 230M3TB5-6.8 Copied	0.58Δ/0.34Y		230/400V	6.8 rpm	83.9	63 W	205.2:1
230/400V 3 ph 8.5rpm 67.2 Nm B5 mount Art: PAE 230M3TB5-8.5 Copied	0.58Δ/0.34Y		230/400V	8.5 rpm	67.2	63 W	164.6:1
230V 1 ph 13.6rpm 78 Nm B3 mount Art: PAE 240M3B3-13.6 Copied	1.03A	8μF	230V 50Hz	13.6 rpm	78	140 W	205.2:1
230V 1 ph 17rpm 62.2 Nm B3 mount Art: PAE 240M3B3-17 Copied	1.03A	8μF	230V 50Hz	17 rpm	62.2	140 W	164.6:1
230V 1 ph 23rpm 45.1 Nm B3 mount Art: PAE 240M3B3-23 Copied	1.03A	8μF	230V 50Hz	23 rpm	45.1	140 W	119.7:1
230V 1 ph 33rpm 31.5 Nm B3 mount Art: PAE 240M3B3-33 Copied	1.03A	8μF	230V 50Hz	33 rpm	31.5	140 W	83.6:1
230V 1 ph 41.5rpm 25.2 Nm B3 mount Art: PAE 240M3B3-41.5 Copied	1.03A	8μF	230V 50Hz	41.5 rpm	25.2	140 W	67:1
230V 1 ph 6.9rpm 90 Nm B3 mount Art: PAE 240M3B3-6.9 Copied	1.03A	8μF	230V 50Hz	6.9 rpm	90	140 W	404.1:1
230V 1 ph 9.5rpm 90 Nm B3 mount Art: PAE 240M3B3-9.5 Copied	1.03A	8μF	230V 50Hz	9.5 rpm	90	140 W	293.9:1
230V 1 ph 13.6rpm 78 Nm B5 mount Art: PAE 240M3B5-13.6 Copied	1.03A	8μF	230V 50Hz	13.6 rpm	78	140 W	205.2:1
230V 1 ph 17rpm 62.2 Nm B5 mount Art: PAE 240M3B5-17 Copied	1.03A	8μF	230V 50Hz	17 rpm	62.2	140 W	164.6:1
230V 1 ph 23rpm 45.1 Nm B5 mount Art: PAE 240M3B5-23 Copied	1.03A	8μF	230V 50Hz	23 rpm	45.1	140 W	119.7:1
230V 1 ph 33rpm 31.5 Nm B5 mount Art: PAE 240M3B5-33 Copied	1.03A	8μF	230V 50Hz	33 rpm	31.5	140 W	83.6:1
230V 1 ph 41.5rpm 25.2 Nm B5 mount Art: PAE 240M3B5-41.5 Copied	1.03A	8μF	230V 50Hz	41.5 rpm	25.2	140 W	67:1
230V 1 ph 6.9rpm 90 Nm B5 mount Art: PAE 240M3B5-6.9 Copied	1.03A	8μF	230V 50Hz	6.9 rpm	90	140 W	404.1:1
230V 1 ph 9.5rpm 90 Nm B5 mount Art: PAE 240M3B5-9.5 Copied	1.03A	8μF	230V 50Hz	9.5 rpm	90	140 W	293.9:1
230/400V 3 ph 1.5rpm 90 Nm B3 mount Art: PAE 260M2TB3-1.5 Copied	0.50Δ/0.29Y		230/400V	1.5 rpm	90	80 W	1770.9:1
230/400V 3 ph 13.6rpm 38.8 Nm B3 mount Art: PAE 260M2TB3-13.6 Copied	0.50Δ/0.29Y		230/400V	13.6 rpm	38.8	80 W	205.2:1
230/400V 3 ph 17rpm 31.1 Nm B3 mount Art: PAE 260M2TB3-17 Copied	0.50Δ/0.29Y		230/400V	17 rpm	31.1	80 W	164.6:1
230/400V 3 ph 2.2rpm 90 Nm B3 mount Art: PAE 260M2TB3-2.2 Copied	0.50Δ/0.29Y		230/400V	2.2 rpm	90	80 W	1236.8:1
230/400V 3 ph 2.8rpm 90 Nm B3 mount Art: PAE 260M2TB3-2.8 Copied	0.50Δ/0.29Y		230/400V	2.8 rpm	90	80 W	992:1
230/400V 3 ph 23rpm 22.5 Nm B3 mount Art: PAE 260M2TB3-23 Copied	0.50Δ/0.29Y		230/400V	23 rpm	22.5	80 W	119.7:1
230/400V 3 ph 3.8rpm 90 Nm B3 mount Art: PAE 260M2TB3-3.8 Copied	0.50Δ/0.29Y		230/400V	3.8 rpm	90	80 W	721.4:1
230/400V 3 ph 33rpm 15.8 Nm B3 mount Art: PAE 260M2TB3-33 Copied	0.50Δ/0.29Y		230/400V	-33 rpm	15.8	80 W	83.6:1
230/400V 3 ph 41.5rpm 12.6 Nm B3 mount Art: PAE 260M2TB3-41.5 Copied	0.50Δ/0.29Y		230/400V	41.5 rpm	12.6	80 W	67:1
230/400V 3 ph 5.5rpm 90 Nm B3 mount Art: PAE 260M2TB3-5.5 Copied	0.50Δ/0.29Y		230/400V	5.5 rpm	90	80 W	503.8:1
230/400V 3 ph 6.9rpm 76.2 Nm B3 mount Art: PAE 260M2TB3-6.9 Copied	0.50Δ/0.29Y		230/400V	6.9 rpm	76.2	80 W	404.1:1
230/400V 3 ph 9.5rpm 55.5 Nm B3 mount Art: PAE 260M2TB3-9.5 Copied	0.50Δ/0.29Y		230/400V	9.5 rpm	55.5	80 W	293.9:1
230/400V 3 ph 1.5rpm 90 Nm B5 mount Art: PAE 260M2TB5-1.5 Copied	0.50Δ/0.29Y		230/400V	1.5 rpm	90	80 W	1770.9:1
230/400V 3 ph 13.6rpm 38.8 Nm B5 mount Art: PAE 260M2TB5-13.6 Copied	0.50Δ/0.29Y		230/400V	13.6 rpm	38.8	80 W	205.2:1
230/400V 3 ph 17rpm 31.1 Nm B5 mount Art: PAE 260M2TB5-17 Copied	0.50Δ/0.29Y		230/400V	17 rpm	31.1	80 W	164.6:1
230/400V 3 ph 2.2rpm 90 Nm B5 mount Art: PAE 260M2TB5-2.2 Copied	0.50Δ/0.29Y		230/400V	2.2 rpm	90	80 W	1236.8:1
230/400V 3 ph 2.8rpm 90 Nm B5 mount Art: PAE 260M2TB5-2.8 Copied	0.50Δ/0.29Y		230/400V	2.8 rpm	90	80 W	992:1
230/400V 3 ph 23rpm 22.5 Nm B5 mount Art: PAE 260M2TB5-23 Copied	0.50Δ/0.29Y		230/400V	23 rpm	22.5	80 W	119.7:1
230/400V 3 ph 3.8rpm 90 Nm B5 mount Art: PAE 260M2TB5-3.8 Copied	0.50Δ/0.29Y		230/400V	3.8 rpm	90	80 W	721.4:1
230/400V 3 ph 33rpm 15.8 Nm B5 mount Art: PAE 260M2TB5-33 Copied	0.50Δ/0.29Y		230/400V	33 rpm	15.8	80 W	83.6:1
230/400V 3 ph 41.5rpm 12.6 Nm B5 mount Art: PAE 260M2TB5-41.5 Copied	0.50Δ/0.29Y		230/400V	41.5 rpm	12.6	80 W	67:1
230/400V 3 ph 5.5rpm 90 Nm B5 mount Art: PAE 260M2TB5-5.5 Copied	0.50Δ/0.29Y		230/400V	5.5 rpm	90	80 W	503.8:1
230/400V 3 ph 6.9rpm 76.2 Nm B5 mount Art: PAE 260M2TB5-6.9 Copied	0.50Δ/0.29Y		230/400V	6.9 rpm	76.2	80 W	404.1:1
230/400V 3 ph 9.5rpm 55.5 Nm B5 mount Art: PAE 260M2TB5-9.5 Copied	0.50Δ/0.29Y		230/400V	9.5 rpm	55.5	80 W	293.9:1
230/400V 3 ph 13.6rpm 90 Nm B3 mount Art: PAE 440M3TB3-13.6 Copied	0.90Δ/0.52Y		230/400V	13.6 rpm	90	180 W	205.2:1
230/400V 3 ph 17rpm 85.7 Nm B3 mount Art: PAE 440M3TB3-17 Copied	0.90Δ/0.52Y		230/400V	17 rpm	85.7	180 W	164.6:1
230/400V 3 ph 23rpm 62.2 Nm B3 mount Art: PAE 440M3TB3-23 Copied	0.90Δ/0.52Y		230/400V	23 rpm	62.2	180 W	119.7:1
230/400V 3 ph 33rpm 43.7 Nm B3 mount Art: PAE 440M3TB3-33 Copied	0.90Δ/0.52Y		230/400V	33 rpm	43.7	180 W	83.6:1
230/400V 3 ph 41.5rpm 34.7 Nm B3 mount Art: PAE 440M3TB3-41.5 Copied	0.90Δ/0.52Y		230/400V	41.5 rpm	34.7	180 W	67:1
230/400V 3 ph 6.9rpm 90 Nm B3 mount Art: PAE 440M3TB3-6.9 Copied	0.90Δ/0.52Y		230/400V	6.9 rpm	90	180 W	404.1:1
230/400V 3 ph 9.5rpm 90 Nm B3 mount Art: PAE 440M3TB3-9.5 Copied	0.90Δ/0.52Y		230/400V	9.5 rpm	90	180 W	293.9:1
230/400V 3 ph 13.6rpm 90 Nm B5 mount Art: PAE 440M3TB5-13.6 Copied	0.90Δ/0.52Y		230/400V	13.6 rpm	90	180 W	205.2:1
230/400V 3 ph 17rpm 85.7 Nm B5 mount Art: PAE 440M3TB5-17 Copied	0.90Δ/0.52Y		230/400V	17 rpm	85.7	180 W	164.6:1
230/400V 3 ph 23rpm 62.2 Nm B5 mount Art: PAE 440M3TB5-23 Copied	0.90Δ/0.52Y		230/400V	23 rpm	62.2	180 W	119.7:1
230/400V 3 ph 33rpm 43.7 Nm B5 mount Art: PAE 440M3TB5-33 Copied	0.90Δ/0.52Y		230/400V	33 rpm	43.7	180 W	83.6:1
230/400V 3 ph 41.5rpm 34.7 Nm B5 mount Art: PAE 440M3TB5-41.5 Copied	0.90Δ/0.52Y		230/400V	41.5 rpm	34.7	180 W	67:1
230/400V 3 ph 6.9rpm 90 Nm B5 mount Art: PAE 440M3TB5-6.9 Copied	0.90Δ/0.52Y		230/400V	6.9 rpm	90	180 W	404.1:1
230/400V 3 ph 9.5rpm 90 Nm B5 mount Art: PAE 440M3TB5-9.5 Copied	0.90Δ/0.52Y		230/400V	9.5 rpm	90	180 W	293.9:1
230V 1 ph 0.7rpm 90 Nm B3 mount Art: PAE130M2B3-0.7 Copied	0.53A	3.15μF	230V 50Hz	0.7 rpm	90	44 W	1770.9:1
230V 1 ph 2.7rpm 86.1 Nm B3 mount Art: PAE130M2B3-2.7 Copied	0.53A	3.15μF	230V 50Hz	2.7 rpm	86.1	44 W	503.8:1
230V 1 ph 0.7rpm 90 Nm B5 mount Art: PAE130M2B5-0.7 Copied	0.53A	3.15μF	230V 50Hz	0.7 rpm	90	44 W	1770.9:1
230V 1 ph 2.7rpm 86.1 Nm B5 mount Art: PAE130M2B5-2.7 Copied	0.53A	3.15μF	230V 50Hz	2.7 rpm	86.1	44 W	503.8:1
230/400V 3 ph 0.7rpm 90 Nm B3 mount Art: PAE140M2TB3-0.7 Copied	0.33Δ/0.19Y		230/400V	0.7 rpm	90	38 W	1770.9:1
230/400V 3 ph 1.1rpm 90 Nm B3 mount Art: PAE140M2TB3-1.1 Copied	0.33Δ/0.19Y		230/400V	1.1 rpm	90	38 W	1236.8:1
230/400V 3 ph 1.4rpm 90 Nm B3 mount Art: PAE140M2TB3-1.4 Copied	0.33Δ/0.19Y		230/400V	1.4 rpm	90	38 W	992:1
230/400V 3 ph 1.9rpm 90 Nm B3 mount Art: PAE140M2TB3-1.9 Copied	0.33Δ/0.19Y		230/400V	1.9 rpm	90	38 W	721.4:1
230/400V 3 ph 11.5rpm 26.1 Nm B3 mount Art: PAE140M2TB3-11.5 Copied	0.33Δ/0.19Y		230/400V	11.5 rpm	26.1	38 W	119.7:1
230/400V 3 ph 2.7rpm 90 Nm B3 mount Art: PAE140M2TB3-2.7 Copied	0.33Δ/0.19Y		230/400V	2.7 rpm	90	38 W	503.8:1
230/400V 3 ph 28.5rpm 10.8 Nm B3 mount Art: PAE140M2TB3-28.5 Copied	0.33Δ/0.19Y		230/400V	28.5 rpm	10.8	38 W	48.7:1
230/400V 3 ph 3.4rpm 88.4 Nm B3 mount Art: PAE140M2TB3-3.4 Copied	0.33Δ/0.19Y		230/400V	3.4 rpm	88.4	38 W	404.1:1
230/400V 3 ph 6.8rpm 44.6 Nm B3 mount Art: PAE140M2TB3-6.8 Copied	0.33Δ/0.19Y		230/400V	6.8 rpm	44.6	38 W	205.2:1
230/400V 3 ph 8.5rpm 36.1 Nm B3 mount Art: PAE140M2TB3-8.5 Copied	0.33Δ/0.19Y		230/400V	8.5 rpm	36.1	38 W	164.6:1
230/400V 3 ph 0.7rpm 90 Nm B5 mount Art: PAE140M2TB5-0.7 Copied	0.33Δ/0.19Y		230/400V	0.7 rpm	90	38 W	1770.9:1
230/400V 3 ph 1.1rpm 90 Nm B5 mount Art: PAE140M2TB5-1.1 Copied	0.33Δ/0.19Y		230/400V	1.1 rpm	90	38 W	1236.8:1
230/400V 3 ph 1.4rpm 90 Nm B5 mount Art: PAE140M2TB5-1.4 Copied	0.33Δ/0.19Y		230/400V	1.4 rpm	90	38 W	992:1
230/400V 3 ph 1.9rpm 90 Nm B5 mount Art: PAE140M2TB5-1.9 Copied	0.33Δ/0.19Y		230/400V	1.9 rpm	90	38 W	721.4:1
230/400V 3 ph 11.5rpm 26.1 Nm B5 mount Art: PAE140M2TB5-11.5 Copied	0.33Δ/0.19Y		230/400V	11.5 rpm	26.1	38 W	119.7:1
230/400V 3 ph 2.7rpm 90 Nm B5 mount Art: PAE140M2TB5-2.7 Copied	0.33Δ/0.19Y		230/400V	2.7 rpm	90	38 W	503.8:1
230/400V 3 ph 28.5rpm 10.8 Nm B5 mount Art: PAE140M2TB5-28.5 Copied	0.33Δ/0.19Y		230/400V	28.5 rpm	10.8	38 W	48.7:1
230/400V 3 ph 3.4rpm 88.4 Nm B5 mount Art: PAE140M2TB5-3.4 Copied	0.33Δ/0.19Y		230/400V	3.4 rpm	88.4	38 W	404.1:1
230/400V 3 ph 6.8rpm 44.6 Nm B5 mount Art: PAE140M2TB5-6.8 Copied	0.33Δ/0.19Y		230/400V	6.8 rpm	44.6	38 W	205.2:1
230/400V 3 ph 8.5rpm 36.1 Nm B5 mount Art: PAE140M2TB5-8.5 Copied	0.53A		230/400V	8.5 rpm	36.1	38 W	164.6:1
230V 1 ph 11.5rpm 31.5 Nm B3 mount Art: PAE165M3B3-11.5 Copied	0.53A	4μF	230V 50Hz	11.5 rpm	31.5	44 W	119.7:1
230V 1 ph 28.5rpm 13 Nm B3 mount Art: PAE165M3B3-28.5 Copied	0.53A	4μF	230V 50Hz	28.5 rpm	13	44 W	48.7:1
230V 1 ph 3.4rpm 90 Nm B3 mount Art: PAE165M3B3-3.4 Copied	0.53A	4μF	230V 50Hz	3.4 rpm	90	44 W	404.1:1
230V 1 ph 4.7rpm 78 Nm B3 mount Art: PAE165M3B3-4.7 Copied	0.53A	4μF	230V 50Hz	4.7 rpm	78	44 W	293.9:1
230V 1 ph 6.8rpm 54.6 Nm B3 mount Art: PAE165M3B3-6.8 Copied	0.53A	4μF	230V 50Hz	6.8 rpm	54.6	44 W	205.2:1
230V 1 ph 8.5rpm 43.7 Nm B3 mount Art: PAE165M3B3-8.5 Copied	0.53A	4μF	230V 50Hz	8.5 rpm	43.7	44 W	164.6:1
230V 1 ph 11.5rpm 31.5 Nm B5 mount Art: PAE165M3B5-11.5 Copied	0.53A	4μF	230V 50Hz	11.5 rpm	31.5	44 W	119.7:1
230V 1 ph 28.5rpm 13 Nm B5 mount Art: PAE165M3B5-28.5 Copied	0.53A	4μF	230V 50Hz	28.5 rpm	13	44 W	48.7:1
230V 1 ph 3.4rpm 90 Nm B5 mount Art: PAE165M3B5-3.4 Copied	0.53A	4μF	230V 50Hz	3.4 rpm	90	44 W	404.1:1
230V 1 ph 4.7rpm 78 Nm B5 mount Art: PAE165M3B5-4.7 Copied	0.53A	4μF	230V 50Hz	4.7 rpm	78	44 W	293.9:1
230V 1 ph 6.8rpm 54.6 Nm B5 mount Art: PAE165M3B5-6.8 Copied	0.53A	4μF	230V 50Hz	6.8 rpm	54	44 W	205.2:1
230V 1 ph 8.5rpm 43.7 Nm B5 mount Art: PAE165M3B5-8.5 Copied	0.53A	4μF	230V 50Hz	8.5 rpm	43.7	44 W	164.6:1
230V 1 ph 1.5rpm 90 Nm B3 mount Art: PAE180M2B3-1.5 Copied	1.03A		230V 50Hz	1.5 rpm	90	140 W	1770.9:1
230V 1 ph 1.5rpm 90 Nm B5 mount Art: PAE180M2B5-1.5 Copied	1.03A		230V 50Hz	1.5 rpm	90	140 W	1770.9:1
230/400V 3 ph 28.5rpm 19.8 Nm B3 mount Art: PAE230M3TB3-28.5 Copied	0.58Δ/0.34Y		230/400V	28.5 rpm	19.8	63 W	48.7:1
230/400V 3 ph 28.5rpm 19.8 Nm B5 mount Art: PAE230M3TB5-28.5 Copied	0.58Δ/0.34Y		230/400V	28.5 rpm	19.8	63 W	48.7:1
230V 1 ph 57rpm 18.5 Nm B3 mount Art: PAE240M3B3-57 Copied	1.03A	8μF	230V 50Hz	57 rpm	18.5	140 W	48.7:1
230V 1 ph 57rpm 18.5 Nm B5 mount Art: PAE240M3B5-57 Copied	1.03A	8μF	230V 50Hz	57 rpm	18.5	140 W	48.7:1
230/400V 3 ph 57rpm 9 Nm B3 mount Art: PAE260M2TB3-57 Copied	0.50Δ/0.29Y		230/400V	57 rpm	9	80 W	48.7:1
230/400V 3 ph 57rpm 9 Nm B5 mount Art: PAE260M2TB5-57 Copied	0.50Δ/0.29Y		230/400V	57 rpm	9	80 W	48.7:1
230/400V 3 ph 57rpm 25.2 Nm B3 mount Art: PAE440M3TB3-57 Copied	0.90Δ/0.52Y		230/400V	57 rpm	25.2	180 W	48.7:1
230/400V 3 ph 57rpm 25.2 Nm B5 mount Art: PAE440M3TB5-57 Copied	0.90Δ/0.52Y		230/400V	57 rpm	25.2	180 W	48.7:1
230V 1 ph 2.8rpm 90 Nm B5 mount Art: PAE240M3B5-2.8 Copied	1.03A	8μF	230V 50Hz	2.8 rpm	90	140 W	992:1
230V 1 ph 2.8rpm 90 Nm B3 mount Art: PAE240M3B3-2.8 Copied	1.03A	8μF	230V 50Hz	2.8 rpm	90	140 W	992:1
230V 1 ph 3.8rpm 90 Nm B3 mount Art: PAE240M3B3-3.8 Copied	1.03A	8μF	230V 50Hz	3.8 rpm	90	140 W	721.4:1
230V 1 ph 3.8rpm 90 Nm B5 mount Art: PAE240M3B5-3.8 Copied	1.03A	8μF	230V 50Hz	3.8 rpm	90	140 W	721.4:1
230V 1 ph 2.2rpm 90 Nm B3 mount Art: PAE240M3B3-2.2 Copied	1.03A	8μF	230V 50Hz	2.2 rpm	90	140 W	1236.8:1
230V 1 ph 2.2rpm 90 Nm B5 mount Art: PAE240M3B5-2.2 Copied	1.03A	8μF	230V 50Hz	2.2 rpm	90	140 W	1236.8:1
230V 1 ph 1.9rpm 90 Nm B3 mount Art: PAE165M3B3-1.9 Copied	0.53A	4μF	230V 50Hz	1.9 rpm	90	44 W	721.4:1
230V 1 ph 1.9rpm 90 Nm B5 mount Art: PAE165M3B5-1.9 Copied	0.53A	4μF	230V 50Hz	1.9 rpm	90	44 W	721.4:1
230V 1 ph 1.4rpm 90 Nm B3 mount Art: PAE165M3B3-1.4 Copied	0.53A	4μF	230V 50Hz	1.4 rpm	90	44 W	992:1
230V 1 ph 1.4rpm 90 Nm B5 mount Art: PAE165M3B5-1.4 Copied	0.53A	4μF	230V 50Hz	1.4 rpm	90	44 W	992:1
230V 1 ph 1.1rpm 90 Nm B3 mount Art: PAE165M3B3-1.1 Copied	0.53A	4μF	230V 50Hz	1.1 rpm	90	44 W	1236.8:1
230V 1 ph 1.1rpm 90 Nm B5 mount Art: PAE165M3B5-1.1 Copied	0.53A	4μF	230V 50Hz	1.1 rpm	90	44 W	1236.8:1

Selected variant

Select a variant in the list
