ZEBRA TECHNOLOGIES

Zebra VS40 Smart Camera

The VS40 can be used in almost any inspection application on a production line, thanks to its wide range of Machine Vision tools. Tailor the device to your application with a wide range of lenses, lighting, I/Os and filters. In addition, you can upgrade to more advanced features by simply purchasing a software license. With Zebra Aurora's powerful software platform, you can easily set up, deploy and run your VS40 smart cameras.

Ease of Setup with Auto-Tune: The VS40 offers a one-button Auto-Tune feature that simplifies setup, optimizing image quality for reliable inspections straight out of the box
IoT and Cloud-Ready: Equipped to send data to Zebra’s Savanna™ cloud service, the VS40 supports compliance and image storage without requiring local server infrastructure
Power Over Ethernet (PoE): The device can be powered via Ethernet, reducing setup complexity and removing the need for additional power supplies
Integrated with Zebra Aurora: Managed by Zebra Aurora software, the VS40 allows users to control multiple machine vision and industrial scanner devices through a single platform, offering tools for experts and guidance for beginners
Advanced Lighting and Optics: Featuring integrated, customizable lighting options (such as red, blue, and infrared LEDs) and a rugged, industrial-grade design, the VS40 achieves high-quality imaging suitable for challenging environments

Selected variant

Save page as PDF

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

Focus	Liquid lens
Interface out	Ethernet with POE, Serial, USB & Industrial Protocols
Lighting	Red
Size	54.0 x 64.0 x 91.4
Software performance	STANDARD MV TOOLSET
Type of lens	Standard
Type of scanner	Smart Camera

Downloads

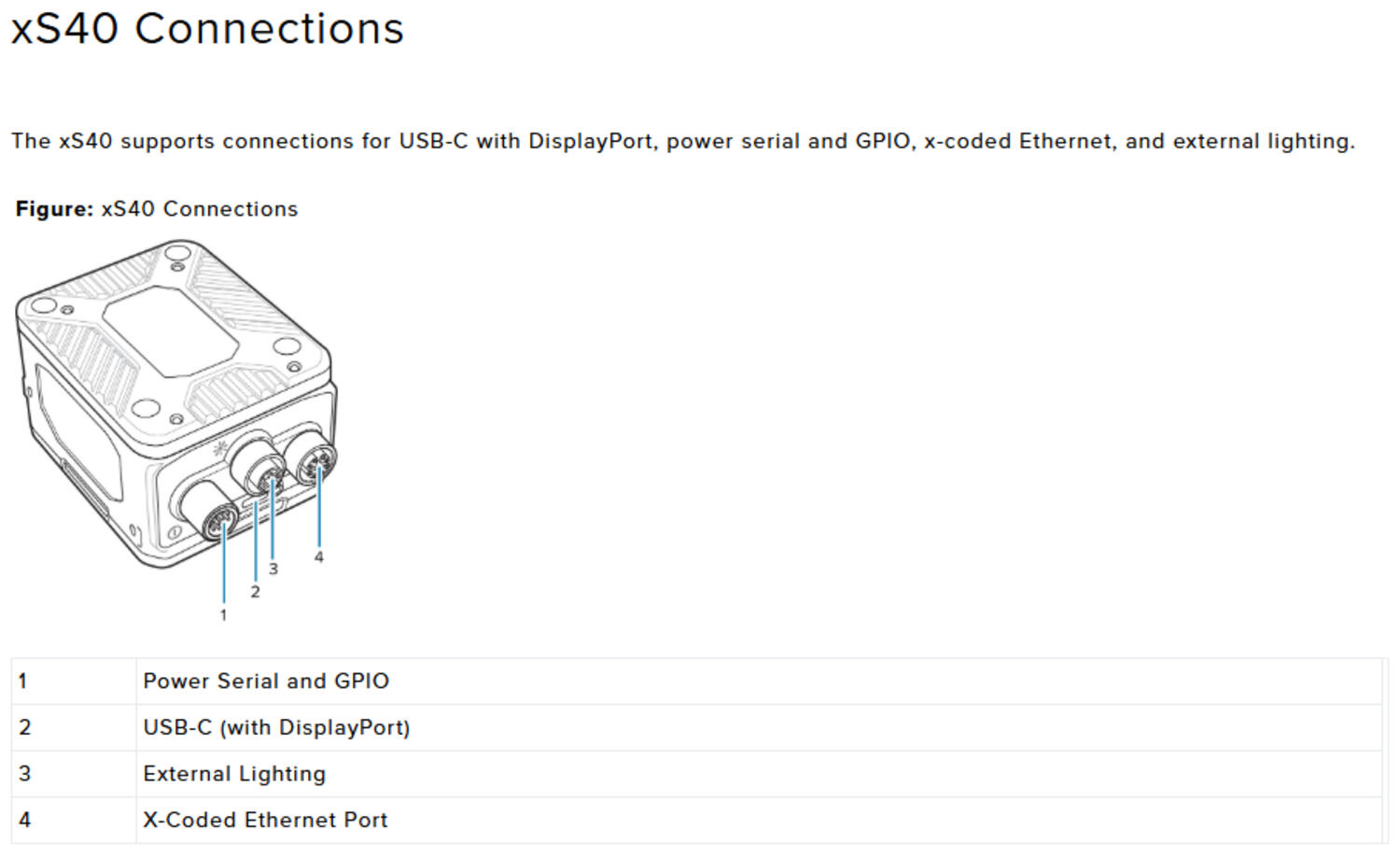

Measurements and connections

Technical illustrations

Product description

Accessories

Related products

Case studies

MLT and OEM Automatic case study

OEM Automatic and Machine Learning Technologies (MLT) have been focusing on behavioural analysis through advanced sensing and machine vision.

Product news

Q&A on 2d and 3d imaging - Motioncam 3d

A Q&A on 3D and 2D imagery, the NEW Motioncam-3D by Photoneo.

What is a line scan camera? applications, advantages and more

Learning hub

What is a line scan camera and how does it work?

Our Machine & Computer Vision product experts explain line scan cameras, make comparisons, state advantages and suitable applications.

Blog

SWiR imaging in agriculture

Advancements in imaging technology, particularly Short-Wave Infrared (SWIR) systems, have revolutionized quality control in the food industry, explained in our article.

Blog

AI Cameras for the automotive industry

The automotive industry is striving to improve safety and efficiency, this is where AI cameras come in to achieve the highest results.

IATECH, the industrial automation technology exhibition OEM automatic

Company news

Recap of IATECH

Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.

Parts	Interface out	Lighting	Software performance	Type of lens
VS40, SR, 2.3 MP, SR MV TOOLS, RED Art: VS40-SR20M4-2C00W Copied	Ethernet with POE, Serial, USB & Industrial Protocols	Red	STANDARD MV TOOLSET	Standard
VS40, SR, 2.3 MP, MV TOOLS, RED, RED BP FILTER Art: VS40-SR20M4-2R00W Copied	Ethernet with POE, Serial, USB & Industrial Protocols	Red	STANDARD MV TOOLSET	Standard
VS40, SR, 2.3 MP, MV TOOLS, WHITE, RGB FILTER Art: VS40-SR20M4-3X00W Copied	Ethernet with POE, Serial, USB & Industrial Protocols	White	STANDARD MV TOOLSET	Standard
VS40, SR, 2.3 MP, MV TOOLS, BLUE, BLUE BP FILTER Art: VS40-SR20M4-4B00W Copied	Ethernet with POE, Serial, USB & Industrial Protocols	Blue	STANDARD MV TOOLSET	Standard
VS40, SR, 2.3 MP, MV TOOLS, IR , IR BP FILTER Art: VS40-SR20M4-5F00W Copied	Ethernet with POE, Serial, USB & Industrial Protocols	Infrared	STANDARD MV TOOLSET	Standard
VS40, SR, 2.3 MP, MV TOOLS, RED, WHITE, BLUE & IR Art: VS40-SR20M4-6C00W Copied	Ethernet with POE, Serial, USB & Industrial Protocols	Red, White, Blue, Infrared	STANDARD MV TOOLSET	Standard
VS40, SR, 2.3 MP, MV TOOLS, Red BP Filter Art: VS40-SR20M5-2R00W Copied	Dual Ethernet (1 POE), Serial, USB & Industrial Protocols	Red	STANDARD MV TOOLSET	Standard
VS40, SR, 2.3 MP, 2D, RED, RED BP FILTER Art: VS40-SR20P4-2R00W Copied	Ethernet with POE, Serial, USB & Industrial Protocols	Red	Sensor Toolset W/ Fast 2D Decode	Standard
VS40, SR, 2.3 MP, 2D, RED BP FILTER Art: VS40-SR20P5-2R00W Copied	Dual Ethernet (1 POE), Serial, USB & Industrial Protocols	Red	Sensor Toolset W/ Fast 2D Decode	Standard
VS40, SR, 2.3 MP, RED Art: VS40-SR20S4-2C00W Copied	Ethernet with POE, Serial, USB & Industrial Protocols	Red	Sensor Toolset	Standard
VS40, SR, 2.3 MP, RED, RED BP FILTER Art: VS40-SR20S4-2R00W Copied	Ethernet with POE, Serial, USB & Industrial Protocols	Red	Sensor Toolset	Standard
VS40, SR, 2.3 MP, Red BP Filter Art: VS40-SR20S5-2R00W Copied	Dual Ethernet (1 POE), Serial, USB & Industrial Protocols	Red	Sensor Toolset	Standard
VS40, WIDE ANGLE, 2.3 MP, MV TOOLS, RED Art: VS40-WA20M4-2C00W Copied	Ethernet with POE, Serial, USB & Industrial Protocols	Red	STANDARD MV TOOLSET	Wide angle
VS40, WIDE ANGLE, 2.3 MP, MV TOOLS, RED, RED BP FILTER Art: VS40-WA20M4-2R00W Copied	Ethernet with POE, Serial, USB & Industrial Protocols	Red	STANDARD MV TOOLSET	Wide angle
VS40, WIDE ANGLE, 2.3 MP, MV TOOLS, WHITE, RGB FILTER Art: VS40-WA20M4-3X00W Copied	Ethernet with POE, Serial, USB & Industrial Protocols	White	STANDARD MV TOOLSET	Wide angle
VS40, WIDE ANGLE, 2.3 MP, MV TOOLS, BLUE, BLUE BP FILTER Art: VS40-WA20M4-4B00W Copied	Ethernet with POE, Serial, USB & Industrial Protocols	Blue	STANDARD MV TOOLSET	Wide angle
VS40, WIDE ANGLE, 2.3 MP, MV TOOLS, IR, IR BP FILTER Art: VS40-WA20M4-5F00W Copied	Ethernet with POE, Serial, USB & Industrial Protocols		STANDARD MV TOOLSET	Wide angle
VS40, WIDE ANGLE, 2.3 MP, MV TOOLS, RED, WHITE, BLUE & IR Art: VS40-WA20M4-6C00W Copied	Ethernet with POE, Serial, USB & Industrial Protocols	Red, White, Blue, Infrared	STANDARD MV TOOLSET	Wide angle
VS40, WIDE ANGLE, 2.3 MP, MV TOOLS, Red BP Filter Art: VS40-WA20M5-2R00W Copied	Dual Ethernet (1 POE), Serial, USB & Industrial Protocols	Red	STANDARD MV TOOLSET	Wide angle
VS40, WIDE ANGLE, 2.3 MP, 2D, RED, RED BP FILTER Art: VS40-WA20P4-2R00W Copied	Ethernet with POE, Serial, USB & Industrial Protocols	Red	Sensor Toolset W/ Fast 2D Decode	Wide angle
VS40, WIDE ANGLE, 2.3 MP, 2D, RED BP FILTER Art: VS40-WA20P5-2R00W Copied	Dual Ethernet (1 POE), Serial, USB & Industrial Protocols	Red	Sensor Toolset W/ Fast 2D Decode	Wide angle
VS40, WIDE ANGLE, 2.3 MP, RED Art: VS40-WA20S4-2C00W Copied	Ethernet with POE, Serial, USB & Industrial Protocols	Red	Sensor Toolset	Wide angle
VS40, WIDE ANGLE, 2.3 MP, RED, RED BP FILTER Art: VS40-WA20S4-2R00W Copied	Ethernet with POE, Serial, USB & Industrial Protocols	Red	Sensor Toolset	Wide angle
VS40, WIDE ANGLE, 2.3 MP, Red BP Filter Art: VS40-WA20S5-2R00W Copied	Dual Ethernet (1 POE), Serial, USB & Industrial Protocols	Red	Sensor Toolset	Wide angle
VS40, WIDE ANGLE, 5.1 MP, MV TOOLS, RED Art: VS40-WA50M4-2C00W Copied	Ethernet with POE, Serial, USB & Industrial Protocols	Red	STANDARD MV TOOLSET	Wide angle
VS40, WIDE ANGLE, 5.1 MP, MV TOOLS, RED, RED BP FILTER Art: VS40-WA50M4-2R00W Copied	Ethernet with POE, Serial, USB & Industrial Protocols	Red	STANDARD MV TOOLSET	Wide angle
VS40, WIDE ANGLE, 5.1 MP, MV TOOLS, WHITE, RGB FILTER Art: VS40-WA50M4-3X00W Copied	Ethernet with POE, Serial, USB & Industrial Protocols	White	STANDARD MV TOOLSET	Wide angle
VS40, WIDE ANGLE, 5.1 MP, MV TOOLS, BLUE, BLUE BP FILTER Art: VS40-WA50M4-4B00W Copied	Ethernet with POE, Serial, USB & Industrial Protocols	Blue	STANDARD MV TOOLSET	Wide angle
VS40, WIDE ANGLE, 5.1 MP, MV TOOLS, IR, IR BP FILTER Art: VS40-WA50M4-5F00W Copied	Ethernet with POE, Serial, USB & Industrial Protocols		STANDARD MV TOOLSET	Wide angle
VS40, WIDE ANGLE, 5.1 MP, MV TOOLS, RED, WHITE, BLUE & IR Art: VS40-WA50M4-6C00W Copied	Ethernet with POE, Serial, USB & Industrial Protocols	Red, White, Blue, Infrared	STANDARD MV TOOLSET	Wide angle
VS40, WIDE ANGLE, 5.1 MP, MV TOOLS, RED BP FILTER Art: VS40-WA50M5-2R00W Copied	Dual Ethernet (1 POE), Serial, USB & Industrial Protocols	Red	STANDARD MV TOOLSET	Wide angle
VS40, WIDE ANGLE, 5.1 MP, 2D, RED, RED BP FILTER Art: VS40-WA50P4-2R00W Copied	Ethernet with POE, Serial, USB & Industrial Protocols	Red	Sensor Toolset W/ Fast 2D Decode	Wide angle
VS40, WIDE ANGLE, 5.1 MP, 2D, RED BP FILTER Art: VS40-WA50P5-2R00W Copied	Dual Ethernet (1 POE), Serial, USB & Industrial Protocols	Red	Sensor Toolset W/ Fast 2D Decode	Wide angle
VS40, WIDE ANGLE, 5.1 MP, RED Art: VS40-WA50S4-2C00W Copied	Ethernet with POE, Serial, USB & Industrial Protocols	Red	Sensor Toolset	Wide angle
VS40, WIDE ANGLE, 5.1 MP, RED, RED BP FILTER Art: VS40-WA50S4-2R00W Copied	Ethernet with POE, Serial, USB & Industrial Protocols	Red	Sensor Toolset	Wide angle
VS40, WIDE ANGLE, 5.1 MP, RED BP FILTER Art: VS40-WA50S5-2R00W Copied	Dual Ethernet (1 POE), Serial, USB & Industrial Protocols	Red	Sensor Toolset	Wide angle

Selected variant

Select a variant in the list
