ZEBRA TECHNOLOGIES
Zebra NS42 Smart Camera

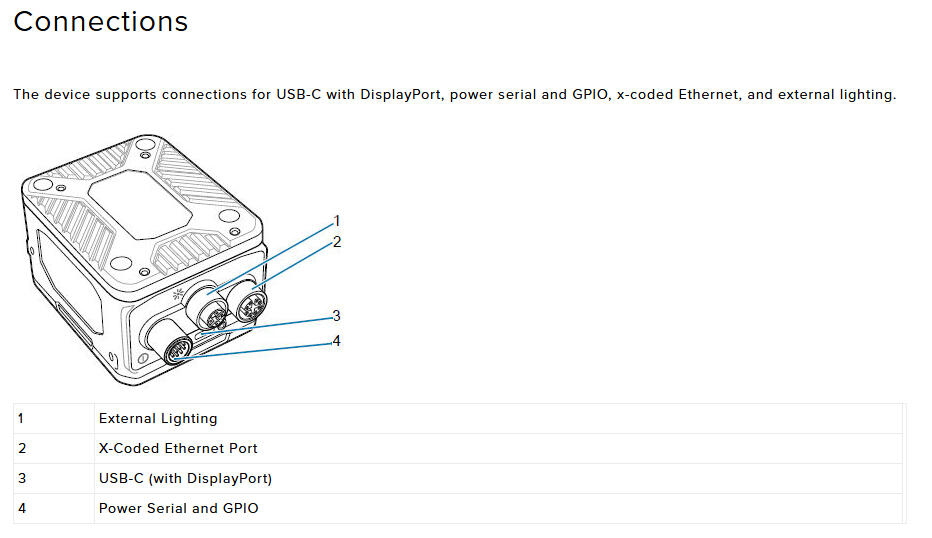

The Zebra NS42 Smart Vision Sensor is a compact yet powerful machine vision system featuring a 2.3 MP global‑shutter CMOS sensor capable of capturing up to 60 fps. It’s powered by a quad‑core processor with 8 GB RAM to support demanding AI workloads. Users can choose between standard-range (30° × 19°) or wide-angle (46° × 29°) liquid-lens fields of view, with modular red or white LED illumination. PoE+ support simplifies cabling, and there’s flexibility with 24 V DC or USB‑C power. On-device I/O includes nine digital ports, RS‑232, Ethernet/IP, PROFINET, Modbus TCP, and USB‑C with DisplayPort Alt Mode. Ruggedised in a sealed aluminium IP65/67 housing and tested for shock and vibration, it’s built for harsh factory environments.
Out of the box, the NS42 supports deep learning‑based OCR (DL‑OCR) and anomaly detection, with standard machine‑vision tools via Aurora Focus. DL‑OCR reads varied fonts, characters, and symbols without training, ideal for parcel labels and serial numbers. Anomaly detection performs automated defect and assembly checks using reference image comparison, crucial in electronics, automotive, and packaging quality control. Integrated 360° LEDs and an adjustable-volume beeper provide instant operator feedback, while the browser‑based HMI delivers real-time diagnostics and performance metrics without needing a PC. The system’s licensable architecture means you can add new capabilities, like symbology decoding or advanced tools, as requirements evolve, making it ideal for scalable, traceability, and automated inspection workflows.
- Catches errors early
- Easy to set up
- Reliable and long lasting
- Status indicators and operator feedback
Selected variant
Technical data
| Focus | Liquid lens |
|---|---|
| Interface out | Ethernet with POE, Serial, USB & Industrial Protocols |
| Javascript Support | Yes |
| Lighting | Red |
| Pixel Size | 3 x 3 μm |
| Resolution | 2.3 MP |
| Size | 54.0 x 64.0 x 91.4 mm |
|---|---|
| Software performance | ESSENTIAL MV AND ANOMALY DETECTION |
| Type of lens | Standard |
| Type of scanner | Fixed Scanner |
Product description
The Zebra NS42 Smart Vision Sensor is a compact yet powerful machine vision system featuring a 2.3 MP global‑shutter CMOS sensor capable of capturing up to 60 fps. It’s powered by a quad‑core processor with 8 GB RAM to support demanding AI workloads. Users can choose between standard-range (30° × 19°) or wide-angle (46° × 29°) liquid-lens fields of view, with modular red or white LED illumination. PoE+ support simplifies cabling, and there’s flexibility with 24 V DC or USB‑C power. On-device I/O includes nine digital ports, RS‑232, Ethernet/IP, PROFINET, Modbus TCP, and USB‑C with DisplayPort Alt Mode. Ruggedised in a sealed aluminium IP65/67 housing and tested for shock and vibration, it’s built for harsh factory environments.
Out of the box, the NS42 supports deep learning‑based OCR (DL‑OCR) and anomaly detection, with standard machine‑vision tools via Aurora Focus. DL‑OCR reads varied fonts, characters, and symbols without training, ideal for parcel labels and serial numbers. Anomaly detection performs automated defect and assembly checks using reference image comparison, crucial in electronics, automotive, and packaging quality control. Integrated 360° LEDs and an adjustable-volume beeper provide instant operator feedback, while the browser‑based HMI delivers real-time diagnostics and performance metrics without needing a PC. The system’s licensable architecture means you can add new capabilities, like symbology decoding or advanced tools, as requirements evolve, making it ideal for scalable, traceability, and automated inspection workflows.
