The Zebra FS80 Fixed Industrial Scanner is a high-performance code reader designed for demanding industrial environments that require fast, accurate barcode reading. Equipped with a powerful 2.3 MP image sensor and Zebra’s advanced PRZM Intelligent Imaging technology, the FS80 delivers rapid, reliable decoding of both 1D and 2D barcodes, even those that are poorly printed, damaged, or displayed on electronic screens. Its customisable illumination, adjustable optics, and comprehensive decoding algorithms make it suitable for complex use cases involving high-speed production lines or intricate label designs. The FS80 also offers connectivity via USB, Ethernet, and Serial interfaces, and supports Power-over-Ethernet (PoE) for simplified installation. It can be configured using Zebra’s Aurora™ software platform, allowing for intuitive setup, remote management, and real-time diagnostics.
The Zebra FS80 is ideal for automated manufacturing, warehouse logistics, and quality assurance systems. Its rugged IP65-rated enclosure protects it from dust and water, making it suitable for harsh industrial environments. With optional features like liquid lens technology for dynamic focus adjustment, the FS80 can handle variable working distances, making it especially useful in assembly lines where products differ in size and placement. Additionally, its fast decode speeds and ability to read multiple codes in a single image enable increased throughput and reduced error rates in automated workflows. The FS80’s compact design and flexible mounting options ensure seamless integration into both new and existing automation systems.
12408_Pixelsize | 3.2 x 3.2 µm |
---|---|
12410_Frame rate Max | 42 |
12413_Javascript support | Yes |
12415_Certification - Environment | EN IEC 63000:2018 |
12416_Certification - Electricity | UL, CSA, IEC 61010 |
12417_Certification - EMC | EN 55011, EN 61326, FCC Part 15 |
12418_Dimensions (with lens cap) | 75 x 120 x 75 mm |
12419_Dimensions (without lens cap) | 75 x 57 x 75 mm |
12420_Weight (with lens cap) | 504 g |
12421_Weight (without lens cap) | 407 g |
Current consumption | 15 W (625 mA @ 24 VDC) |
Focus | Manual iris |

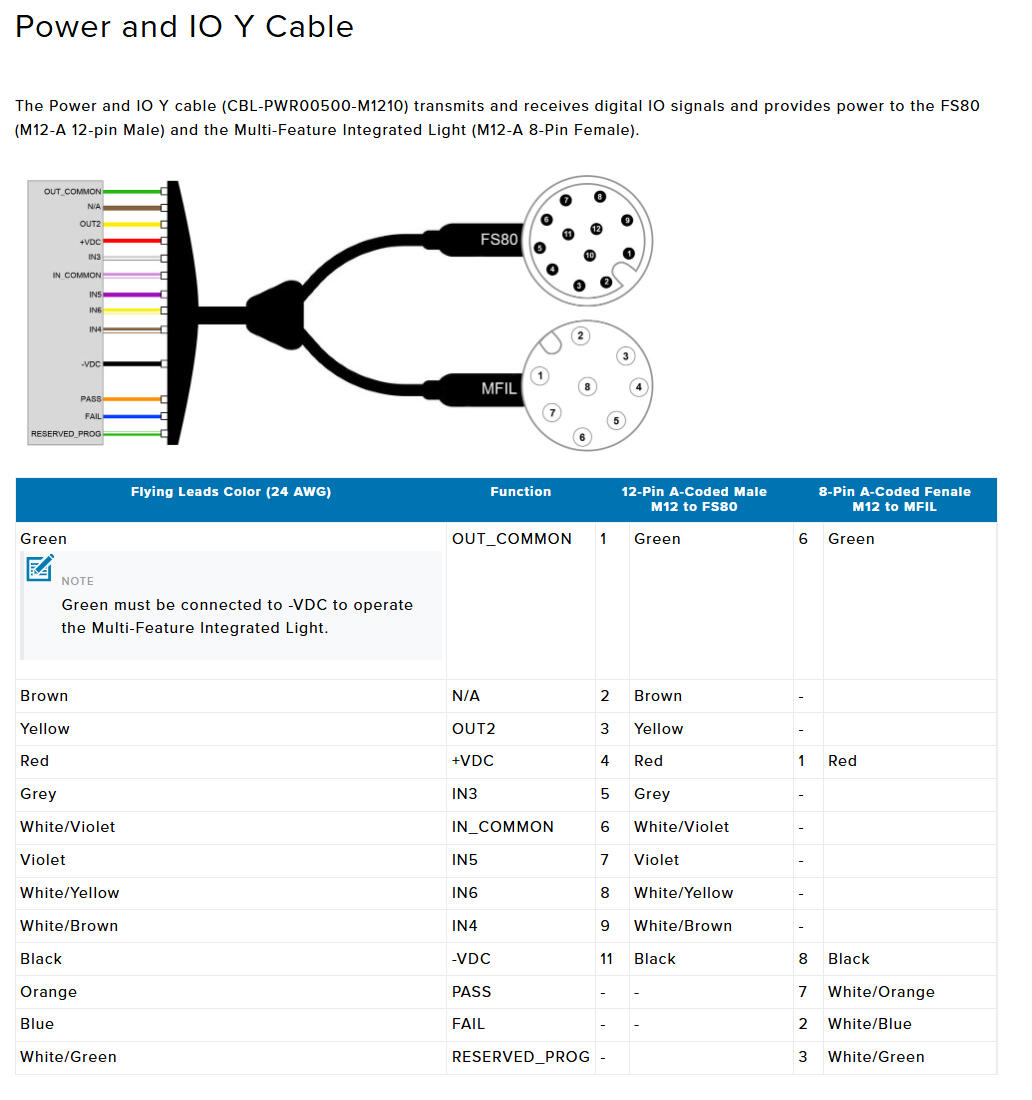

Interface out | One M12 X-Coded 1GbE, One M12-A 12-pin (female) Power & GPIO, One M12-A 12-pin (male) VGA |
---|---|
Lens Barrel | C-Mount |
Material | Aluminium |
Resolution | 5 MP |
Size | 75 x 120 x 75 mm |
Software performance | DPM W/ Fast 2D Barcode Decoder W/ DL OCR |
Storage | 32 GB |
Temperature range | 0 °C till 45 °C |
Type of lens | Fixed |
Type of scanner | Fixed Scanner |
The Zebra FS80 Fixed Industrial Scanner is a high-performance code reader designed for demanding industrial environments that require fast, accurate barcode reading. Equipped with a powerful 2.3 MP image sensor and Zebra’s advanced PRZM Intelligent Imaging technology, the FS80 delivers rapid, reliable decoding of both 1D and 2D barcodes, even those that are poorly printed, damaged, or displayed on electronic screens. Its customisable illumination, adjustable optics, and comprehensive decoding algorithms make it suitable for complex use cases involving high-speed production lines or intricate label designs. The FS80 also offers connectivity via USB, Ethernet, and Serial interfaces, and supports Power-over-Ethernet (PoE) for simplified installation. It can be configured using Zebra’s Aurora™ software platform, allowing for intuitive setup, remote management, and real-time diagnostics.
The Zebra FS80 is ideal for automated manufacturing, warehouse logistics, and quality assurance systems. Its rugged IP65-rated enclosure protects it from dust and water, making it suitable for harsh industrial environments. With optional features like liquid lens technology for dynamic focus adjustment, the FS80 can handle variable working distances, making it especially useful in assembly lines where products differ in size and placement. Additionally, its fast decode speeds and ability to read multiple codes in a single image enable increased throughput and reduced error rates in automated workflows. The FS80’s compact design and flexible mounting options ensure seamless integration into both new and existing automation systems.
Our Machine & Computer Vision product experts explain line scan cameras, make comparisons, state advantages and suitable applications.
Advancements in imaging technology, particularly Short-Wave Infrared (SWIR) systems, have revolutionized quality control in the food industry, explained in our article.
The automotive industry is striving to improve safety and efficiency, this is where AI cameras come in to achieve the highest results.
Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.
We are thrilled to announce the launch of IATECH, THe Industrial Automation Technology expo at Leicester Marriott Hotel on 23rd October. The ultimate platform for showcasing our extensive product range and broad business areas, featuring over 50 leading suppliers under one roof!
The specialist vehicle industry can include automotive and EV, heavy vehicles such as agriculture and rail, and marine. This email takes you through some of the various products we offer for specialist vehicle applications.
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Parts | 12410_Frame rate Max | Resolution | Software performance | Price | ||
---|---|---|---|---|---|---|
![]()
FS80, C-Mount, 5 MP, DPM W/ Fast, 2D, W/ DL OCR, USB and Industrial Protocols, Lens Not Included - Worldwide
Art:
FS80-CM0507C00W
Copied
|
42
|
5 MP
|
DPM W/ Fast 2D Barcode Decoder W/ DL OCR
|
| ||
![]()
FS80, C-Mount, 5 MP, DPM W/ Fast, 2D, USB and Industrial Protocols, Lens Not Included - Worldwide
Art:
FS80-CM0507D00W
Copied
|
42
|
5 MP
|
DPM W/ Fast 2D Barcode Decoder
|
| ||
![]()
FS80, C-Mount, 5 MP, Standard, 2D, W/ DL OCR, USB and Industrial Protocols, Leader & Follower Full, Lens Not Included - Worldwide
Art:
FS80-CM0507H00W
Copied
|
42
|
5 MP
|
Standard 2D Barcode Decoder W/ DL OCR
|
| ||
![]()
FS80, C-Mount, 5 MP, Standard, 2D, USB and Industrial Protocols, Leader & Follower Full, Lens Not Included - Worldwide
Art:
FS80-CM0507Z00W
Copied
|
42
|
5 MP
|
Standard 2D Barcode Decoder
|
| ||
![]()
FS80, C-Mount, 9 MP, DPM W/ Fast, 2D, W/ DL OCR, USB and Industrial Protocols, Lens Not Included - Worldwide
Art:
FS80-CM0907C00W
Copied
|
40
|
9 MP
|
DPM W/ Fast 2D Barcode Decoder
|
| ||
![]()
FS80, C-Mount, 9 MP, DPM W/ Fast, 2D, USB and Industrial Protocols, Lens Not Included - Worldwide
Art:
FS80-CM0907D00W
Copied
|
40
|
9 MP
|
Standard 2D Barcode Decoder
|
| ||
![]()
FS80, C-Mount, 9 MP, Standard, 2D, W/ DL OCR, USB and Industrial Protocols, Lens Not Included - Worldwide
Art:
FS80-CM0907H00W
Copied
|
40
|
9 MP
|
Standard 2D Barcode Decoder W/ DL OCR
|
| ||
![]()
FS80, C-Mount, 9 MP, Standard, 2D, USB and Industrial Protocols, Lens Not Included - Worldwide
Art:
FS80-CM0907Z00W
Copied
|
40
|
9 MP
|
Standard 2D Barcode Decoder
|
| ||
![]()
FS80, C-Mount, 12 MP, DPM W/ Fast, 2D, W/ DL OCR, USB and Industrial Protocols, Lens Not Included - Worldwide
Art:
FS80-CM1207C00W
Copied
|
28
|
12 MP
|
DPM W/ Fast 2D Barcode Decoder W/ DL OCR
|
| ||
![]()
FS80, C-Mount, 12 MP, DPM W/ Fast, 2D, USB and Industrial Protocols, Lens Not Included - Worldwide
Art:
FS80-CM1207D00W
Copied
|
28
|
12 MP
|
DPM W/ Fast 2D Barcode Decoder
|
| ||
![]()
FS80, C-Mount, 12 MP, Standard, 2D, W/ DL OCR, USB and Industrial Protocols, Lens Not Included - Worldwide
Art:
FS80-CM1207H00W
Copied
|
28
|
12 MP
|
Standard 2D Barcode Decoder W/ DL OCR
|
| ||
![]()
FS80, C-Mount, 12 MP, Standard, 2D, USB and Industrial Protocols, Lens Not Included - Worldwide
Art:
FS80-CM1207Z00W
Copied
|
28
|
12 MP
|
Standard 2D Barcode Decode
|
| ||
![]()
FS80, C-Mount, 16 MP, DPM W/ Fast, 2D, W/ DL OCR, USB and Industrial Protocols, Lens Not Included - Worldwide
Art:
FS80-CM1607C00W
Copied
|
22
|
16 MP
|
DPM W/ Fast 2D Barcode Decoder W/ DL OCR
|
| ||
![]()
FS80, C-Mount, 16 MP, DPM W/ Fast, 2D, USB and Industrial Protocols, Lens Not Included - Worldwide
Art:
FS80-CM1607D00W
Copied
|
22
|
16 MP
|
DPM W/ Fast 2D Barcode Decoder
|
| ||
![]()
FS80, C-Mount, 16 MP, Standard, 2D, W/ DL OCR, USB and Industrial Protocols, Leader & Follower Full, Lens Not Included - Worldwide
Art:
FS80-CM1607H00W
Copied
|
22
|
16 MP
|
Standard 2D Barcode Decoder W/ DL OCR
|
| ||
![]()
FS80, C-Mount, 16 MP, Standard, 2D, USB and Industrial Protocols, Leader & Follower Full, Lens Not Included - Worldwide
Art:
FS80-CM1607Z00W
Copied
|
22
|
16 MP
|
Standard 2D Barcode Decoder
|
|
