ZEBRA TECHNOLOGIES
Zebra FS70 Code Reader
The FS70 is the ultimate scanner when it comes to customization. By giving the user a variety of options, it can achieve flawless tracking in virtually any application and any environment. Choose from four image sensors and a world of C-mount lenses and lighting options.
Zebra's powerful and intuitive Aurora software platform gives you a tool to easily set up, deploy and run the FS70. Through a simple purchase of licenses, advanced functions can be added to meet new needs.
- Easy Setup: The FS70 features Auto-Tune for automatic setup, ensuring consistent and reliable read rates with just one button press
- IoT Ready: It can send images to Zebra Savanna or other cloud services, facilitating compliance with industry regulations without the need for server management

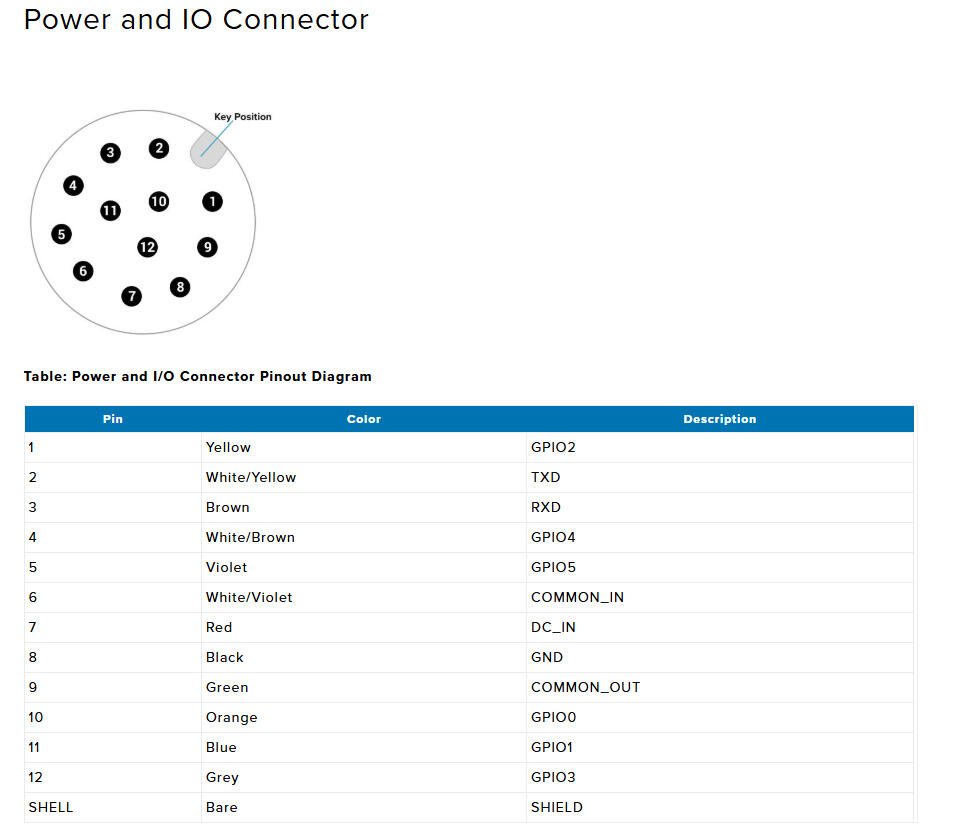

- Power Options: Supports Power-over-Ethernet (PoE) for reduced setup complexity, and can also be powered via a standard 24V DC supply or USB-C

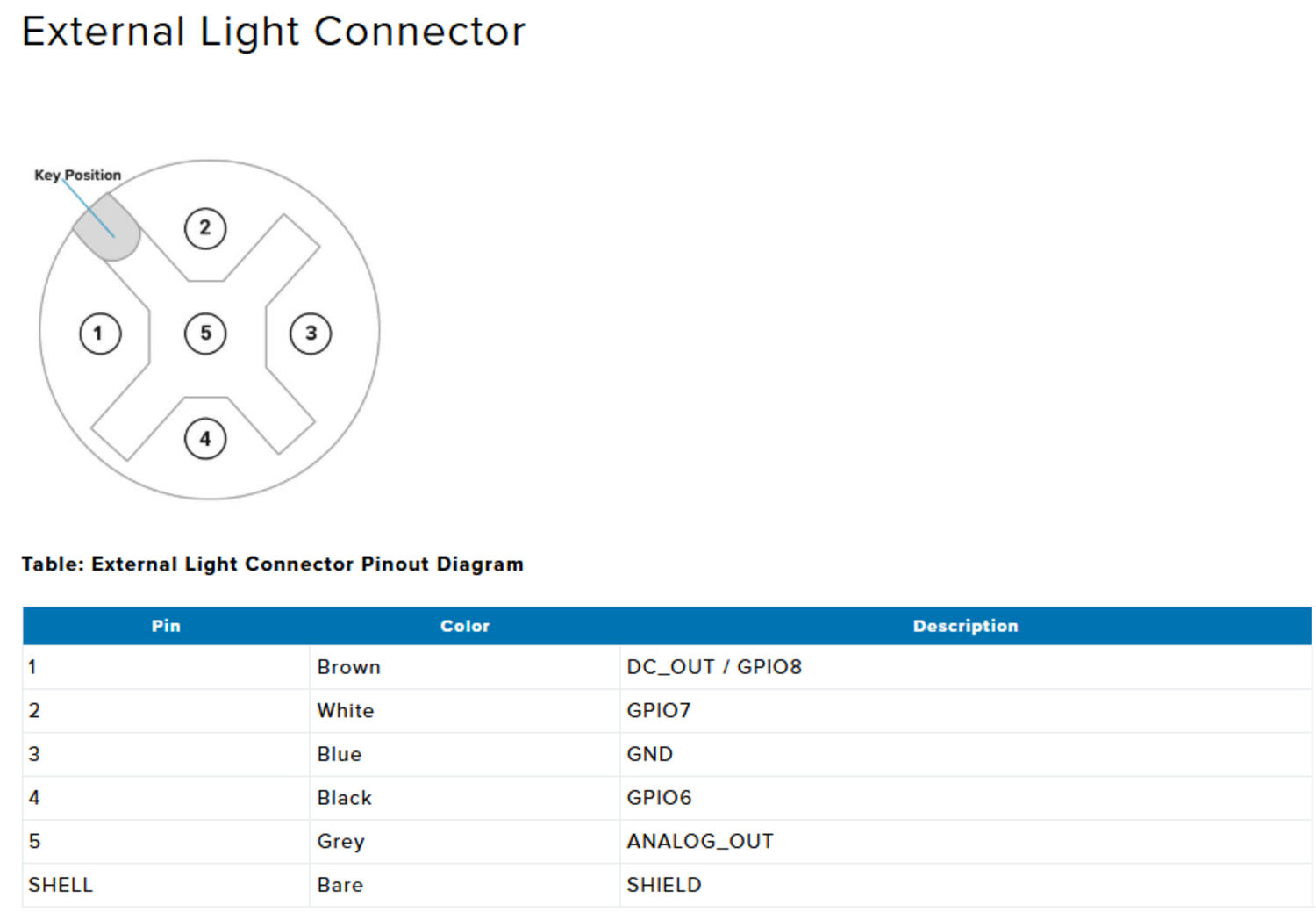

- Customizable Scanning: The FS70 supports various external C-mount lenses and lighting solutions, allowing for flexibility in addressing complex application requirements
- Robust Performance: With an operating temperature range of 32°F to 113°F and environmental sealing rated at IP65 and IP67, the FS70 is designed for durability in industrial settings
Selected variant
Technical data
| Interface out | Dual Ethernet (1 POE), Serial, USB & Industrial Protocols |
|---|---|
| Lens Barrel | C-Mount |
| Size | 63.0 x 95.0 x 65.0 |
| Software performance | DPM W/Fast 2D Barcode Decoder |
Product description
The FS70 is the ultimate scanner when it comes to customization. By giving the user a variety of options, it can achieve flawless tracking in virtually any application and any environment. Choose from four image sensors and a world of C-mount lenses and lighting options.
Zebra's powerful and intuitive Aurora software platform gives you a tool to easily set up, deploy and run the FS70. Through a simple purchase of licenses, advanced functions can be added to meet new needs.
