ZEBRA TECHNOLOGIES

Zebra FS40 Code Reader

Track every item in your production with the FS40 in real time. Thanks to several connection options, it is easy to integrate with your PLC.

Zebra's powerful Aurora software with its intuitive interface makes the FS40 easy to install, deploy and use. It is also possible to easily upgrade your scanner to gain access to new functions and future-proof your investment.

High Performance Data Capture: The FS40 features Zebra’s PRZM Intelligent Imaging technology for reliable first-time data capture of 1D, 2D, and DPM barcodes, even on challenging surfacest
Easy Setup and Operation: With Auto-Tune and Zebra Aurora software, the FS40 is easy to set up and deploy, offering quick image adjustments and simplified management of barcode scanning and machine vision functions
Flexibility and Future-Proofing: The FS40 supports a wide range of symbologies and can be upgraded through software licenses for faster barcode capture or machine vision capabilities
Integrated and Customizable Lighting: The scanner includes powerful, integrated lighting options—red, white, blue, or infrared—for capturing high-quality images, eliminating the need for external lighting
Rugged Design: Built for industrial environments, the FS40 has an IP65/IP67 rating, is resistant to dust and water, and operates reliably in harsh conditions

Selected variant

Save page as PDF

Technical data / Documents

Product description

Accessories & Related products

Selected variant

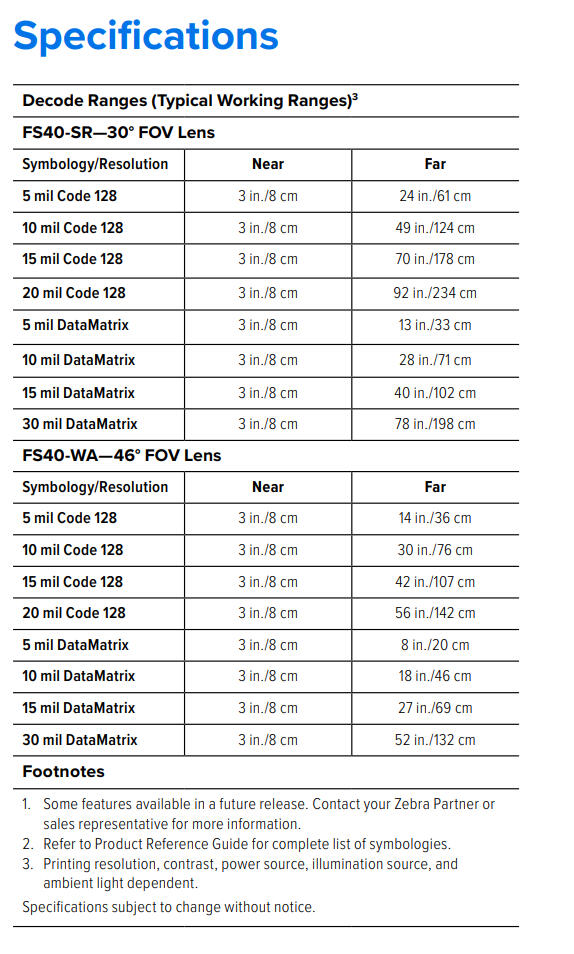

Technical data

Focus	Liquid lens
Interface out	Ethernet with POE, Serial, USB & Industrial Protocols
Lighting	Red
Resolution	2.3 MP
Size	54.0 x 64.0 x 91.4
Software performance	DPM W/Fast 2D Barcode Decoder
Type of lens	Standard
Type of scanner	Fixed Scanner

Downloads

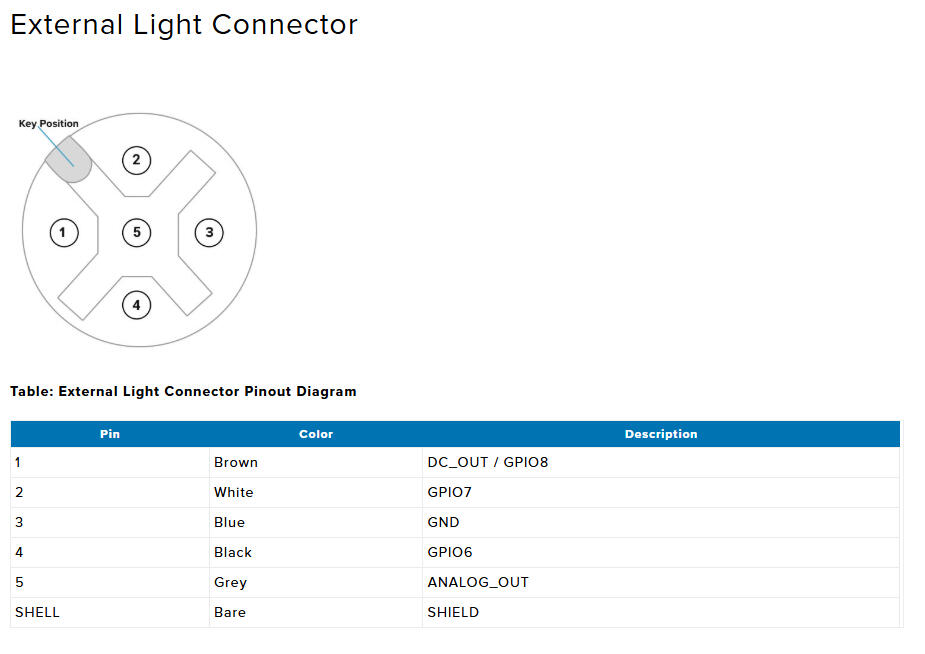

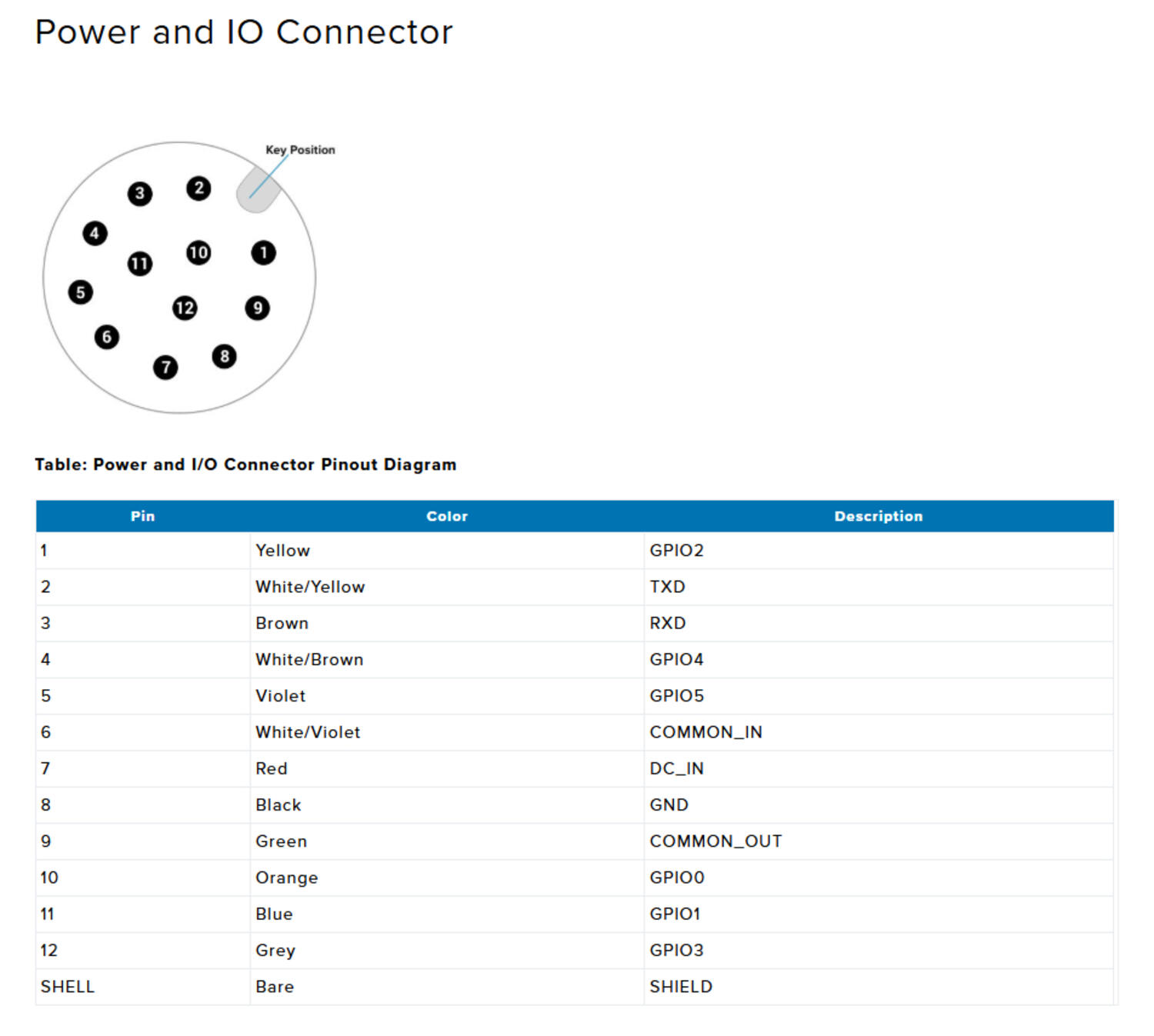

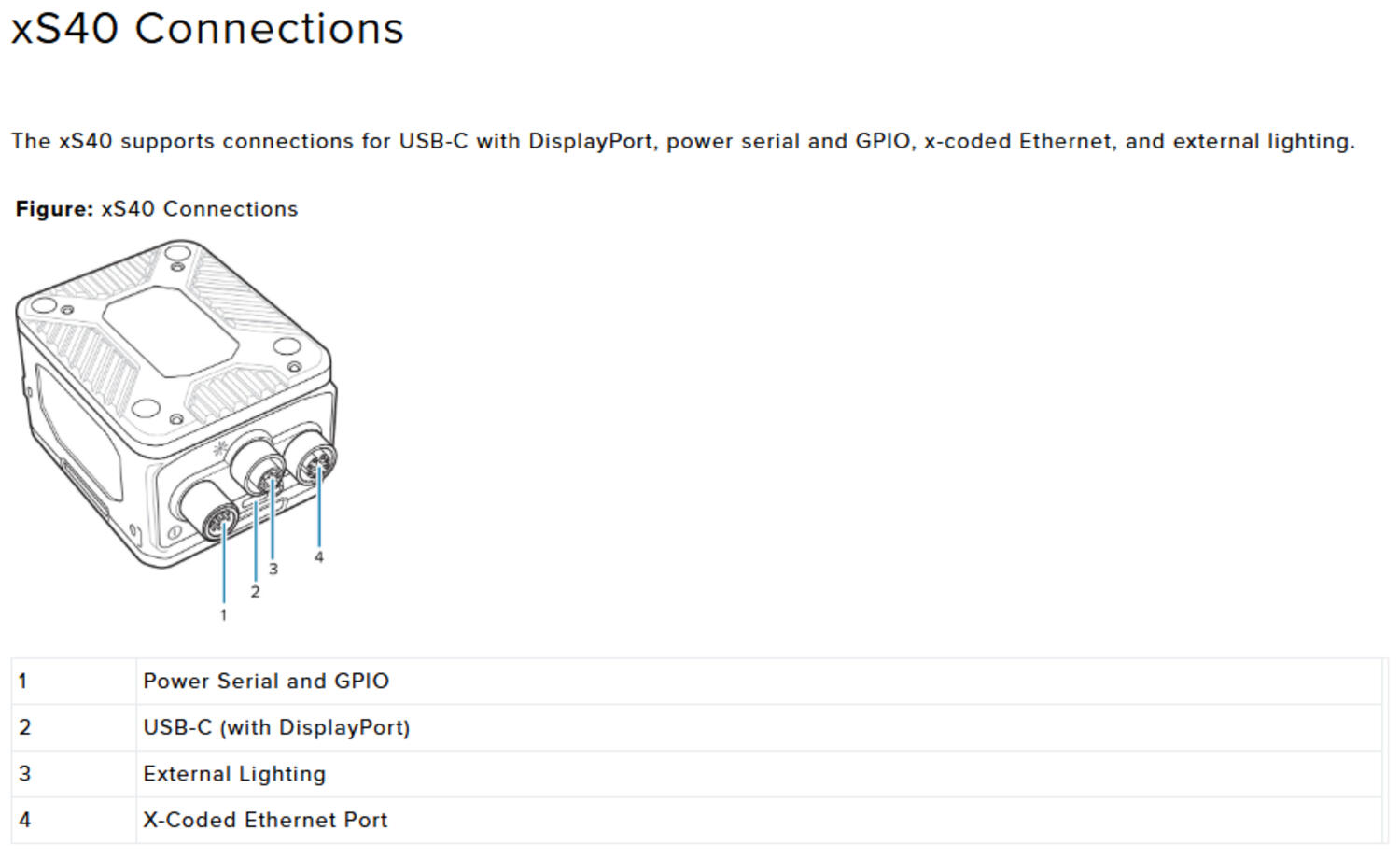

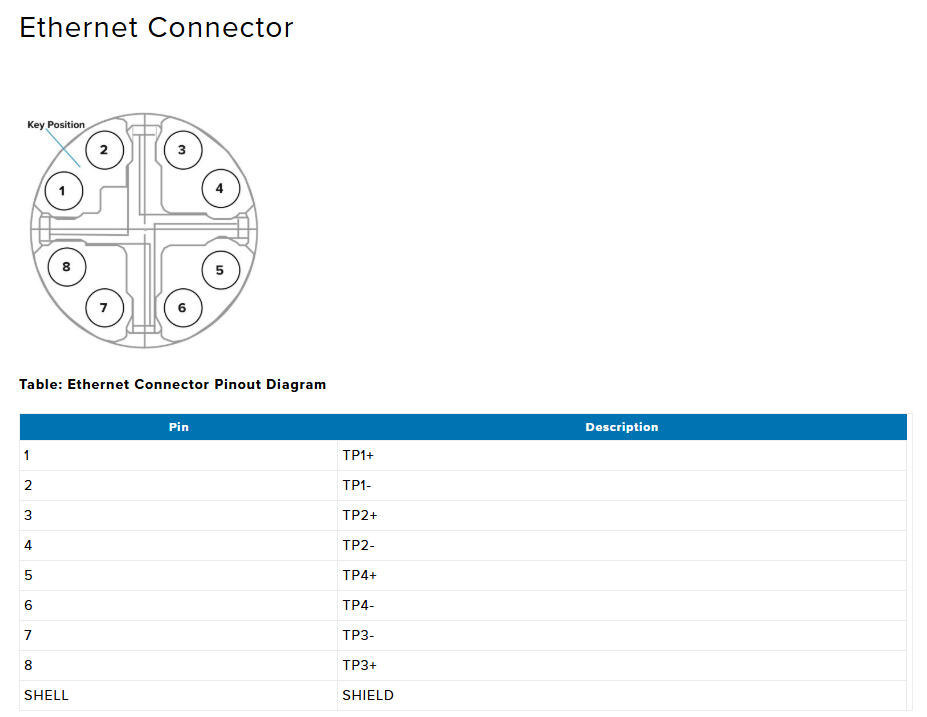

Measurements and connections

Technical illustrations

Product description

Track every item in your production with the FS40 in real time. Thanks to several connection options, it is easy to integrate with your PLC.

Accessories

Related products

What is a line scan camera? applications, advantages and more

Learning hub

What is a line scan camera and how does it work?

Our Machine & Computer Vision product experts explain line scan cameras, make comparisons, state advantages and suitable applications.

Blog

SWiR imaging in agriculture

Advancements in imaging technology, particularly Short-Wave Infrared (SWIR) systems, have revolutionized quality control in the food industry, explained in our article.

Blog

AI Cameras for the automotive industry

The automotive industry is striving to improve safety and efficiency, this is where AI cameras come in to achieve the highest results.

IATECH, the industrial automation technology exhibition OEM automatic

Company news

Recap of IATECH

Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.

IATECH industrial automation components exhibition in at leicester marriott hotel by OEM Automatic

Company news

OEM introduces IATECH - The Industrial Automation Technology Expo

We are thrilled to announce the launch of IATECH, THe Industrial Automation Technology expo at Leicester Marriott Hotel on 23rd October. The ultimate platform for showcasing our extensive product range and broad business areas, featuring over 50 leading suppliers under one roof!

Blog

Automation Components for Specialist Vehicles

The specialist vehicle industry can include automotive and EV, heavy vehicles such as agriculture and rail, and marine. This email takes you through some of the various products we offer for specialist vehicle applications.

Parts	Focus	Interface out	Lighting	Resolution	Size	Software performance	Type of lens	Type of scanner
FS40, AF, SR, 2.3 MP, DPM W/Fast , 2D, Ethernet with POE, Serial, USB and Industrial Protocols, Red Illumination, No Attached Filters - Worldwide Art: FS40-SR20D4-2C00W Copied	Liquid lens	Ethernet with POE, Serial, USB & Industrial Protocols	Red	2.3 MP	54.0 x 64.0 x 91.4	DPM W/Fast 2D Barcode Decoder	Standard	Fixed Scanner
FS40, AF, SR, 2.3 MP, DPM W/Fast , 2D, Ethernet with POE, Serial, USB and Industrial Protocols, White Illumination, RGB Filter - Worldwide Art: FS40-SR20D4-3X00W Copied	Liquid lens	Ethernet with POE, Serial, USB & Industrial Protocols	White	2.3 MP	54.0 x 64.0 x 91.4	DPM W/Fast 2D Barcode Decoder	Standard	Fixed Scanner
FS40, AF, SR, 2.3 MP, DPM W/Fast , 2D, Ethernet with POE, Serial, USB and Industrial Protocols, Blue Illumination, No Filter - Worldwide Art: FS40-SR20D4-4C00W Copied	Liquid lens	Ethernet with POE, Serial, USB & Industrial Protocols	Blue	2.3 MP	54.0 x 64.0 x 91.4	DPM W/Fast 2D Barcode Decoder	Standard	Fixed Scanner
FS40, AF, SR, 2.3 MP, DPM W/Fast , 2D, Ethernet with POE, Serial, USB and Industrial Protocols, Red, White, Blue and Infrared Illumination, No Filter - Worldwide Art: FS40-SR20D4-6C00W Copied	Liquid lens	Ethernet with POE, Serial, USB & Industrial Protocols	Red, White, Blue, Infrared	2.3 MP	54.0 x 64.0 x 91.4	DPM W/Fast 2D Barcode Decoder	Standard	Fixed Scanner
FS40, AF, SR, 2.3 MP, DPM w/Fast , 2D, Dual Ethernet (1 POE), Serial, USB and Industrial Protocols, Red Illumination, Red Bandpass Filter - Worldwide Art: FS40-SR20D5-2R00W Copied	Liquid lens	Dual Ethernet (1 POE), Serial, USB & Industrial Protocols	Red	2.3 MP	54.0 x 64.0 x 91.4	DPM W/Fast 2D Barcode Decoder	Standard	Fixed Scanner
FS40, AF, SR, 2.3 MP, DPM W/Fast , 2D, Dual Ethernet (1 POE), Serial, USB and Industrial Protocols, Blue Illumination, No Filter - Worldwide Art: FS40-SR20D5-4C00W Copied	Liquid lens	Dual Ethernet (1 POE), Serial, USB & Industrial Protocols	Blue	2.3 MP	54.0 x 64.0 x 91.4	DPM W/Fast 2D Barcode Decoder	Standard	Fixed Scanner
FS40, AF, SR, 2.3 MP, DPM w/Standard , 2D, Ethernet with POE, Serial, USB and Industrial Protocols, Red Illumination, No Filter - Worldwide Art: FS40-SR20E4-2C00W Copied
FS40, AF, SR, 2.3 MP, Fast , 2D, Ethernet with POE, Serial, USB and Industrial Protocols, Red Illumination, No Attached Filters - Worldwide Art: FS40-SR20F4-2C00W Copied	Liquid lens	Ethernet with POE, Serial, USB & Industrial Protocols	Red	2.3 MP	54.0 x 64.0 x 91.4	Fast 2D Barcode Decoder	Standard	Fixed Scanner
FS40, AF, SR, 2.3 MP, Fast , 2D, Ethernet with POE, Serial, USB and Industrial Protocols, White Illumination, No Attached Filters – Worldwide Art: FS40-SR20F4-3C00W Copied
FS40, AF, SR, 2.3 MP, Fast , 2D, Ethernet with POE, Serial, USB and Industrial Protocols, White Illumination, w/Polarizer - Worldwide Art: FS40-SR20F4-3P00W Copied
FS40, AF, SR, 2.3 MP, Fast , 2D, Ethernet with POE, Serial, USB and Industrial Protocols, Infrared Illumination, No Filter - Worldwide Art: FS40-SR20F4-5C00W Copied	Liquid lens	Ethernet with POE, Serial, USB & Industrial Protocols	Infrared	2.3 MP	54.0 x 64.0 x 91.4	Fast 2D Barcode Decoder	Standard	Fixed Scanner
FS40, AF, SR, 2.3 MP, Fast , 2D, Ethernet with POE, Serial, USB and Industrial Protocols, Red, White, Blue and Infrared Illumination, No Filter - Worldwide Art: FS40-SR20F4-6C00W Copied	Liquid lens	Ethernet with POE, Serial, USB & Industrial Protocols	Red, White, Blue, Infrared	2.3 MP	54.0 x 64.0 x 91.4	Fast 2D Barcode Decoder	Standard	Fixed Scanner
FS40, AF, SR, 2.3 MP, Fast , 2D, Ethernet with POE, Serial, USB and Industrial Protocols, Red Illumination, Red Bandpass w/Polarizer Filter - Worldwide Art: FS40-SR20F4-2100W Copied	Liquid lens	Ethernet with POE, Serial, USB & Industrial Protocols	Red	2.3 MP	54.0 x 64.0 x 91.4	Fast 2D Barcode Decoder	Standard	Fixed Scanner
FS40, AF, SR, 2.3 MP, Fast , 2D, Dual Ethernet (1 POE), Serial, USB and Industrial Protocols, Red Illumination, Red Bandpass Filter - Worldwide Art: FS40-SR20F5-2R00W Copied	Liquid lens	Dual Ethernet (1 POE), Serial, USB & Industrial Protocols	Red	2.3 MP	54.0 x 64.0 x 91.4	Fast 2D Barcode Decoder	Standard	Fixed Scanner
FS40, AF, SR, 2.3 MP, FAST , 2D W/ DL OCR, ETHERNET WITH POE, SERIAL, USB AND INDUSTRIAL PROTOCOLS, RED ILLUMINATION, NO FILTER - WORLDWIDE Art: FS40-SR20G4-2C00W Copied
FS40, AF, SR, 2.3 MP, Standard , 2D, Ethernet with POE, Serial, USB and Industrial Protocols, Red Illumination, No Filter - Worldwide Art: FS40-SR20Z4-2C00W Copied	Liquid lens	Ethernet with POE, Serial, USB & Industrial Protocols	Red	2.3 MP	54.0 x 64.0 x 91.4	Standard Barcode Decoder	Standard	Fixed Scanner
FS40, AF, WA, 2.3 MP, DPM W/Fast , 2D, Ethernet with POE, Serial, USB and Industrial Protocols, Red Illumination, No Attached Filters - Worldwide Art: FS40-WA20D4-2C00W Copied	Liquid lens	Ethernet with POE, Serial, USB & Industrial Protocols	Red	2.3 MP	54.0 x 64.0 x 91.4	DPM W/Fast 2D Barcode Decoder	Wide angel	Fixed Scanner
FS40, AF, WA, 2.3 MP, DPM W/Fast , 2D, Ethernet with POE, Serial, USB and Industrial Protocols, White Illumination, RGB Filter - Worldwide Art: FS40-WA20D4-3X00W Copied	Liquid lens	Ethernet with POE, Serial, USB & Industrial Protocols	White	2.3 MP	54.0 x 64.0 x 91.4	DPM W/Fast 2D Barcode Decoder	Wide angel	Fixed Scanner
FS40, AF, WA, 2.3 MP, DPM W/Fast , 2D, Ethernet with POE, Serial, USB and Industrial Protocols, Blue Illumination, No Filter - Worldwide Art: FS40-WA20D4-4C00W Copied	Liquid lens	Ethernet with POE, Serial, USB & Industrial Protocols	Blue	2.3 MP	54.0 x 64.0 x 91.4	DPM W/Fast 2D Barcode Decoder	Wide angel	Fixed Scanner
FS40, AF, WA, 2.3 MP, DPM W/Fast , 2D, Ethernet with POE, Serial, USB and Industrial Protocols, Red, White, Blue and Infrared Illumination, No Filter - Worldwide Art: FS40-WA20D4-6C00W Copied	Liquid lens	Ethernet with POE, Serial, USB & Industrial Protocols	Red, White, Blue, Infrared	2.3 MP	54.0 x 64.0 x 91.4	DPM W/Fast 2D Barcode Decoder	Wide angel	Fixed Scanner
FS40, AF, WA, 2.3 MP, DPM w/Fast , 2D, Dual Ethernet (1 POE), Serial, USB and Industrial Protocols, Red Illumination, Red Bandpass Filter - Worldwide Art: FS40-WA20D5-2R00W Copied	Liquid lens	Dual Ethernet (1 POE), Serial, USB & Industrial Protocols	Red	2.3 MP	54.0 x 64.0 x 91.4	DPM W/Fast 2D Barcode Decoder	Wide angel	Fixed Scanner
FS40, AF, WA, 2.3 MP, DPM W/Fast , 2D, Dual Ethernet (1 POE), Serial, USB and Industrial Protocols, Blue Illumination, No Filter - Worldwide Art: FS40-WA20D5-4C00W Copied	Liquid lens	Dual Ethernet (1 POE), Serial, USB & Industrial Protocols	Blue	2.3 MP	54.0 x 64.0 x 91.4	DPM W/Fast 2D Barcode Decoder	Wide angel	Fixed Scanner
FS40, AF, WA, 2.3 MP, DPM w/Standard , 2D, Ethernet with POE, Serial, USB and Industrial Protocols, Red Illumination, No Filter - Worldwide Art: FS40-WA20E4-2C00W Copied
FS40, AF, WA, 2.3 MP, DPM w/Standard , 2D, Ethernet with POE, Serial, USB and Industrial Protocols, White Illumination, No Filter - Worldwide Art: FS40-WA20E4-3C00W Copied
FS40, AF, WA, 2.3 MP, Fast , 2D, Ethernet with POE, Serial, USB and Industrial Protocols, Red Illumination, No Attached Filters - Worldwide Art: FS40-WA20F4-2C00W Copied	Liquid lens	Ethernet with POE, Serial, USB & Industrial Protocols	Red	2.3 MP	54.0 x 64.0 x 91.4	Fast 2D Barcode Decoder	Wide angel	Fixed Scanner
FS40, AF, WA, 2.3 MP, Fast , 2D, Ethernet with POE, Serial, USB and Industrial Protocols, White Illumination, No Attached Filters – Worldwide Art: FS40-WA20F4-3C00W Copied
FS40, AF, WA, 2.3 MP, Fast , 2D, Ethernet with POE, Serial, USB and Industrial Protocols, Infrared Illumination, No Filter - Worldwide Art: FS40-WA20F4-5C00W Copied	Liquid lens	Ethernet with POE, Serial, USB & Industrial Protocols	Infrared	2.3 MP	54.0 x 64.0 x 91.4	Fast 2D Barcode Decoder	Wide angel	Fixed Scanner
FS40, AF, WA, 2.3 MP, Fast , 2D, Ethernet with POE, Serial, USB and Industrial Protocols, Red, White, Blue and Infrared Illumination, No Filter - Worldwide Art: FS40-WA20F4-6C00W Copied	Liquid lens	Ethernet with POE, Serial, USB & Industrial Protocols	Red, White, Blue, Infrared	2.3 MP	54.0 x 64.0 x 91.4	Fast 2D Barcode Decoder	Wide angel	Fixed Scanner
FS40, AF, WA, 2.3 MP, Fast , 2D, Dual Ethernet (1 POE), Serial, USB and Industrial Protocols, Red Illumination, Red Bandpass Filter - Worldwide Art: FS40-WA20F5-2R00W Copied	Liquid lens	Dual Ethernet (1 POE), Serial, USB & Industrial Protocols	Red	2.3 MP	54.0 x 64.0 x 91.4	Fast 2D Barcode Decoder	Wide angel	Fixed Scanner
FS40, AF, WA, 2.3 MP, FAST , 2D W/ DL OCR, ETHERNET WITH POE, SERIAL, USB AND INDUSTRIAL PROTOCOLS, RED ILLUMINATION, NO FILTER - WORLDWIDE Art: FS40-WA20G4-2C00W Copied
FS40, AF, WA, 2.3 MP, Standard , 2D, Ethernet with POE, Serial, USB and Industrial Protocols, Red Illumination, No Filter - Worldwide Art: FS40-WA20Z4-2C00W Copied	Liquid lens	Ethernet with POE, Serial, USB & Industrial Protocols	Red	2.3 MP	54.0 x 64.0 x 91.4	Standard Barcode Decoder	Wide angel	Fixed Scanner
FS40, AF, WA, 5.1 MP, DPM W/Fast , 2D, Ethernet With Poe, Serial, USB And Industrial Protocols, Red Illumination, No Filter Attached - Worldwide Art: FS40-WA50D4-2C00W Copied	Liquid lens	Ethernet with POE, Serial, USB & Industrial Protocols	Red	5.1 MP	54.0 x 64.0 x 91.4	DPM W/Fast 2D Barcode Decoder	Wide angel	Fixed Scanner
FS40, AF, WA, 5.1 MP, DPM W/Fast , 2D, Ethernet With Poe, Serial, Usb And Industrial Protocols, White Illumination, No Filter Attached - Worldwide Art: FS40-WA50D4-3C00W Copied	Liquid lens	Ethernet with POE, Serial, USB & Industrial Protocols	White	5.1 MP	54.0 x 64.0 x 91.4	DPM W/Fast 2D Barcode Decoder	Wide angel	Fixed Scanner
FS40, AF, WA, 5.1 MP, DPM W/FAST , 2D, DUAL ETHERNET (1 POE), SERIAL, USB AND INDUSTRIAL PROTOCOLS, RED ILLUMINATION, NO FILTER ATTACHED - WORLDWIDE Art: FS40-WA50D5-2C00W Copied	Liquid lens	Dual Ethernet (1 POE), Serial, USB & Industrial Protocols		5.1 MP	54.0 x 64.0 x 91.4	DPM W/Fast 2D Barcode Decoder	Wide angel	Fixed Scanner
FS40, AF, WA, 5.1 MP, Fast , 2D, Ethernet With Poe, Serial, USB And Industrial Protocols, Red Illumination, No Filter Attached - Worldwide Art: FS40-WA50F4-2C00W Copied	Liquid lens	Ethernet with POE, Serial, USB & Industrial Protocols	Red	5.1 MP	54.0 x 64.0 x 91.4	Fast 2D Barcode Decoder	Wide angel	Fixed Scanner
FS40, AF, WA, 5.1 MP, Fast , 2D, Ethernet With Poe, Serial, USB And Industrial Protocols, White Illumination, No Filter Attached - Worldwide Art: FS40-WA50F4-3C00W Copied	Liquid lens	Ethernet with POE, Serial, USB & Industrial Protocols	White	5.1 MP	54.0 x 64.0 x 91.4	Fast 2D Barcode Decoder	Wide angel	Fixed Scanner
FS40, AF, WA, 5.1 MP, Fast , 2D, Ethernet With Poe, Serial, USB And Industrial Protocols, Infrared Illumination, No Filter Attached - Worldwide Art: FS40-WA50F4-5C00W Copied	Liquid lens	Ethernet with POE, Serial, USB & Industrial Protocols	Infrared	5.1 MP	54.0 x 64.0 x 91.4	Fast 2D Barcode Decoder	Wide angel	Fixed Scanner
FS40, AF, WA, 5.1 MP, Fast , 2D, Ethernet With POE, Serial, USB And Industrial Protocols, Red Illumination, Red Bandpass W/Polarizer Filter - Worldwide Art: FS40-WA50F4-2100W Copied	Liquid lens	Ethernet with POE, Serial, USB & Industrial Protocols	Red	5.1 MP	54.0 x 64.0 x 91.4	Fast 2D Barcode Decoder	Wide angel	Fixed Scanner
FS40, AF, WA, 5.1 MP, FAST , 2D, DUAL ETHERNET (1 POE), SERIAL, USB AND INDUSTRIAL PROTOCOLS, RED ILLUMINATION, NO FILTER ATTACHED - WORLDWIDE Art: FS40-WA50F5-2C00W Copied	Liquid lens	Dual Ethernet (1 POE), Serial, USB & Industrial Protocols	Red	5.1 MP	54.0 x 64.0 x 91.4	Fast 2D Barcode Decoder	Wide angel	Fixed Scanner
