ZEBRA TECHNOLOGIES

Zebra FS10 Code Reader

Easily track items through your warehouse or distribution center with Zebra's FS10 scanner.

It quickly scans barcodes on components moving through your assembly line, ensuring the right part is used at the right time.

FS10 couldn't be easier to install, deploy and run. You can quickly upgrade and adapt your solution as needed by purchasing different software licenses for, for example, more symbols or higher scanning speed.



Supported Symbologies:

  • 1D:
    • Codabar, Code 39, Code 93, Code 128, I 2 of 5, MSI Plessey, UPC/EAN
  • 2D:
    • Aztec, Data Matrix, DotCode, MaxiCode, PDF417, Micro PDF417, QR Code, Micro QR
  • OCR:
    • Deep Learning-based OCR via an add-on license1. Supports Latin Letters (AZ, az, digits or one of: !#$%&()*+,-./:;<=>?@ []^_`{|}~”'\€£¥)
Read more
  • Advanced Imaging Technology: PRZM Intelligent Imaging captures multiple images with varying settings for high performance and read rates
  • High-Performance Specifications: 1.0 MP CMOS sensor (1280x800) captures images at 60 fps for rapid barcode capture
  • Robust Environmental Protection: IP65-rated aluminum housing protects against dust, water, chemicals, and oils in harsh industrial settings
  • Versatile Connectivity: USB 2.0 High-Speed Type-C connector ensures seamless integration with workstations, laptops, and tablets

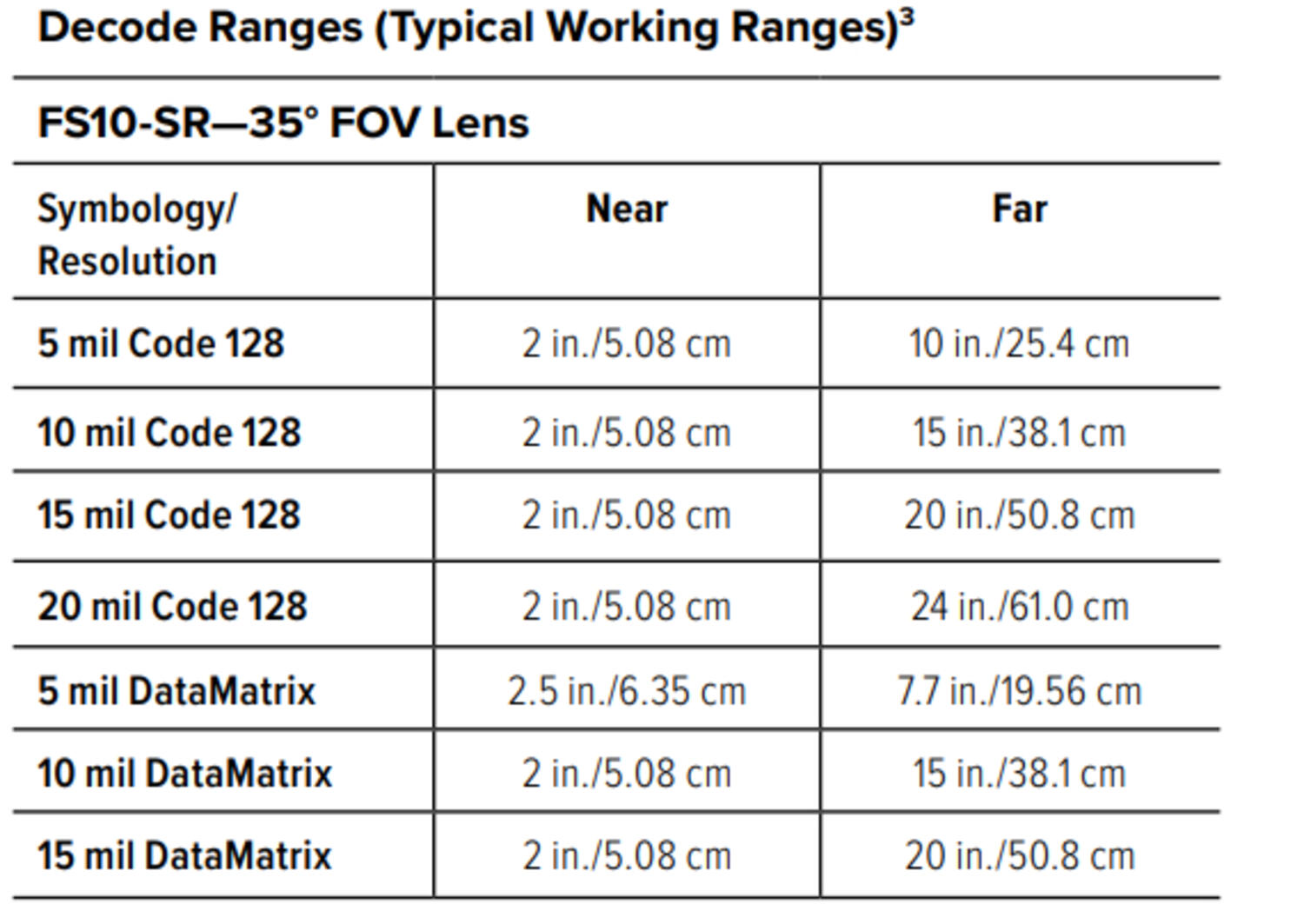

  • Comprehensive Decode Range: Supports barcode symbologies with decode ranges of 2 to 24 inches for 20 mil Code 128, ideal for inventory and fulfillment

Selected variant

Available in several variants

Selected variant

Technical data

Product description

Easily track items through your warehouse or distribution center with Zebra's FS10 scanner.

It quickly scans barcodes on components moving through your assembly line, ensuring the right part is used at the right time.

FS10 couldn't be easier to install, deploy and run. You can quickly upgrade and adapt your solution as needed by purchasing different software licenses for, for example, more symbols or higher scanning speed.



Supported Symbologies:

  • 1D:
    • Codabar, Code 39, Code 93, Code 128, I 2 of 5, MSI Plessey, UPC/EAN
  • 2D:
    • Aztec, Data Matrix, DotCode, MaxiCode, PDF417, Micro PDF417, QR Code, Micro QR
  • OCR:
    • Deep Learning-based OCR via an add-on license1. Supports Latin Letters (AZ, az, digits or one of: !#$%&()*+,-./:;<=>?@ []^_`{|}~”'\€£¥)

Accessories

Related products

Related

Parts Focus Interface out Lighting Size Software performance Type of lens Type of scanner Price
Liquid lens
USB
Red, White
25.4 x 51.0 x 43.0
Fast 2D Barcode Decoder
Standard
Fixed Scanner
Liquid lens
USB
Red, White
25.4 x 51.0 x 43.0
Fast 2D Barcode Decoder
Standard
Fixed Scanner
Liquid lens
USB
Red, White
25.4 x 51.0 x 43.0
Standard Barcode Decoder
Standard
Fixed Scanner
