BASLER

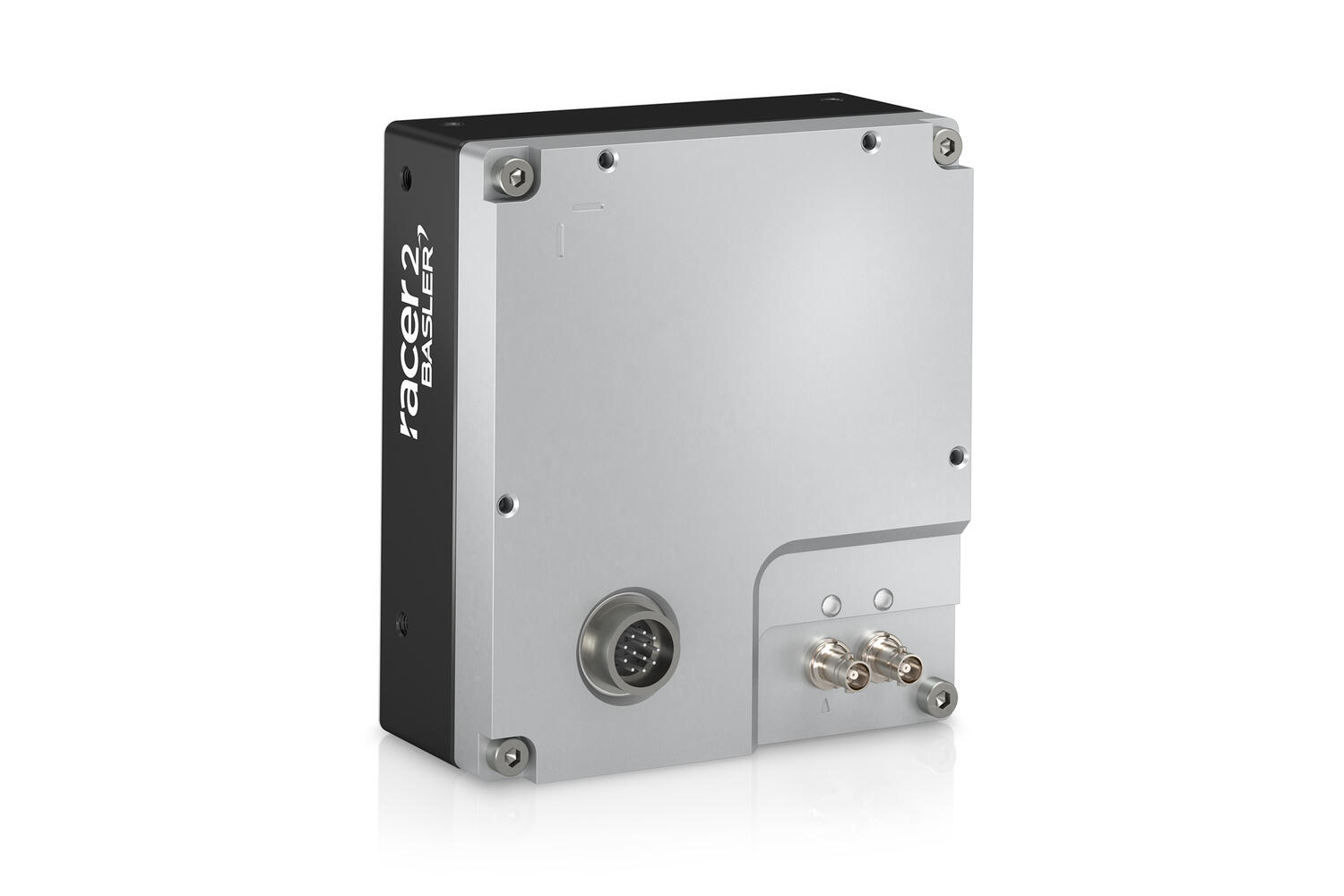

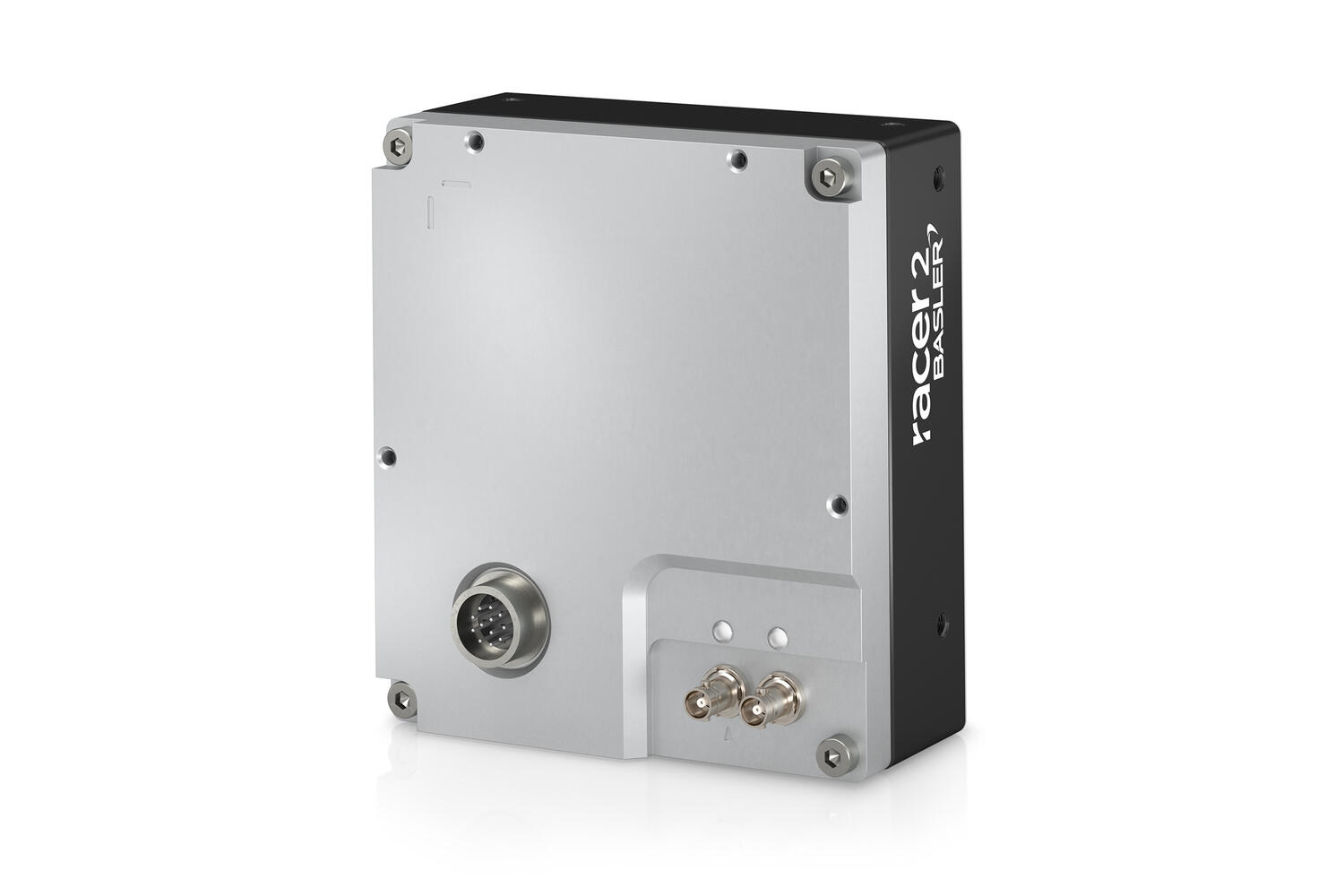

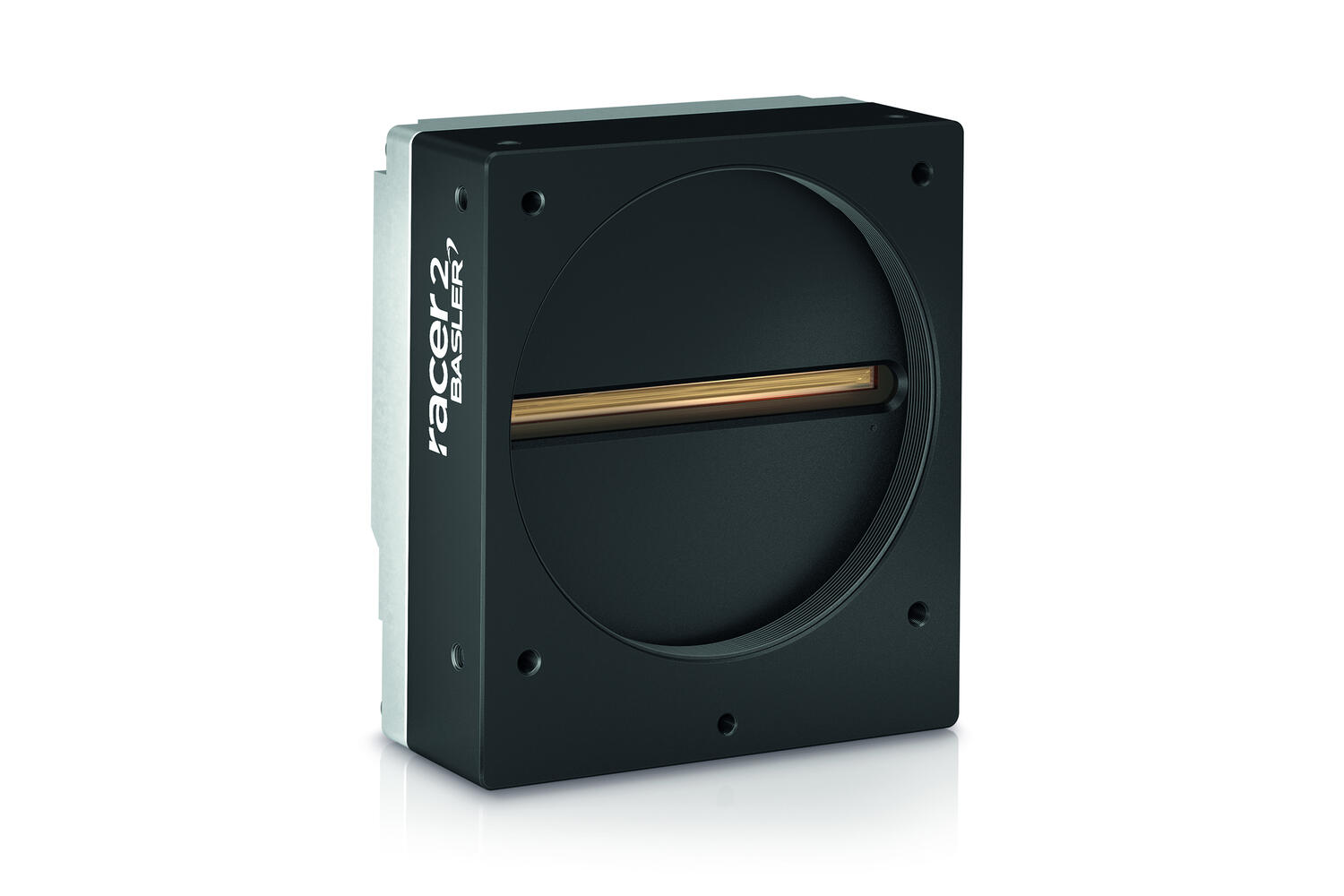

Racer 2L is the latest addition to the popular Racer series. Featuring the same reliability, high performance, and easy integration through the Pylon software.
To complement the high resolution to the impressive line speed, the Racer 2L come with CoaXpress interface. This opens the possibility of using Basler's CoaXpress cards and its Visual Applets (VA).
Visual Applets allow for pre-processing on the frame grabber reducing CPU loading and enabling higher inspection speeds.
For further information on the Racer series or to learn how Vision Applets can dramatically reduce your inspection times / CPU loading please contact us.
| 3612_Pixel size (µm) | 7 x 7 |
|---|---|
| Approvals | CE, EAC, FCC, GenICam, RoHS, UL |
| Digital inputs | 3 |
| Digital outputs | 3 |
| Height | 90 mm |
| IP class | IP30 |
| Length | 36 mm |
| Lens barrel | M72x0.75-mount |
| Line speed max | 200 kHz |
| Mono/color | Mono |
| Operating temperature | 0°C ... 50°C |
| Power consumption | 8 W |
|---|---|
| Resolution max | 8192 x 1 px |
| Sensor model | GL7008 |
| Sensor size | 57.34 mm |
| Sensor supplier | Gpixel |
| Sensor Type | CMOS |
| Shutter type | Global |
| Weight | 420 g |
| Width | 80 mm |
Racer 2L is the latest addition to the popular Racer series. Featuring the same reliability, high performance, and easy integration through the Pylon software.
To complement the high resolution to the impressive line speed, the Racer 2L come with CoaXpress interface. This opens the possibility of using Basler's CoaXpress cards and its Visual Applets (VA).
Visual Applets allow for pre-processing on the frame grabber reducing CPU loading and enabling higher inspection speeds.
For further information on the Racer series or to learn how Vision Applets can dramatically reduce your inspection times / CPU loading please contact us.
OEM Automatic and Machine Learning Technologies (MLT) have been focusing on behavioural analysis through advanced sensing and machine vision.
A Q&A on 3D and 2D imagery, the NEW Motioncam-3D by Photoneo.
Our Machine & Computer Vision product experts explain line scan cameras, make comparisons, state advantages and suitable applications.
Advancements in imaging technology, particularly Short-Wave Infrared (SWIR) systems, have revolutionized quality control in the food industry, explained in our article.
The automotive industry is striving to improve safety and efficiency, this is where AI cameras come in to achieve the highest results.
Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | 3612_Pixel size (µm) | Approvals | Line speed max | Resolution max | Sensor model | User interface | Price | ||
|---|---|---|---|---|---|---|---|---|---|
Basler Racer 2- GL7008 Sensor, CoaXPress (CXP-12) Interface, 8k Resolution, 200kHz Line Rate
Art:
R2L8192-200CM
Copied
|
7 x 7
|
CE, EAC, FCC, GenICam, RoHS, UL
|
200 kHz
|
8192 x 1 px
|
GL7008
|
|
|
||
|
Basler Racer 2- GL3516 Sensor, CoaXPress (CXP-12) Interface, 16k Resolution, 120kHz Line Rate
Art:
R2L16384-120CM
Copied
|
3.5 x 3.5
|
CE, EAC, FCC, GenICam, RoHS, UL, CoaXPress 2.0
|
120 kHz
|
16384 x 1 px
|
GL3516
|
CoaXPress
|
|
Select a variant in the list
