BASLER
Ace 2 R IP67
Basler’s IP67 portfolio provides a robust, end‑to‑end machine vision setup designed for demanding environments with dust, dirt, and water exposure. The concept is a validated, compatible system built from camera, optics protection, illumination, and cabling—so you can integrate faster and reduce risk.
Â

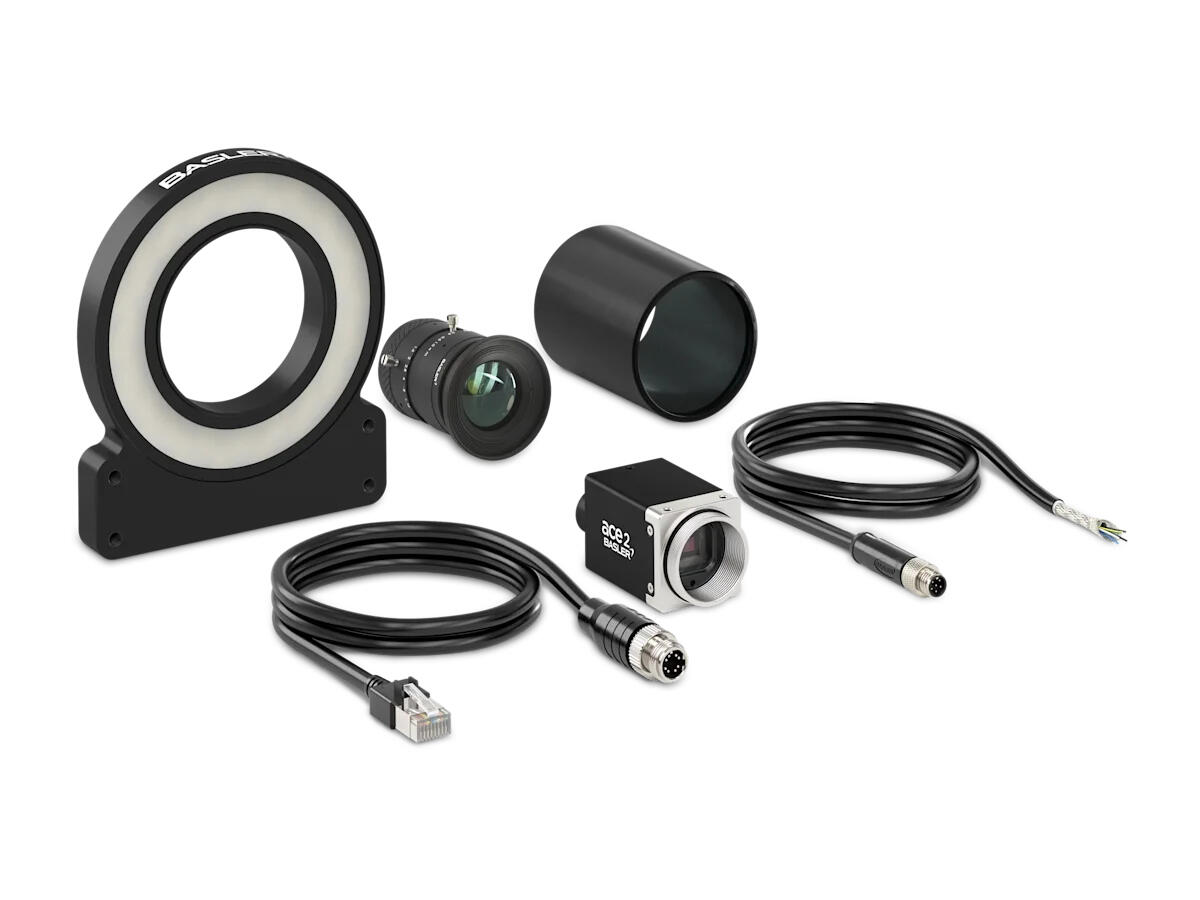

System components
Â

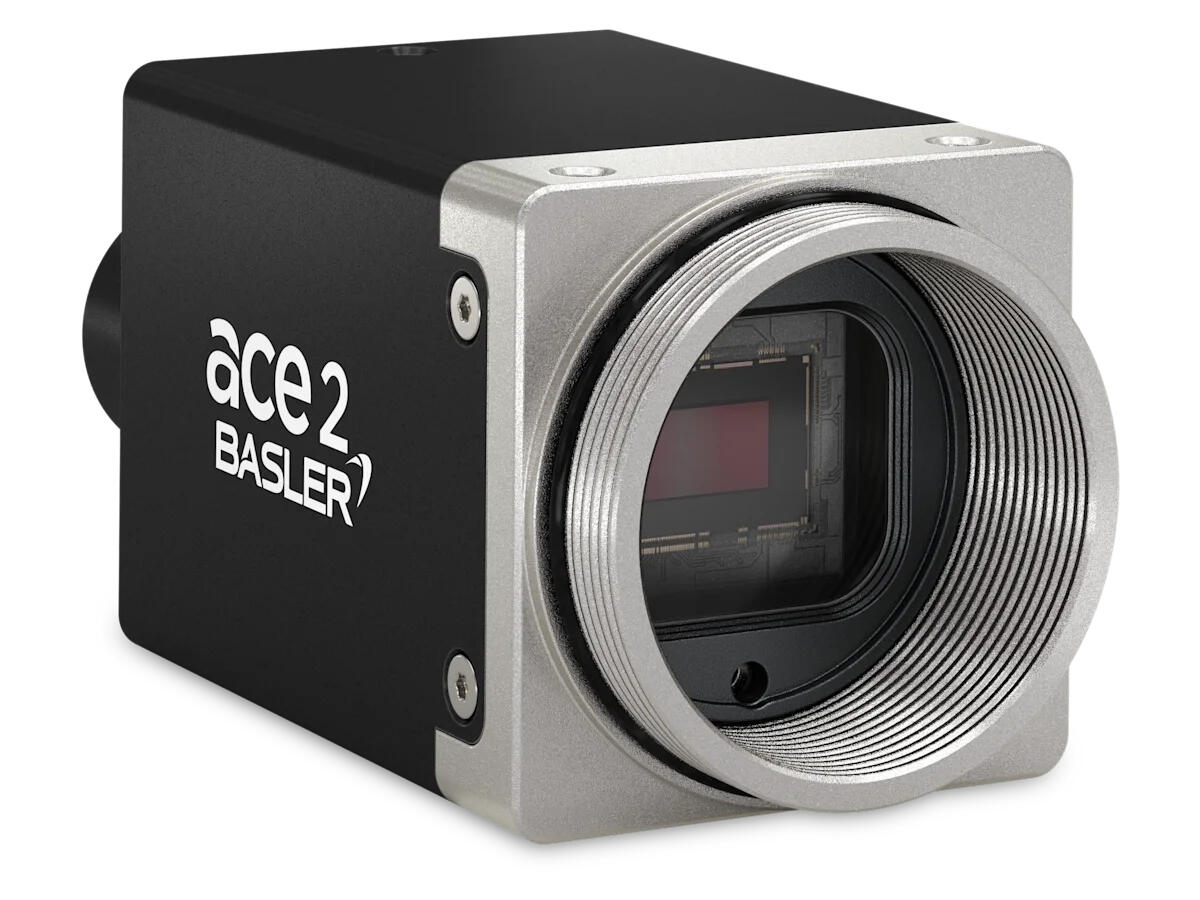

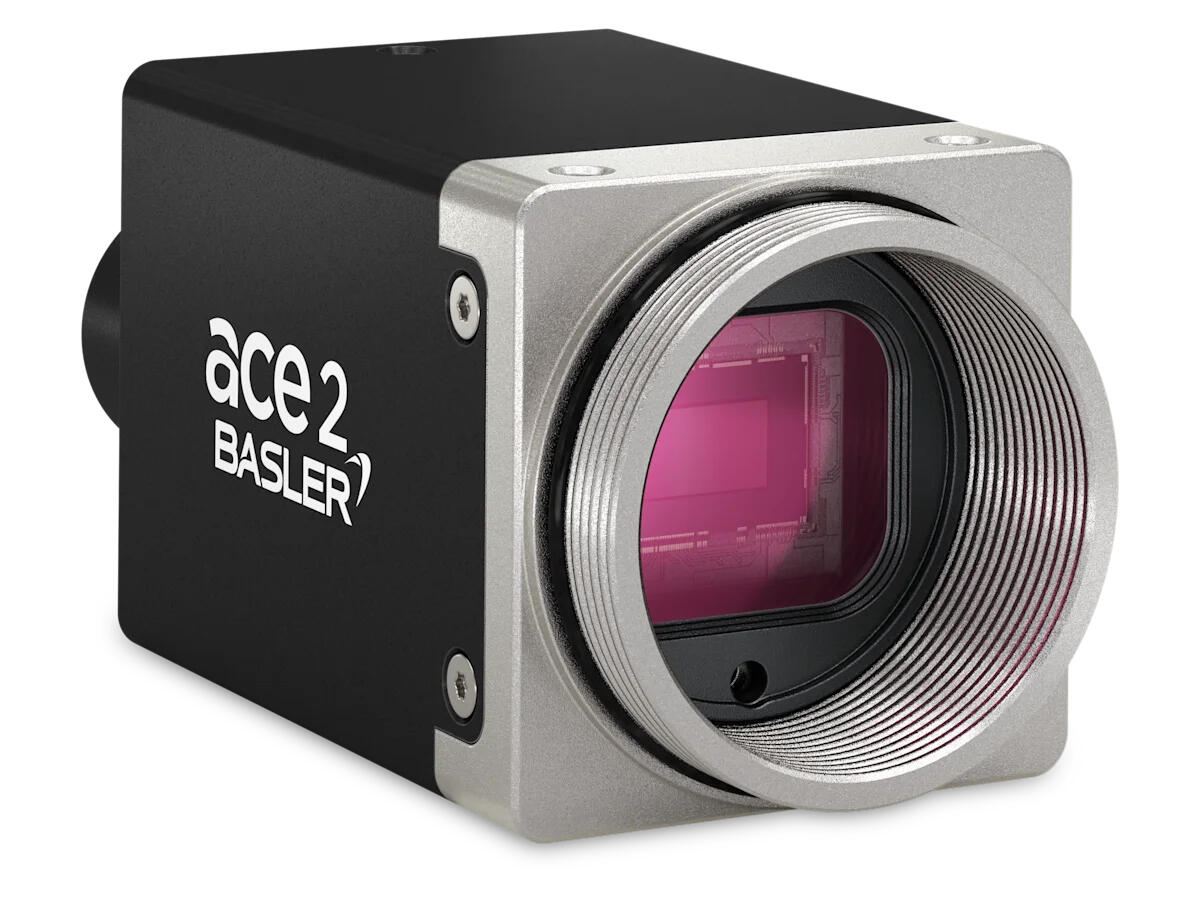

- ace 2 IP67 camera - NOTE - For IP65/67 protection the camera must be used with the appropriate cables and lens housing (or IP67 lens)
- Lenses matched to sensor size/resolution, plus IP67 lens housing options for environmental protection
- IP67 lighting (e.g., ring and bar lights) for consistent illumination in harsh conditions

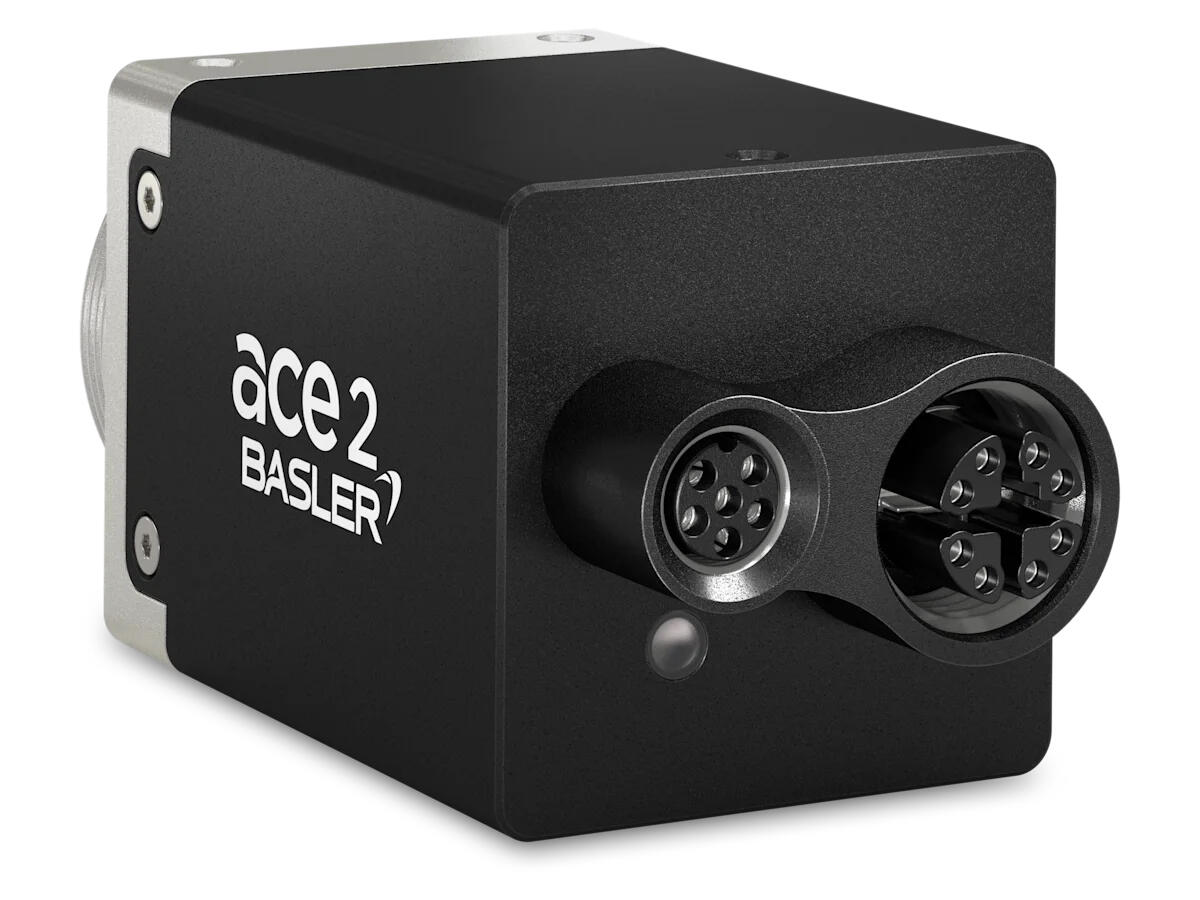

- IP67 data and I/O cabling with screwable connections (M12/M8 variants depending on configuration)
Â
Key benefits
Â
- IP67-rated protection to help keep imaging reliable in wet, dusty, or washdown-adjacent areas
- Validated component compatibility (camera + optics protection + lighting + cabling) to reduce integration time and troubleshooting
- Configuration flexibility through multiple camera, lens, housing, and lighting variants
- Industrial connectivity with secure, vibration-resistant screwable connectors
- Long-term solution planning with a supply-chain focus for multi-year availability
- Specialist support from needs analysis through commissioning
Typical applications
Â
- Factory automation and inspection in dusty or wet areas
- Agriculture and outdoor machine vision
- Food and packaging (including areas requiring frequent cleaning)
- Intelligent traffic systems (ITS) and roadside installations
- • IP65/67 protection (When used with appropriate lens tube and cables)
- • Resolution range: 2.3 MP up to 24.5 MP
- • Frame rate: up to 51 fps
Selected variant

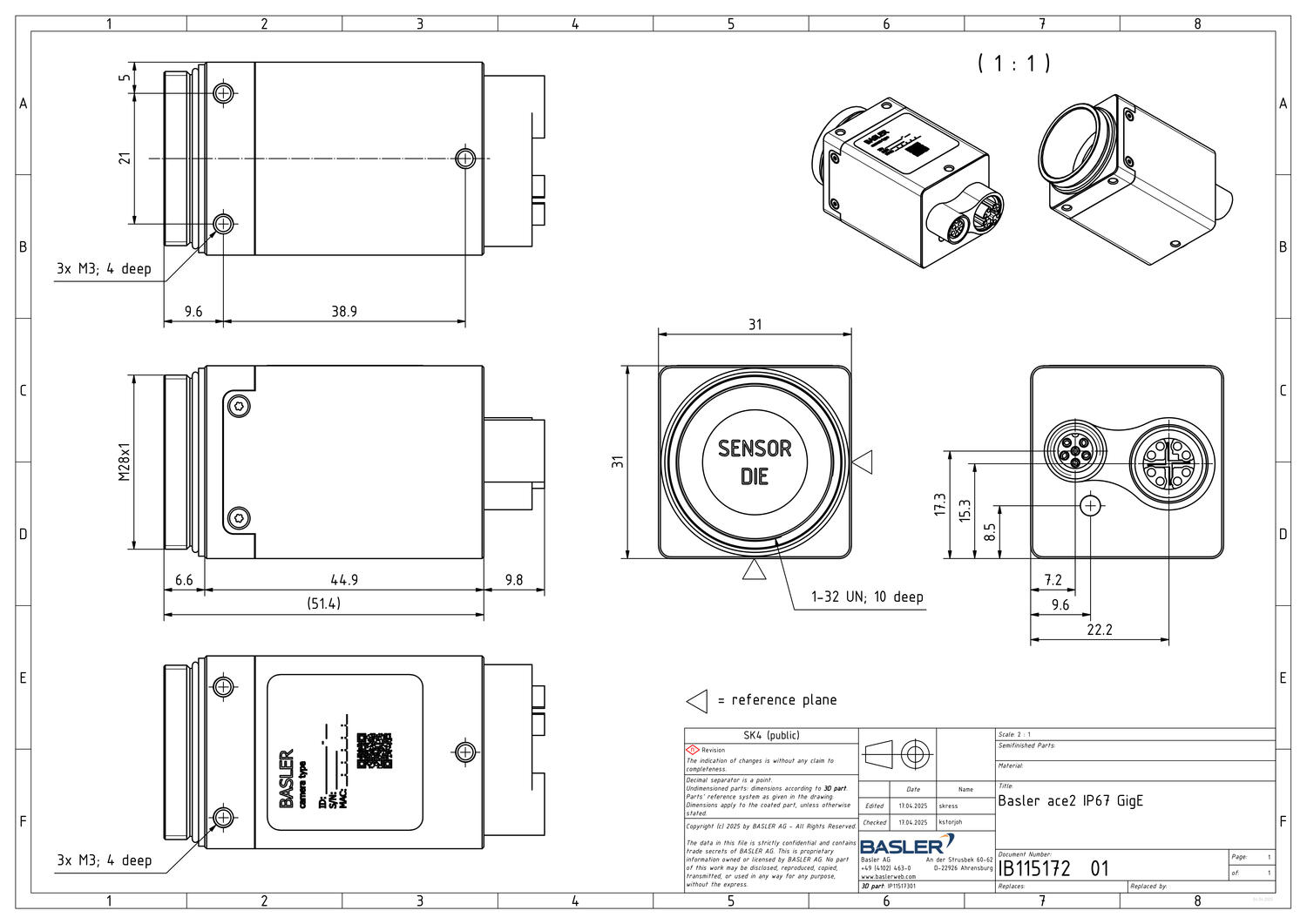

Technical data
| API configuration | Basler pylon Software Suite |
|---|---|
| Approvals | CE, RoHS, EAC, FCC, GenICam, GigE Vision, KC, UKCA, UL |
| Camera model | Basler Ace 2 |
| Colour | Yes |
| Digital inputs | 1 |
| Digital outputs | 2 |
| Height | 31 mm |
| IP class | IP65, IP67 |
| Length | 55.5 mm |
| Lens Barrel | C-Mount |
| Mono/color | Color |
| Operating temperature | -10 °C - 60 °C |
| Pixel size min | 2.74 µm |
| Power consumption | 3.1 W |
|---|---|
| Resolution max | 2.3 MP |
| Sensor model | IMX392 |
| Sensor size max | 1/2.3" |
| Sensor supplier | Sony |
| Sensor Type | CMOS |
| Shutter type | Global |
| Supply voltage dc max | 24 V DC |
| Supply voltage dc min | 12 V DC |
| User interface | GigE |
| Weight | 72 g |
| Width | 31 mm |
Product description
Basler’s IP67 portfolio provides a robust, end‑to‑end machine vision setup designed for demanding environments with dust, dirt, and water exposure. The concept is a validated, compatible system built from camera, optics protection, illumination, and cabling—so you can integrate faster and reduce risk.
Â
System components
Â
- ace 2 IP67 camera - NOTE - For IP65/67 protection the camera must be used with the appropriate cables and lens housing (or IP67 lens)
- Lenses matched to sensor size/resolution, plus IP67 lens housing options for environmental protection
- IP67 lighting (e.g., ring and bar lights) for consistent illumination in harsh conditions
- IP67 data and I/O cabling with screwable connections (M12/M8 variants depending on configuration)
Â
Key benefits
Â
- IP67-rated protection to help keep imaging reliable in wet, dusty, or washdown-adjacent areas
- Validated component compatibility (camera + optics protection + lighting + cabling) to reduce integration time and troubleshooting
- Configuration flexibility through multiple camera, lens, housing, and lighting variants
- Industrial connectivity with secure, vibration-resistant screwable connectors
- Long-term solution planning with a supply-chain focus for multi-year availability
- Specialist support from needs analysis through commissioning
Typical applications
Â
- Factory automation and inspection in dusty or wet areas
- Agriculture and outdoor machine vision
- Food and packaging (including areas requiring frequent cleaning)
- Intelligent traffic systems (ITS) and roadside installations
