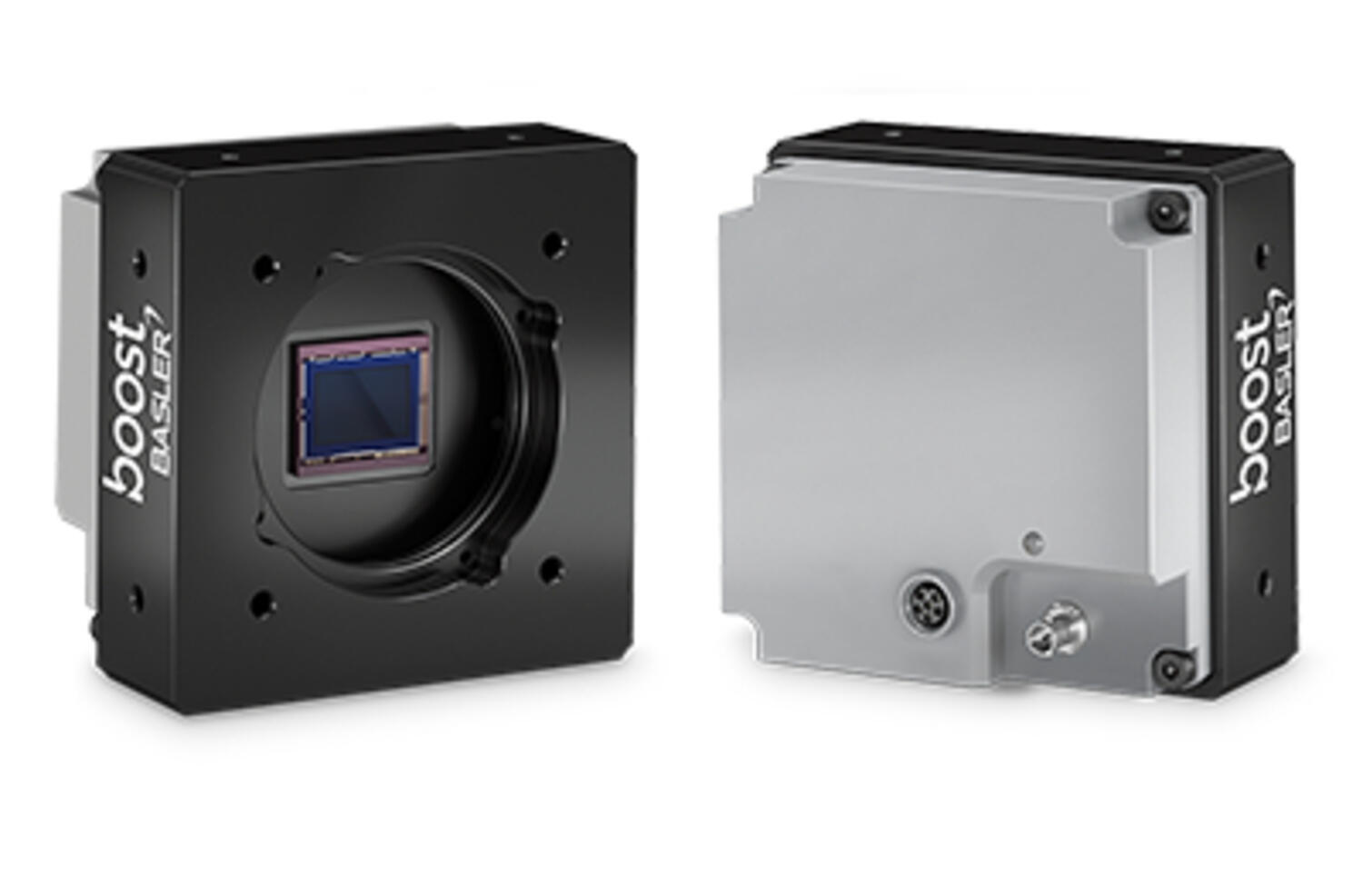

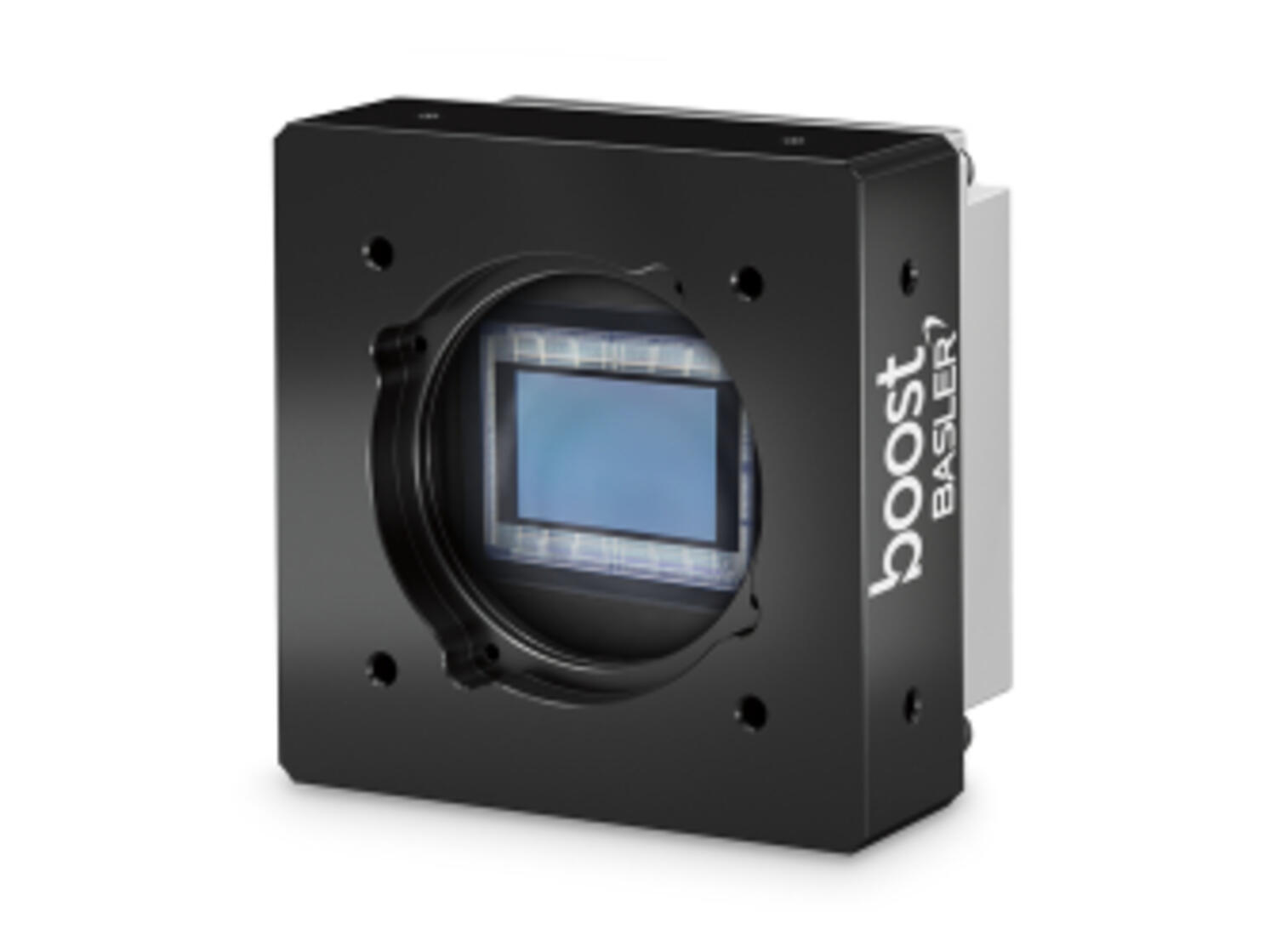

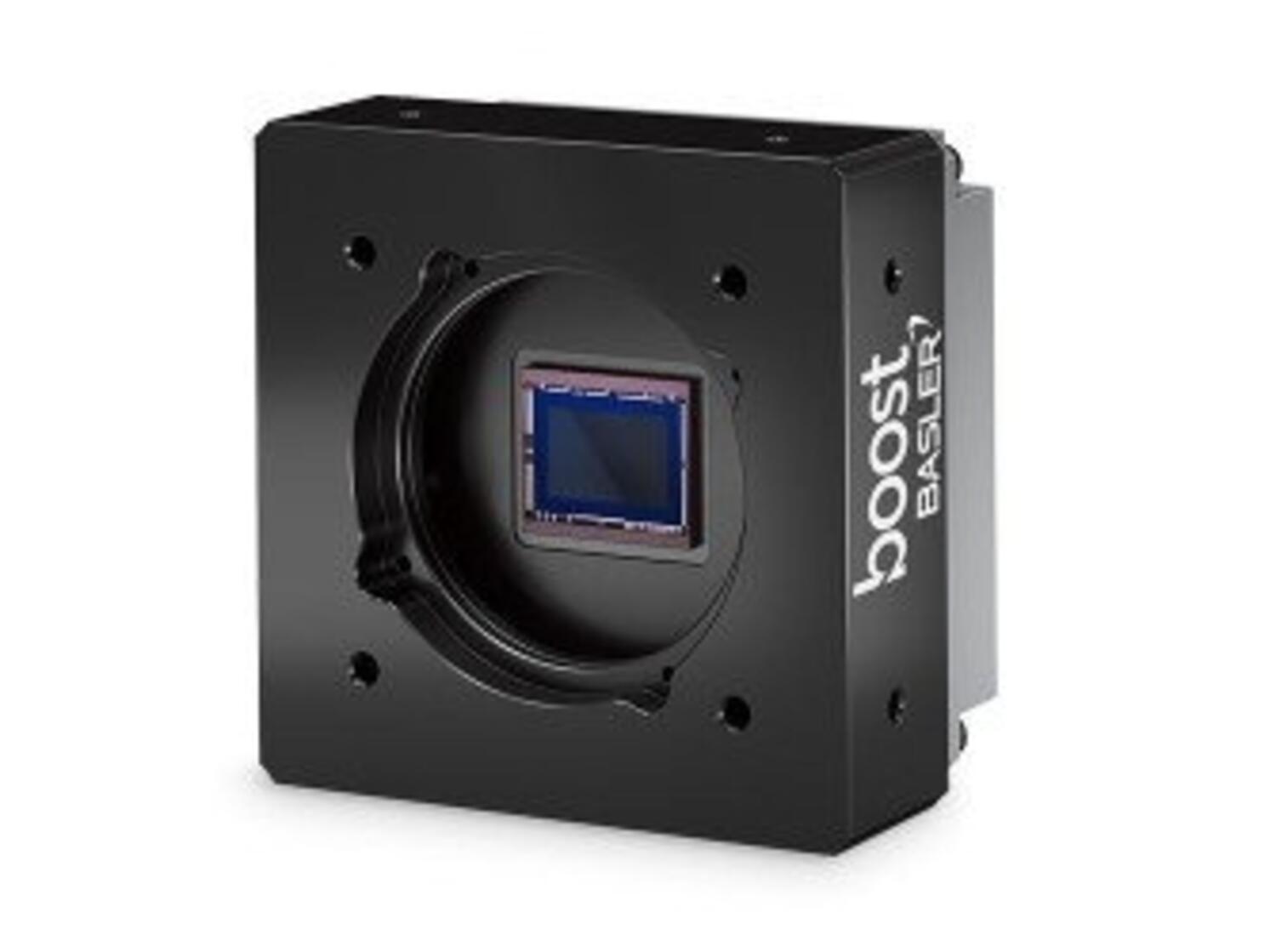

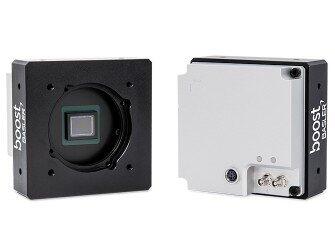

The Basler Boost series of CoaXPress 2.0 (CXP-12) cameras offer excellent image quality even at high data rates (up to 12.5 Gbps per cable), with high resolution and high performance. Equipped with Sony Pregius sensors or XGS series sensors from ON Semiconductor, the Boost range can achieve outstanding image quality with up to 127 megapixels and state-of-the-art global shutter technology.
Â
The Boost CoaXPress 2.0 range is ideal for applications where high data rates and resolutions are important and where the image data must cover greater distance. For example, applications in the semiconductor and solar industry, display inspection, print inspection, food inspection and medical technology.
Â
A range of adaptor plates are available, allowing the Boost camera to be used with M42x0.75, M42x1.0, C-mount or F-mount lenses.
Approvals | RoHS, CE, GenICam, UL, EAC |
---|---|
Digital inputs | 1 |
Frame rate max | 400 fps |

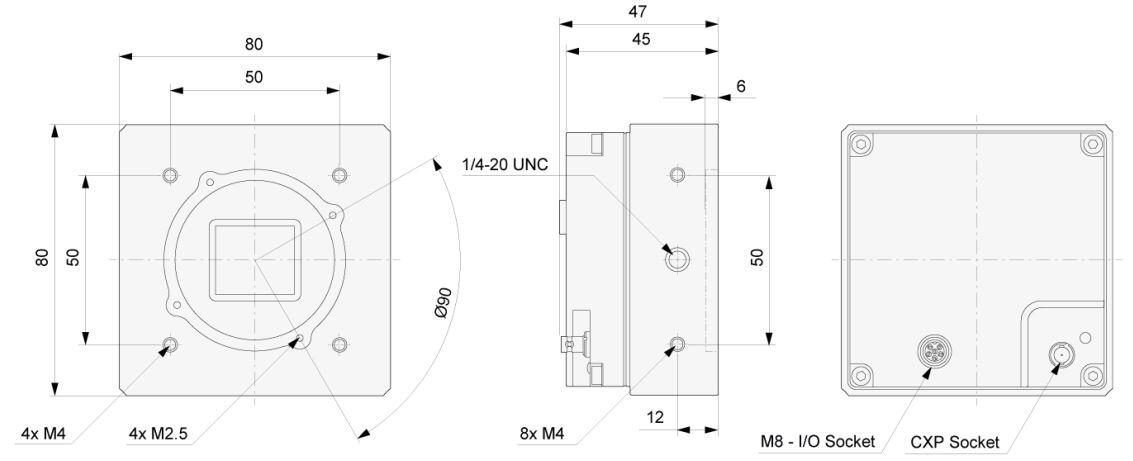

Height | 80 mm |
Interface | CoaXPress 2.0 |
Length | 45 mm |
Lens barrel | C-mount, F-mount, M42x0.75, M42x1 |
Mono/color | Mono |
Operating temperature | 0°C … 50°C |
Pixel size | 4.5 x4.5 |
Power consumption | 9.6 W |
Resolution | 3MP |
---|---|
Resolution max | 1936 x 1464 px |
Sensor model | IMX421 |
Sensor size | 2/3" |
Sensor supplier | Sony |
Sensor Type | CMOS |
Shutter type | Global |
Weight | 480 g |
Width | 80 mm |
The Basler Boost series of CoaXPress 2.0 (CXP-12) cameras offer excellent image quality even at high data rates (up to 12.5 Gbps per cable), with high resolution and high performance. Equipped with Sony Pregius sensors or XGS series sensors from ON Semiconductor, the Boost range can achieve outstanding image quality with up to 127 megapixels and state-of-the-art global shutter technology.
Â
The Boost CoaXPress 2.0 range is ideal for applications where high data rates and resolutions are important and where the image data must cover greater distance. For example, applications in the semiconductor and solar industry, display inspection, print inspection, food inspection and medical technology.
Â
A range of adaptor plates are available, allowing the Boost camera to be used with M42x0.75, M42x1.0, C-mount or F-mount lenses.
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Parts | Accessory type | Frame rate max | Length | Lens barrel | Mono/color | Pixel size | Resolution | Resolution max | Sensor model | Sensor size | Sensor supplier | Weight | Price | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]()
Boost CoaXPress Camera, IMX421, 2/3", CMOS, 400 fps, 3 MP, Mono
Art:
BOA1936-400CM
Copied
|
|
400 fps
|
45 mm
|
C-mount, F-mount, M42x0.75, M42x1
|
Mono
|
4.5 x4.5
|
3MP
|
1936 x 1464 px
|
IMX421
|
2/3"
|
Sony
|
480 g
|
| ||
![]()
Boost CoaXPress Camera, IMX421, 2/3", CMOS, 400 fps, 3 MP, Colour
Art:
BOA1936-400CC
Copied
|
|
400 fps
|
45 mm
|
C-mount, F-mount, M42x0.75, M42x1
|
Color
|
4.5 x4.5
|
3MP
|
1936 x 1464 px
|
IMX421
|
2/3"
|
Sony
|
480 g
|
| ||
![]()
Boost CoaXPress Camera, IMX537, 1/1.8", CMOS, 250 fps, 5 MP, Mono
Art:
BOA2448-250CM
Copied
|
|
250 fps
|
45 mm
|
C-mount, F-mount, M42x0.75, M42x1
|
Mono
|
2.74 x 2.74
|
5MP
|
2448x2048
|
IMX537
|
1/1.8"
|
Sony
|
480 g
|
| ||
![]()
Boost CoaXPress Camera, IMX537, 1/1.8", CMOS, 250 fps, 5 MP, Colour
Art:
BOA2448-250CC
Copied
|
|
250 fps
|
45 mm
|
C-mount, F-mount, M42x0.75, M42x1
|
Color
|
2.74 x 2.74
|
5MP
|
2448x2048
|
IMX537
|
1/1.8"
|
Sony
|
480 g
|
| ||
![]()
Boost CoaXPress Camera, IMX536, 2/3", CMOS, 190 fps, 8 MP, Mono
Art:
BOA2832-190CM
Copied
|
|
190 fps
|
45 mm
|
C-mount, F-mount, M42x0.75, M42x1
|
Mono
|
2.74 x 2.74
|
8MP
|
2840x2840
|
IMX536
|
2/3"
|
Sony
|
480 g
|
| ||
![]()
Boost CoaXPress Camera, IMX536, 2/3", CMOS, 190 fps, 8 MP, Colour
Art:
BOA2832-190CC
Copied
|
|
190 fps
|
45 mm
|
C-mount, F-mount, M42x0.75, M42x1
|
Color
|
2.74 x 2.74
|
8MP
|
2840x2840
|
IMX536
|
2/3"
|
Sony
|
480 g
|
| ||
![]()
Boost CoaXPress Camera, IMX255, 1", CMOS, 93fps, 9 MP, Mono
Art:
BOA4096-93CM
Copied
|
|
93 fps
|
45 mm
|
C-mount, F-mount, M42x0.75, M42x1
|
Mono
|
3.45 x 3.45
|
9MP
|
4096 x 2168 px
|
IMX255
|
1"
|
Sony
|
480 g
|
| ||
![]()
Boost CoaXPress Camera, IMX255, 1", CMOS, 93fps, 9 MP, Colour
Art:
BOA4096-93CC
Copied
|
|
93 fps
|
45 mm
|
C-mount, F-mount, M42x0.75, M42x1
|
Color
|
3.45 x 3.45
|
9MP
|
4096 x 2168 px
|
IMX255
|
1"
|
Sony
|
480 g
|
| ||
![]()
Boost CoaXPress Camera, IMX535, 1/1.1", CMOS, 180 fps, 12 MP, Mono
Art:
BOA4096-180CM
Copied
|
|
180 fps
|
45 mm
|
C-mount, F-mount, M42x0.75, M42x1
|
Mono
|
2.74 x 2.74
|
12MP
|
4096x3000
|
IMX535
|
1/1.1"
|
Sony
|
480 g
|
| ||
![]()
Boost CoaXPress Camera, IMX535, 1/1.1", CMOS, 180 fps, 12 MP, Colour
Art:
BOA4096-180CC
Copied
|
|
180 fps
|
45 mm
|
C-mount, F-mount, M42x0.75, M42x1
|
Color
|
2.74 x 2.74
|
12MP
|
4096x3000
|
IMX535
|
1/1.1"
|
Sony
|
480 g
|
| ||
![]()
Boost CoaXPress Camera, IMX253, 1.1", CMOS, 68fps, 12 MP, Mono
Art:
BOA4112-68CM
Copied
|
|
68 fps
|
45 mm
|
C-mount, F-mount, M42x0.75, M42x1
|
Mono
|
3.45 x 3.45
|
12MP
|
4096 x 3000 px
|
IMX253
|
1.1"
|
Sony
|
480 g
|
| ||
![]()
Boost CoaXPress Camera, IMX253, 1.1", CMOS, 68fps, 12 MP, Colour
Art:
BOA4112-68CC
Copied
|
|
68 fps
|
45 mm
|
C-mount, F-mount, M42x0.75, M42x1
|
Color
|
3.45 x 3.45
|
12MP
|
4096 x 3000 px
|
IMX253
|
1.1"
|
Sony
|
480 g
|
| ||
![]()
Boost CoaXPress Camera, IMX532, 1.1", CMOS, 150 fps, 16.1 MP, Mono
Art:
BOA5320-150CM
Copied
|
|
150 fps
|
45 mm
|
C-mount, F-mount, M42x0.75, M42x1
|
Mono
|
2.74 x 2.74
|
16.1MP
|
5320x3032
|
IMX532
|
1.1"
|
Sony
|
480 g
|
| ||
![]()
Boost CoaXPress Camera, IMX532, 1.1", CMOS, 150 fps, 16.1 MP, Colour
Art:
BOA5320-150CC
Copied
|
|
150 fps
|
45 mm
|
C-mount, F-mount, M42x0.75, M42x1
|
Color
|
2.74 x 2.74
|
16.1MP
|
5320x3032
|
IMX532
|
1.1"
|
Sony
|
480 g
|
| ||
![]()
Boost CoaXPress Camera, IMX531, 1.1", CMOS, 100 fps, 20 MP, Mono
Art:
BOA4504-100CM
Copied
|
|
100 fps
|
45 mm
|
C-mount, F-mount, M42x0.75, M42x1
|
Mono
|
2.74 x 2.74
|
20.2MP
|
4504x4504
|
IMX531
|
1.1"
|
Sony
|
480 g
|
| ||
![]()
Boost CoaXPress Camera, IMX531, 1.1", CMOS, 100 fps, 20 MP, Colour
Art:
BOA4504-100CC
Copied
|
|
100 fps
|
45 mm
|
C-mount, F-mount, M42x0.75, M42x1
|
Color
|
2.74 x 2.74
|
20.2MP
|
4504x4504
|
IMX531
|
1.1"
|
Sony
|
480 g
|
| ||
![]()
Boost CoaXPress Camera, IMX530, 1.2", CMOS, 100 fps, 24.4 MP, Mono
Art:
BOA5328-100CM
Copied
|
|
100 fps
|
45 mm
|
C-mount, F-mount, M42x0.75, M42x1
|
Mono
|
2.74 x 2.74
|
24.4MP
|
5328x4608
|
IMX530
|
1.2"
|
Sony
|
480 g
|
| ||
![]()
Boost CoaXPress Camera, IMX530, 1.2", CMOS, 100 fps, 24.4 MP, Colour
Art:
BOA5328-100CC
Copied
|
|
100 fps
|
45 mm
|
C-mount, F-mount, M42x0.75, M42x1
|
Color
|
2.74 x 2.74
|
24.4MP
|
5328x4608
|
IMX530
|
1.2"
|
Sony
|
480 g
|
| ||
![]()
Boost CoaXPress Camera, XGS20000, 1.3", CMOS, 45fps, 20 MP, Mono
Art:
BOA4500-45CM
Copied
|
|
45 fps
|
49.1 mm
|
F-mount, M42x0.75, M42x1
|
Mono
|
3.2 x 3.2
|
20 MP
|
4500 x 4500 px
|
XGS 20000
|
1.3"
|
ON Semiconductor
|
525 g
|
| ||
![]()
Boost CoaXPress Camera, XGS20000, 1.3", CMOS, 45fps, 20 MP, Colour
Art:
BOA4500-45CC
Copied
|
|
45 fps
|
49.1 mm
|
F-mount, M42x0.75, M42x1
|
Color
|
3.2 x 3.2
|
20 MP
|
4500 x 4500 px
|
XGS 20000
|
1.3"
|
ON Semiconductor
|
525 g
|
| ||
![]()
Boost CoaXPress Camera, XGS32000, APS-C", CMOS, 35fps, 32.4 MP, Mono
Art:
BOA6500-36CM
Copied
|
|
35 fps
|
49.1 mm
|
F-mount, M42x0.75, M42x1
|
Mono
|
3.2 x 3.2
|
32.4 MP
|
6580 x 4935 px
|
XGS 32000
|
APS-C"
|
ON Semiconductor
|
525 g
|
| ||
![]()
Boost CoaXPress Camera, XGS32000, APS-C", CMOS, 35fps, 32.4 MP, Colour
Art:
BOA6500-36CC
Copied
|
|
35 fps
|
49.1 mm
|
F-mount, M42x0.75, M42x1
|
Color
|
3.2 x 3.2
|
32.4 MP
|
6580 x 4935 px
|
XGS 32000
|
APS-C"
|
ON Semiconductor
|
525 g
|
| ||
![]()
Boost CoaXPress Camera, XGS45000, 35mm, CMOS, 15fps, 44.7 MP, Mono
Art:
BOA8100-16CM
Copied
|
|
15 fps
|
49.1 mm
|
F-mount, M42x0.75, M42x1
|
Mono
|
3.2 x 3.2
|
44.7 MP
|
8192 x 5460 px
|
XGS 45000
|
35 mm
|
ON Semiconductor
|
525 g
|
| ||
![]()
Boost CoaXPress Camera, XGS45000, 35mm, CMOS, 15fps, 44.7 MP, Colour
Art:
BOA8100-16CC
Copied
|
|
15 fps
|
49.1 mm
|
F-mount, M42x0.75, M42x1
|
Color
|
3.2 x 3.2
|
44.7 MP
|
8192 x 5460 px
|
XGS 45000
|
35 mm
|
ON Semiconductor
|
525 g
|
| ||
![]()

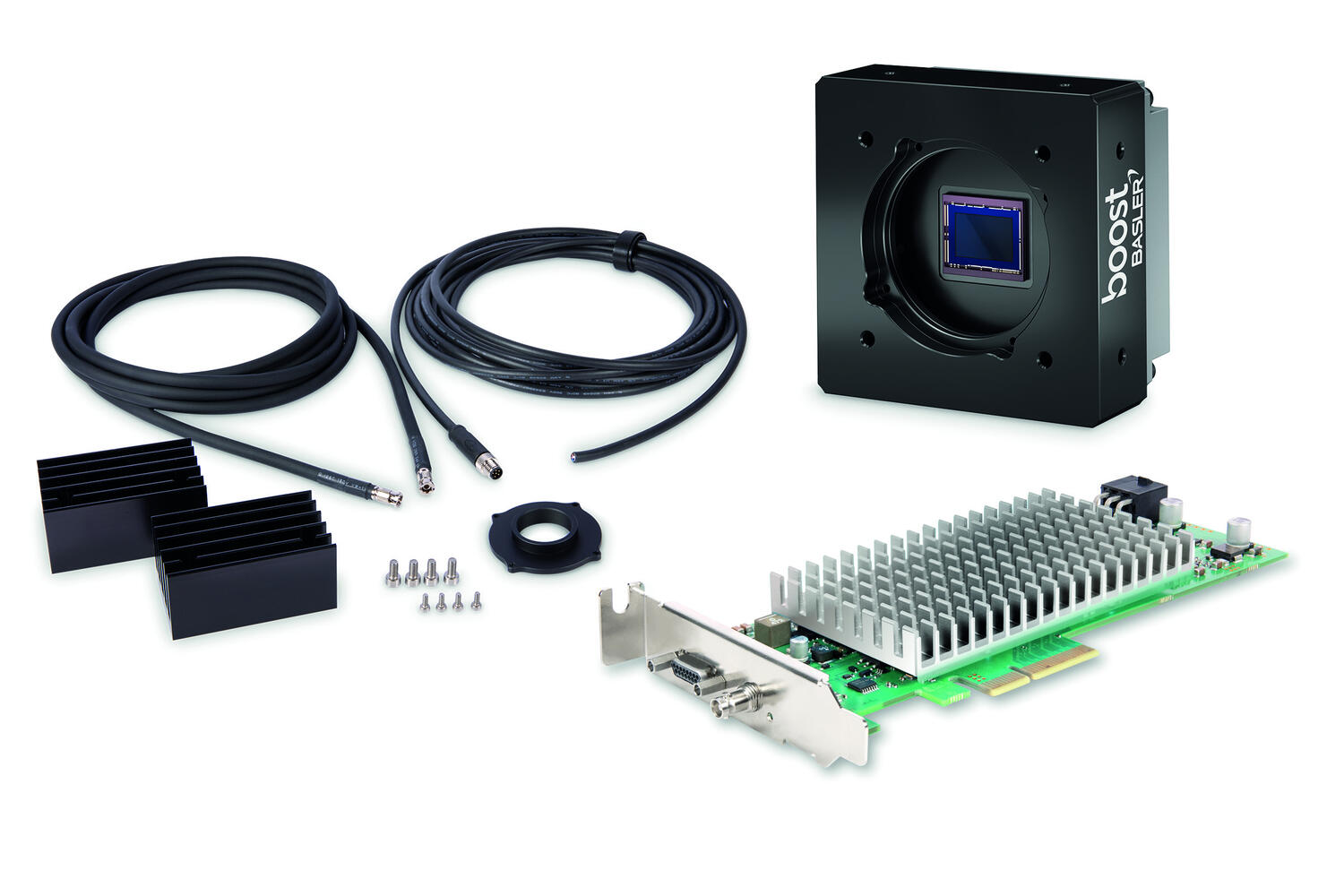

boA1936-400cm Camera, Lens Accessories, Cables, Mount, Frame Grabbers
Art:
BOA1936-400CM EVAL
Copied
|
Data cable, Card, Power and I/O
|
400 fps
|
45 mm
|
C-mount, F-mount, M42x0.75, M42x1
|
Mono
|
4.5 x4.5
|
3MP
|
1936 x 1464 px
|
IMX421
|
2/3"
|
Sony
|
480 g
|
| ||
![]()
boA1936-400cc Camera, Lens Accessories, Cables, Mount, Frame Grabbers
Art:
BOA1936-400CC EVAL
Copied
|
Data cable, Card, Power and I/O
|
400 fps
|
45 mm
|
C-mount, F-mount, M42x0.75, M42x1
|
Color
|
4.5 x4.5
|
3MP
|
1936 x 1464 px
|
IMX421
|
2/3"
|
Sony
|
480 g
|
| ||
![]()
boA8100-16cc Camera, Lens Accessories, Cables, Mount, Frame Grabber
Art:
BOA8100-16CC EVAL
Copied
|
Data cable, Card, Power and I/O
|
15 fps
|
49.1 mm
|
F-mount, M42x0.75, M42x1
|
Color
|
3.2 x 3.2
|
44.7 MP
|
8192 x 5460 px
|
XGS 45000
|
35 mm
|
ON Semiconductor
|
525 g
|
|
