Autovimation Orca Enclosures

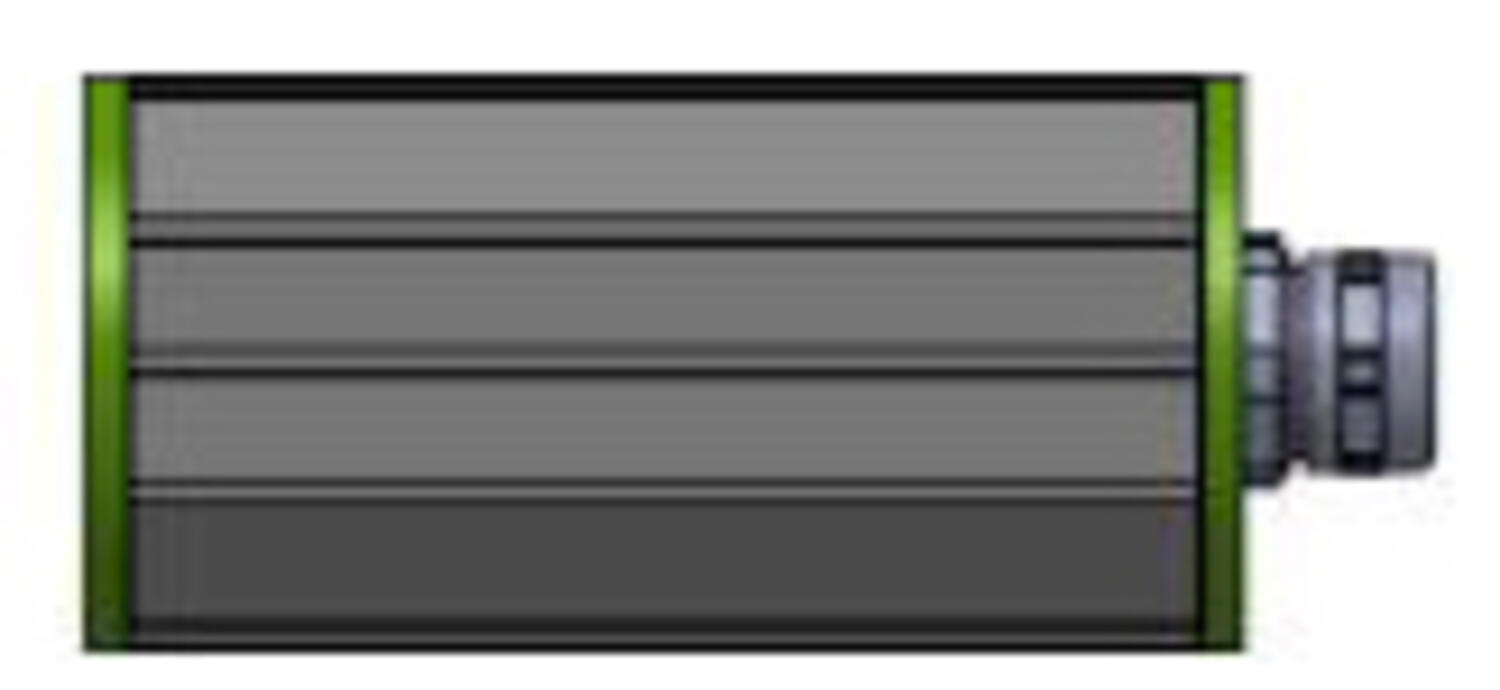

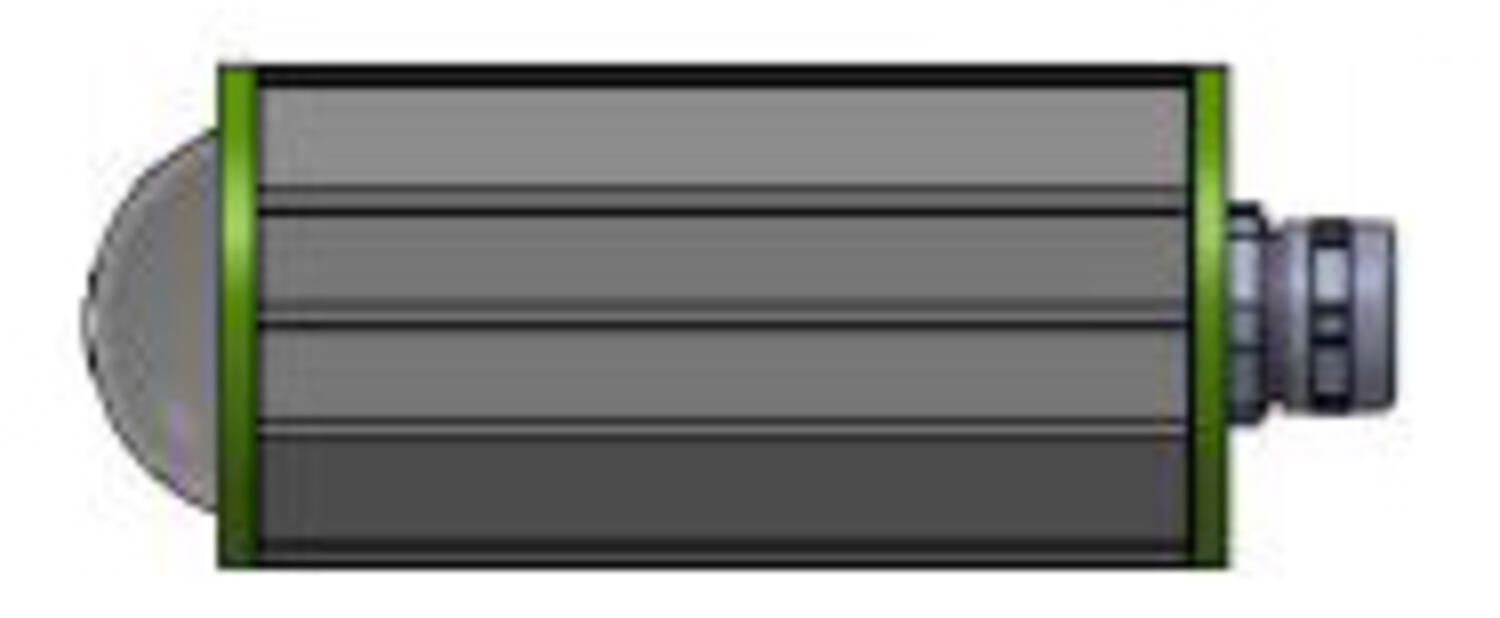

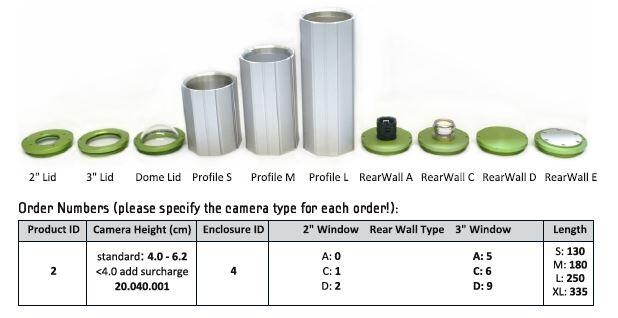

The IP67 Orca enclosure series offers protection for larger cameras of up to 62 x 62mm cross section (for instance Sick Ranger, AVT Prosilica range, Basler Runner, Flir A300 etc.). Smaller cameras also fit into the Orca with special adapter plates, if a large ring light or lens requires more room. It is available in three standard length with different rear walls and front lids. Equipped with the larger 3” window and 65mm aperture diameter it is possible to use wide-angle lenses without obstruction. Even fish-eye lenses with more than 180° viewing angle can be used with the dome lid.
autoVimation offers a wide selection of enclosures to suit even the most specific requirements. To find a suitable enclosure please see the Enclosure Configurator (link above) or contact OEM Finland sales team for additional info!.
- Robust enclosure, max. camera size 62x62mm
- Maximum lens diameter 85mm in profile, 78mm in front lid

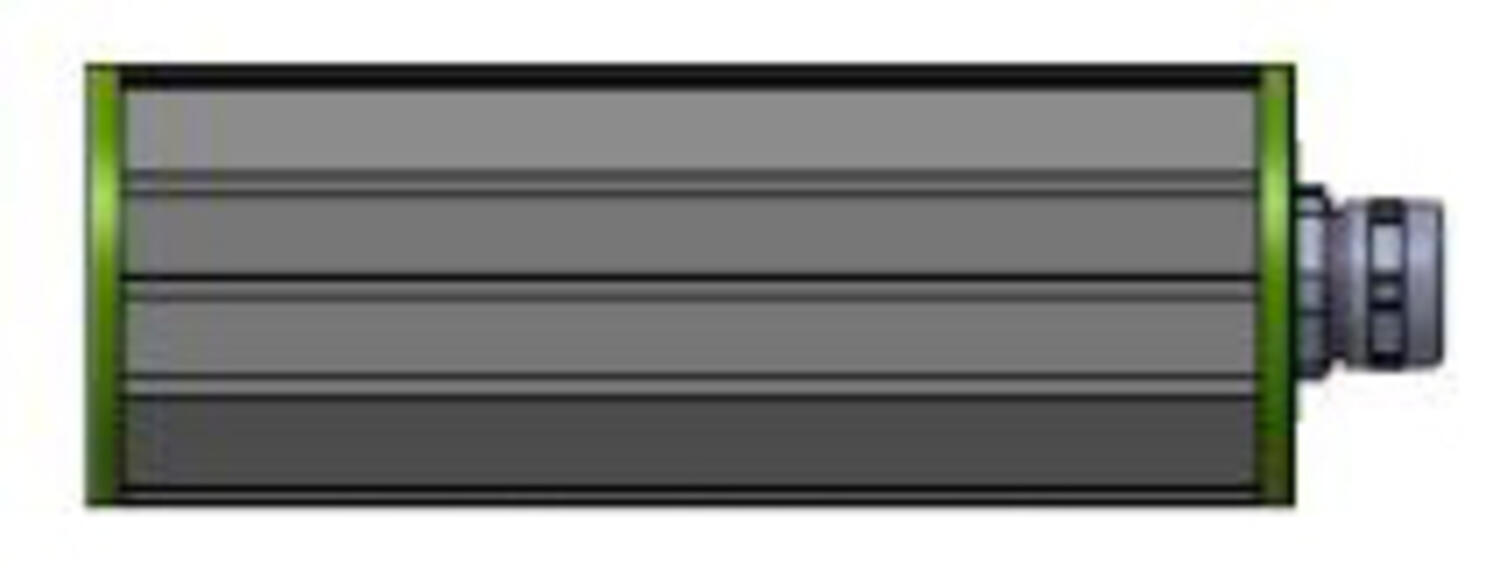

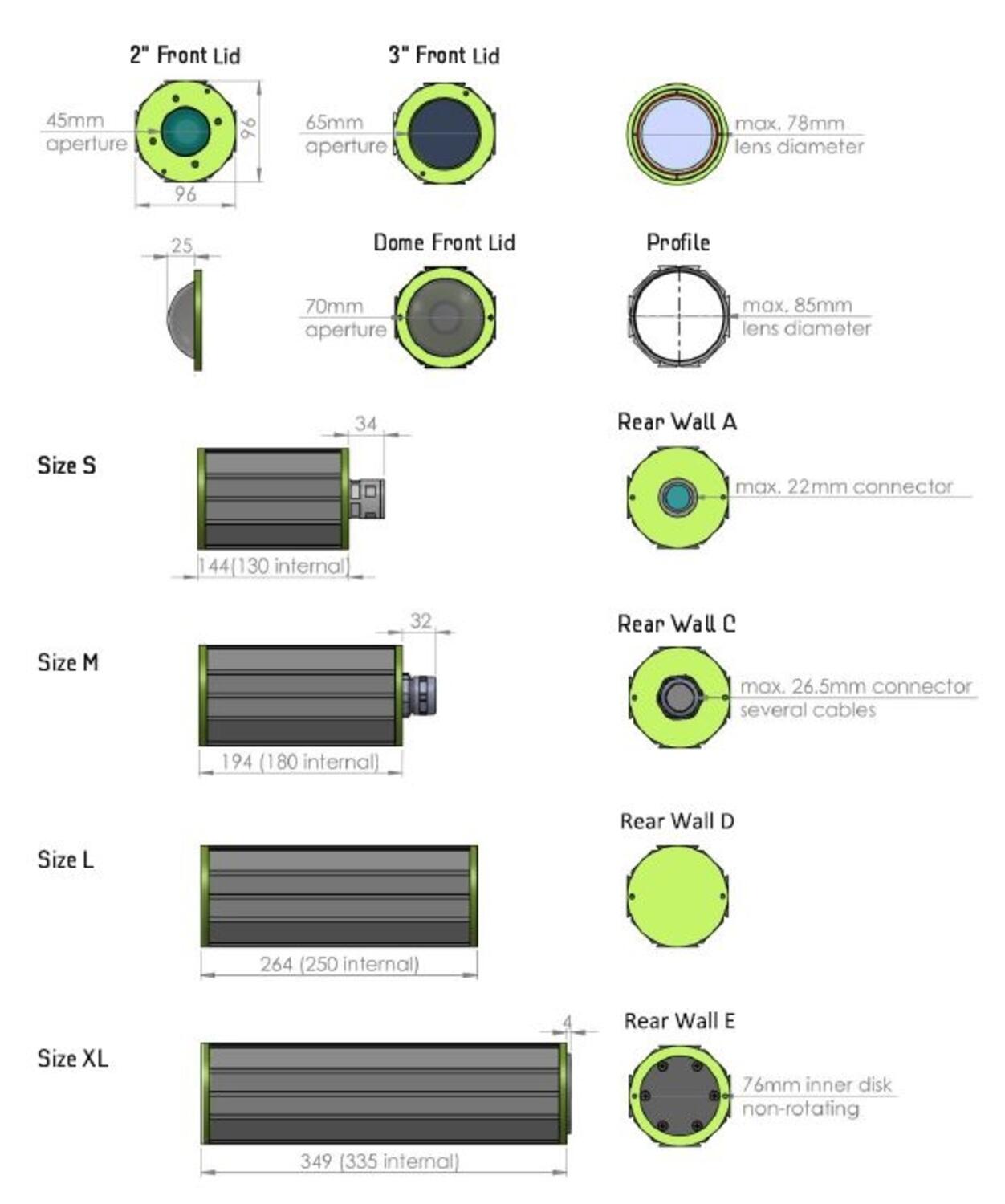

- Inner length 130mm (S), 180mm (M), 250mm (L) and 335mm (XL)
- Excellent heat dissipation, IP67 rated

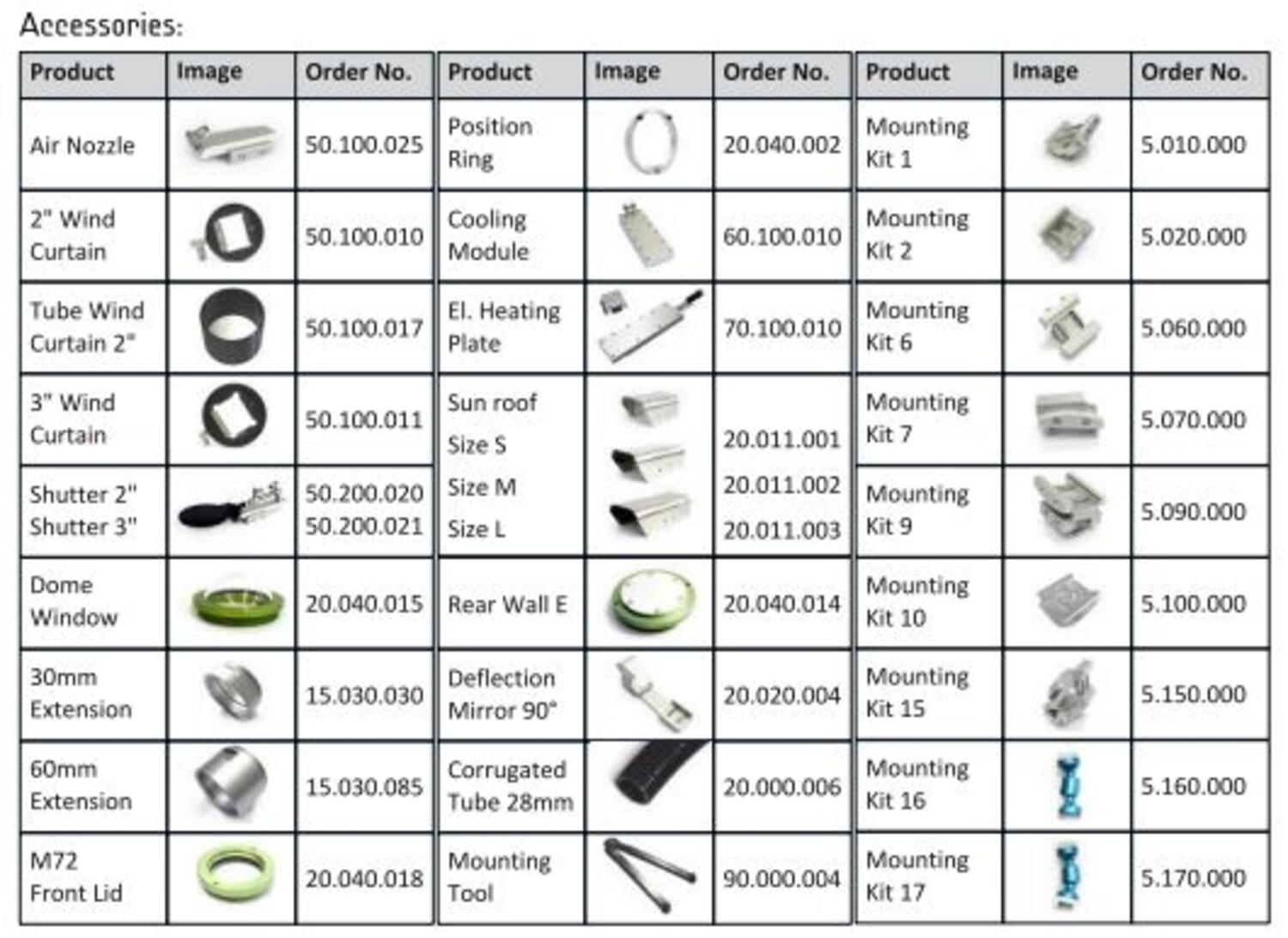

- Wide selection of accessories available for mounting and maintenance
Selected variant
Technical data
| Height | 96 mm |
|---|---|
| Housing material | Anodised aluminum |
| Inner length | 180 mm |
| IP class | IP67 |
| Length | 194 mm |
| Max camera height | 62 mm |
| Max camera width | 62 mm |
| Max connector size | 26.5 mm |
|---|---|
| Max lens diameter | 85 mm |
| Weight | 1200 g |
| Width | 96 mm |
| Window seal | EPDM |
Product description
The IP67 Orca enclosure series offers protection for larger cameras of up to 62 x 62mm cross section (for instance Sick Ranger, AVT Prosilica range, Basler Runner, Flir A300 etc.). Smaller cameras also fit into the Orca with special adapter plates, if a large ring light or lens requires more room. It is available in three standard length with different rear walls and front lids. Equipped with the larger 3” window and 65mm aperture diameter it is possible to use wide-angle lenses without obstruction. Even fish-eye lenses with more than 180° viewing angle can be used with the dome lid.
autoVimation offers a wide selection of enclosures to suit even the most specific requirements. To find a suitable enclosure please see the Enclosure Configurator (link above) or contact OEM Finland sales team for additional info!.
