AUTOVIMATION
Autovimation Dolphin And Shark Enclosures
The Dolphin is a high grade stainless steel enclosure that offers IP69K protection for cameras up to 40 x 40mm cross-section, especially for hygienically demanding areas such as in the pharmaceutical and food industry. Thanks to the patented Quick-Lock / Heat-Guide clamping system, there is an excellent heat dissipation. The electro-polished V4A stainless steel enclosures avoid corners and edges where dirt or germs could settle. All potential gaps are sealed with FDA approved seal. The new, hygienic mounting system offers a flexible alignment and positioning of the camera in these highly sensitive areas.
autoVimation offers a wide selection of enclosures to suit even the most specific requirements. To find a suitable enclosure please see the Enclosure Configurator (link above) or contact OEM Finland sales team for additional info!

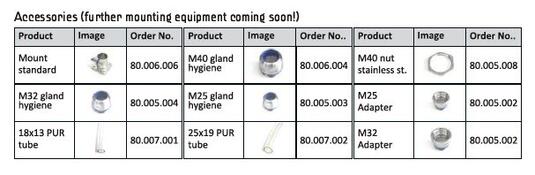

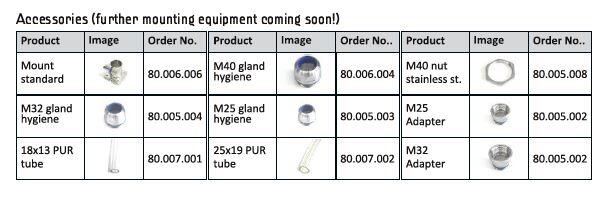

Wide selection of accessories available for both Dolphin and Shark -series enclosures.
- Enclosures made of stainless steel, camera size up to 62x62mm
- Maximum lens diameter 55mm Dolphin, 85mm Shark
- Dolphin inner length 138mm (S), 188mm (M) and 218mm (L). Shark inner length 130mm (S), 180mm (M) and 250mm (L)
- Robust stainless steel housing (AISI316L), good heat dissipation, IP69K V4A

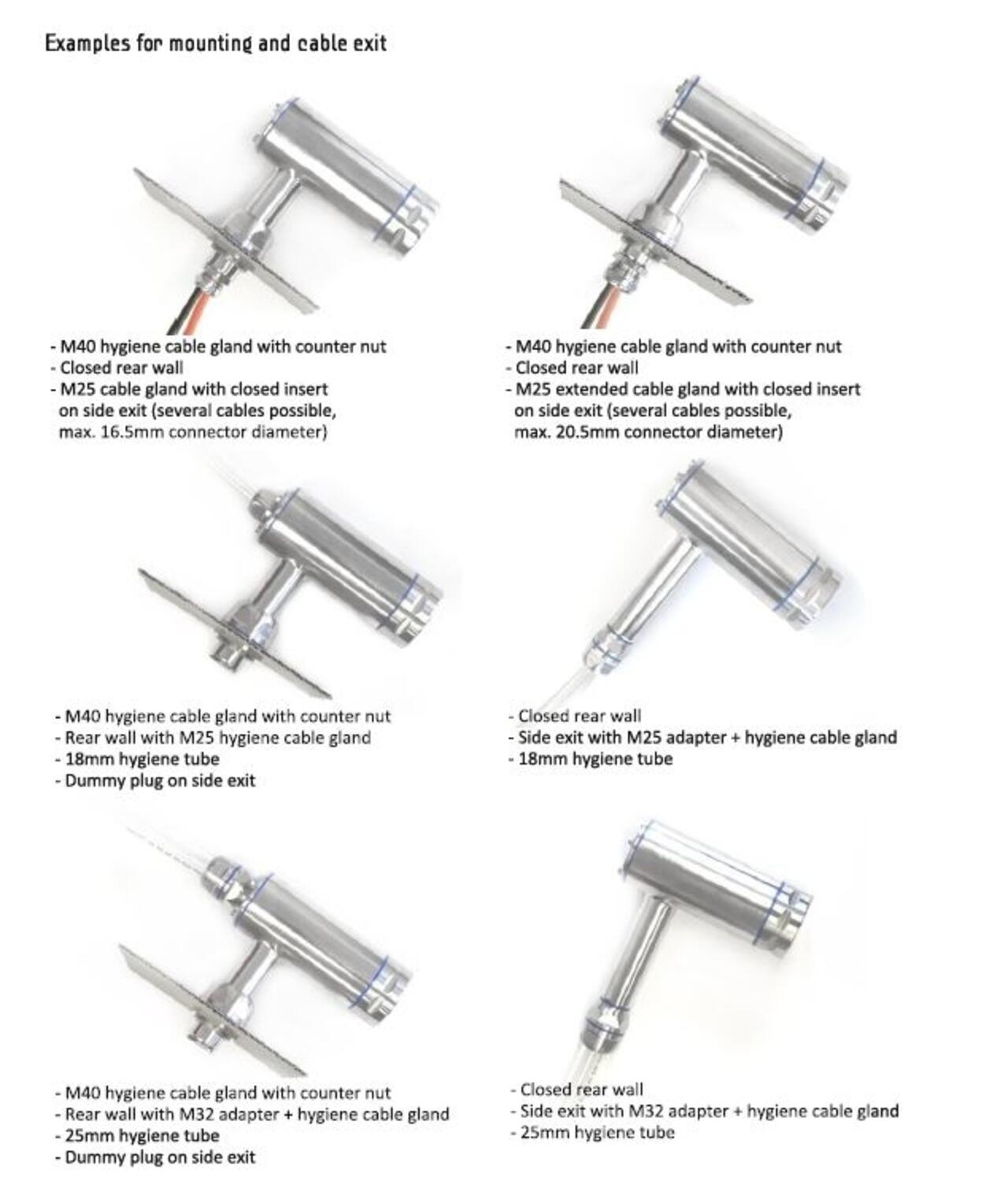

- Wide selection of accessories available for mounting and maintenance
Selected variant
Technical data
| Height | 104 mm |
|---|---|
| Housing material | Electro-polished V4A stainless steel |
| Inner length | 188 mm |
| IP class | IP69K |
| Length | 207 mm |
| Max camera height | 40 mm |
| Max camera width | 40 mm |
| Max connector size | 18 mm |
|---|---|
| Max lens diameter | 55 mm |
| Weight | 1510 g |
| Width | 63 mm |
| Window seal | Flouroprene XP |
Downloads
Product description
The Dolphin is a high grade stainless steel enclosure that offers IP69K protection for cameras up to 40 x 40mm cross-section, especially for hygienically demanding areas such as in the pharmaceutical and food industry. Thanks to the patented Quick-Lock / Heat-Guide clamping system, there is an excellent heat dissipation. The electro-polished V4A stainless steel enclosures avoid corners and edges where dirt or germs could settle. All potential gaps are sealed with FDA approved seal. The new, hygienic mounting system offers a flexible alignment and positioning of the camera in these highly sensitive areas.
autoVimation offers a wide selection of enclosures to suit even the most specific requirements. To find a suitable enclosure please see the Enclosure Configurator (link above) or contact OEM Finland sales team for additional info!
Wide selection of accessories available for both Dolphin and Shark -series enclosures.
