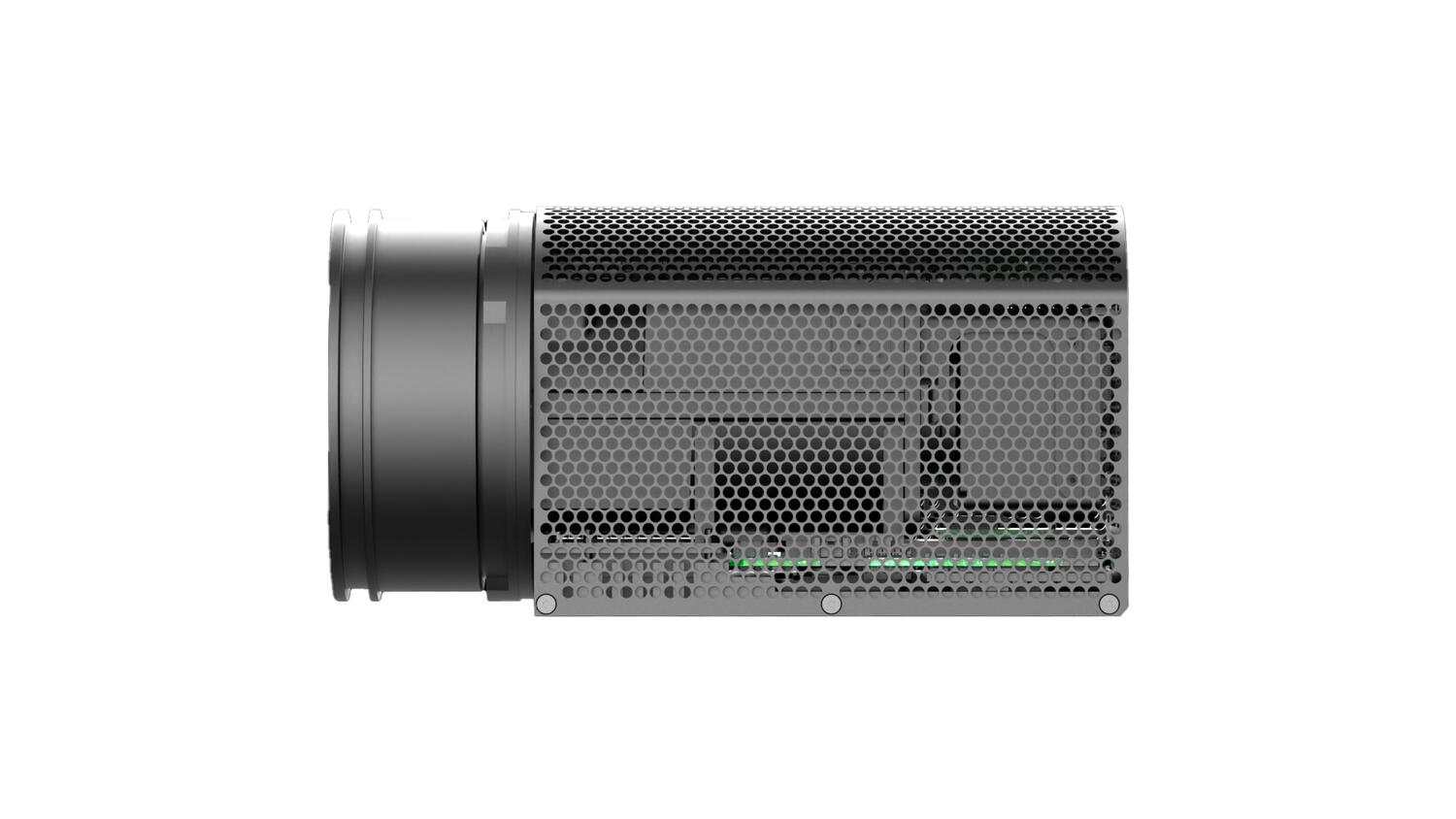

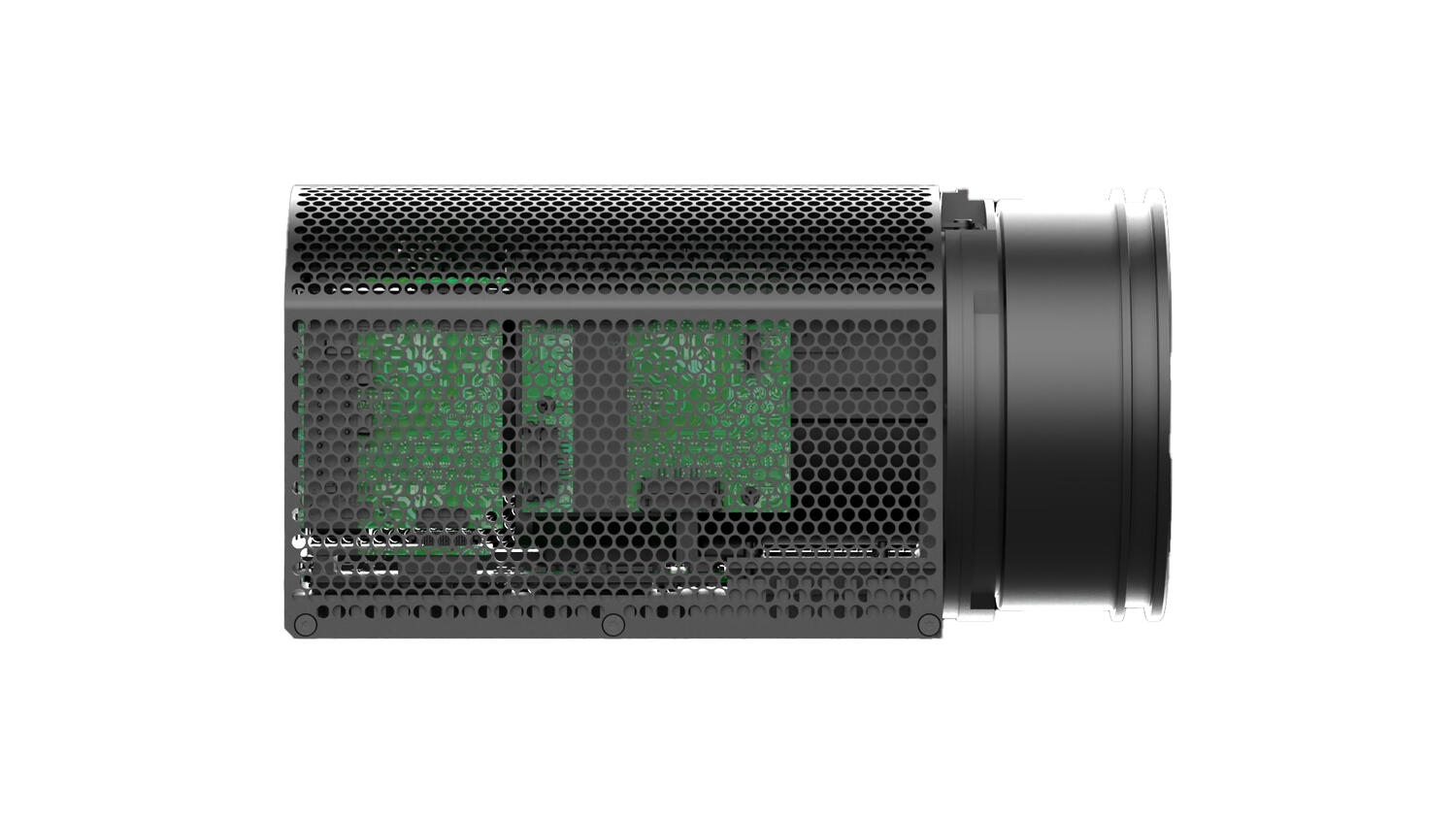

WEOM Zoom Block Thermal Module
WEOM® Zoom Block is a range of fully integrated thermal zoom modules engineered for OEMs and system integrators who need fast deployment, reliable outdoor performance and crisp long‑range thermal detail. Combining a 640 × 480 LWIR core with a motorized continuous optical zoom lens and standards-based IP video, it slots cleanly into security, industrial, maritime and autonomous platforms—reducing integration time while elevating end‑user performance.
Product range overview
- Available in configurations optimized for export-friendly deployment (9 Hz) or high-speed operation (up to 60 Hz, model-dependent), WEOM® Zoom Block lets you match performance and compliance needs to each project.
- A motorized 35–105 mm (3×) continuous optical zoom with motorized focus supports wide-area coverage and confident observation at distance.
- Built around a 640 × 480 uncooled LWIR microbolometer with sensitivity options down to <30 mK (model-dependent) to reveal subtle thermal contrasts.
- Integrates easily via Ethernet with PoE and IP video streaming (ONVIF/RTSP), plus RS485 (PELCO‑D) for PTZ control in common security architectures (interfaces model-dependent).
- Designed for outdoor systems with an IP67-rated front lens and DLC coating, in a compact module package (under 760 g).
Typical applications
- Perimeter security & critical infrastructure (utilities, ports, airports, logistics)
- Maritime observation and coastal monitoring
- UAV/UGV payloads for long‑range thermal situational awareness
- Industrial monitoring where distance-to-target varies
- PTZ thermal camera systems requiring ONVIF and PELCO‑D control
Talk to us: Share your target range, frame-rate requirement (9 Hz vs. up to 60 Hz) and integration environment (VMS/ONVIF, PTZ control, power). We’ll recommend the right WEOM® Zoom Block configuration for your platform. [email protected]
- Continuous 35–105 mm optical zoom and a 640 × 480 LWIR core deliver distance capability in a ready-to-integrate module
- Continuous 35–105 mm optical zoom and a 640 × 480 LWIR core deliver distance capability in a ready-to-integrate module
- Continuous 35–105 mm optical zoom and a 640 × 480 LWIR core deliver distance capability in a ready-to-integrate module
Selected variant
Technical data
| 12101_Pixel size | 17 µm |
|---|---|
| 12580_Detector type | Okyld LWIR-sensor, mikrobolometer |
| 12581_Spectral Band | 8–14 µm |
| 12582_Resolution (sensor) | 640 × 480 px |
| 12583_Thermal sensitivity (NETD) | < 30 mK |
| 12584_Temperature range – High Gain | −50 °C till +160 °C |
| 12585_Temperaturområde – Low Gain | −50 °C till +600 °C |
| 12586_Focus (lens) | Motoriserad (optisk zoom & fokus) |
| 12588_Image rotation – Invert | Yes |
| 12589_Image rotation – Mirror | Yes |
| 12590_AGC | Yes |
| 12590_Spatial image filter | Ja – medianfilter (full frame 60 Hz) |
| 12592_MGC | Yes |
| 12595_GigE plugin | Ethernet RJ45, 1 Gb/s (100 Mb/s kompatibel) |
| 12597_Video outputs | RTSP (H.264) via Ethernet; realtidsström i webbklient |
|---|---|

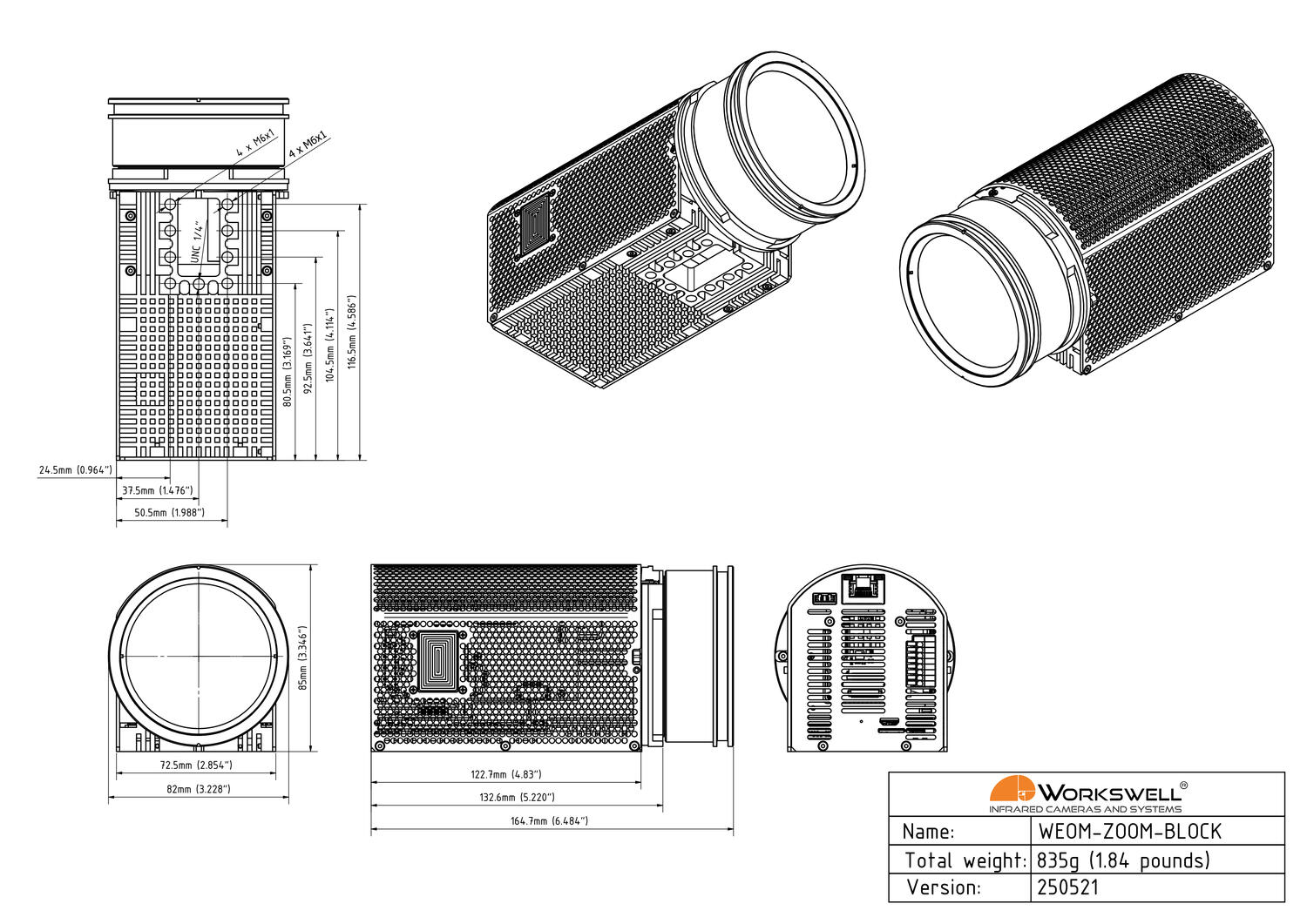

| 12599_Dimensions (without lens) | 82 × 85 × 165 mm |
| 12600_Weight (without lens) | 760 g |
| Certificate | RoHS |
| Current consumption | ≈ 11 W |
| Frame Rate | 9 Hz |
| IP class | IP67 |
| Material of body | Aluminium, Metal |
| Operating temperature | −20 °C to +70 °C |

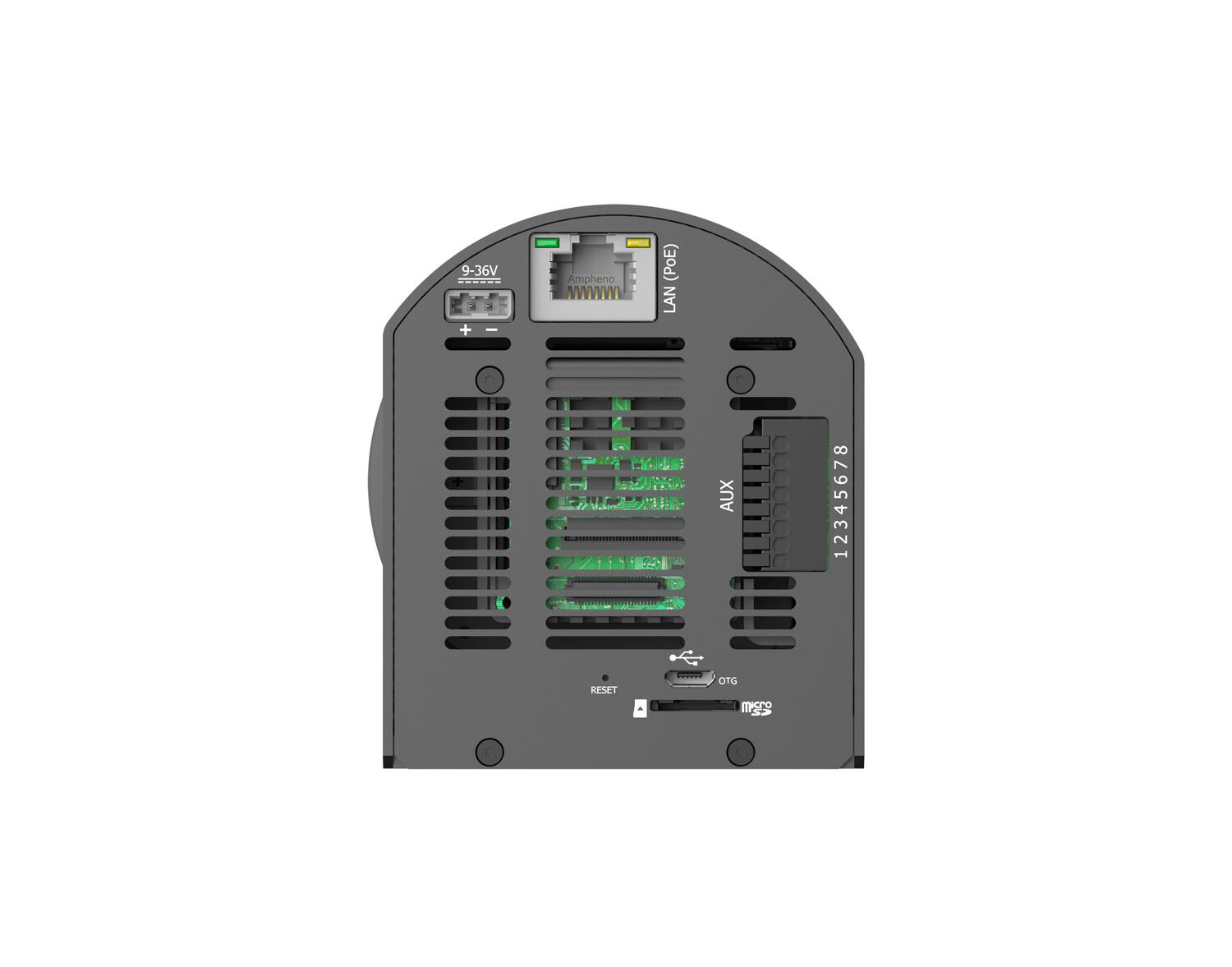

| Power supply | External 9–36 V DC or PoE |
| Rated voltage | 9–36 V DC |
| Storage temperature | −40 °C to +80 °C |
Downloads
Product description
WEOM® Zoom Block is a range of fully integrated thermal zoom modules engineered for OEMs and system integrators who need fast deployment, reliable outdoor performance and crisp long‑range thermal detail. Combining a 640 × 480 LWIR core with a motorized continuous optical zoom lens and standards-based IP video, it slots cleanly into security, industrial, maritime and autonomous platforms—reducing integration time while elevating end‑user performance.
Product range overview
- Available in configurations optimized for export-friendly deployment (9 Hz) or high-speed operation (up to 60 Hz, model-dependent), WEOM® Zoom Block lets you match performance and compliance needs to each project.
- A motorized 35–105 mm (3×) continuous optical zoom with motorized focus supports wide-area coverage and confident observation at distance.
- Built around a 640 × 480 uncooled LWIR microbolometer with sensitivity options down to <30 mK (model-dependent) to reveal subtle thermal contrasts.
- Integrates easily via Ethernet with PoE and IP video streaming (ONVIF/RTSP), plus RS485 (PELCO‑D) for PTZ control in common security architectures (interfaces model-dependent).
- Designed for outdoor systems with an IP67-rated front lens and DLC coating, in a compact module package (under 760 g).
Typical applications
- Perimeter security & critical infrastructure (utilities, ports, airports, logistics)
- Maritime observation and coastal monitoring
- UAV/UGV payloads for long‑range thermal situational awareness
- Industrial monitoring where distance-to-target varies
- PTZ thermal camera systems requiring ONVIF and PELCO‑D control
Talk to us: Share your target range, frame-rate requirement (9 Hz vs. up to 60 Hz) and integration environment (VMS/ONVIF, PTZ control, power). We’ll recommend the right WEOM® Zoom Block configuration for your platform. [email protected]
