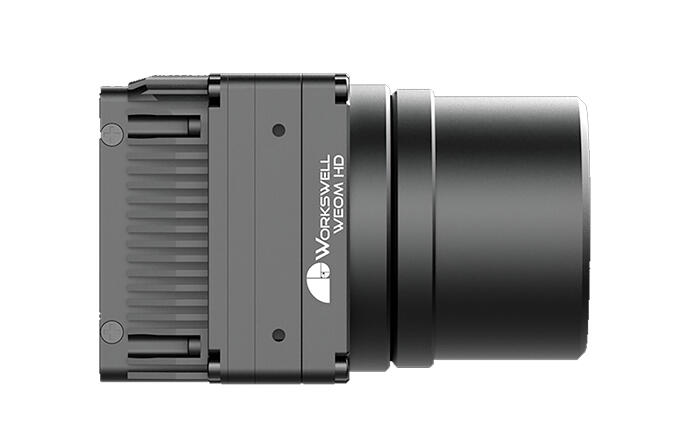

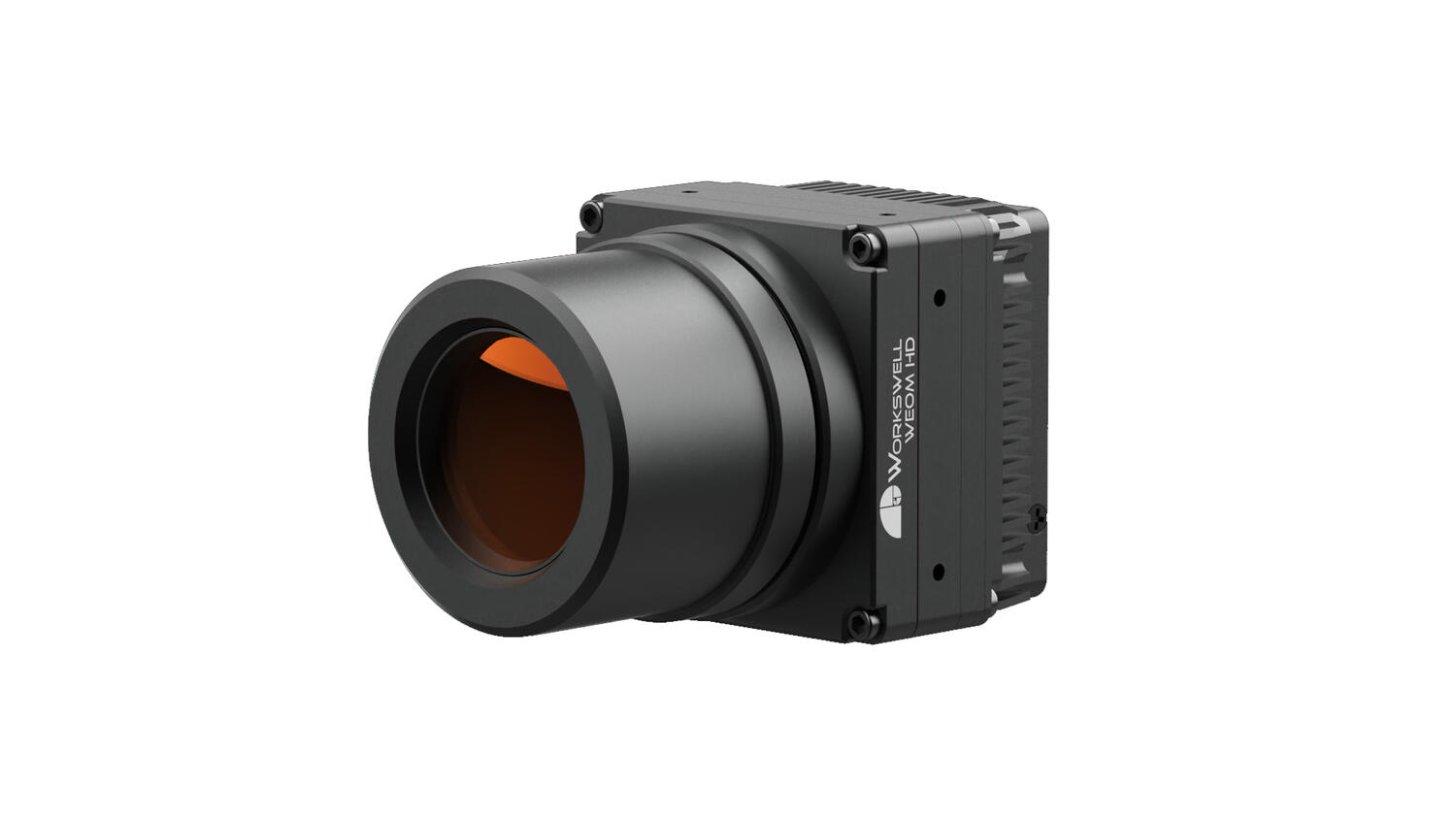

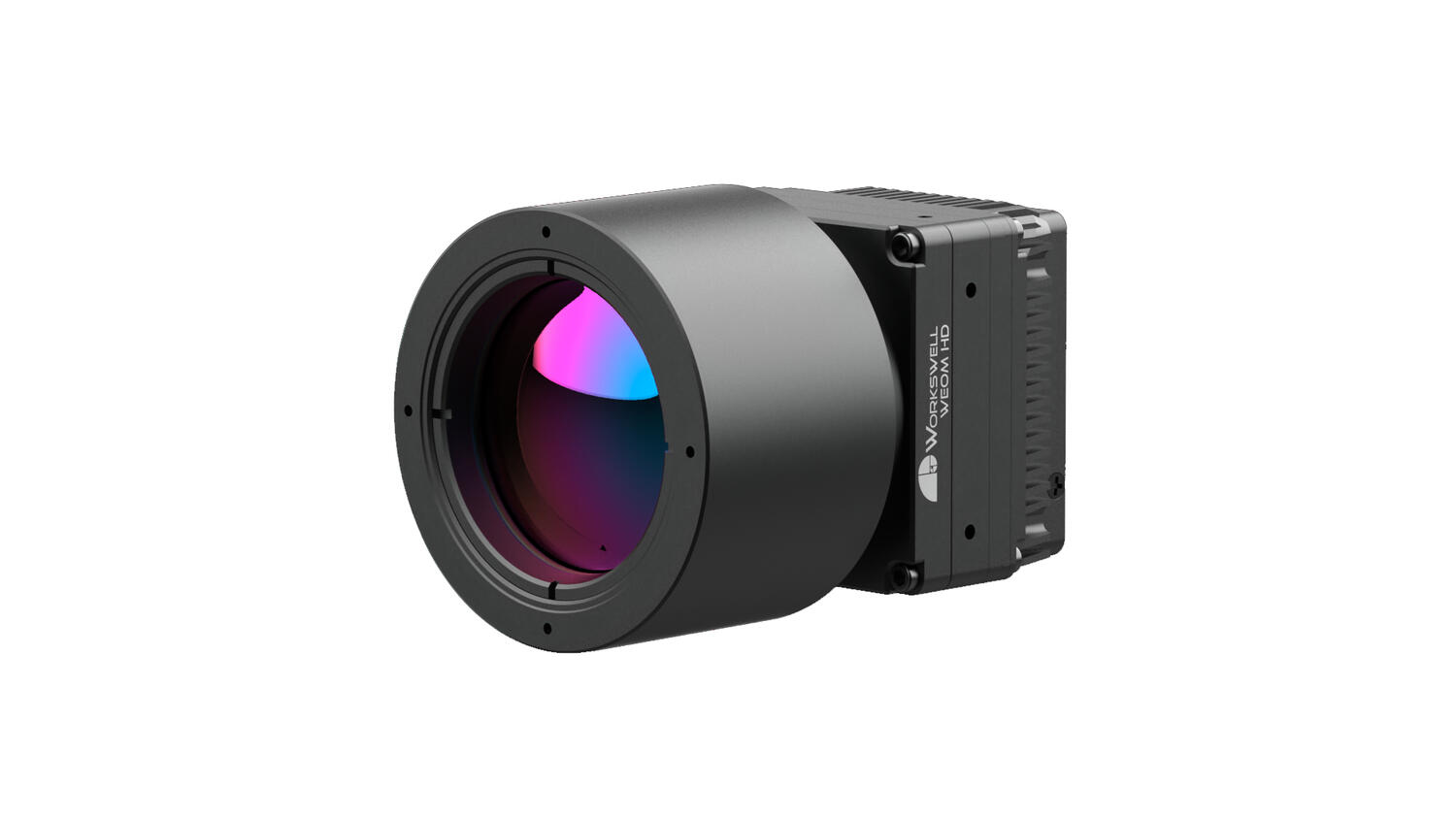

WEOM HD Thermal Core (1280 × 1024)
WEOM HD Thermal Core is a next‑generation, high‑resolution LWIR module built for OEMs who need maximum thermal detail in a compact, low‑power package. With a 1280 × 1024 uncooled detector, advanced on‑board FPGA image processing and fast start‑up, it helps you deliver premium thermal products faster—without compromising reliability in the field.
Three USPs
- HD thermal detail for better decisions: 1280 × 1024 LWIR resolution and sensitivity below 50 mK support clearer detection, recognition and analysis in challenging conditions.

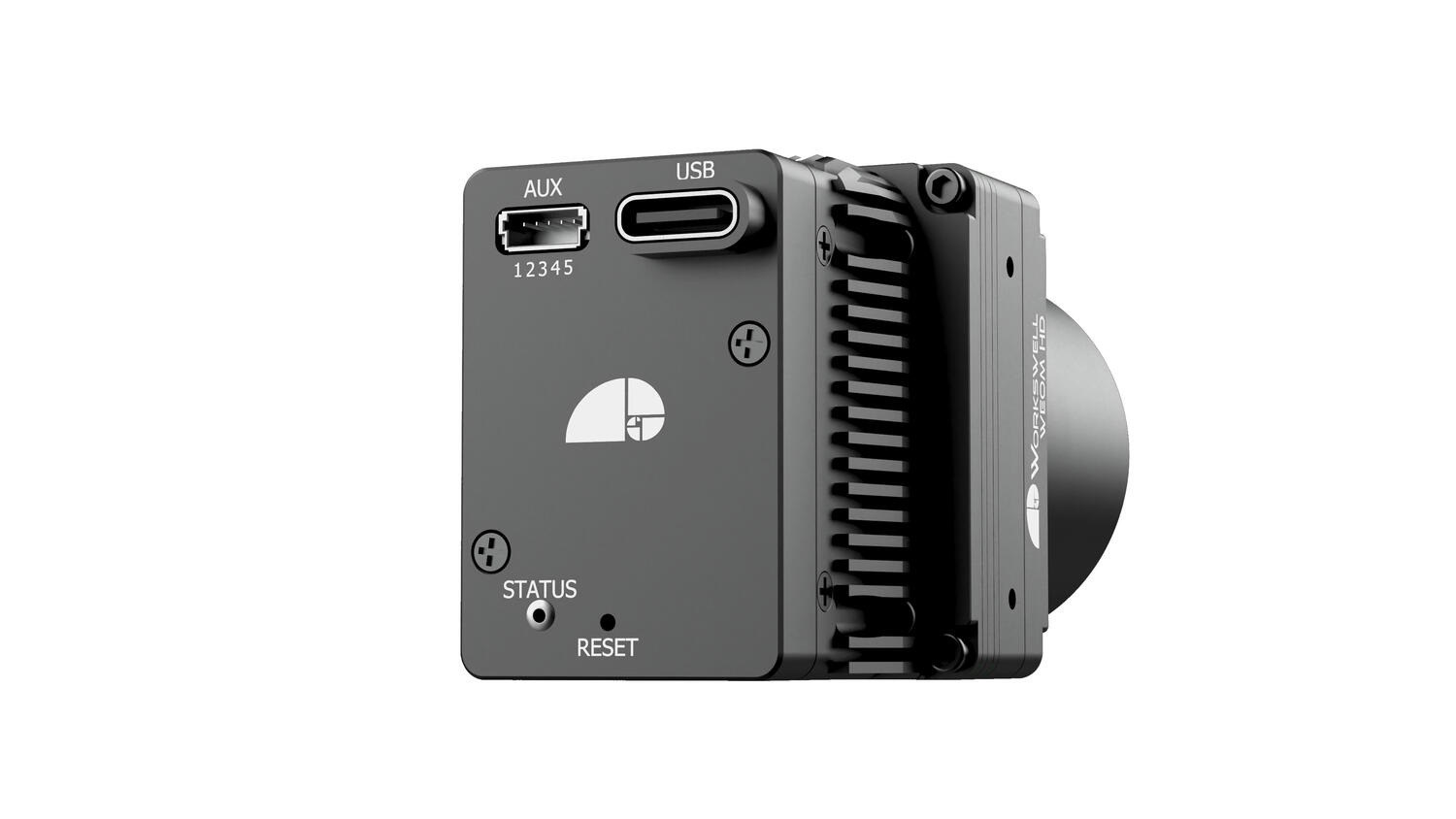

- Integration-ready connectivity: Real-time HDMI output and straightforward USB‑C connection speed up evaluation, prototyping and productization.
- Rugged, export-friendly European supply: ITAR‑free design and manufacture in Europe with IP67-rated aluminum housing for dependable long-term deployment.
Key features at a glance
- Detector: uncooled LWIR, 1280 × 1024 px
- Image processing: advanced FPGA processing with AGC plus spatial/temporal filtering
- Optics: wide selection of fixed lenses; lens-less option for custom optics
- User experience: multiple colour palettes; fast start-up (under 5 seconds)
- Mechanical: compact, lightweight module (under 85 g)
- Power: low consumption (approx. 2.9 W)
- Environmental: IP67-rated aluminium housing; operating range -32°C to +70°C
Typical applications
- UAV/UGV payloads requiring maximum thermal detail
- Handheld thermal cameras and professional inspection tools
- Fixed security and perimeter surveillance systems
- Industrial monitoring in harsh environments
- Transportation and mobile sensing platforms
Talk to us: Tell us your target use case, lens choice and interface requirements. We’ll help you select the right WEOM HD configuration and accelerate your path from evaluation to deployment.[email protected]
- HD thermal detail for better decisions: 1280 × 1024 LWIR resolution and sensitivity below 50 mK support clearer detection, recognition and analysis in challenging conditions.
- Integration-ready connectivity: Real-time HDMI output and straightforward USB C connection speed up evaluation, prototyping and productization.
- IP67-rated aluminum housing for dependable long-term deployment
- Export-friendly European supply: ITAR free design and manufacture in Europe
Selected variant
Technical data
| 12101_Pixel size | 12 µm |
|---|---|
| 12580_Detector type | Okyld LWIR-mikrobolometer |
| 12581_Spectral Band | 8–14 µm |
| 12582_Resolution (sensor) | 1 280 × 1 024 px |
| 12583_Thermal sensitivity (NETD) | < 50 mK |
| 12584_Temperature range – High Gain | -50 °C till +160 °C |
| 12585_Temperaturområde – Low Gain | -50 °C till +600 °C |
| 12586_Focus (lens) | Fast (M34-gänga), levereras utan lins |
| 12587_Objective selectable | 25 mm (34°×27°), 35 mm (24°×19°), 50 mm (17°×13°), 83 mm (10°×8°) |
| 12588_Image rotation – Invert | Yes |
| 12589_Image rotation – Mirror | Yes |
| 12590_AGC | Yes |
| 12590_Spatial image filter | Ja (Median, full frame 30 Hz) |
| 12592_MGC | Yes |
| 12594_USB plugin | P-WHC-H-UVC |
| 12595_GigE plugin | P-WHC-H-ETH |
| 12596_Micro-HDMI plugin | P-WHC-H-HDMI |
|---|---|

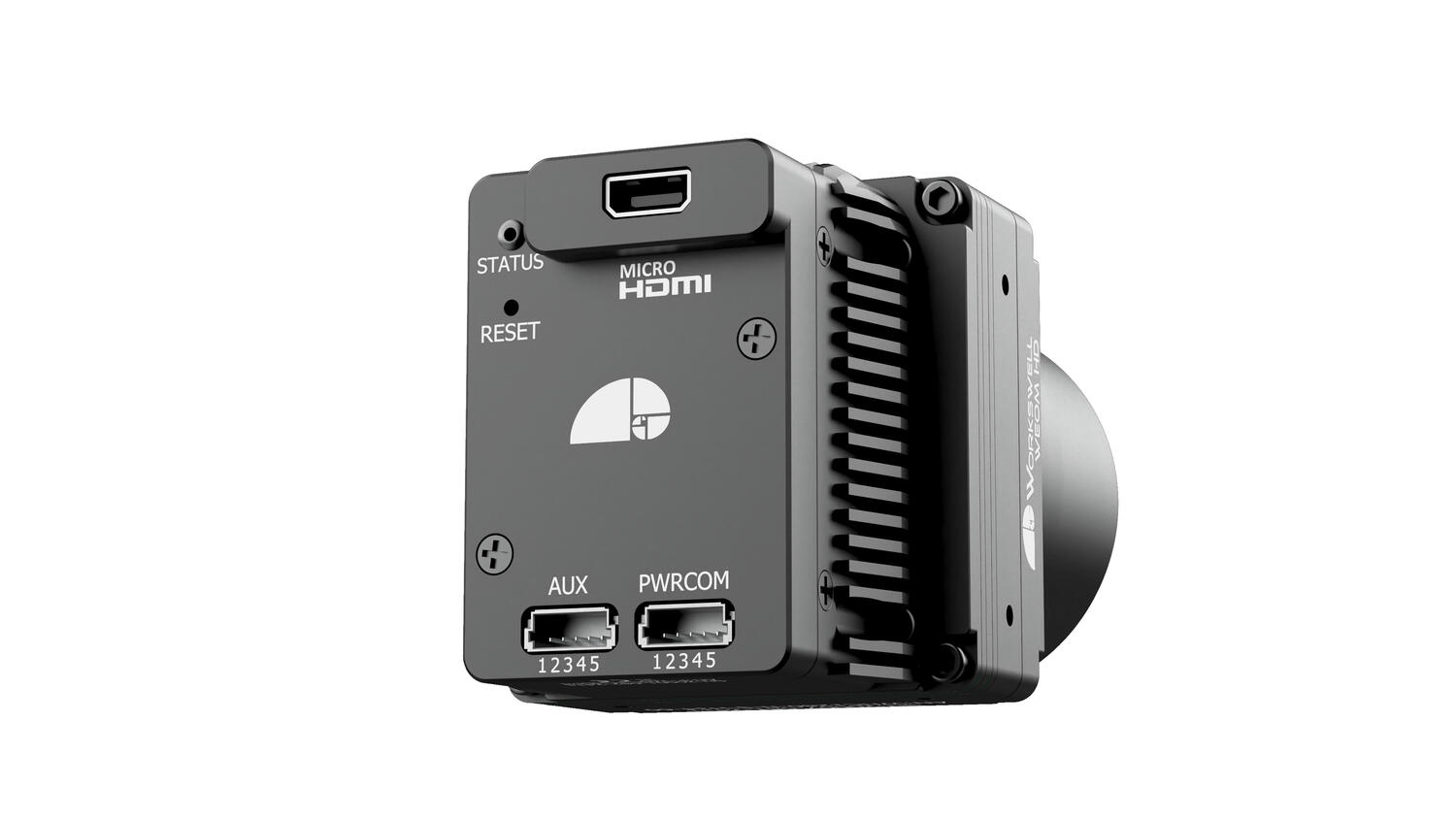

| 12597_Video outputs | Micro-HDMI (digital), USB-C UVC, RTSP/H.264 via Ethernet |
| 12598_Dead Pixel Correction | Yes |
| 12599_Dimensions (without lens) | 43 (h) × 42 (b) × 51 (l) mm |
| 12600_Weight (without lens) | 85 g |
| Certificate | RoHS |
| Current consumption | 2,9 W |
| Frame Rate | < 9 Hz |
| IP class | IP67 |
| Material of body | Aluminium |
| Operating temperature | -32 °C to +70 °C |

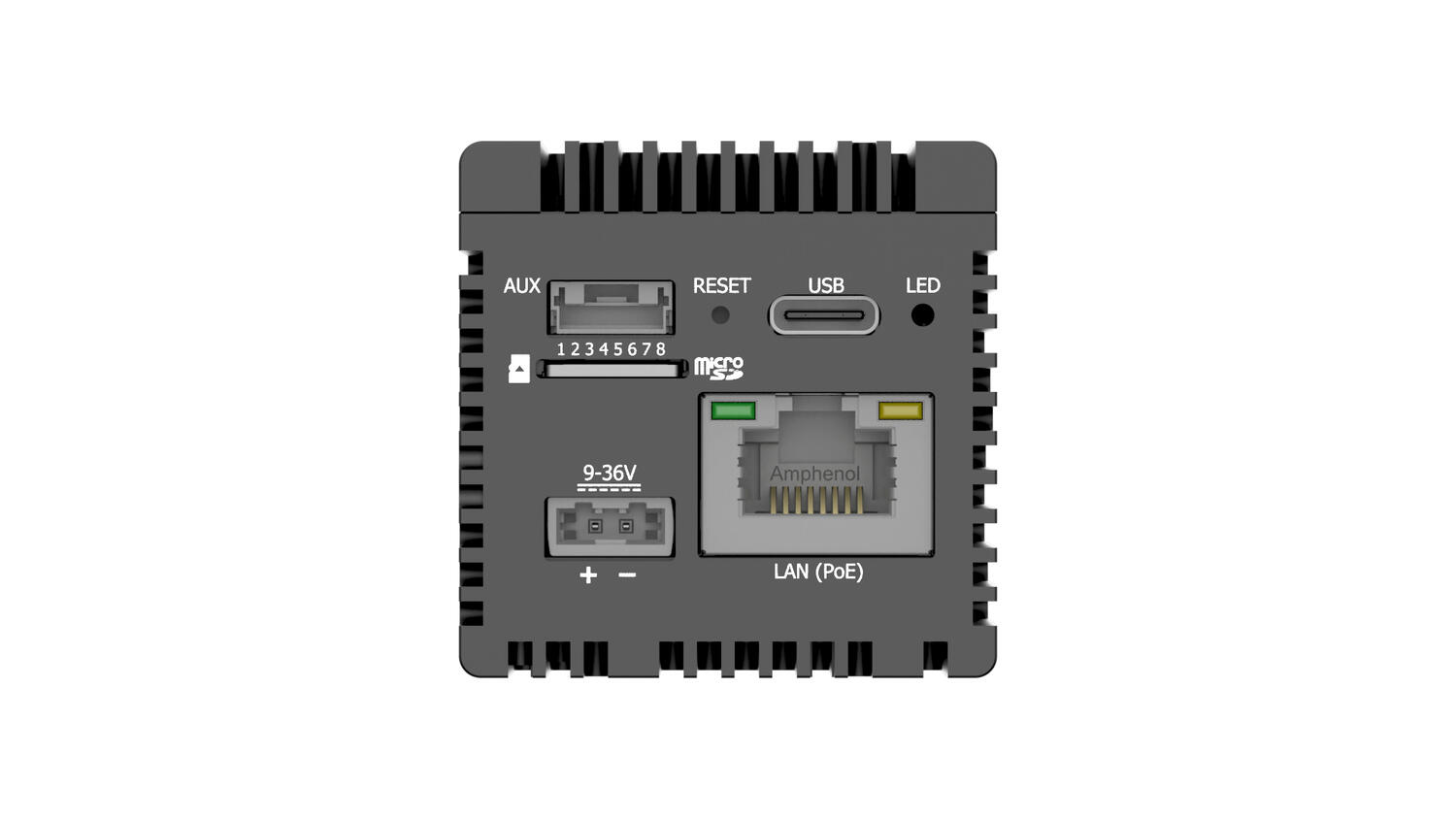

| Power supply | USB-C, PoE or 2-pin |
| Rated voltage | 5 V DC |
| Start-up time | < 5 s |
| Storage temperature | -50 °C to +90 °C |
Downloads
Product description
WEOM HD Thermal Core is a next‑generation, high‑resolution LWIR module built for OEMs who need maximum thermal detail in a compact, low‑power package. With a 1280 × 1024 uncooled detector, advanced on‑board FPGA image processing and fast start‑up, it helps you deliver premium thermal products faster—without compromising reliability in the field.
Three USPs
- HD thermal detail for better decisions: 1280 × 1024 LWIR resolution and sensitivity below 50 mK support clearer detection, recognition and analysis in challenging conditions.
- Integration-ready connectivity: Real-time HDMI output and straightforward USB‑C connection speed up evaluation, prototyping and productization.
- Rugged, export-friendly European supply: ITAR‑free design and manufacture in Europe with IP67-rated aluminum housing for dependable long-term deployment.
Key features at a glance
- Detector: uncooled LWIR, 1280 × 1024 px
- Image processing: advanced FPGA processing with AGC plus spatial/temporal filtering
- Optics: wide selection of fixed lenses; lens-less option for custom optics
- User experience: multiple colour palettes; fast start-up (under 5 seconds)
- Mechanical: compact, lightweight module (under 85 g)
- Power: low consumption (approx. 2.9 W)
- Environmental: IP67-rated aluminium housing; operating range -32°C to +70°C
Typical applications
- UAV/UGV payloads requiring maximum thermal detail
- Handheld thermal cameras and professional inspection tools
- Fixed security and perimeter surveillance systems
- Industrial monitoring in harsh environments
- Transportation and mobile sensing platforms
Talk to us: Tell us your target use case, lens choice and interface requirements. We’ll help you select the right WEOM HD configuration and accelerate your path from evaluation to deployment.[email protected]
