WORKSWELL

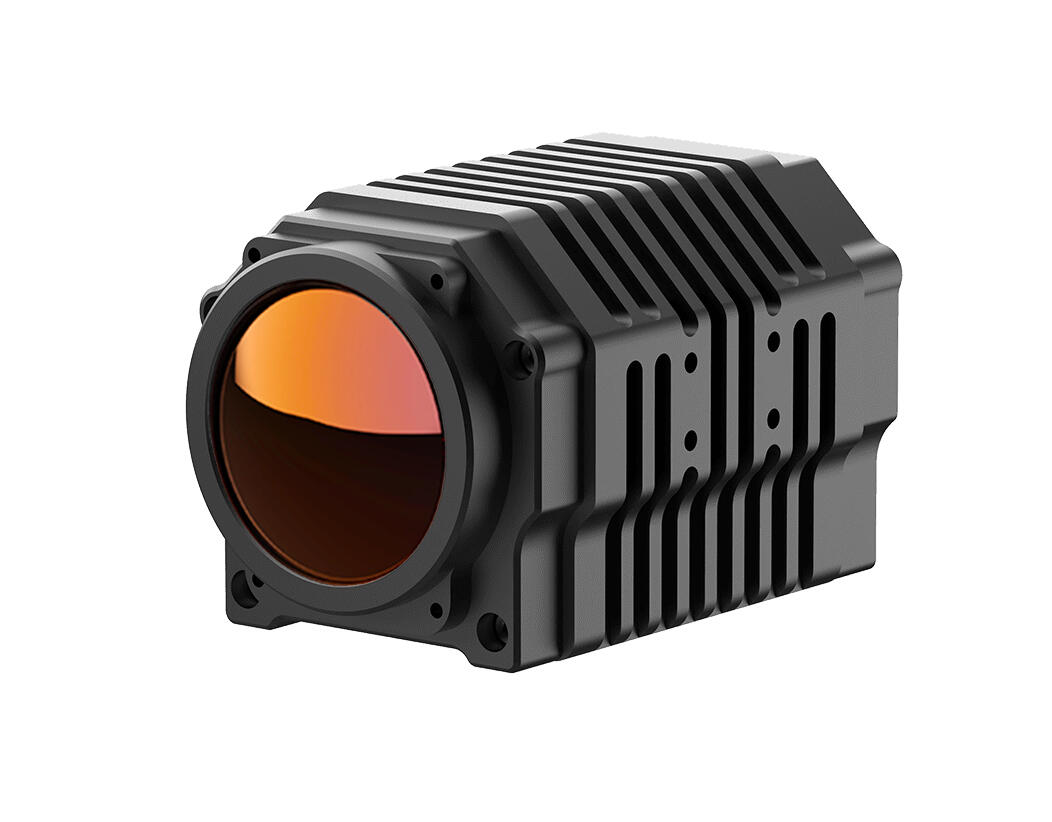

TADAS CVBS Thermal Driving Assistance System
Workswell TADAS is a high-performance thermal ADAS (Advanced Driving Assistance System) engineered and manufactured in Europe to improve safety, reliability and operational efficiency in challenging conditions. As an ITAR-free solution, TADAS supports global deployment and is ideal for platforms such as UGVs, heavy machinery, defence and patrol vehicles, and rescue systems where visibility can change rapidly.
FPGA-based image processing enhances scene clarity in low visibility, while the thermal core delivers <30 mK sensitivity at 640 × 480 px to reveal subtle temperature differences. With a measurement span from −50 °C to +600 °C, TADAS supports everything from navigation and obstacle awareness to search-and-rescue decision support and threat detection.
Built for harsh environments, TADAS features a robust aluminium chassis with IP67 protection and verified resistance to vibration (3.0 Grms) and shock (15G) for stable operation in the field. A front germanium window with an integrated de-icing heater helps keep the optics clear of ice, rain and debris to preserve image quality. The compact, lightweight housing and flexible mounting options simplify integration across a wide range of vehicles and platforms.

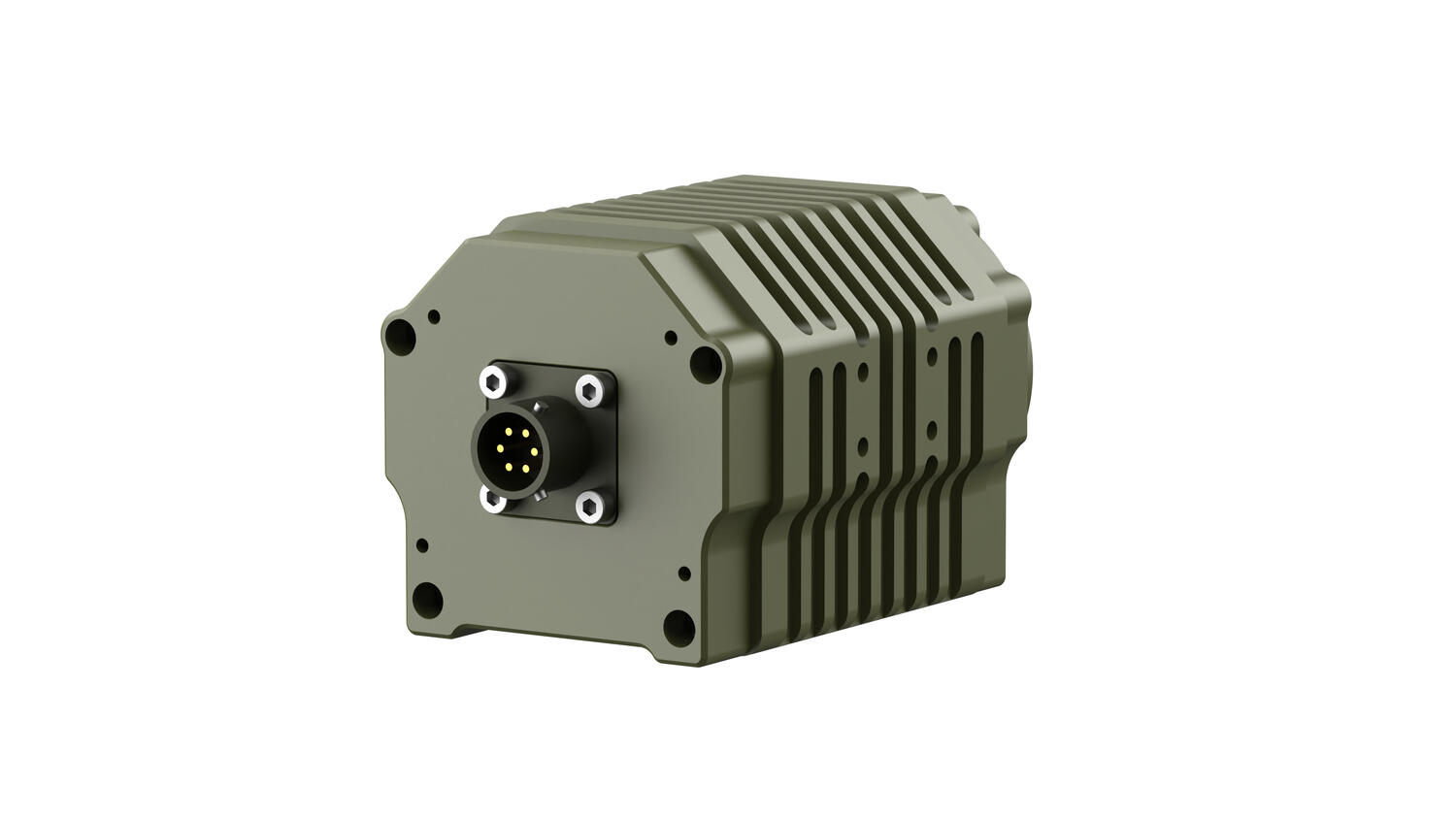

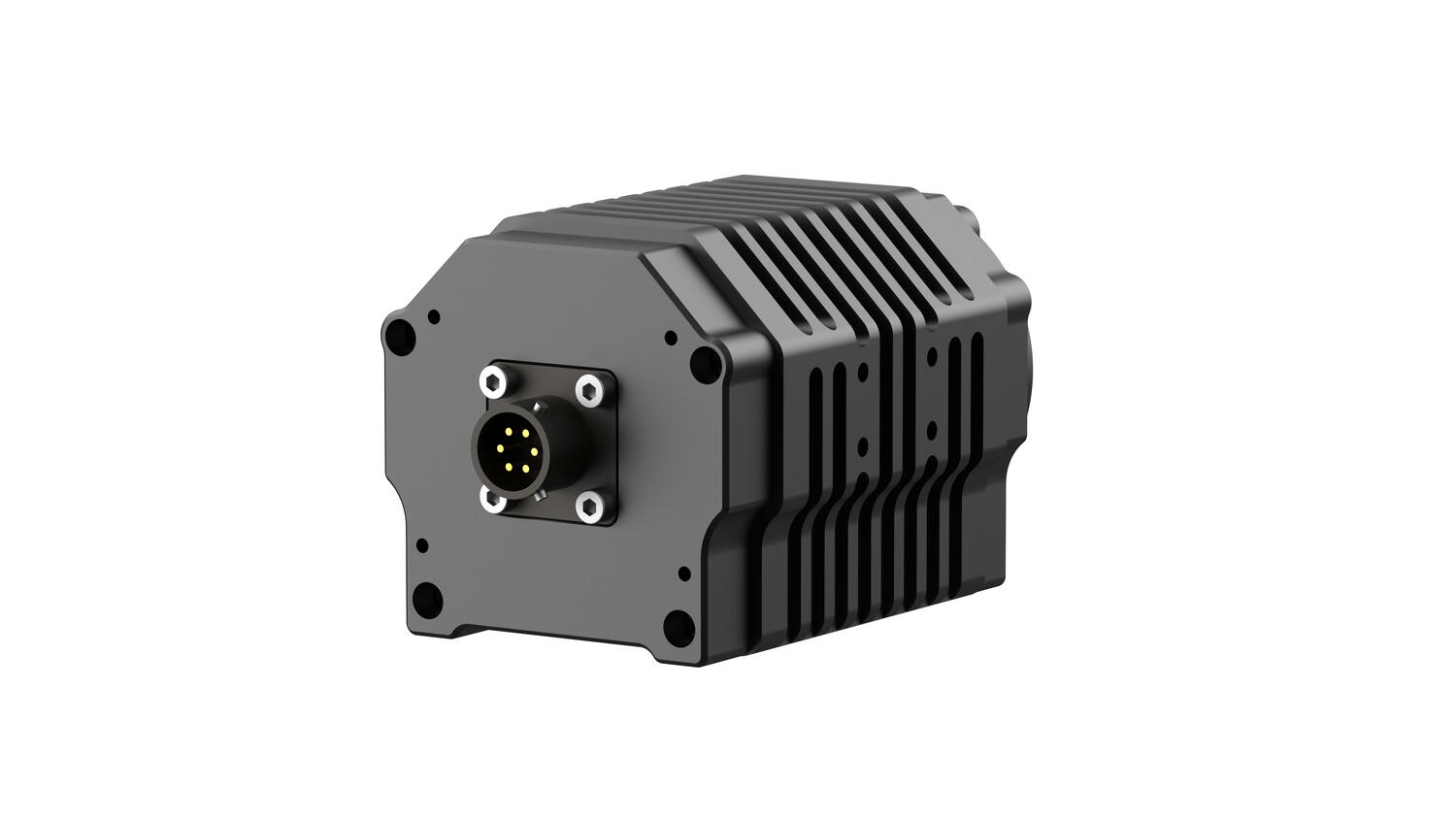

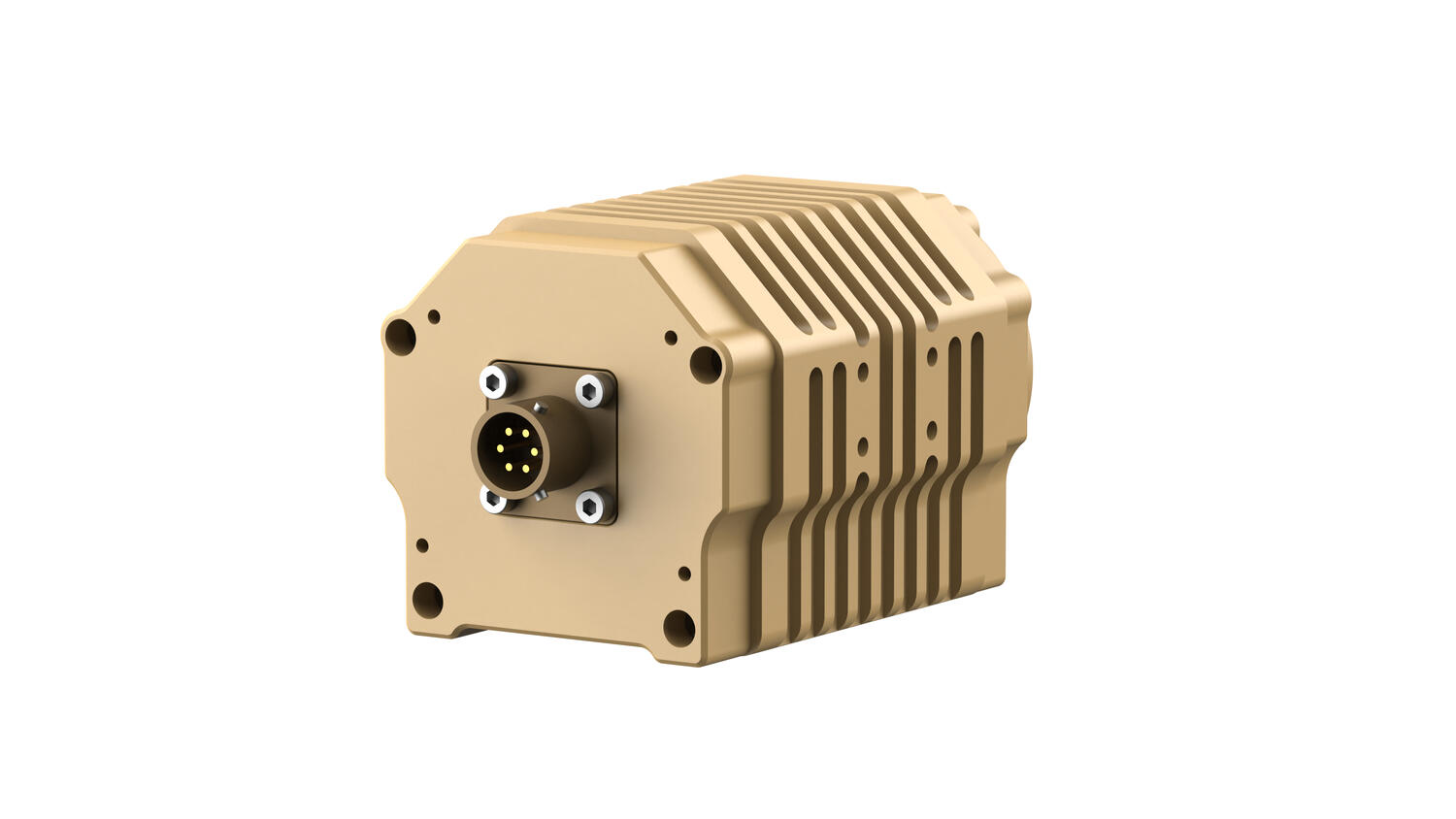

For rapid readiness, TADAS starts in under six seconds. Operators can fine-tune output using AGC/MGC, spatial and temporal filtering, and 14 colour palettes (including two user-defined). Configuration is handled via the WEOM GUI, and connection to host systems is supported through a MIL-spec connector, CVBS video output and an RS‑485 interface—helping streamline integration into defence, security and autonomous solutions.
By combining rugged hardware, advanced image processing and fast commissioning, Workswell TADAS delivers a dependable thermal driving assistance capability—designed to enhance safety and operational precision when it matters most.
- High image quality: < 30 mK, 640 × 480, FPGA processing.
- Wide range of application: UGV, rescue, defence, heavy machinery; EU-made & ITAR-free.
- The right optics for the mission: 7.5/14 mm (91×74° / 42×32°); Person 520 m, vehicle 1,260 m.
- Quick & easy operation: boot < 6 s, RS-485, WEOM GUI, deadpixel correction.

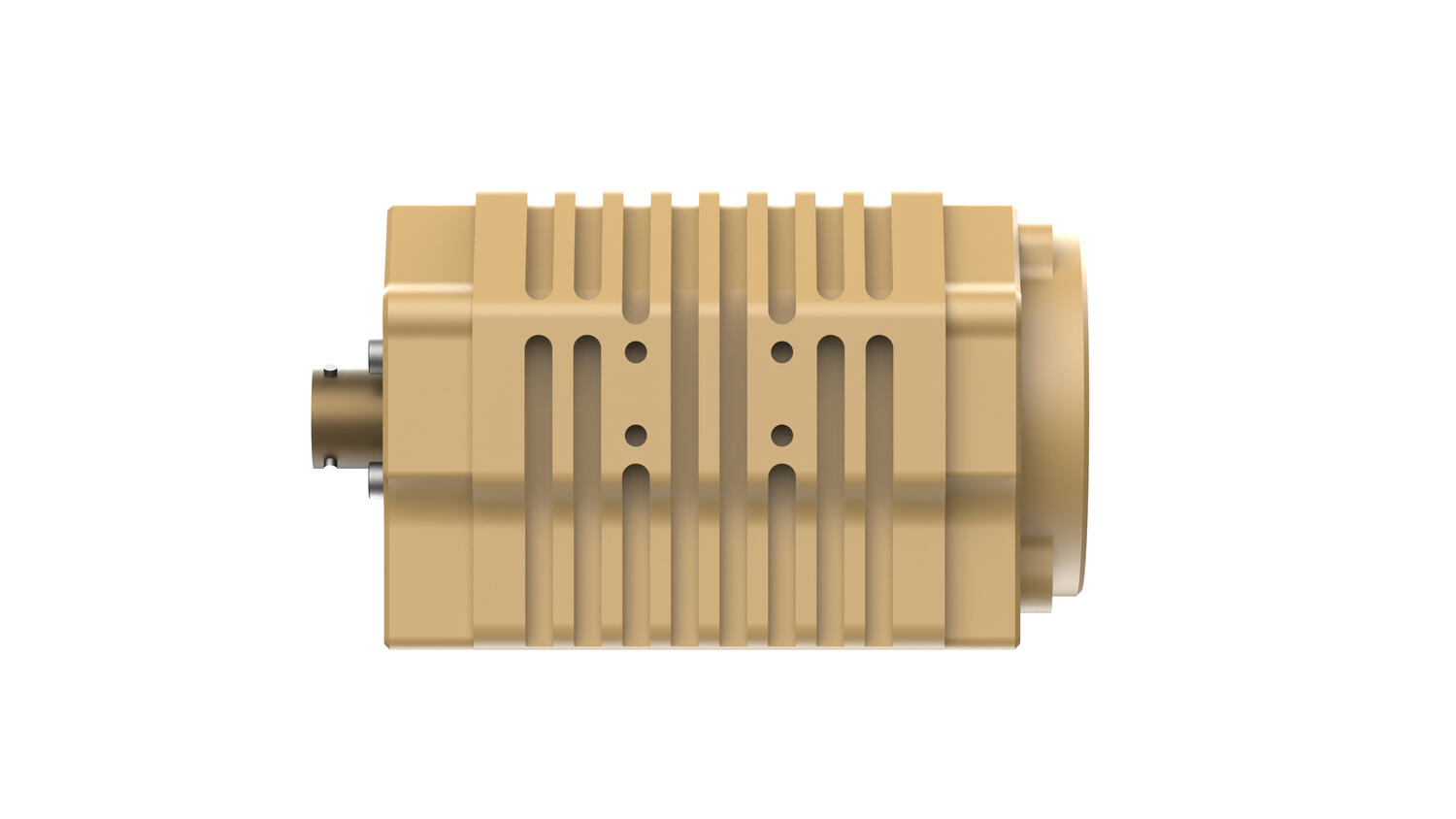

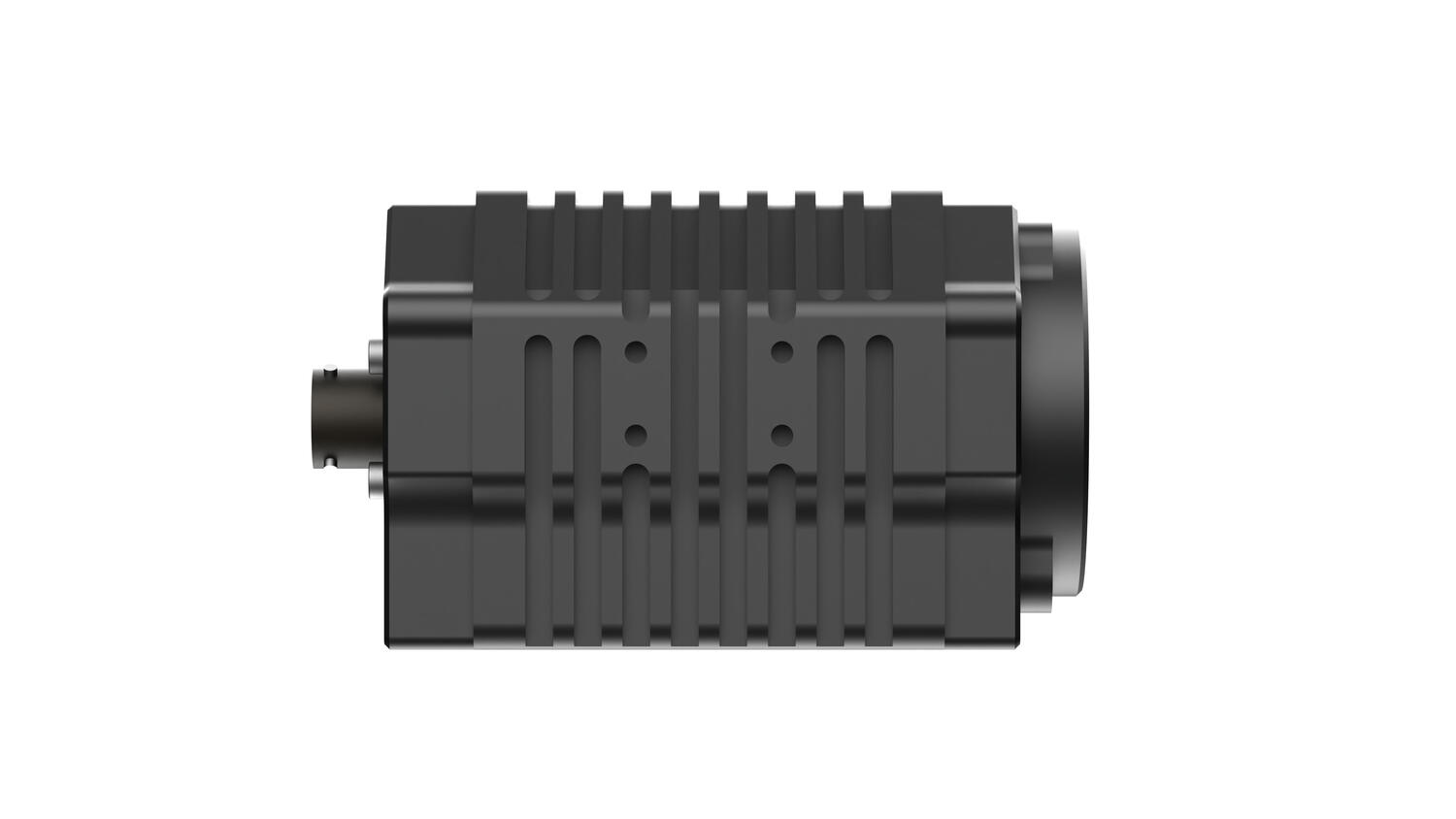

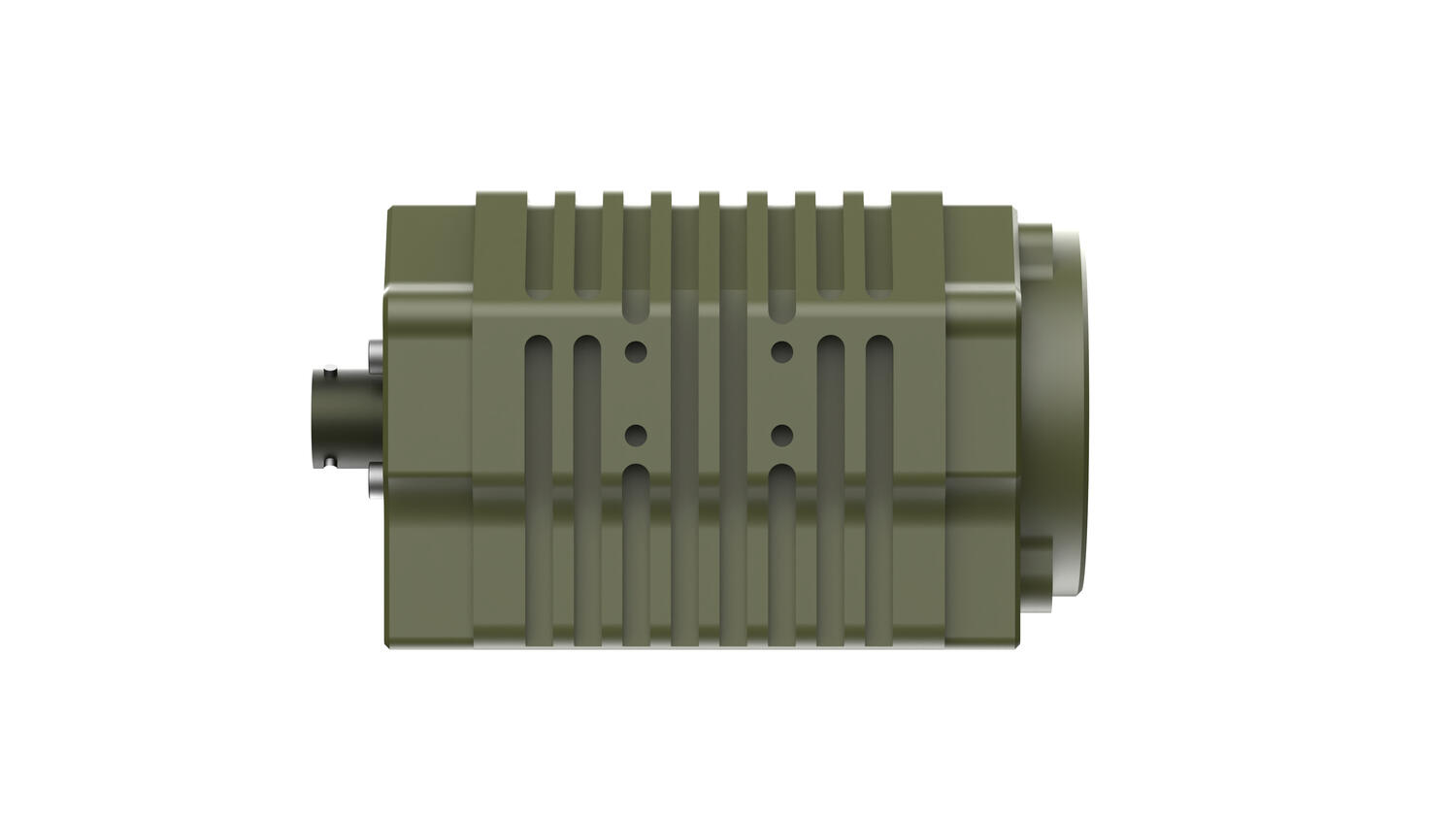

- Compact & robust: 70×65×114 mm, 0.6 kg, IP67, heated germanium glazing
Selected variant
Technical data
| 12101_Pixel size | 17 µm |
|---|---|
| 12580_Detector type | Okyld LWIR-mikrobolometer |
| 12581_Spectral Band | 8–14 µm |
| 12582_Resolution (sensor) | 640 × 480 px |
| 12583_Thermal sensitivity (NETD) | < 30 mK |
| 12584_Temperature range – High Gain | -50 °C till +160 °C |
| 12585_Temperaturområde – Low Gain | -50 °C till +600 °C |
| 12586_Focus (lens) | Fast, 14 mm f/1.2, FOV 42° (H) × 32° (V) |
| 12588_Image rotation – Invert | Yes |
| 12589_Image rotation – Mirror | Yes |
| 12590_AGC | Yes |
| 12590_Spatial image filter | Ja (Median, full frame 60 Hz) |
| 12592_MGC | Yes |
| 12593_CVBS plugin | Ja (CVBS via MIL‑KPT02E10‑6P, 6 ledare) |
| 12597_Video outputs | CVBS (komposit) via MIL‑KPT02E10‑6P |
|---|---|
| 12598_Dead Pixel Correction | Yes |

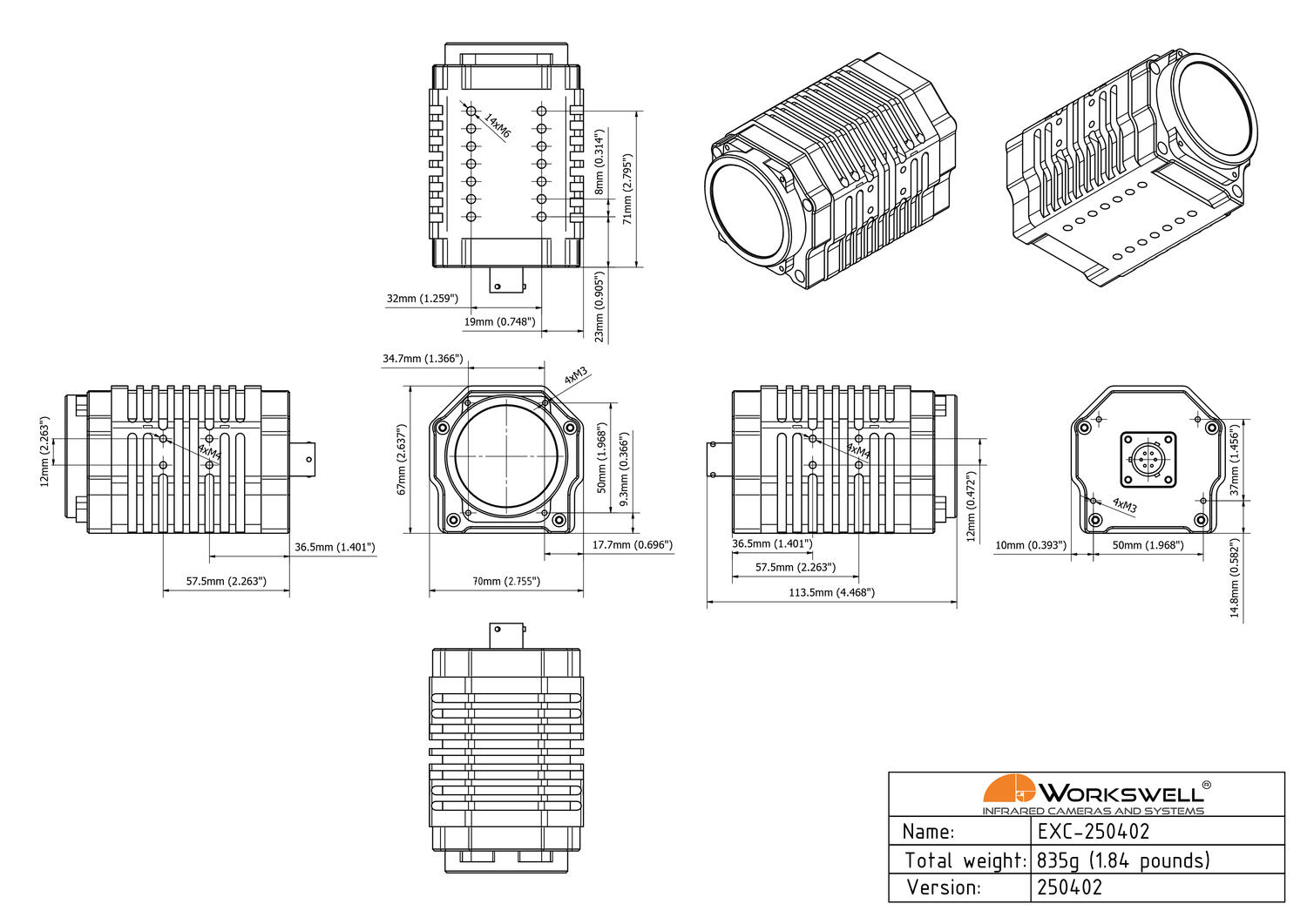

| 12599_Dimensions (without lens) | 70 (h) × 65 (b) × 114 (l) mm |
| 12600_Weight (without lens) | 600 g |
| Certificate | RoHS |
| Current consumption | 3,5 W |
| Frame Rate | 9 Hz |
| IP class | IP67 |
| Material of body | Aluminium |
| Operating temperature | -32 °C to +65 °C |
| Rated voltage | 12–24 V DC |
| Start-up time | < 6 s |
| Storage temperature | -50 °C to +90 °C |
Downloads
Product description
Workswell TADAS is a high-performance thermal ADAS (Advanced Driving Assistance System) engineered and manufactured in Europe to improve safety, reliability and operational efficiency in challenging conditions. As an ITAR-free solution, TADAS supports global deployment and is ideal for platforms such as UGVs, heavy machinery, defence and patrol vehicles, and rescue systems where visibility can change rapidly.
FPGA-based image processing enhances scene clarity in low visibility, while the thermal core delivers <30 mK sensitivity at 640 × 480 px to reveal subtle temperature differences. With a measurement span from −50 °C to +600 °C, TADAS supports everything from navigation and obstacle awareness to search-and-rescue decision support and threat detection.
Built for harsh environments, TADAS features a robust aluminium chassis with IP67 protection and verified resistance to vibration (3.0 Grms) and shock (15G) for stable operation in the field. A front germanium window with an integrated de-icing heater helps keep the optics clear of ice, rain and debris to preserve image quality. The compact, lightweight housing and flexible mounting options simplify integration across a wide range of vehicles and platforms.
For rapid readiness, TADAS starts in under six seconds. Operators can fine-tune output using AGC/MGC, spatial and temporal filtering, and 14 colour palettes (including two user-defined). Configuration is handled via the WEOM GUI, and connection to host systems is supported through a MIL-spec connector, CVBS video output and an RS‑485 interface—helping streamline integration into defence, security and autonomous solutions.
By combining rugged hardware, advanced image processing and fast commissioning, Workswell TADAS delivers a dependable thermal driving assistance capability—designed to enhance safety and operational precision when it matters most.
