KOWA
A telecentric optical system is often critical in machine vision systems. Kowa's unique optical design seamlessly incorporates zoom capability with telecentric function.
| 5156_Pixel size min (µm) | 4.5 |
|---|---|
| Distortion | 0.1 |
| Focus distance min | 80 mm |
| Lens barrel | C-mount |
| Resolution max | 21 MP |
| Sensor size max | 4/3" |
A telecentric optical system is often critical in machine vision systems. Kowa's unique optical design seamlessly incorporates zoom capability with telecentric function.
OEM Automatic and Machine Learning Technologies (MLT) have been focusing on behavioural analysis through advanced sensing and machine vision.
A Q&A on 3D and 2D imagery, the NEW Motioncam-3D by Photoneo.
Our Machine & Computer Vision product experts explain line scan cameras, make comparisons, state advantages and suitable applications.
Advancements in imaging technology, particularly Short-Wave Infrared (SWIR) systems, have revolutionized quality control in the food industry, explained in our article.
The automotive industry is striving to improve safety and efficiency, this is where AI cameras come in to achieve the highest results.
Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Distortion | Focus distance min | Resolution max | Sensor size max | Price | ||
|---|---|---|---|---|---|---|---|

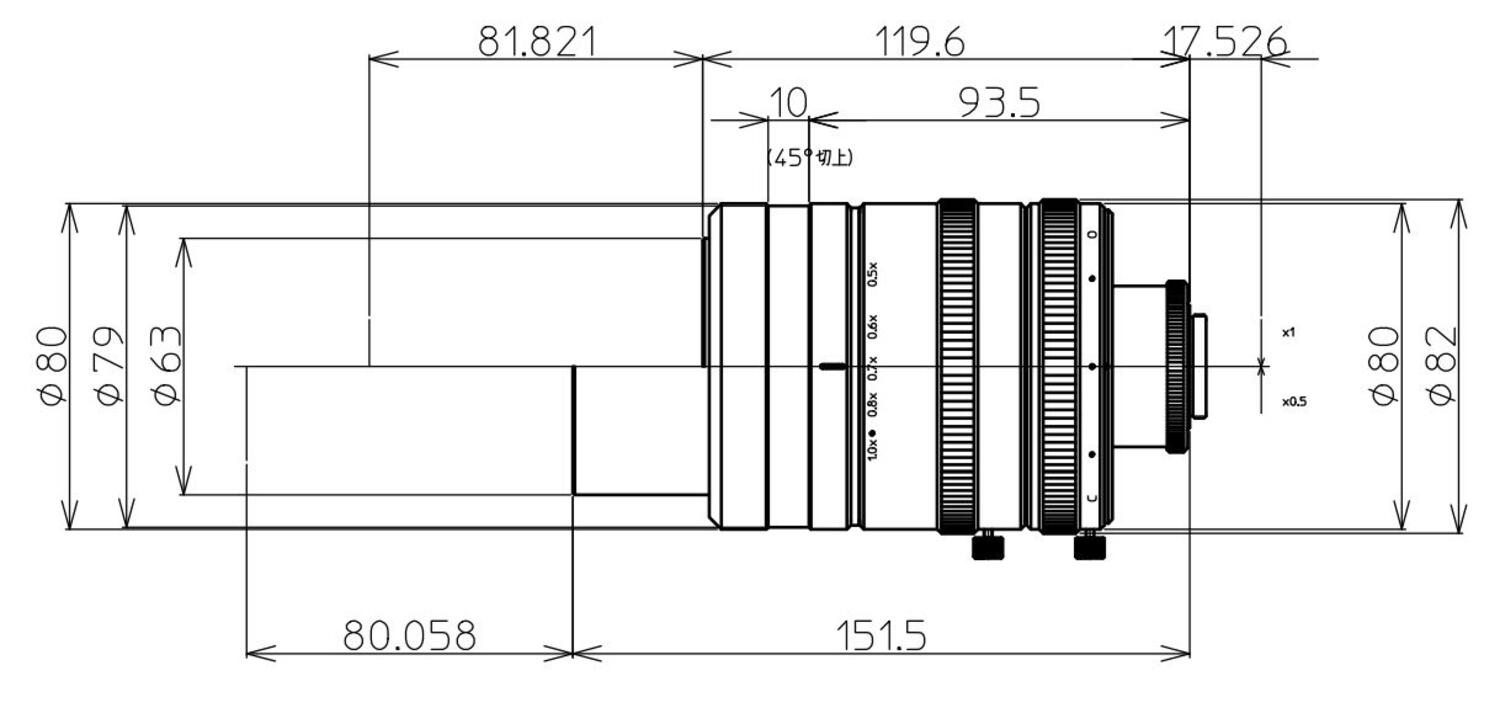

Telecentric Lens (@0.5-1.0x), C-mount, manual iris
Art:
LM1119TC
Copied
|
0.1
|
80 mm
|
21 MP
|
4/3"
|
|
||
Telecentric Lens, C-mount, manual iris
Art:
LM1120TC
Copied
|
0.003
|
65 mm
|
5 MP
|
2/3"
|
|
||
|
Telecentric Lens , mm, , C-mount, manual iris
Art:
LM1121TC
Copied
|
0.004
|
109 mm
|
5 MP
|
2/3"
|
|
||

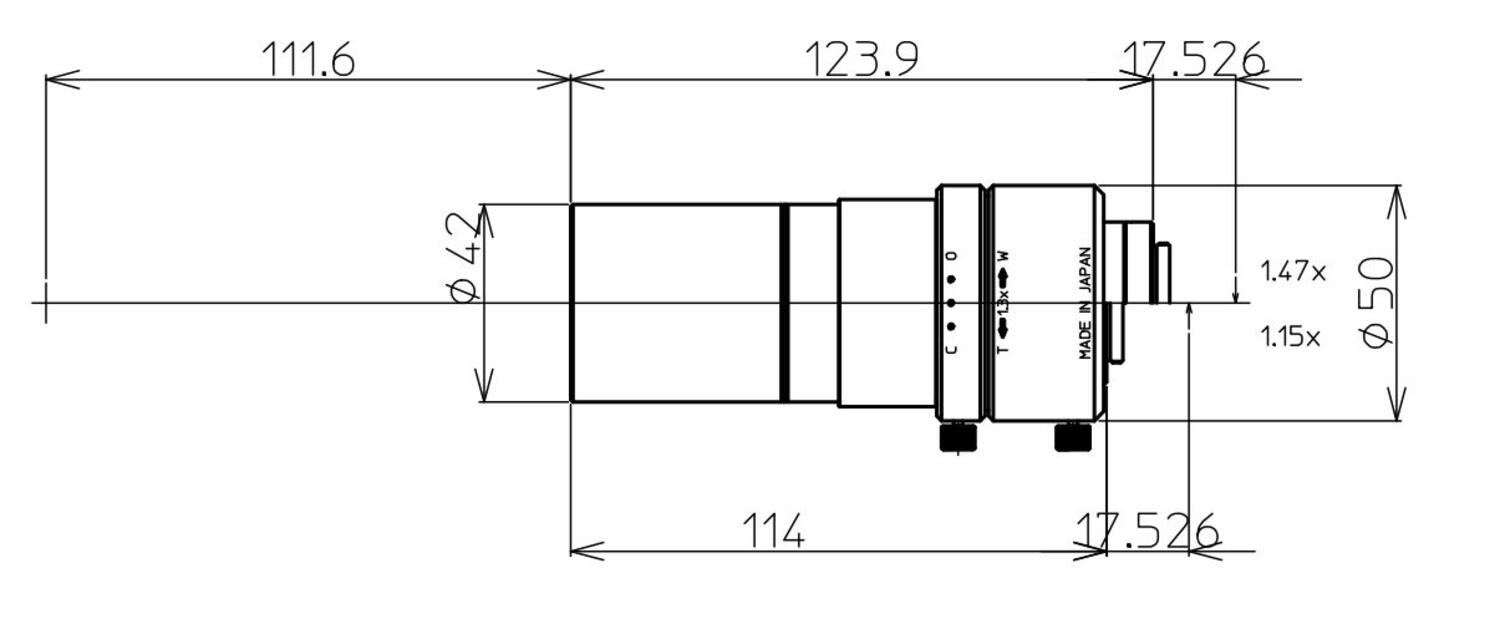

Telecentric Lens , mm, , C-mount, manual iris
Art:
LM1122TC
Copied
|
-0.001
|
111 mm
|
5 MP
|
2/3"
|
|
||
Telecentric Lens , mm, , C-mount, manual iris
Art:
LM1123TC
Copied
|
-0.009
|
111 mm
|
5 MP
|
2/3"
|
|
Select a variant in the list
