Selected variant
Technical data
| 5156_Pixel size min (µm) | 5.39 |
|---|---|
| Aperture range max (f) | 1.4 |
| Aperture range min | 16 |
| Distortion | -1.3 |
| Filter | 27 |
| Focal length | 16 mm |
| Focus distance min | 250 mm |
|---|---|
| Lens barrel | C-Mount |
| Resolution max | 2 MP |
| Sensor size max | 2/3" |
| 5156_Pixel size min (µm) | 5.39 |
|---|---|
| Aperture range max (f) | 1.4 |
| Aperture range min | 16 |
| Distortion | -1.3 |
| Filter | 27 |
| Focal length | 16 mm |
| Focus distance min | 250 mm |
|---|---|
| Lens barrel | C-Mount |
| Resolution max | 2 MP |
| Sensor size max | 2/3" |
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Aperture range max (f) | Aperture range min | Distortion | Filter | Focal length | Focus distance min | Price | ||
|---|---|---|---|---|---|---|---|---|---|

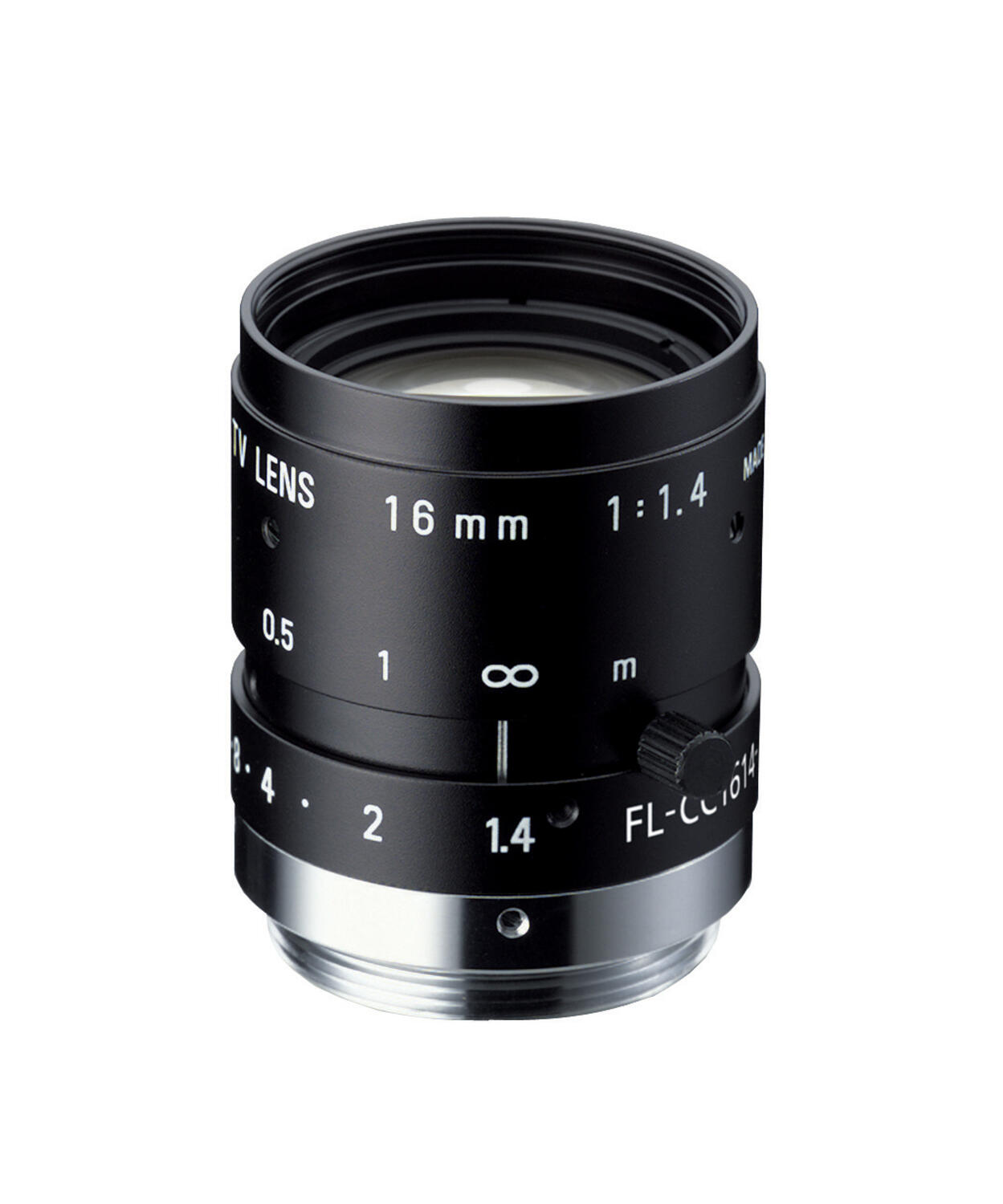

16mm F:1.4 Man. Iris 2MP Lens with L.Scw
Art:
RCH-FL-CC1614-2M
Copied
|
1.4
|
16
|
-1.3
|
27
|
16 mm
|
250 mm
|
|
||

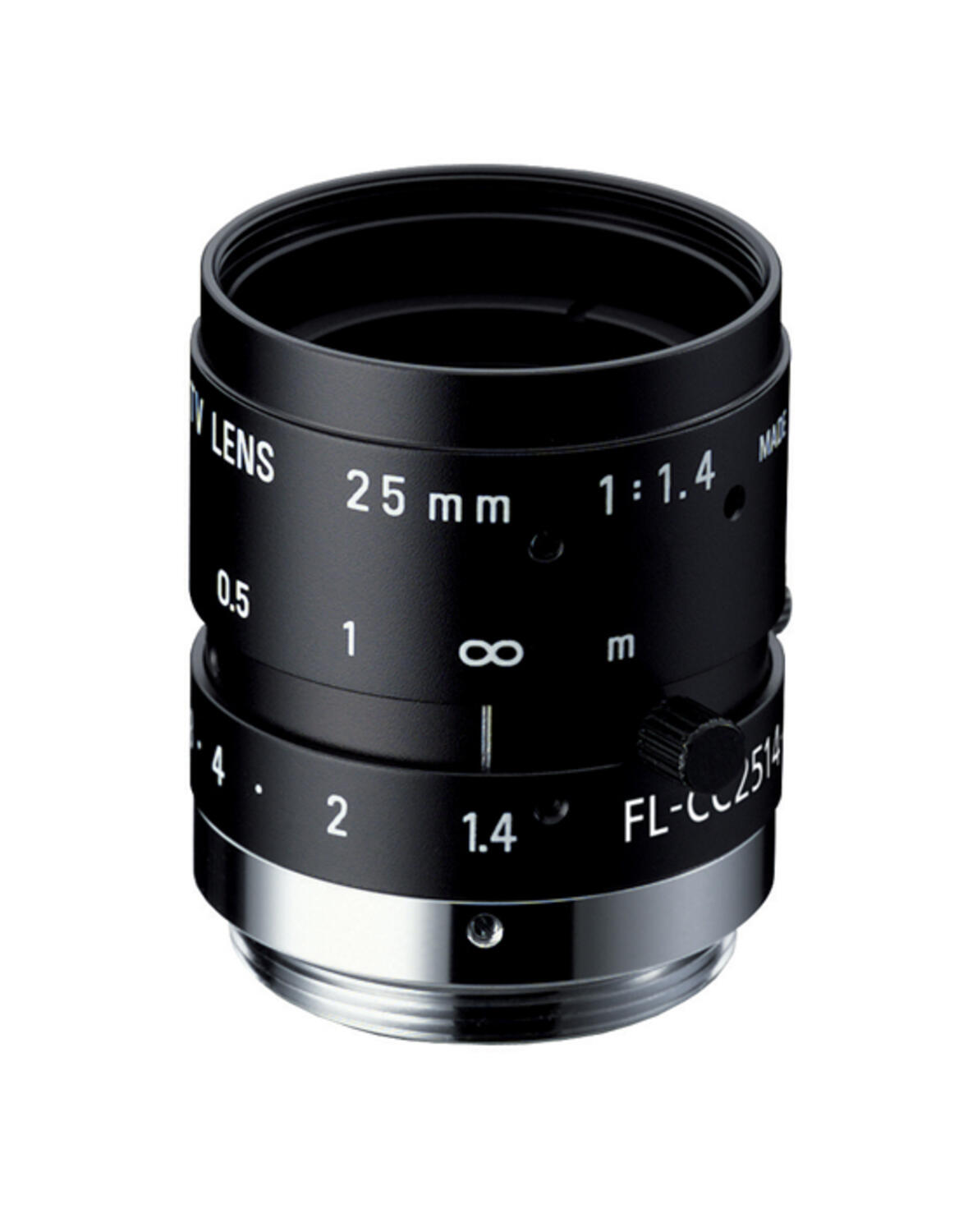

25mm F:1.4 Man. Iris 2MP Lens with L.Scw
Art:
RCH-FL-CC2514-2M
Copied
|
1.4
|
16
|
-1.2
|
27
|
25 mm
|
250 mm
|
|
||

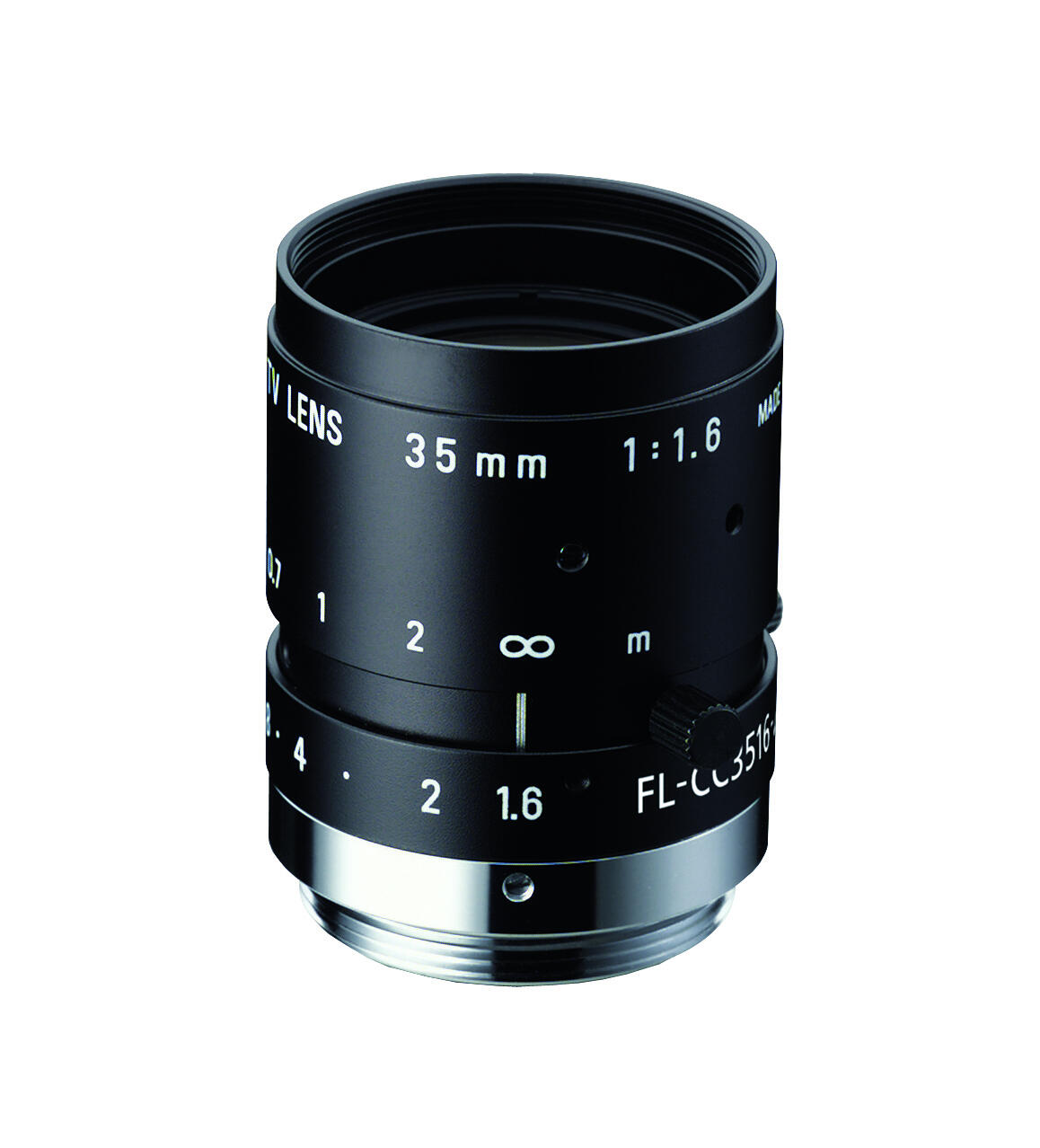

35mm F:1.6 Man. Iris 2MP Lens with L.Scw
Art:
RCH-FL-CC3516-2M
Copied
|
1.6
|
16
|
-0.9
|
27
|
35 mm
|
400 mm
|
|
||

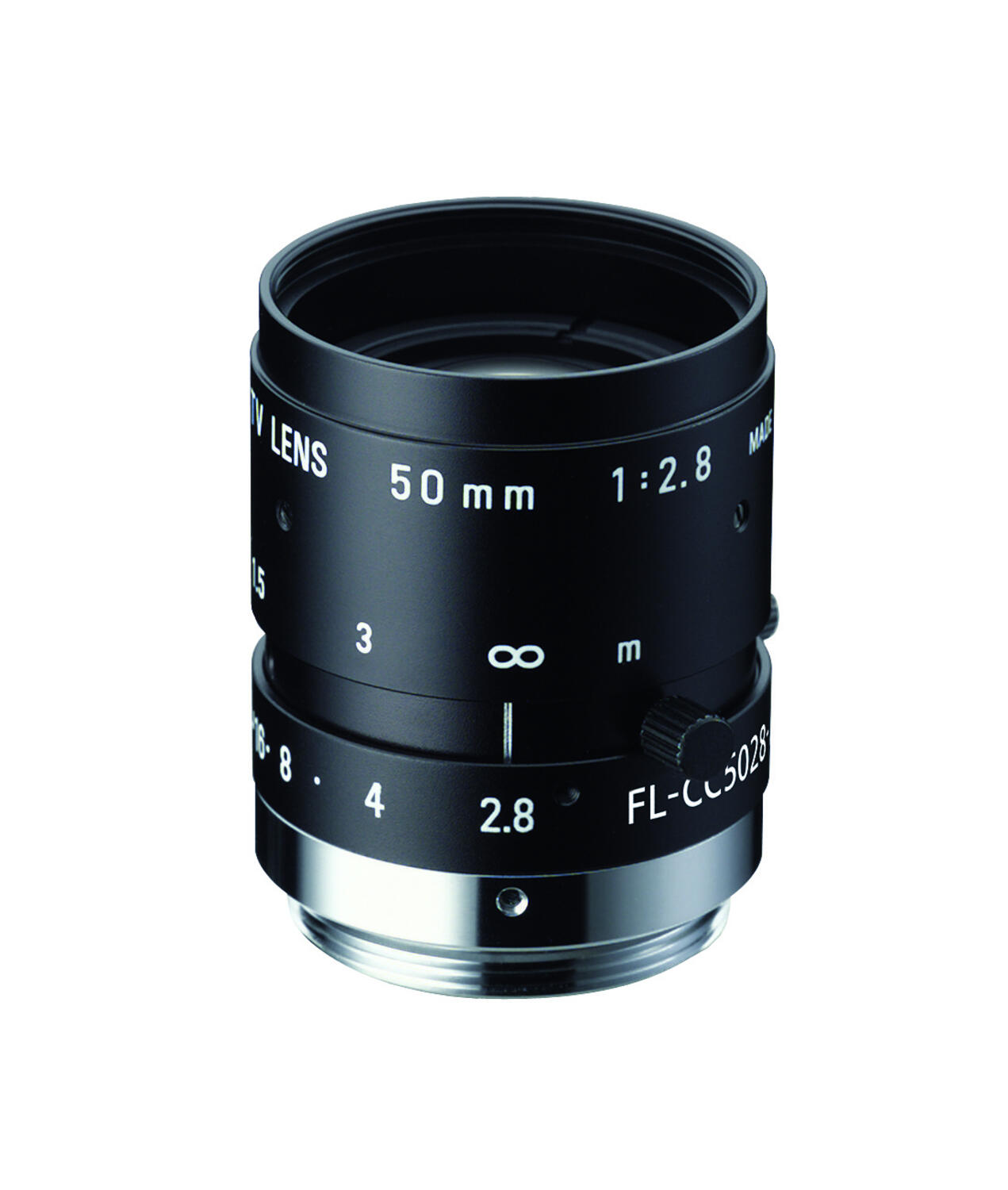

50mm F:2.8 Man. Iris 2MP Lens with L.Scw
Art:
RCH-FL-CC5028-2M
Copied
|
2.8
|
22
|
-0.1
|
27
|
50 mm
|
900 mm
|
|
||

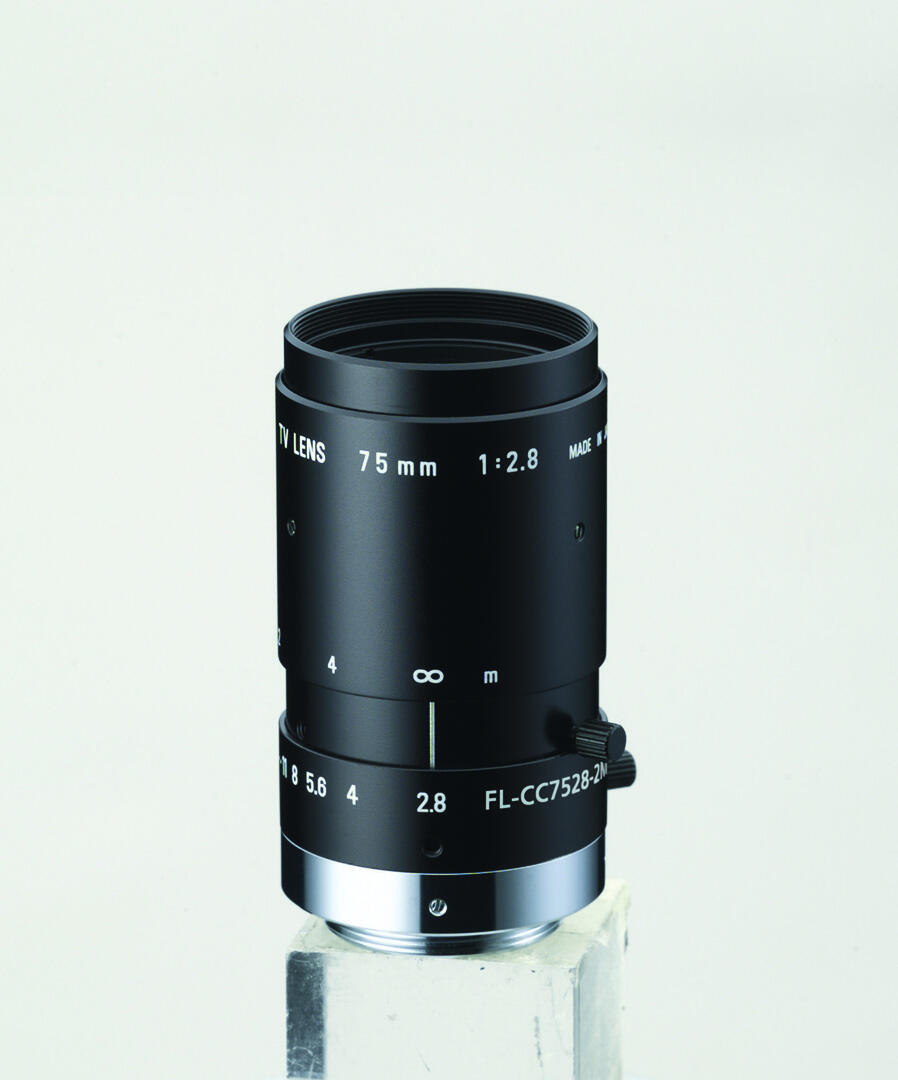

75mm F:2.8 Man. Iris 2MP Lens with L.Scw
Art:
RCH-FL-CC7528-2M
Copied
|
2.8
|
22
|
0
|
30.5
|
75 mm
|
700 mm
|
|
||

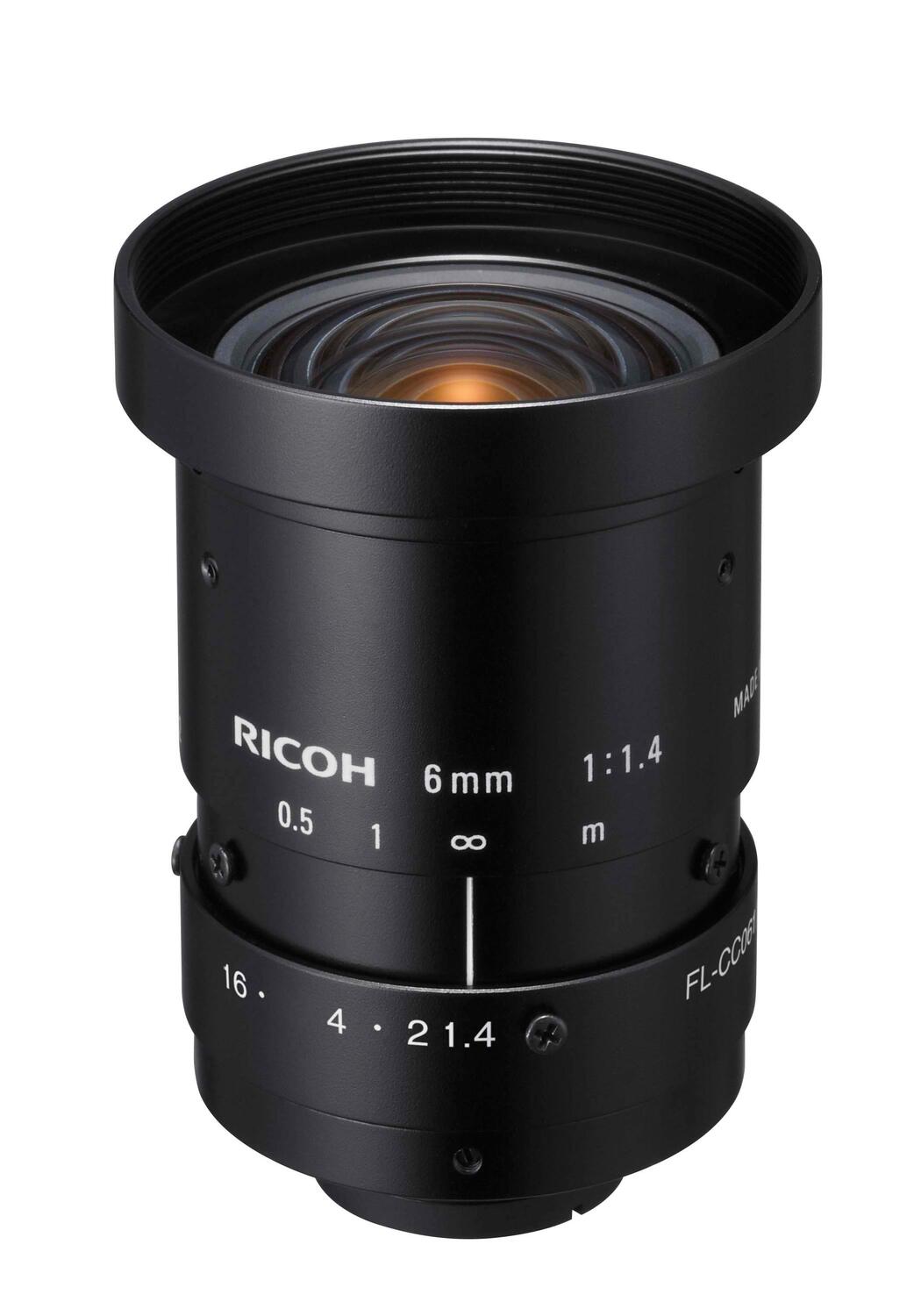

6mm F:1.4 Man. Iris 2MP Lens with L.Scw
Art:
RCH-FL-CC0614A-2M
Copied
|
1.4
|
16
|
-1.3
|
0
|
6 mm
|
100 mm
|
|
||
8mm F:1.4 Man. Iris 2MP Lens with L.Scw
Art:
RCH-FL-CC0814A-2M
Copied
|
1.4
|
16
|
-1
|
40.5
|
8 mm
|
100 mm
|
|
||

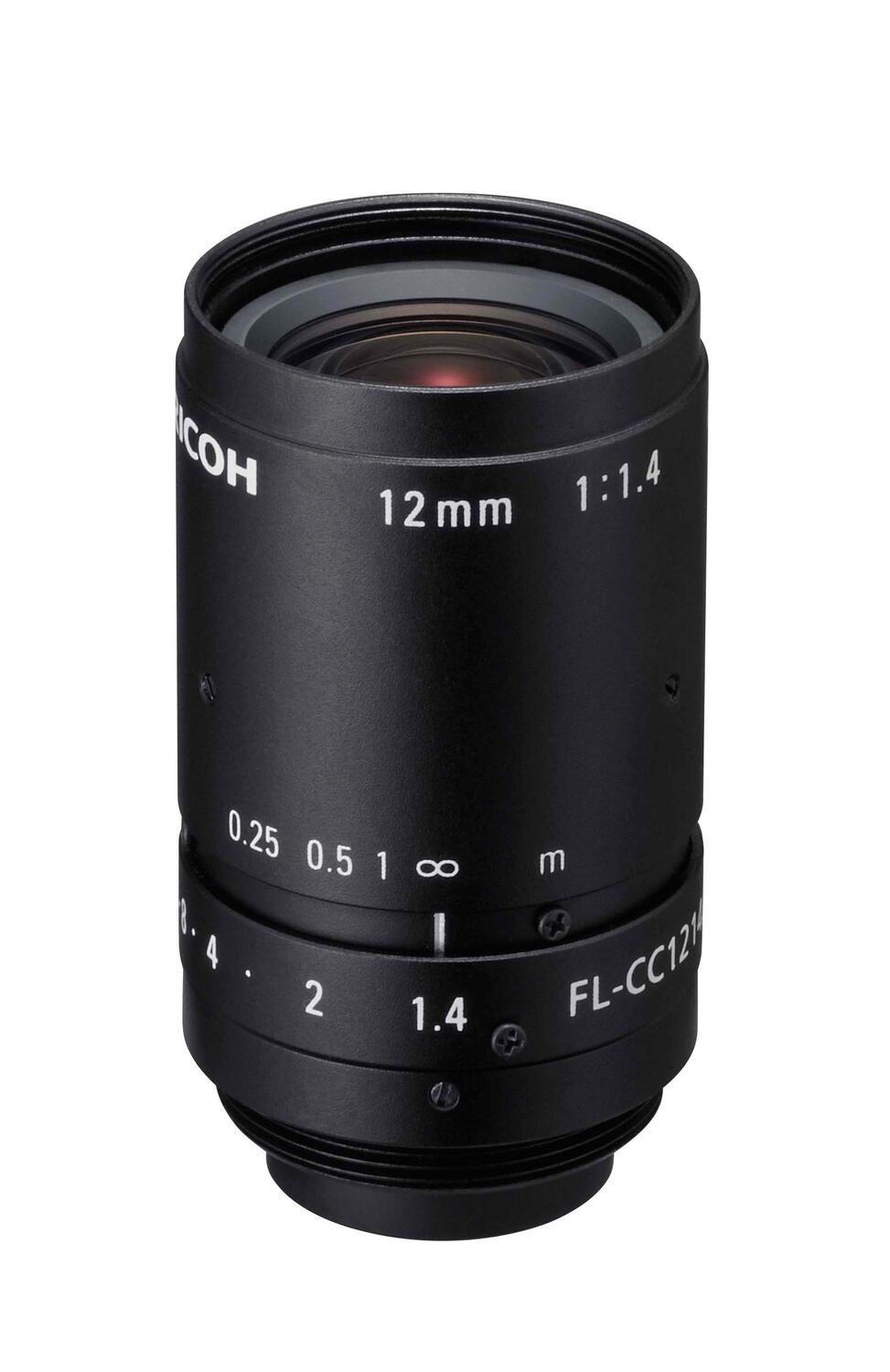

12mm F:1.4 Man. Iris 2MP Lens with L.Scw
Art:
RCH-FL-CC1214A-2M
Copied
|
1.4
|
16
|
-0.5
|
27
|
12 mm
|
100 mm
|
|
||

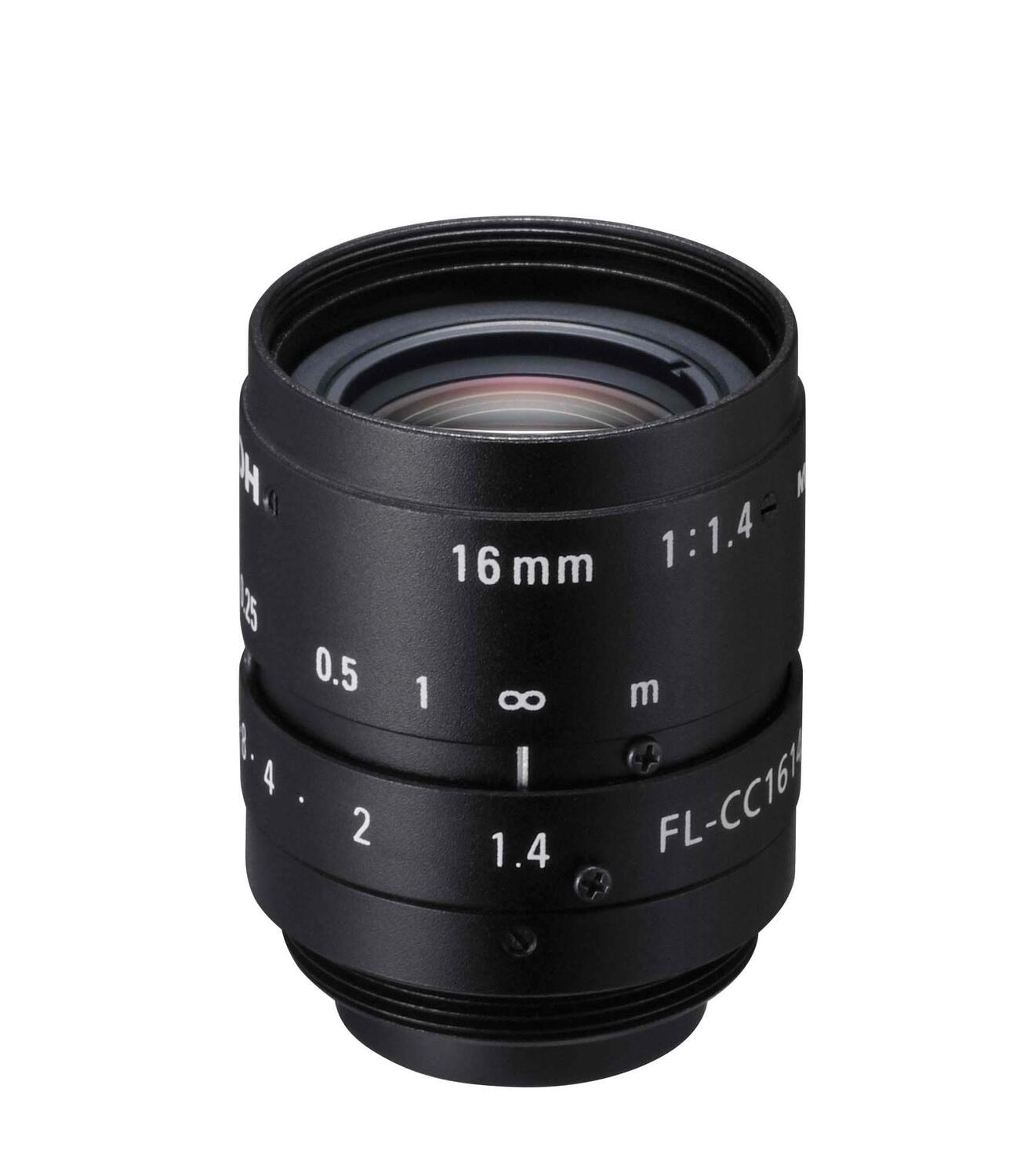

16mm F:1.4 Man. Iris 2MP Lens with L.Scw
Art:
RCH-FL-CC1614A-2M
Copied
|
1.4
|
16
|
-0.5
|
27
|
16 mm
|
100 mm
|
|
||

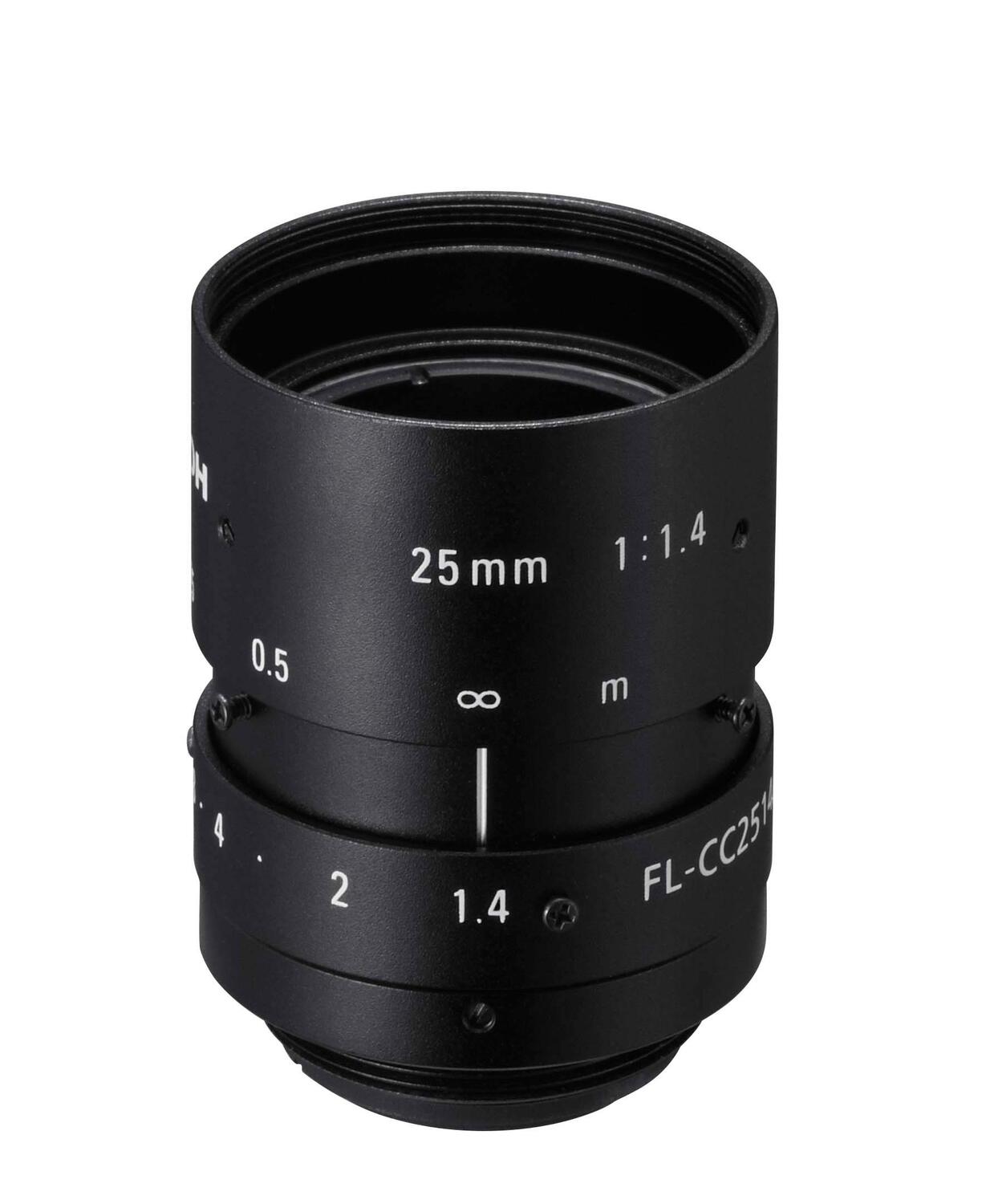

25mm F:1.4 Man. Iris 2MP Lens with L.Scw
Art:
RCH-FL-CC2514A-2M
Copied
|
1.4
|
16
|
-1.1
|
30.5
|
25 mm
|
100 mm
|
|
||

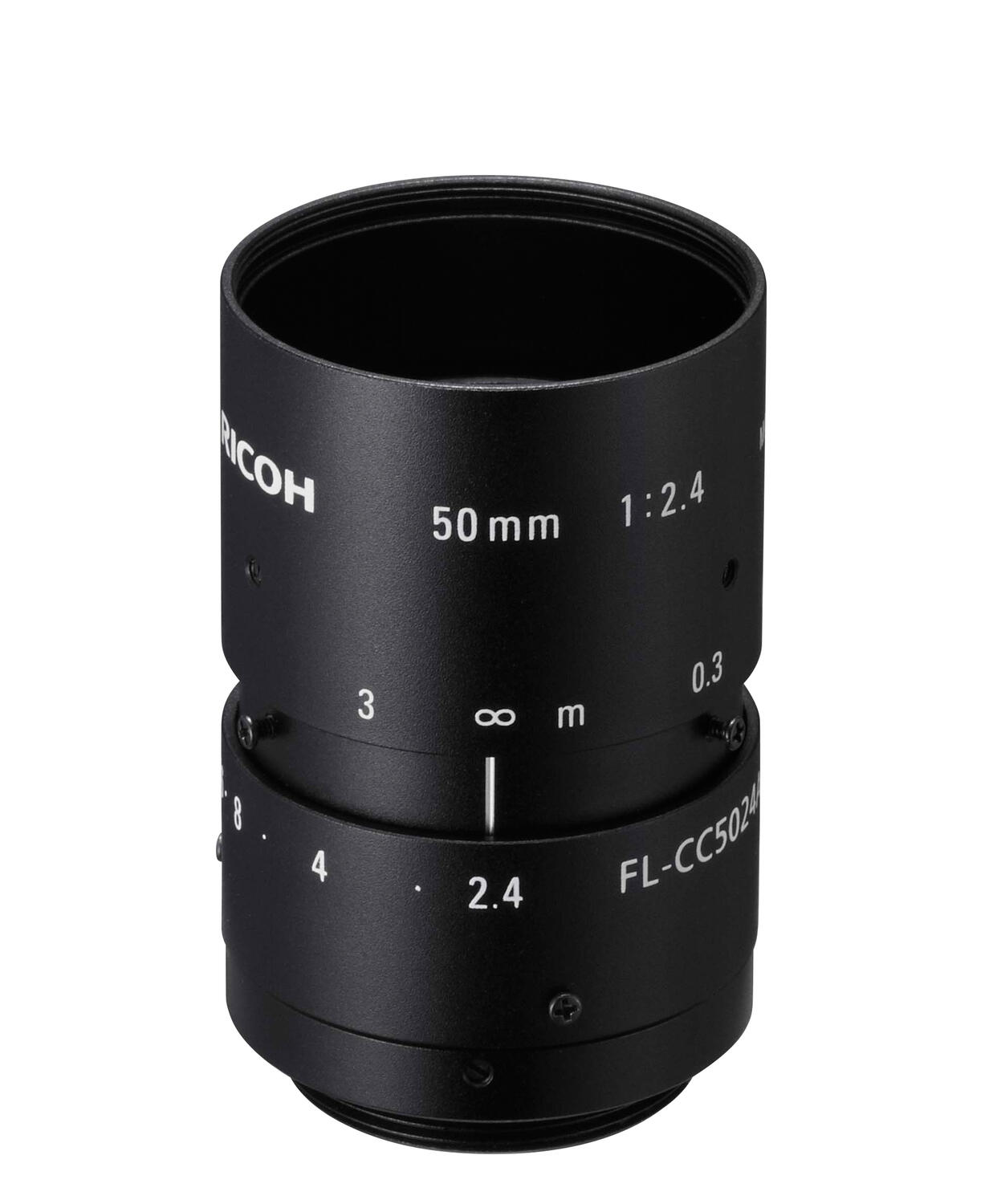

50mm F:2.4 Man. Iris 2MP Lens with L.Scw
Art:
RCH-FL-CC5024A-2M
Copied
|
2.4
|
22
|
0.1
|
30.5
|
50 mm
|
300 mm
|
|
Select a variant in the list
