ADVANCED ILLUMINATION
Advanced Illumination BL-S100150 EuroBrite Back Light
Strobe/Continuous Backlight
With complete built in control for continuous and strobe modes, the Eurobrite™ range outdoes the comptetition in many ways.
One major feature of the Eurobrite™ is Adaptive Power™ which utilizes an onboard thermistor to maximize light output in continuous mode.
As well as Adaptive Power™ to provide maximal output pulse in strobe mode regardless of the exposure period.
Additional features:
- IP67 sealed enclosure suitable for washdown environments
- Rugged construction that has been tested to withstand over 1000lb
- Industrial grade LEDs providing high-intensity surface illumination of 38klux
For other wavelength options not listed here please contact us.
- Doubel the size of the BL-S050075
- Cost-effective, feature-rich design
- On-board smart driver - seamless strobe or continuous
- IP67 enclosure
Selected variant

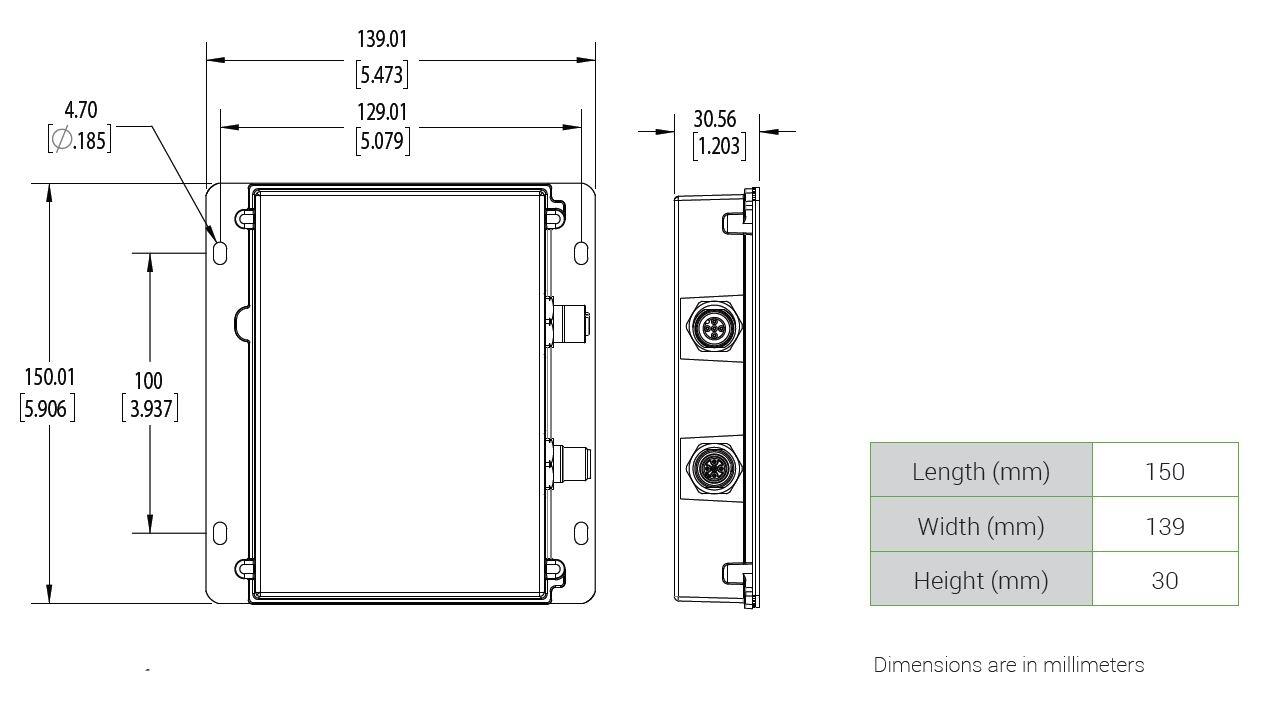

Technical data
Technical Data |
|
|---|---|
| Wavelength | 470 |
| Colour | Blue |
| Length | 150 mm |
| Width | 139 mm |
| Connector/controller | Strobe |
| Standard cable length | No cable included, use standard coded 5-pin M12 |
*Invisible Heading* |
|
|---|---|
| Photobiological risk factor IEC 6247 | Group 1 (low risk) |
| Operating temperature | 0°C - 60°C |
| Approvals | IEC 62471, CE, RoHS |
| IP class | IP67 |
| Weight | 254.1 g |
Downloads
Product description
With complete built in control for continuous and strobe modes, the Eurobrite™ range outdoes the comptetition in many ways.
One major feature of the Eurobrite™ is Adaptive Power™ which utilizes an onboard thermistor to maximize light output in continuous mode.
As well as Adaptive Power™ to provide maximal output pulse in strobe mode regardless of the exposure period.
Additional features:
- IP67 sealed enclosure suitable for washdown environments
- Rugged construction that has been tested to withstand over 1000lb
- Industrial grade LEDs providing high-intensity surface illumination of 38klux
For other wavelength options not listed here please contact us.
