BASLER

Basler Camera Ring Lights

50mm, 70mm, 90mm

Basler Camera Ring Lights provide uniform, shadow-free illumination using high-intensity LEDs arranged around the camera lens. Available in various sizes and light colours—including white, red, blue, and infrared—they support adjustable brightness and strobe modes for precise image capture. These ring lights ensure consistent lighting in industrial environments, enhancing image clarity and detail.
  • Integrated controller for perfect synchronisation
  • Blue, red, or white LEDs
  • 50mm, 70mm or 90mm outer diameter
  • Easy access to strobe and over drive functions

Selected variant

Available in several variants

Selected variant

Technical data

Technical Data

Wavelength 470
Colour Blue
Light dimensions 22mm diameter
Length 50 mm
Width 50 mm
Height 16 mm
Inner diameter 28 mm
Outer diameter 50 mm
Connector/controller Integrated controller, constant voltage (66.2x30x20mm)

*Invisible Heading*

Input voltage 24 V DC (±10%)
Power consumption 3.1 W
Operating temperature 0 ... 40°C
Storage temperature -20 ... +60°C
Operating humidity 20-85%
Humidity storage 20-85%
Approvals CE, EN61000-6-2, EN61000-6-4, RoHS
Weight 110 g

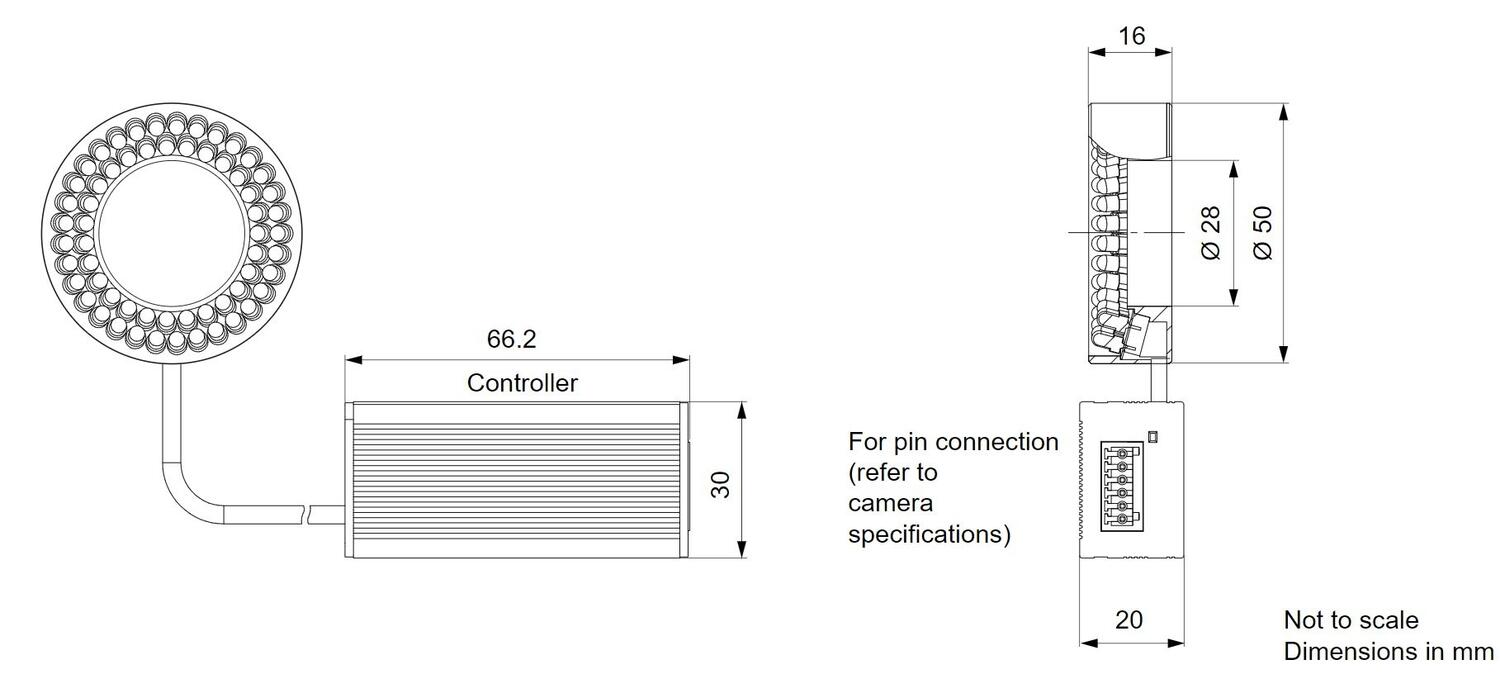

Measurements and connections

Product description

Basler Camera Ring Lights are precision-engineered illumination accessories designed to deliver uniform, shadow-free lighting for machine vision applications. These ring lights feature high-intensity LEDs arranged in a circular pattern around the camera lens, ensuring even illumination of objects directly in the camera’s field of view. Available in various diameters and colours, including white, red, blue, and infrared, they can be matched to specific imaging requirements such as contrast enhancement or material differentiation. The lights are designed with integrated controllers or external control options, supporting adjustable brightness levels and strobe functionality for synchronised image capture, which is crucial in high-speed inspection systems.

Basler Camera Ring Lights are ideal for applications requiring consistent, glare-free lighting—such as surface inspection, defect detection, and precision measurement. Their ability to minimise shadows and highlight fine details makes them especially effective in electronics inspection, pharmaceutical packaging, and print quality control. The compact, robust design ensures compatibility with a wide range of Basler cameras and mounting systems, allowing for easy integration into industrial environments where consistent illumination is key to maintaining image quality and accuracy.

Accessories

Related

swir basler
Blog

SWiR imaging in agriculture

Advancements in imaging technology, particularly Short-Wave Infrared (SWIR) systems, have revolutionized quality control in the food industry, explained in our article.

AI cameras for automotive
Blog

AI Cameras for the automotive industry

The automotive industry is striving to improve safety and efficiency, this is where AI cameras come in to achieve the highest results.

IATECH, the industrial automation technology exhibition OEM automatic
Company news

Recap of IATECH

Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.

IATECH industrial automation components exhibition in at leicester marriott hotel by OEM Automatic
Company news

OEM introduces IATECH - The Industrial Automation Technology Expo

We are thrilled to announce the launch of IATECH, THe Industrial Automation Technology expo at Leicester Marriott Hotel on 23rd October. The ultimate platform for showcasing our extensive product range and broad business areas, featuring over 50 leading suppliers under one roof!

automation components for specialist vehicles
Blog

Automation Components for Specialist Vehicles

The specialist vehicle industry can include automotive and EV, heavy vehicles such as agriculture and rail, and marine.  This email takes you through some of the various products we offer for specialist vehicle applications.

Basler ace 2 uv imaging
Product news Blog

About UV Imaging

Many UV products have garnered attention for their advanced features, catering to the high demand for manufacturing sector inspections. The scope of applications against this backdrop is vast, with requests increasing for improved performance and features.

Parts Wavelength Colour Light dimensions Length Width Height Inner diameter Outer diameter Connector/controller Input voltage Power consumption Operating temperature Storage temperature Operating humidity Humidity storage Approvals Weight Price
470
Blue
22mm diameter
50 mm
50 mm
16 mm
28 mm
50 mm
Integrated controller, constant voltage (66.2x30x20mm)
24 V DC (±10%)
3.1 W
0 ... 40°C
-20 ... +60°C
20-85%
20-85%
CE, EN61000-6-2, EN61000-6-4, RoHS
110 g
5500 K
White
22mm diameter
50 mm
50 mm
16 mm
28 mm
50 mm
Integrated controller, constant voltage (66.2x30x20mm)
24 V DC (±10%)
4.7 W
0 ... 40°C
-20 ... +60°C
20-85%
20-85%
CE, EN61000-6-2, EN61000-6-4, RoHS
110 g
630
Red
22mm diameter
50 mm
50 mm
16 mm
28 mm
50 mm
Integrated controller, constant voltage (66.2x30x20mm)
24 V DC (±10%)
3.1 W
0 ... 40°C
-20 ... +60°C
20-85%
20-85%
CE, EN61000-6-2, EN61000-6-4, RoHS
110 g
470
Blue
38mm diameter
70 mm
70 mm
20 mm
32 mm
70 mm
Integrated controller, constant voltage (66.2x30x20mm)
24 V DC (±10%)
5.8 W
0 ... 40°C
-20 ... +60°C
20-85%
20-85%
CE, EN61000-6-2, EN61000-6-4, RoHS
160 g
5500 K
White
38mm diameter
70 mm
70 mm
20 mm
32 mm
70 mm
Integrated controller, constant voltage (66.2x30x20mm)
24 V DC (±10%)
7.8 W
0 ... 40°C
-20 ... +60°C
20-85%
20-85%
CE, EN61000-6-2, EN61000-6-4, RoHS
160 g
630
Red
38mm diameter
70 mm
70 mm
20 mm
32 mm
70 mm
Integrated controller, constant voltage (66.2x30x20mm)
24 V DC (±10%)
5.8 W
0 ... 40°C
-20 ... +60°C
20-85%
20-85%
CE, EN61000-6-2, EN61000-6-4, RoHS
160 g
470
Blue
40mm diameter
90 mm
90 mm
20 mm
50 mm
90 mm
Integrated controller, constant voltage (66.2x30x20mm)
24 V DC (±10%)
11 W
0 ... 40°C
-20 ... +60°C
20-85%
20-85%
CE, EN61000-6-2, EN61000-6-4, RoHS
210 g
5500 K
White
40mm diameter
90 mm
90 mm
20 mm
50 mm
90 mm
Integrated controller, constant voltage (66.2x30x20mm)
24 V DC (±10%)
13 W
0 ... 40°C
-20 ... +60°C
20-85%
20-85%
CE, EN61000-6-2, EN61000-6-4, RoHS
210 g
630
Red
40mm diameter
90 mm
90 mm
20 mm
50 mm
90 mm
Integrated controller, constant voltage (66.2x30x20mm)
24 V DC (±10%)
11 W
0 ... 40°C
-20 ... +60°C
20-85%
20-85%
CE, EN61000-6-2, EN61000-6-4, RoHS
210 g
