ADVANCED ILLUMINATION

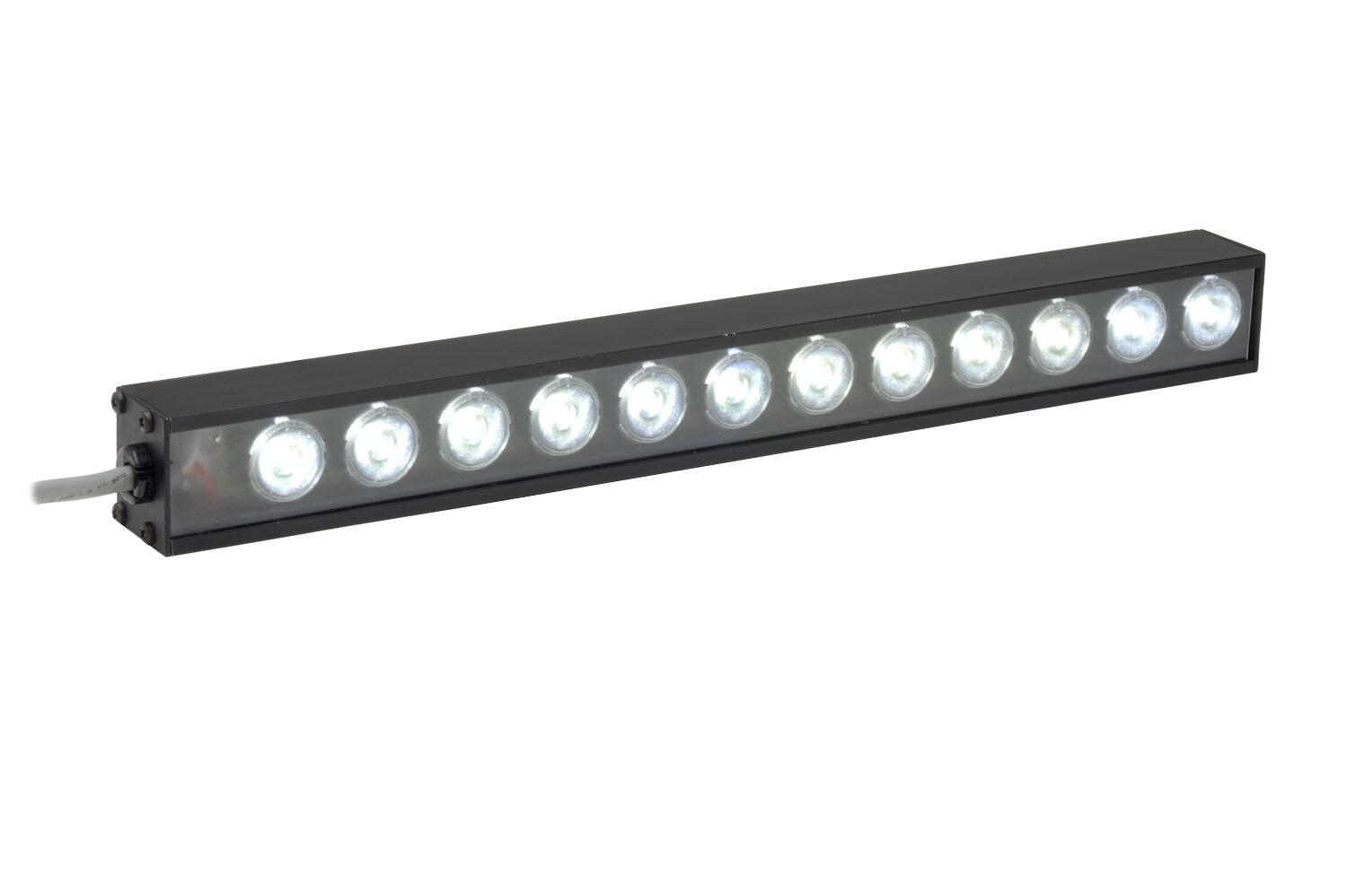

Advanced Illumination AL17912 Area Lighting

Extremely bright 12"

  • 3x brighter than LL6212
  • Available for wide range or inspection of large objects
  • The wash down option provides an IP67 compliant design

Selected variant

Available in several variants
ADVANCEDILLUMINATION.eps

Save page as PDF

Technical data / Documents

Accessories & Related products

Selected variant

Technical data

Technical Data
Wavelength WHI
Colour White
Length 326 mm
Width 34 mm
Connector/controller Continuous in-line controller
Operating temperature 0 - 60°C
Approvals CE, RoHS
IP class IP67
Weight 453.6 g

Downloads

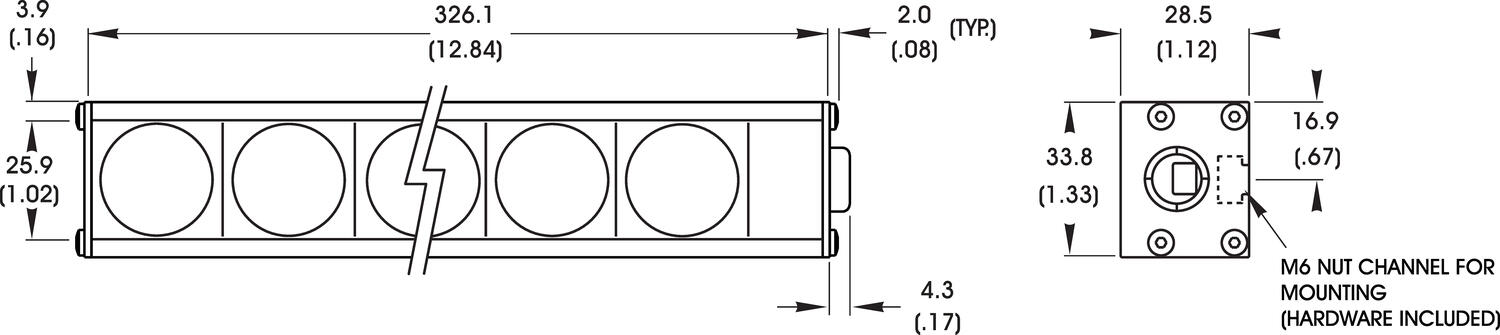

Measurements and connections

Accessories

Parts Connector/controller Price
Ai High Power Bar Light, 12", white, ICS2
Art:
AL17912-WHIIC Copied
Continuous in-line controller
Ai High Power Bar Light, 12", white, pulsar connector
Art:
AL17912-WHIC5 Copied
C5 connector

Selected variant

Select a variant in the list
