ADVANCED ILLUMINATION

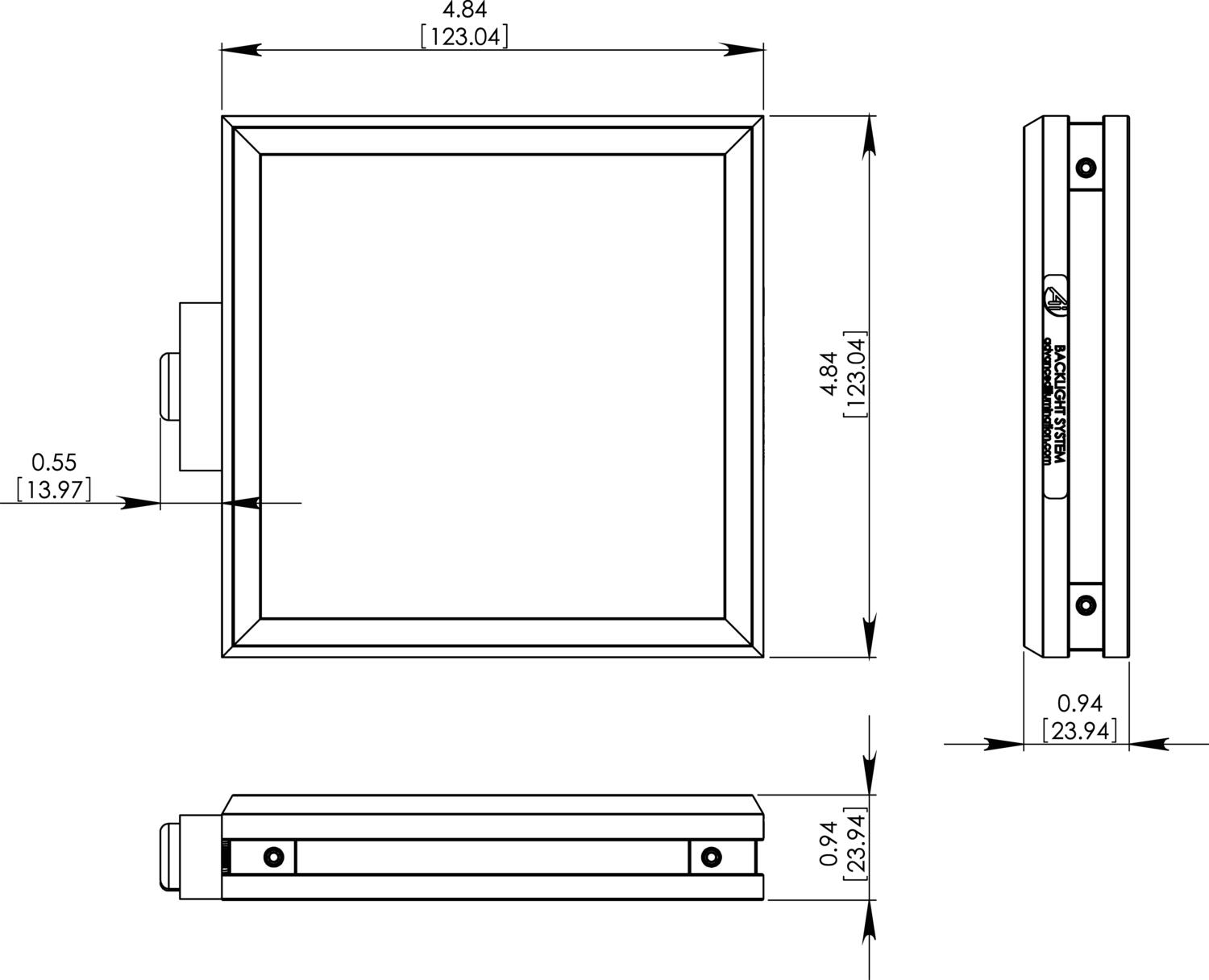

Advanced Illumination BL Series 4x4 Back Light
Expandable Series LED Backlight
The BL series of backlights from Advanced Illumination offer a low profile design with a planar, back-lit array of LEDs.
As part of the expandable family of products from Advanced Illumination, the BL series can be ordered in custom size and power options.
Sizes range from 1" x 1" up to 46" x 46", in increments of 1".
Power options include:
- C1 connector - for use with DCS series controllers
- C2 connector - for use with legacy controllers
- C5 connector - for use with Pulsar 320 strobe controller
- Continuous in-line controller - powered by 24V power supply
- Combination strobe/continuous in-line controller - powered by 24V power supply
- Default-OFF strobe/continuous in-line controller - powered by 24V power supply
- Flying/tinned leads - powered by 24V power supply
For enquiries or quotes for sizes and power options not listed here please contact us.
- Extremely consistent light over the entire active area of illumination
- Available in 1” x 1” increments; Sizes from 1” x 1” up to 46” x 46”
- Range of connector/control options
- Low profile design
Selected variant
Technical data
Technical Data |
|
|---|---|
| Wavelength | 470 |
| Colour | Blue |
| Length | 100 mm |
| Width | 100 mm |
| Connector/controller | Flying/tinned leads |
| Standard cable length | Up to 2 metres |
*Invisible Heading* |
|
|---|---|
| Photobiological risk factor IEC 6247 | Group 1 (low risk) |
| Operating temperature | 0°C - 60°C |
| Approvals | IEC 62471, CE, RoHS |
| IP class | IP50 |
Product description
The BL series of backlights from Advanced Illumination offer a low profile design with a planar, back-lit array of LEDs.
As part of the expandable family of products from Advanced Illumination, the BL series can be ordered in custom size and power options.
Sizes range from 1" x 1" up to 46" x 46", in increments of 1".
Power options include:
- C1 connector - for use with DCS series controllers
- C2 connector - for use with legacy controllers
- C5 connector - for use with Pulsar 320 strobe controller
- Continuous in-line controller - powered by 24V power supply
- Combination strobe/continuous in-line controller - powered by 24V power supply
- Default-OFF strobe/continuous in-line controller - powered by 24V power supply
- Flying/tinned leads - powered by 24V power supply
For enquiries or quotes for sizes and power options not listed here please contact us.
