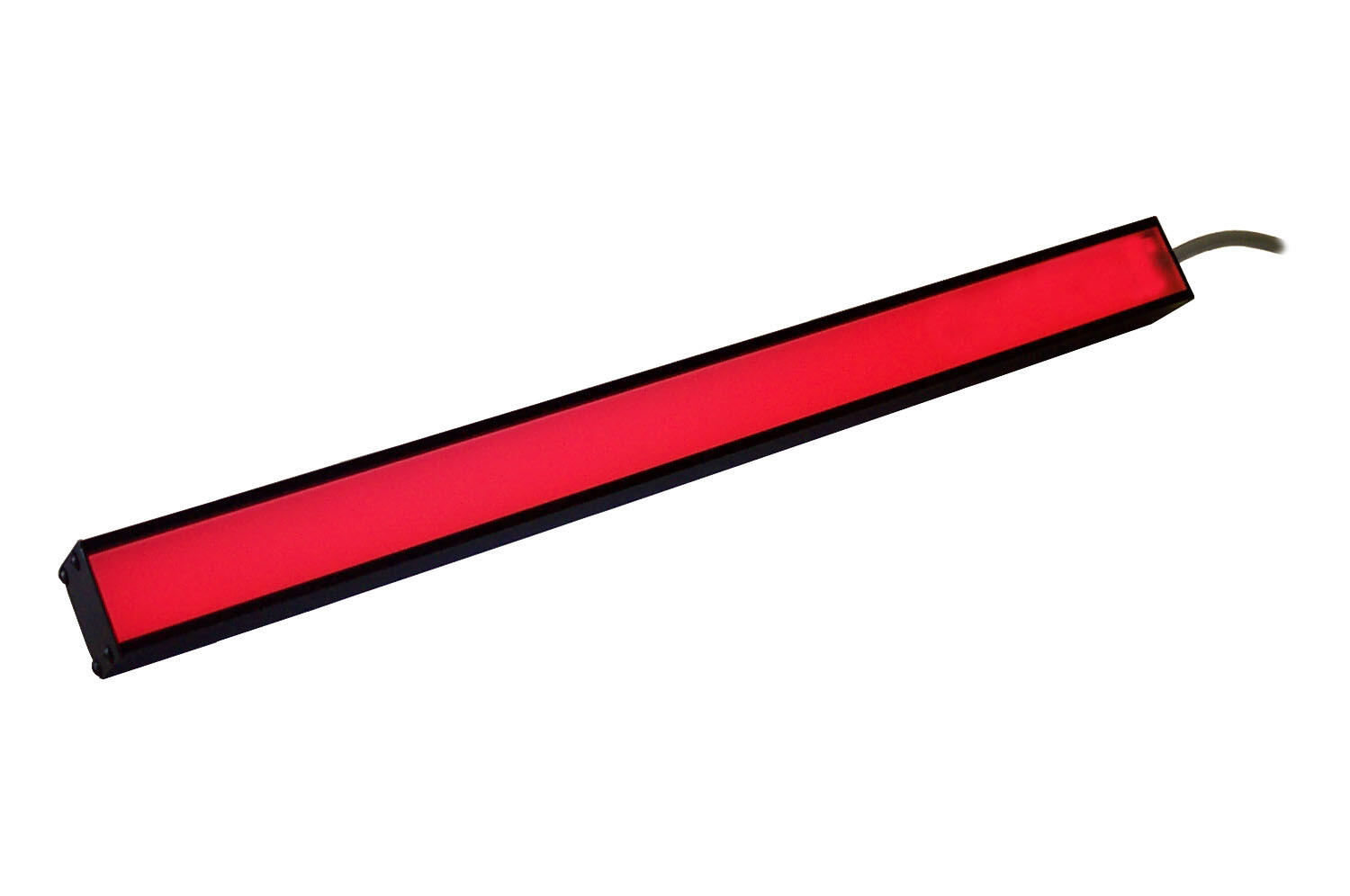

Advanced Illumination BL 193 Series Back Lights
Expandable Low Power Linear Backlights
The BL193 series backlight has medium intensity illumination wiht low input requirements With multiple wavelengths available providing consistent illumination over the entire active area.
Available in 1" increments from 2" up to 80".
Power options include:
- C1 connector - for use with DCS series controllers
- C5 connector - for use with Pulsar 320 strobe controller
- Continuous in-line controller - powered by 24V power supply
- Combination strobe/continuous in-line controller - powered by 24V power supply
- Default-OFF strobe/continuous in-line controller - powered by 24V power supply
- Flying/tinned leads - powered by 24V power supply
For enquiries or quotes for sizes and power options not listed here please contact us.
- Extremely consistent light over the entire active area of illumination
- 25mm (1”) wide illuminated strip in a 33.8mm (1.3”) wide housing
- Available in 1” increments; Lengths from 1” to 80”
Selected variant
Technical data
Technical Data |
|
|---|---|
| Wavelength | 470 |
| Colour | Blue |
| Length | 316.9 mm |
| Width | 33.8 mm |
| Connector/controller | Flying/tinned leads |
| Standard cable length | Up to 2 meters |
*Invisible Heading* |
|
|---|---|
| Photobiological risk factor IEC 6247 | Group 1 (low risk) |
| Operating temperature | 0°C - 60°C |
| Approvals | IEC 62471, CE, RoHS |
| IP class | IP50 |
| Weight | 212.3 g |
Product description
The BL193 series backlight has medium intensity illumination wiht low input requirements With multiple wavelengths available providing consistent illumination over the entire active area.
Available in 1" increments from 2" up to 80".
Power options include:
- C1 connector - for use with DCS series controllers
- C5 connector - for use with Pulsar 320 strobe controller
- Continuous in-line controller - powered by 24V power supply
- Combination strobe/continuous in-line controller - powered by 24V power supply
- Default-OFF strobe/continuous in-line controller - powered by 24V power supply
- Flying/tinned leads - powered by 24V power supply
For enquiries or quotes for sizes and power options not listed here please contact us.
