SPECIM
SX25
SX25 Series
The Specim SX25 is a high-spectral resolution hyperspectral SWIR camera for materials analysis and chemical identification with 392 spectral bands in the range of 960-2500 nm.
Specim SX25 – High Spectral SWIR Hyperspectral Resolution Camera The Specim SX25 is a hyperspectral line scanner camera built for those who require the most accurate material analysis. The camera operates in the SWIR range of 960-2500 nm and delivers exceptionally detailed spectral data for accurate material identification and in-depth chemical analysis. With an MCT sensor and integrated Stirling cooling, SNR 1500:1, 16-bit dynamics, and a dynamic range of 4500:1, the SX25 delivers reliable results even for demanding applications such as coating inspection, mineral and ore grading, food and agricultural grade, and chemical and pharmaceutical research. |
- SWIR 960–2500 nm with 392 spectral bands
- Up to 162 FPS, 640 spatial pixels, 16-bit dynamics, SNR 1500:1
- Built-in AIE, NUC, BPR and dark level stabilization, dynamic range 4500:1
- GigE Vision with GenICam and JSON-RPC, 24 V DC via AC adapter
- CE, MCT sensor with integrated Stirling cooling, IP40
Selected variant
Technical data
| 3612_Pixel size (µm) | 18,75 |
|---|---|
| Approvals | CE |

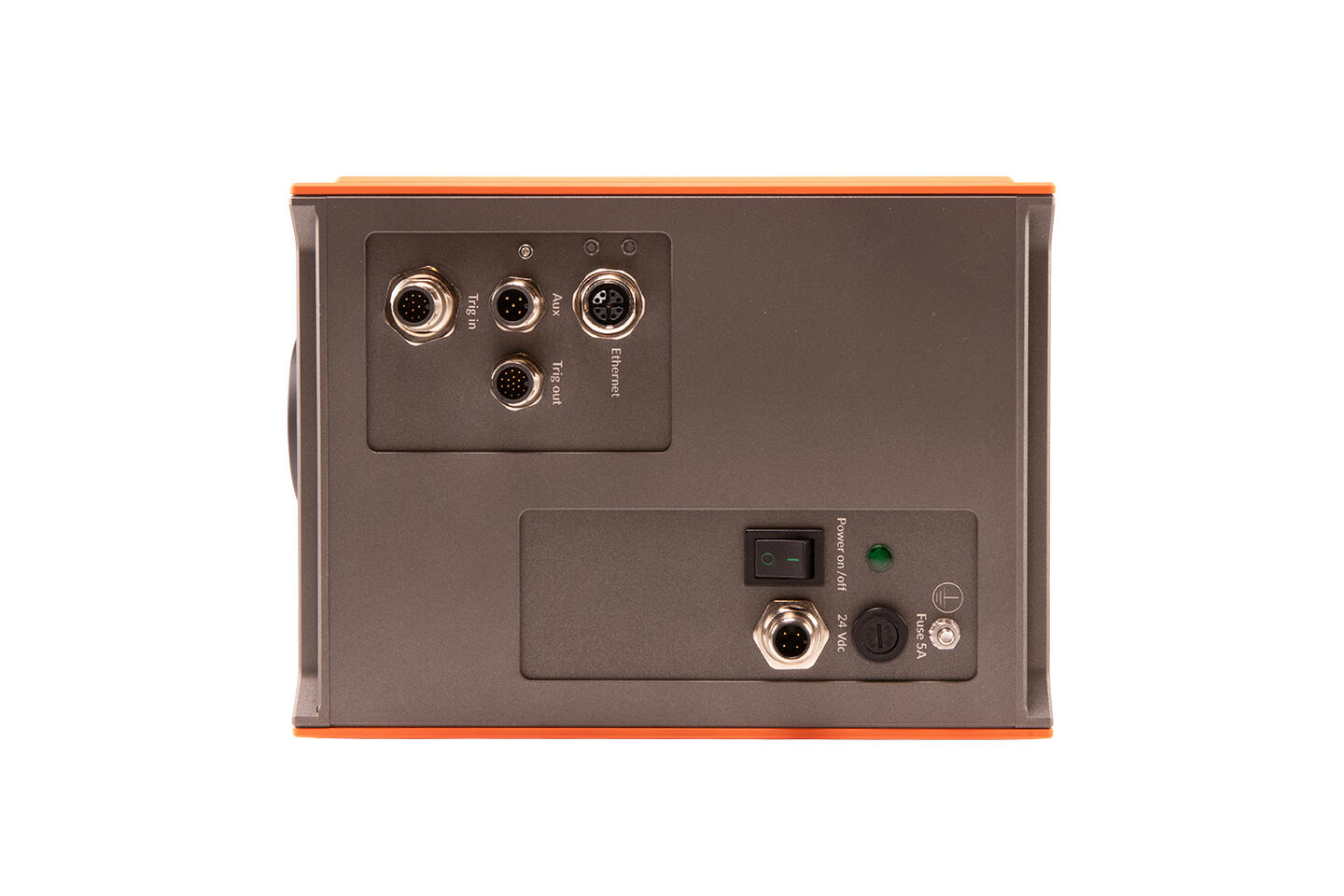

| Connector | Ethernet, Aux, Power, Trig In, Trig Out |
| Fan | Yes |
| Frame rate max | 162 fps |
| Height | 150 mm |
| Input voltage | 24 V DC / 100–240 V AC via adapter |
| IP class | IP40 |
| Length | 280 mm |
| Lens Barrel | C-Mount |
| Line speed max | 0.2 kHz |
| Operating humidity | 5–95% (icke-kondenserande) |
| Operating temperature | +5 … +40°C (icke-kondenserande) |
| Pixel size min | 18.75 µm |
|---|---|
| Power consumption | 35 W |
| Resolution max | 640 spatiala pixlar |
| Sensor length | 12 mm |
| Storage temperature | -20 … +50°C (icke-kondenserande) |
| Supply voltage | 24 V |
| Supply voltage dc max | 24 V DC |
| Supply voltage dc min | 24 V DC |
| User interface | GigE |
| Wavelength | 960–2500 nm |
| Weight | 5.3 kg |
| Width | 200 mm |
Downloads
Product description
The Specim SX25 is a high-spectral resolution hyperspectral SWIR camera for materials analysis and chemical identification with 392 spectral bands in the range of 960-2500 nm.
Specim SX25 – High Spectral SWIR Hyperspectral Resolution Camera The Specim SX25 is a hyperspectral line scanner camera built for those who require the most accurate material analysis. The camera operates in the SWIR range of 960-2500 nm and delivers exceptionally detailed spectral data for accurate material identification and in-depth chemical analysis. With an MCT sensor and integrated Stirling cooling, SNR 1500:1, 16-bit dynamics, and a dynamic range of 4500:1, the SX25 delivers reliable results even for demanding applications such as coating inspection, mineral and ore grading, food and agricultural grade, and chemical and pharmaceutical research. |
