SPECIM
FX10
FX10 Series

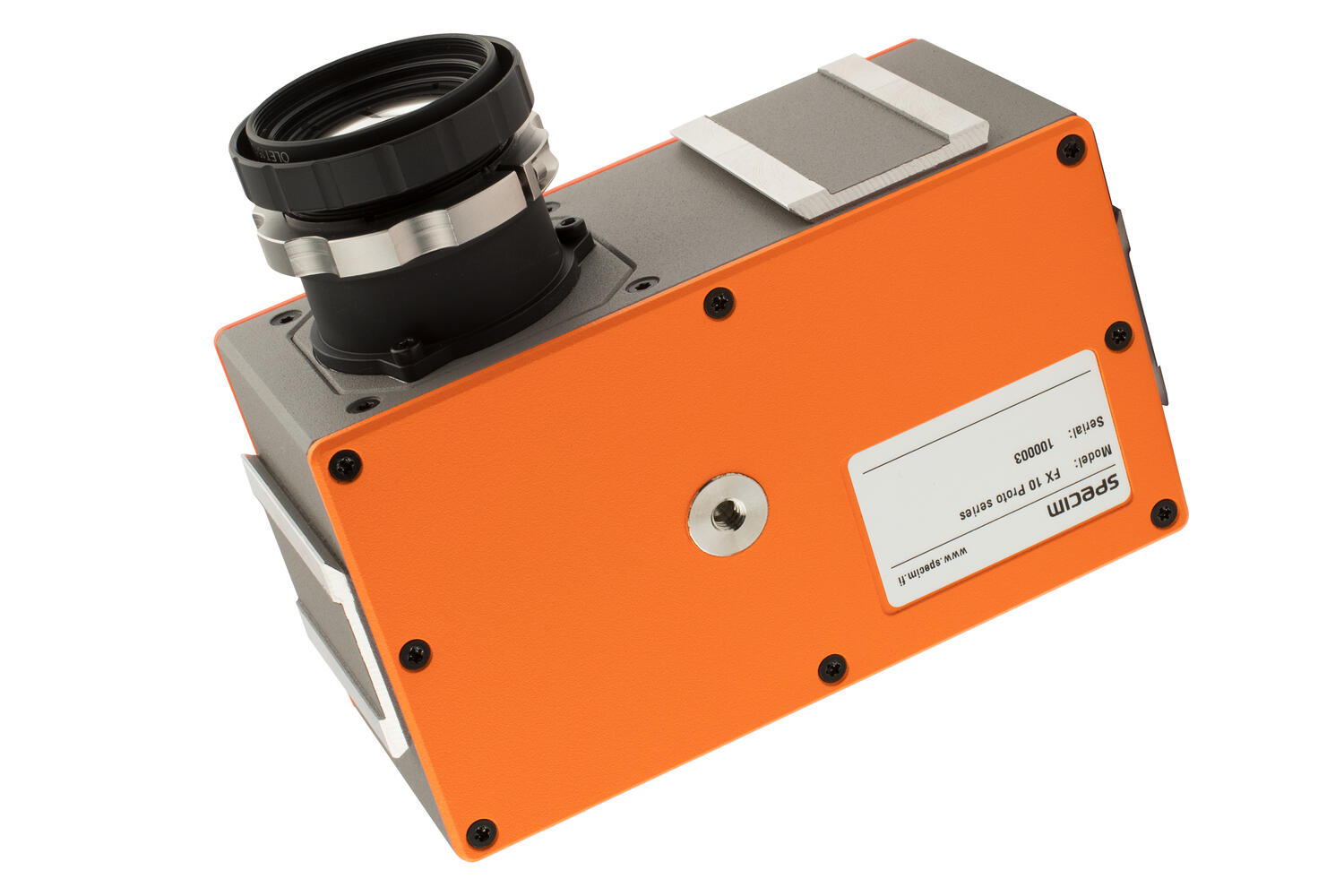

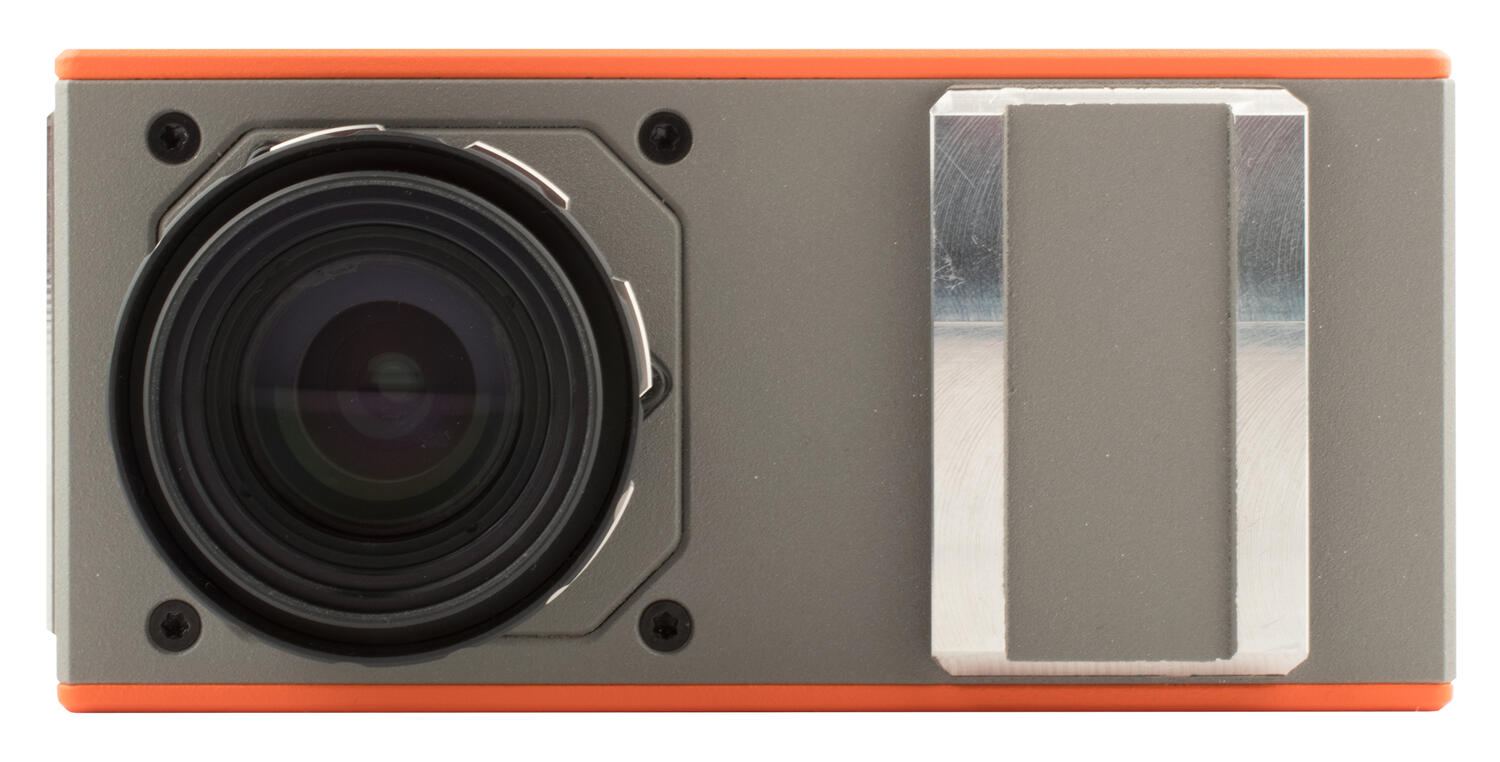

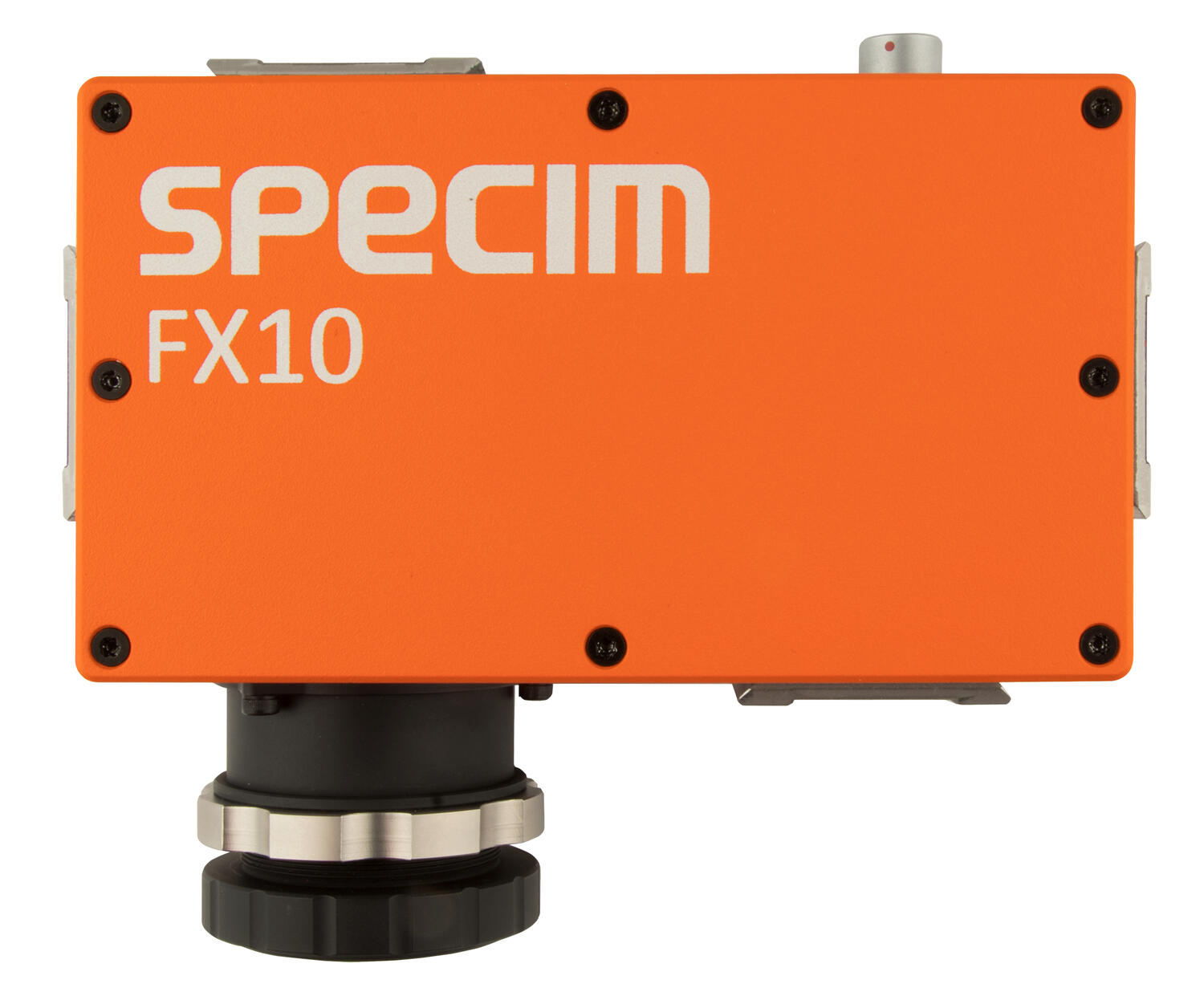

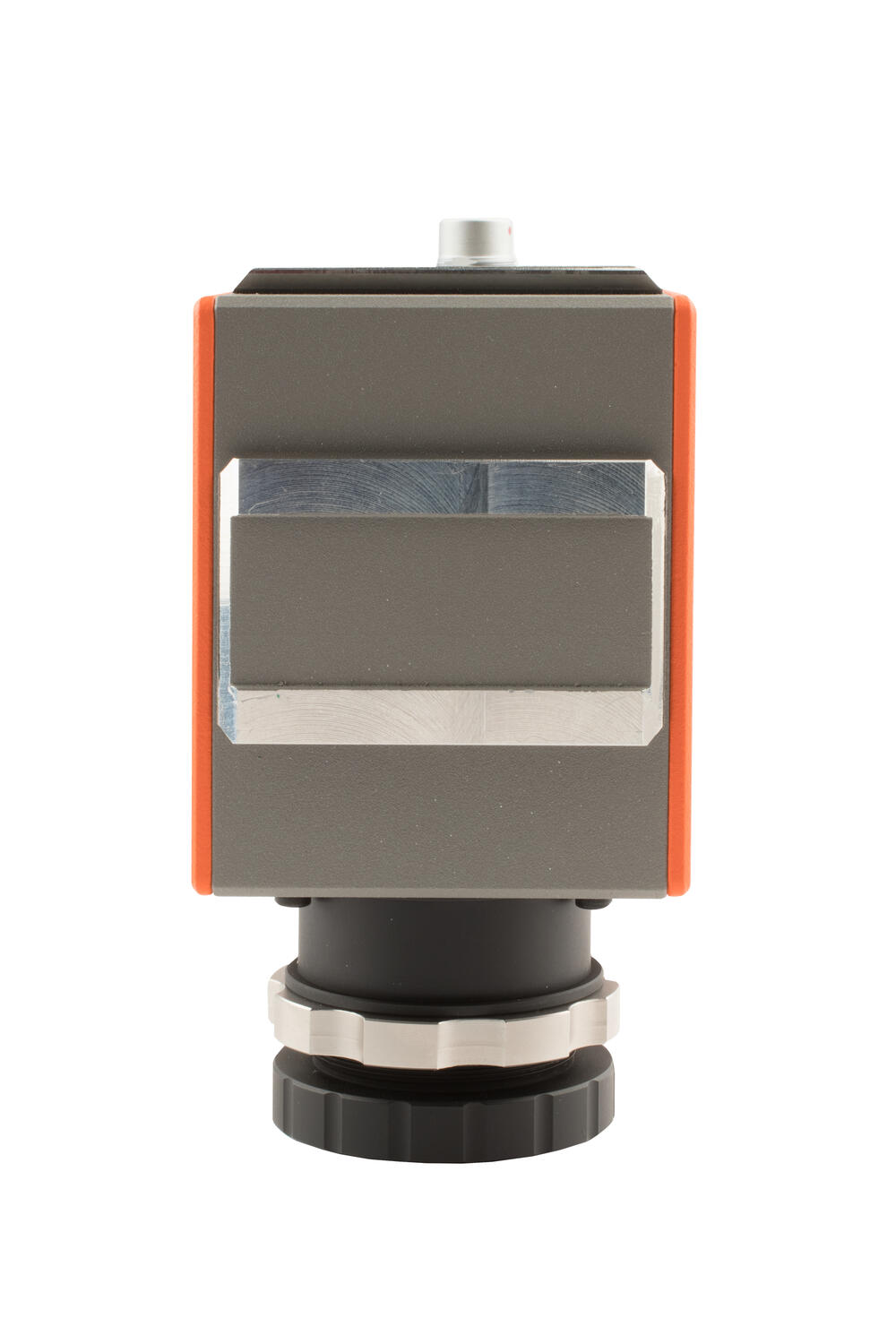

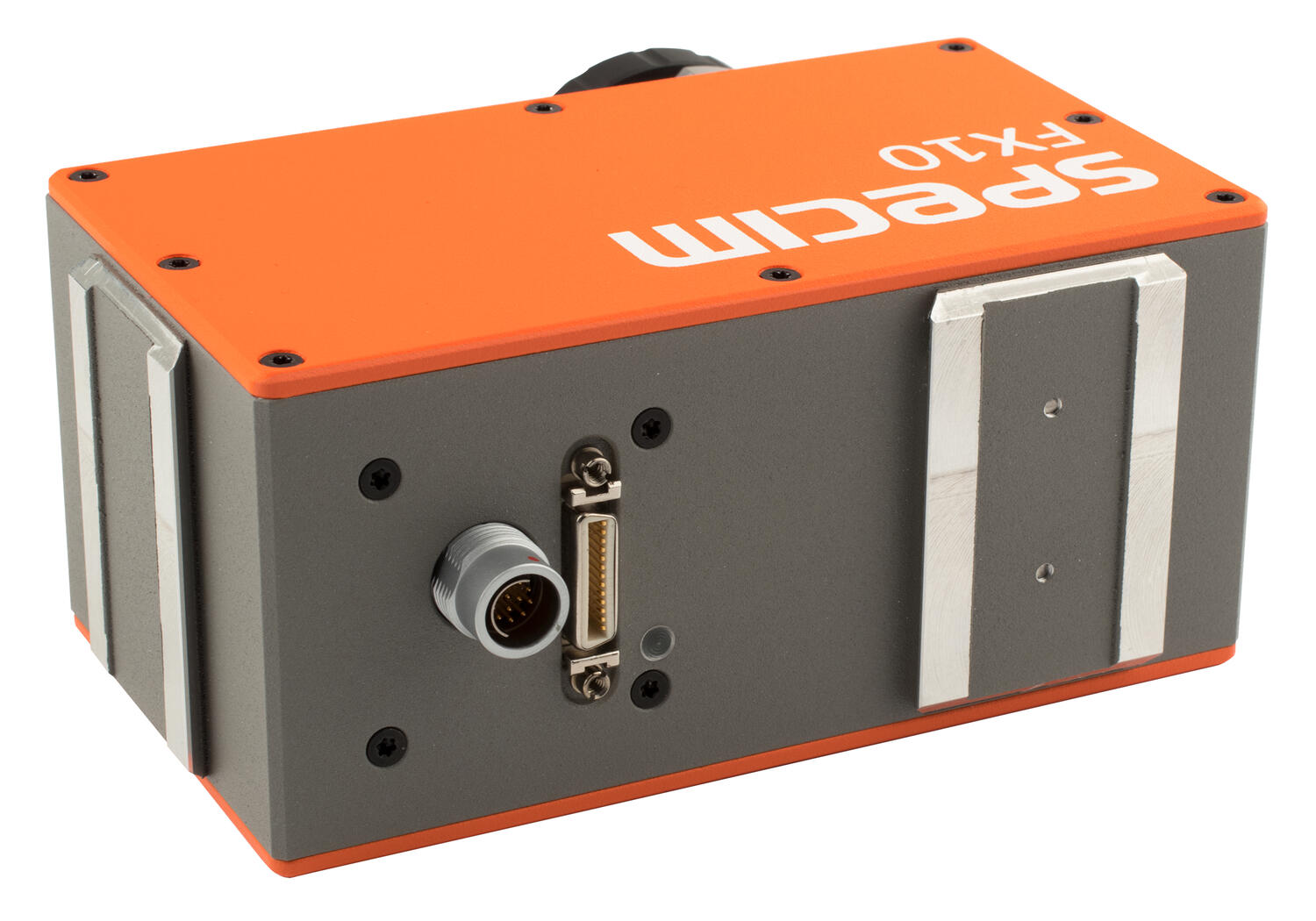

The Specim FX10 is a compact hyperspectral VNIR camera for industrial quality control and laboratory analysis with up to 224 spectral bands in the range of 400-1000 nm.
Specim FX10 – Hyperspectral VNIR Camera The Specim FX10 is a compact hyperspectral line scanner camera for industrial and laboratory environments, operating in the visible and near-infrared (VNIR) range of 400-1000 nm. With 1024 spatial pixels and up to 224 freely selectable spectral bands, the camera provides precise, real-time material analysis and quality control for food, agriculture, printing and display inspection applications. |
- VNIR 400-1000 nm with up to 224 freely selectable spectral bands
- Up to 327 FPS, 1024 spatial pixels, 12-bit dynamics, SNR 420:1
- Built-in AIE with uniform spectral calibration, smile/keystone correction
- GigE Vision and CameraLink, GenICam compatible, 12V DC
- CE, RoHS, IP52, passive cooling, operating temperature +5 to +40°C
Selected variant
Technical data
| 5156_Pixel size min (µm) | 9,97 |
|---|---|
| Approvals | CE, RoHS |
| Fan | No |
| Frame rate max | 327 fps |
| Height | 71 mm |
| Input voltage | 12 V DC (±10%) |
| IP class | IP52 |
| Length | 150 mm |
| Lens barrel | Custom mount |
| Line speed max | 0.3 kHz |
| Operating humidity | 5–95% (icke-kondenserande) |
| Operating temperature | +5 … +40°C (icke-kondenserande) |
| Pixel size min | 9.97 µm |
| Power consumption | 4 W |
|---|---|
| Resolution max | 1024 spatiala pixlar |
| Sensor length | 10.2 mm |
| Sensor Type | CMOS |
| Storage temperature | -20 … +50°C (icke-kondenserande) |
| Supply voltage | 12 V |
| Supply voltage dc max | 13.2 V DC |
| Supply voltage dc min | 10.8 V DC |
| User interface | CameraLink, GigE |
| Wavelength | 400–1000 nm |
| Weight | 1.3 kg |
| Width | 85 mm |
Product description
The Specim FX10 is a compact hyperspectral VNIR camera for industrial quality control and laboratory analysis with up to 224 spectral bands in the range of 400-1000 nm.
Specim FX10 – Hyperspectral VNIR Camera The Specim FX10 is a compact hyperspectral line scanner camera for industrial and laboratory environments, operating in the visible and near-infrared (VNIR) range of 400-1000 nm. With 1024 spatial pixels and up to 224 freely selectable spectral bands, the camera provides precise, real-time material analysis and quality control for food, agriculture, printing and display inspection applications. |
