| Accessory type | Card |
|---|---|
| Approvals | CE, UKCA, KC, FCC, RoHS |
| Connector | USB Type-A |
| Interface | USB 3.0 |
| Number of ports | 8 |
| Operating temperature | 0–85 °C |
| PC Bus Interface | PCIe 2.0 x4 |
| Storage temperature | -20 - 85 °C |
|---|---|
| Supply voltage | 5 V |
| Supply voltage dc max | 5 V DC |
| Type | PC Card (USB) |
| User interface | USB 3.0 |
Basler's USB 3.0 PCIe interface cards are engineered to provide high-speed, reliable connectivity for industrial imaging systems.Equipped with the FrescoLogic FL1100 chipset, these cards support SuperSpeed USB 3.0 data transfer rates of up to 5 Gbps per port, ensuring efficient communication with Basler USB 3.0 cameras.Available in configurations such as 1 host controller with 4 ports (PCIe x1) and 4 host controllers with 4 ports (PCIe x4), they offer flexibility to accommodate various system requirements.Each port can reliably handle up to 380 MB/s, making them suitable for applications demanding high data throughput.
These interface cards are ideal for multi-camera setups in industrial automation, quality control, and machine vision applications where consistent, high-speed data transfer is crucial.Their compliance with USB 3.0 Specification Revision 1.0 and compatibility with operating systems like Windows 10/11 and Linux (Ubuntu 23.10 LTS) ensure seamless integration into existing systems.By providing robust and efficient connectivity, Basler's USB 3.0 PCIe interface cards enhance the performance and reliability of imaging solutions in demanding industrial environments.
OEM Automatic and Machine Learning Technologies (MLT) have been focusing on behavioural analysis through advanced sensing and machine vision.
A Q&A on 3D and 2D imagery, the NEW Motioncam-3D by Photoneo.
Our Machine & Computer Vision product experts explain line scan cameras, make comparisons, state advantages and suitable applications.
Advancements in imaging technology, particularly Short-Wave Infrared (SWIR) systems, have revolutionized quality control in the food industry, explained in our article.
The automotive industry is striving to improve safety and efficiency, this is where AI cameras come in to achieve the highest results.
Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Accessory type | Approvals | Connector | Number of ports | Operating temperature | PC Bus Interface | Supply voltage | Supply voltage dc max | User interface | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Basler USB3.0 Interface Cards, 8 Ports, 5 Gbps,
Art:
2200002208
Copied
|
Card
|
CE, UKCA, KC, FCC, RoHS
|
USB Type-A
|
8
|
0–85 °C
|
PCIe 2.0 x4
|
5 V
|
5 V DC
|
USB 3.0
|
|
||

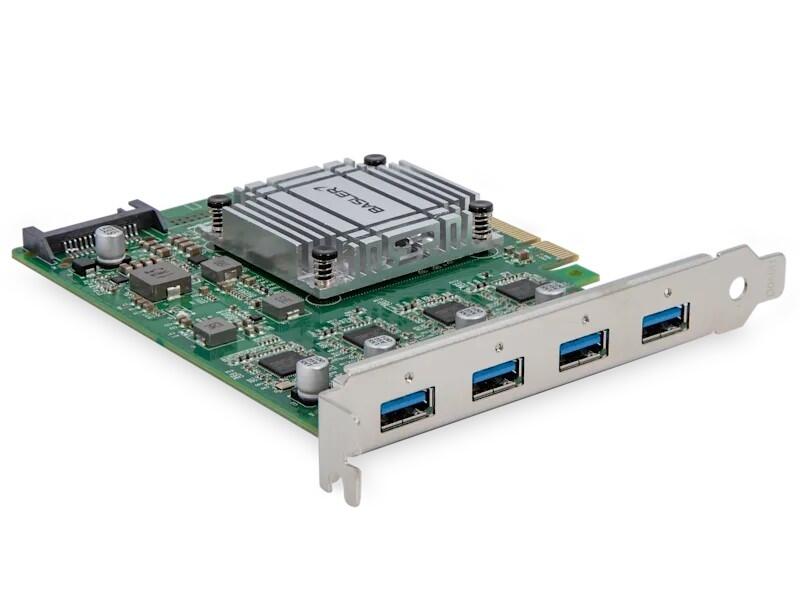

Basler USB3.0 Interface Cards, 4 Ports, 5 Gbps
Art:
2200002207
Copied
|
|
CE, UKCA, KC, FCC, RoHS
|
USB Type-A
|
4
|
0–85 °C
|
PCIe 2.0 x4
|
5 V
|
5 V DC
|
USB 3.0
|
|
||

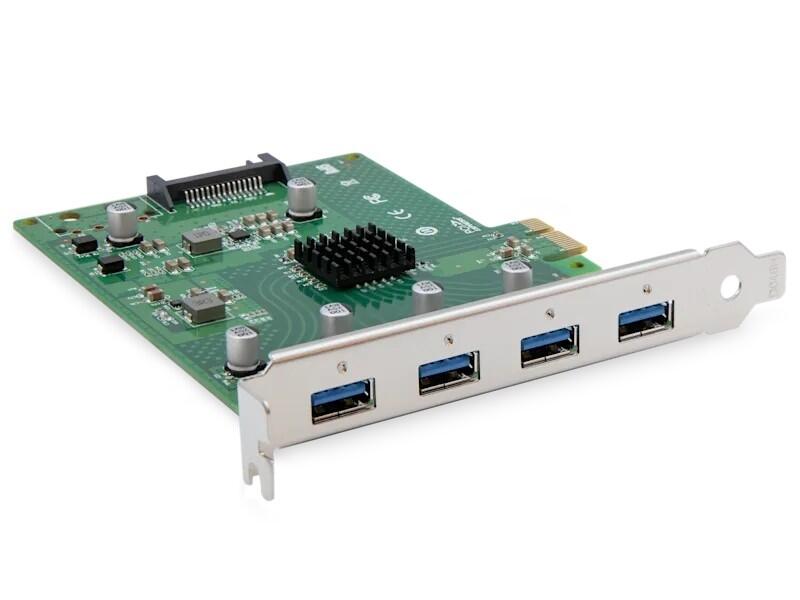

Basler USB3.0 Interface Cards, 4 Ports, 5Gps
Art:
2200002206
Copied
|
Card
|
CE, UKCA, KC, FCC, RoHS
|
USB Type-A
|
4
|
0 - 60 ˚ C
|
PCIe 2.0 x1
|
5 V
|
5 V DC
|
USB 3.0
|
|
||

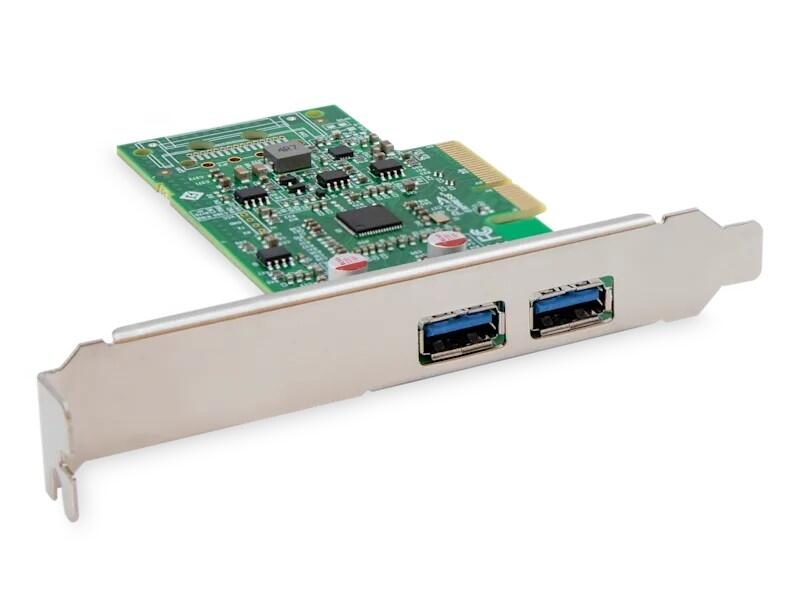

Basler USB3.0 Interface Cards, 2 Ports, 10 Gbps
Art:
2200002205
Copied
|
|
CE, UKCA, KC, FCC
|
|
2
|
0 - 60 ˚ C
|
PCIe 3.0 x4
|
|
|
|
|
||

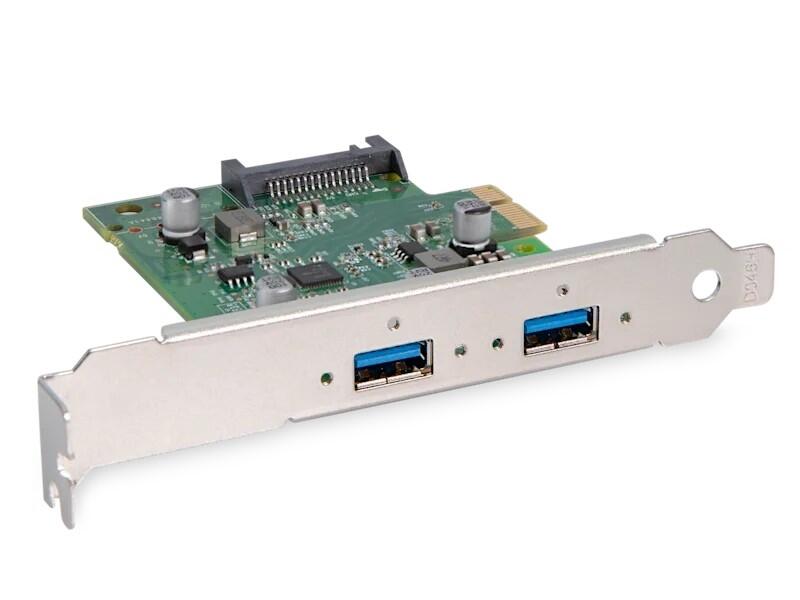

Basler USB3.0 Interface Cards, 2 Ports, 5 Gbps
Art:
2200002204
Copied
|
|
CE, UKCA, KC, FCC
|
|
2
|
0 - 60 ˚ C
|
PCIe 2.0 x1
|
|
|
|
|
