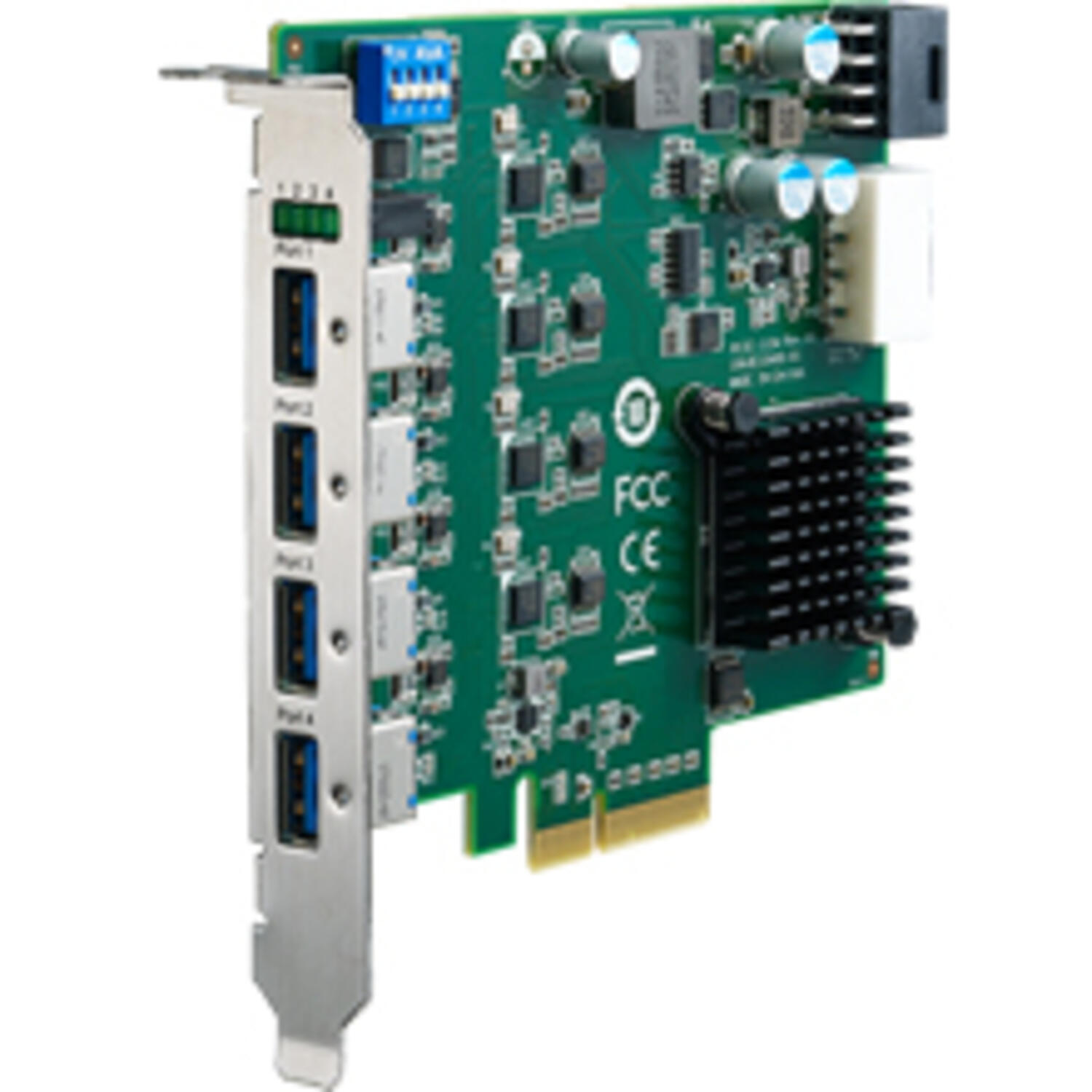

Advantech USB 3.0 PCIE Frame Grabber Cards
The PCIE-1154 is a high-bandwidth industrial-grade expansion card designed for connecting USB industrial cameras in machine vision, factory automation, and medical applications, as well as other applications that require high-data transfer speeds.
Featuring Fresco FL1100 USB 3.0 host controllers with an independent bandwidth of 5 Gbps while operating four ports simultaneously, the four USB 3.0 ports feature 1500-mA current ensuring the use of stable power for external USB devices. Exclusive features include an LED indicator for each port and a cable-lock mechanism for reliable cable connection.
- PCIe 2.0 x4 interface delivering 2 Gbps total bandwidth
- Supports four USB 3.0
- Supports 1500-mA max. current per port
- Supports cable-lock mechanism for reliable cable connection
Selected variant
Technical data
| Camera interface | USB 3.0 |
|---|---|
| Connector | RJ45 |
| Dimensions | 111.15mm x 117mm |
| FPGA | No |
| Number of ports | 4 |
| PC Bus Interface | PCI Express x4 |
| Storage temperature max | 85 °C |
|---|---|
| Storage temperature min | -40 °C |
| Temperature operational max | 60 °C |
| Temperature operational min | 0 °C |
Downloads
Product description
The PCIE-1154 is a high-bandwidth industrial-grade expansion card designed for connecting USB industrial cameras in machine vision, factory automation, and medical applications, as well as other applications that require high-data transfer speeds.
Featuring Fresco FL1100 USB 3.0 host controllers with an independent bandwidth of 5 Gbps while operating four ports simultaneously, the four USB 3.0 ports feature 1500-mA current ensuring the use of stable power for external USB devices. Exclusive features include an LED indicator for each port and a cable-lock mechanism for reliable cable connection.
