Basler Blaze Time Of Flight Camera
ToF 3D Camera
Basler Blaze Time-of-Flight (ToF) 3D Camera provides you with a 2D and a 3D image in one shot, offering an attractive solution for a wide variety of applications including logistics, factory automation, and biometrics.
Â
The Basler Blaze now includes Dual Exposure HDR, for Precise 3D imaging for high contrast scenes.
Â
Operating on the pulsed Time-of-Flight principle, the Basler Blaze camera offers high resolution VGA, with Sony's DepthSenseâ„¢ technology. The large measuring range can cover approximately two Euro pallets or a small car, with accuracy almost millimetre accurate in time-of-flight measurement. Additionally, thanks to its compact design and Gigabit Ethernet it is easily integrated into a system, with user-friendly and platform-independent programming.
Â
How Does a Time-of-Flight (ToF) Camera Work?
A Time-of-Flight camera works by measuring the time the light needs to travel from the light source to an object/s and then back to the camera, by synchronising both the light source and image acquisition, the distances can be extracted and calculated from the image data.
Â
- Now with Dual Exposure HDR
- Frame Rate 30 fps
- Working range 0 to 10 m
- Resolution 640x480
- GigE Vision, GeniCam, GenTL, GenApi compliant
Selected variant

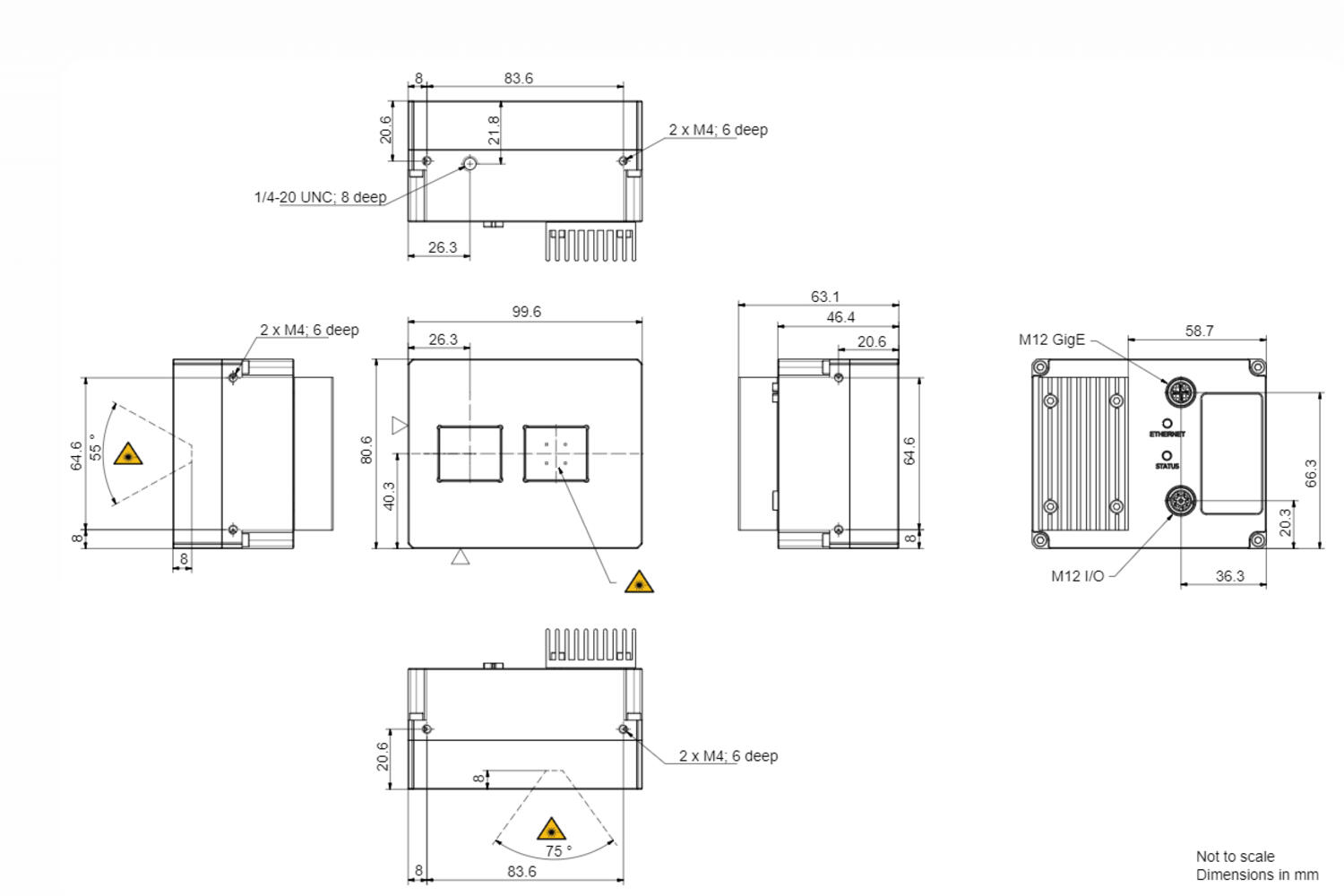

Technical data
| Approvals | CE, EN61000-6-4, FCC, GenICam, GigE Vision, RoHS |
|---|---|
| Digital inputs | 1 |
| Digital outputs | 1 |
| Focus | 0-10m |
| Frame rate max | 30 fps |
| Height | 81 mm |
| Interface | GigE |
| IP class | IP67 |
| Length | 64 mm |
| Mono/color | Mono |
| Power consumption | 22 W |
|---|---|
| Precision | +/- 5mm |
| Resolution max | 640x480 |
| Sensor supplier | Sony |
| Supply voltage | 24 V |
| Temperature operational max | 50 °C |
| Wavelength | 940 |
| Weight | 0.69 kg |
| Width | 100 mm |
Product description
Basler Blaze Time-of-Flight (ToF) 3D Camera provides you with a 2D and a 3D image in one shot, offering an attractive solution for a wide variety of applications including logistics, factory automation, and biometrics.
Â
The Basler Blaze now includes Dual Exposure HDR, for Precise 3D imaging for high contrast scenes.
Â
Operating on the pulsed Time-of-Flight principle, the Basler Blaze camera offers high resolution VGA, with Sony's DepthSenseâ„¢ technology. The large measuring range can cover approximately two Euro pallets or a small car, with accuracy almost millimetre accurate in time-of-flight measurement. Additionally, thanks to its compact design and Gigabit Ethernet it is easily integrated into a system, with user-friendly and platform-independent programming.
Â
How Does a Time-of-Flight (ToF) Camera Work?
A Time-of-Flight camera works by measuring the time the light needs to travel from the light source to an object/s and then back to the camera, by synchronising both the light source and image acquisition, the distances can be extracted and calculated from the image data.
Â
