IDEM - HYGIEMAG - LMR switch with LED

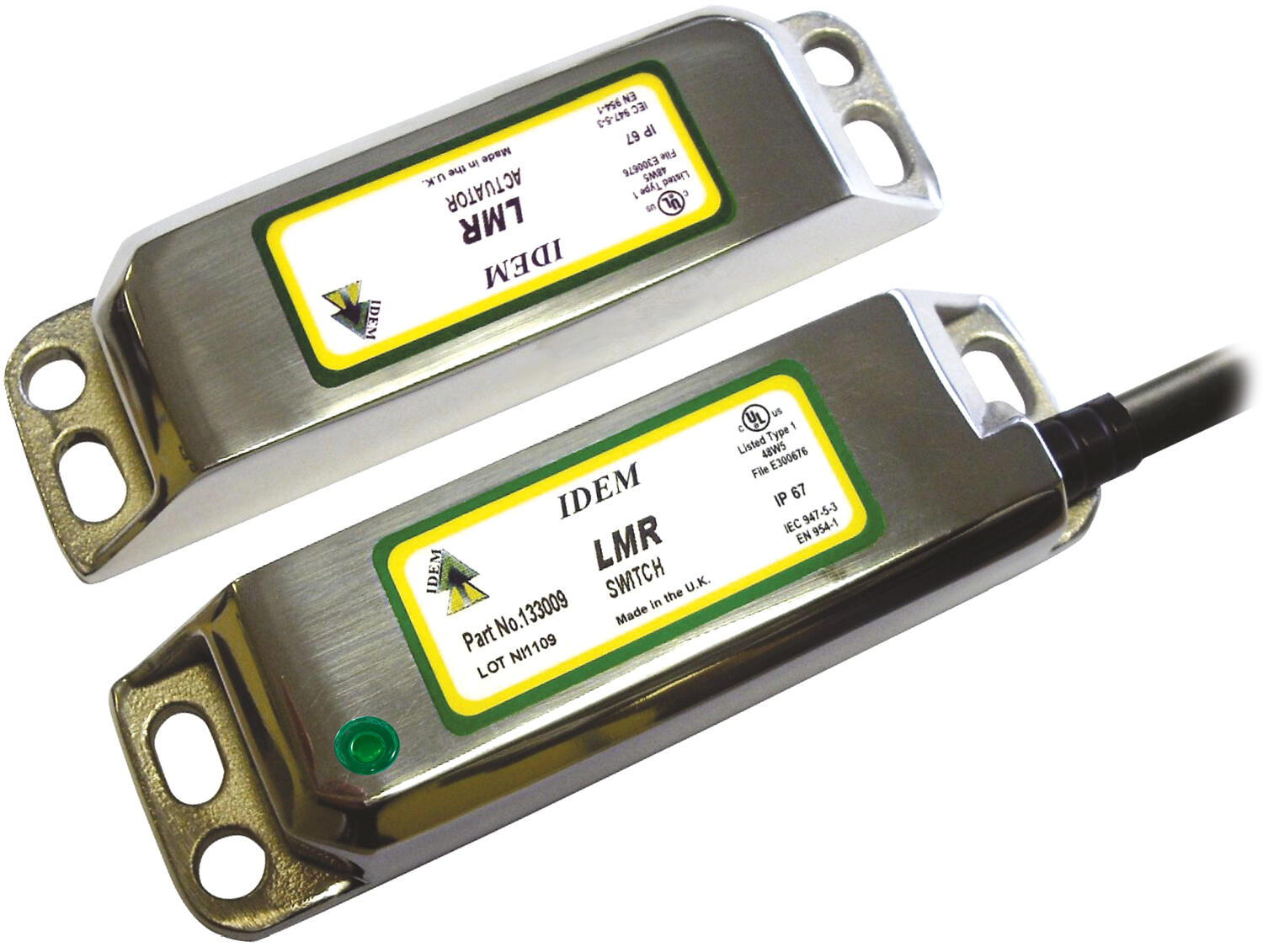

HYGIEMAG - LMR switch with LED is a magnetic switch made of stainless steel with a narrow and flat profile and high tolerance, which is ideally suited for applications in the food and pharmaceutical industry. It allows switching currents up to 1 A. The switch is resistant to pressure washing.
The switch is available in two versions:
Version 1. Green LED - lights up when the cover is closed.
Version 2. Red LED - lights up when the cover is open.
- Stainless steel housing
- Built-in LED
- Dimensions 88 mm x 25 mm
- Switching range 10 mm
- Output load up to 1 A
Selected variant
Technical data
| Approvals | ISO 13849-1, ISO 14119, EN60204-1, EN62061, EN60947-5-1, UL 508 |
|---|---|
| Cable length | 2 m |

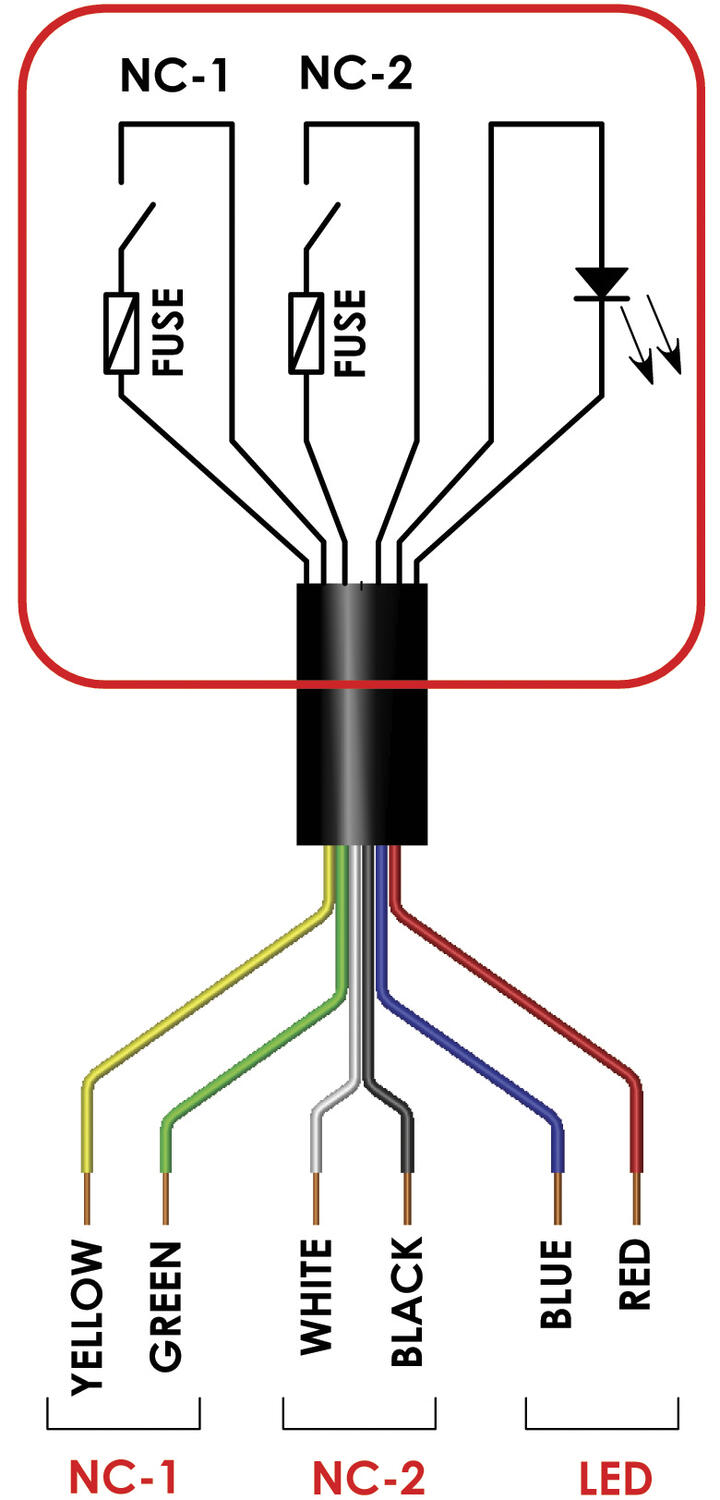

| Cable type | PVC 6 core 6mm OD conductors 0.25² |
| Coding | Not coded |
| Conductor size | 0.25 mm² |
| Contact rating max | 250Vac 1.0A |
| Contacts | 2NC |
| Housing material | Stainless steel 316 |
| Integrated LED indication | Yes |
| IP class | IP67, IP69K |
| LED indication | Green |
| LED supply voltage | 24 V DC |
|---|---|
| Mounting | 2 x M4 |
| Operating temperature | -25..105°C |
| PL | e acc. ISO13849-1 |
| Recommended mounting gap | 5 mm |
| SIL | 3 acc. EN62061 |
| Switching current min | 10Vdc 1mA |
| Switching distance | Sao 10mm open, Sar 22mm close |
| Switching frequency max | 1.0Hz maximum |
Product description
HYGIEMAG - LMR switch with LED is a magnetic switch made of stainless steel with a narrow and flat profile and high tolerance, which is ideally suited for applications in the food and pharmaceutical industry. It allows switching currents up to 1 A. The switch is resistant to pressure washing.
The switch is available in two versions:
Version 1. Green LED - lights up when the cover is closed.
Version 2. Red LED - lights up when the cover is open.
