CROUZET SWITCHES

Crouzet Switches - Series 83870 with embedded cable

  • IP66 & IP67
  • Housing made entirely from metal
  • Forced breaking contacts
  • cUL approved

Selected variant

Available in several variants
Crouzet_Switches_logo.eps

Save page as PDF

Technical data / Documents

Accessories & Related products

Selected variant

Technical data

Approvals UL 50, UL 508
Cable 0,75 mm²
Cable length 1000 mm
Contact type 1 x N/O, 1 x N/C
Conventional thermal current 10 A
IP class IP66, IP67, IP69
Power min 0.1 A
Rated current at 250 V ac 3 A
Temperature operational max 70 °C
Temperature operational min -25 °C
Voltage ac max 250 V
Voltage min 10 V

Downloads

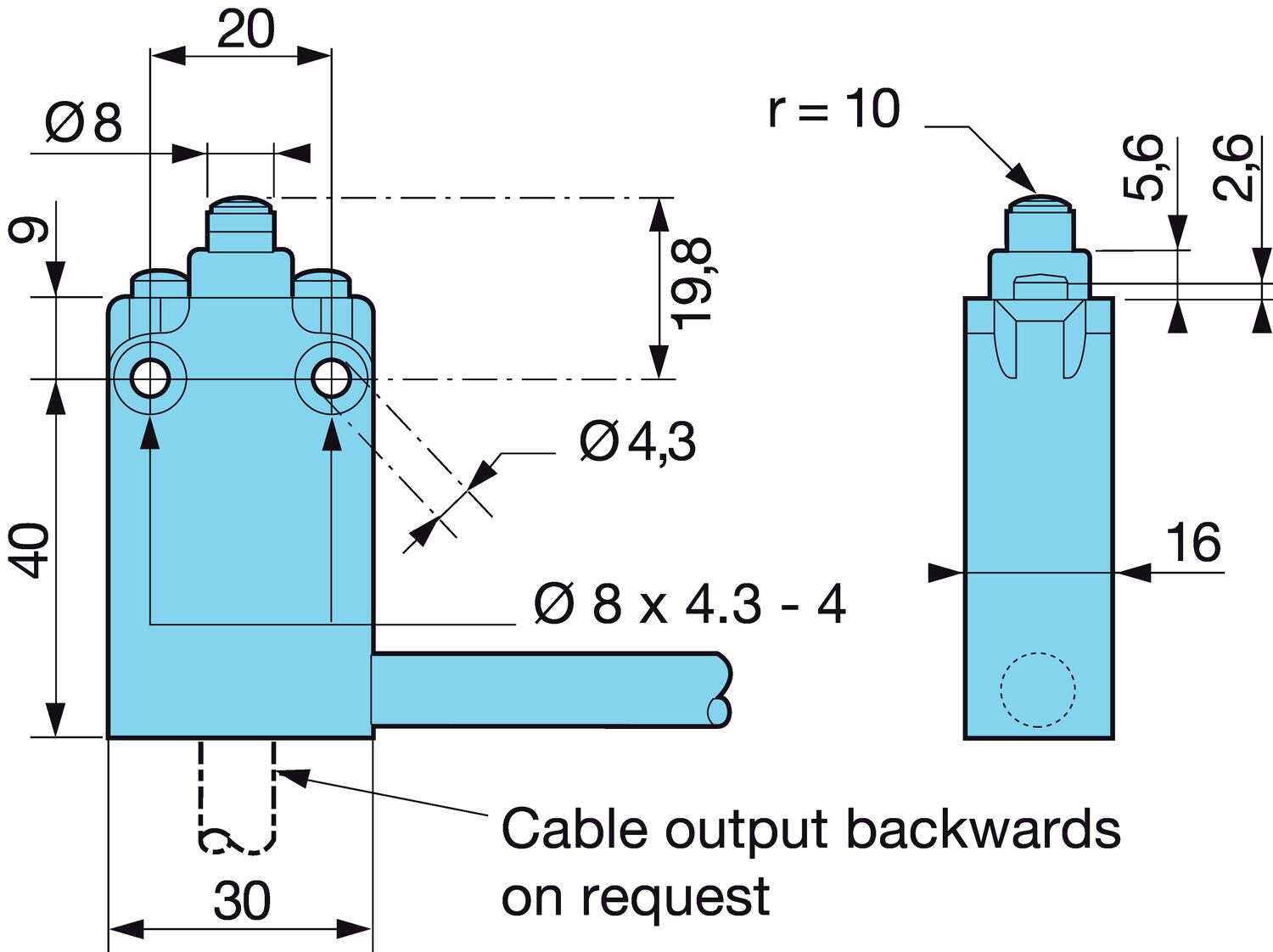

Measurements and connections

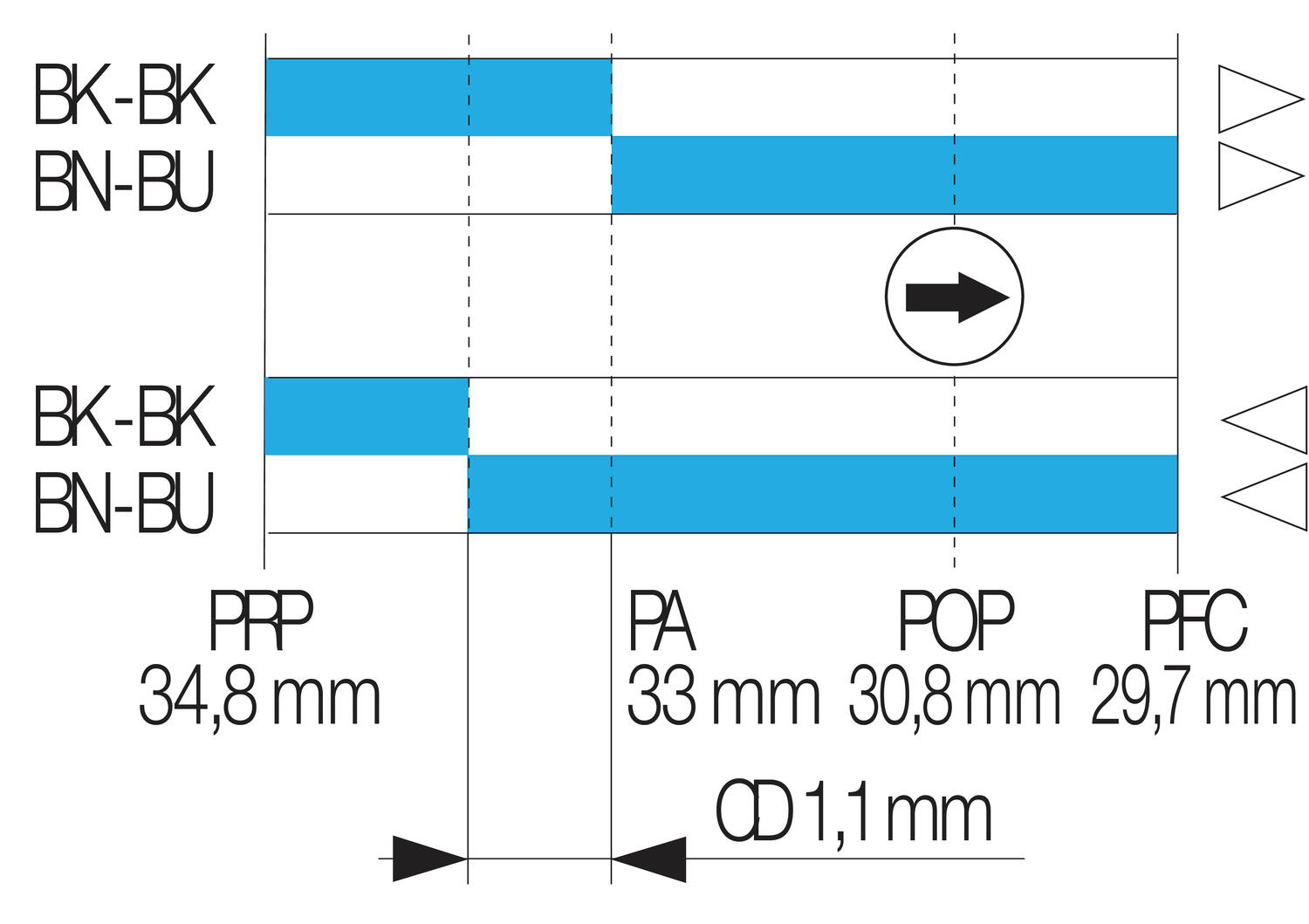

Technical illustrations

Accessories

Related products

Parts Price
Photo 83-870-101.
LIMIT SWITCH
Art:
83870101 Copied
Photo 83-871-101.
838710 ROLLER PLUNGER 1M CABLE
Art:
83871101 Copied
Photo 83-874-101.
METAL PLUNGER THREADED BARREL
Art:
83874101 Copied
Photo 83-872-101.
ROLLER PLUNGER THRD'D BARREL
Art:
83872101 Copied
Photo 83-873-101.
SIDE ROTARY ROLLER LEVER 1M
Art:
83873101 Copied
