DATASENSING

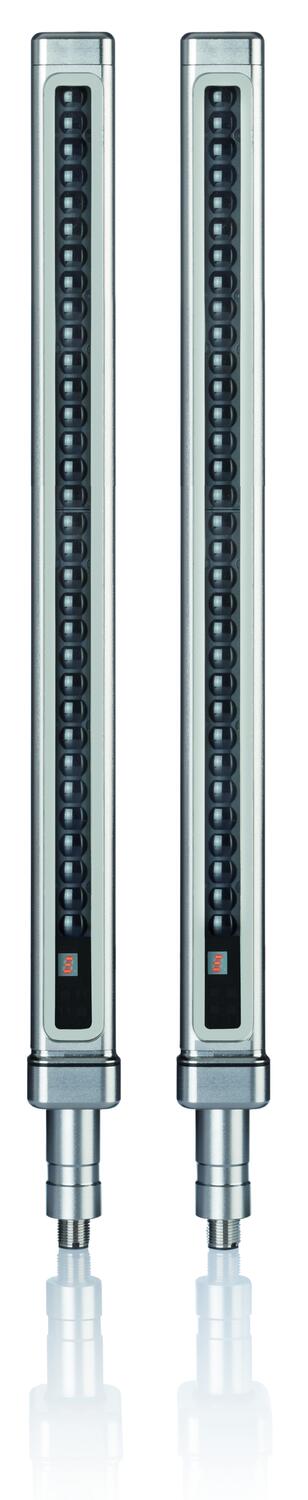

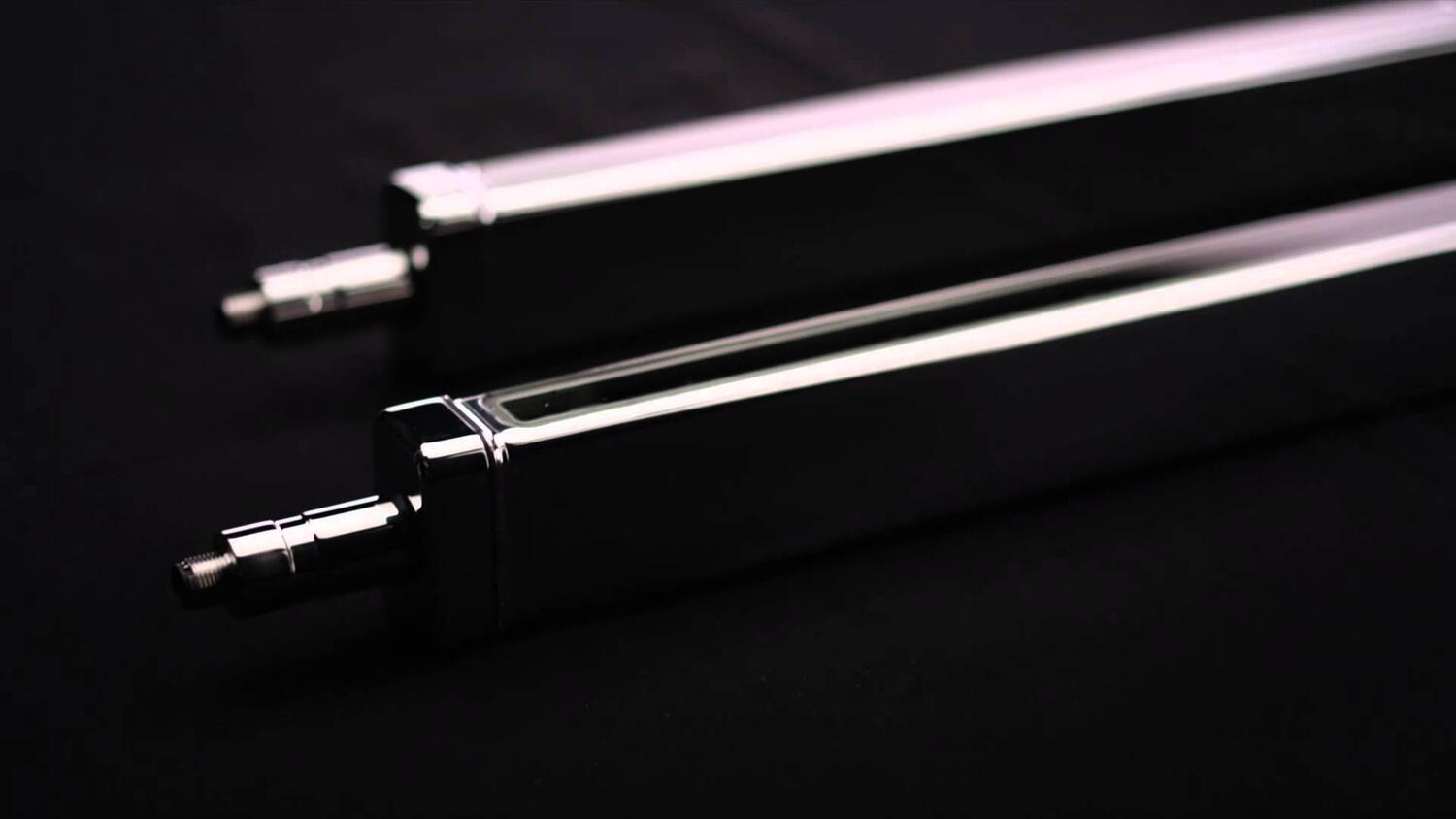

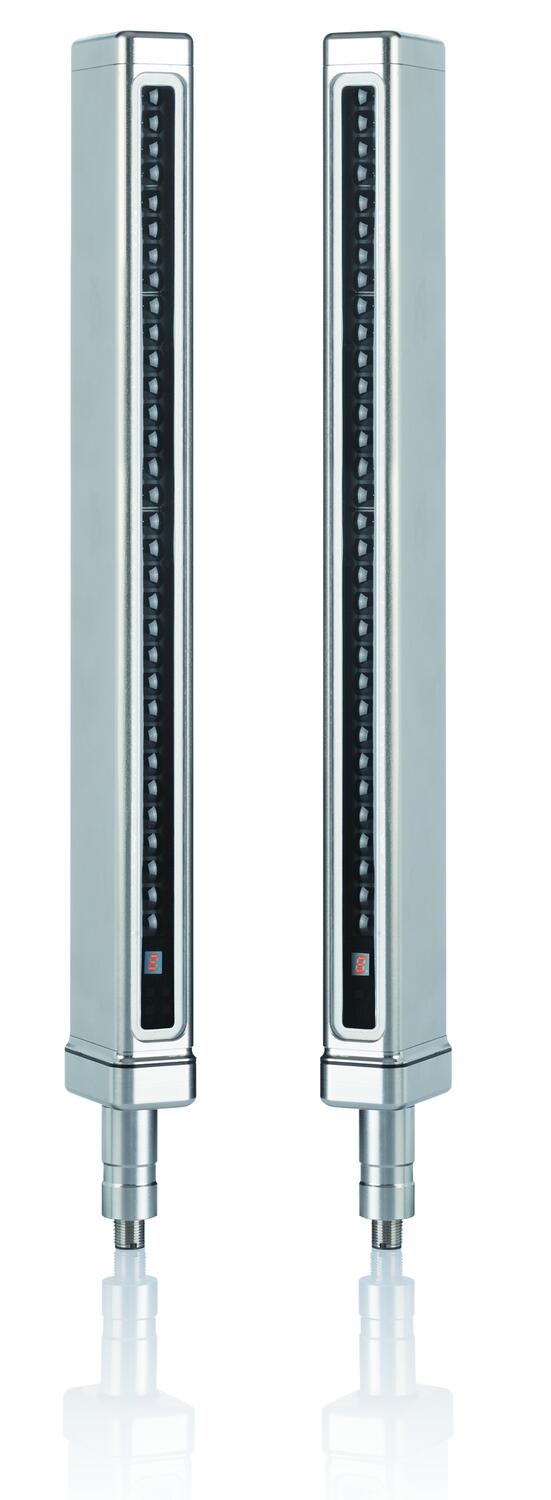

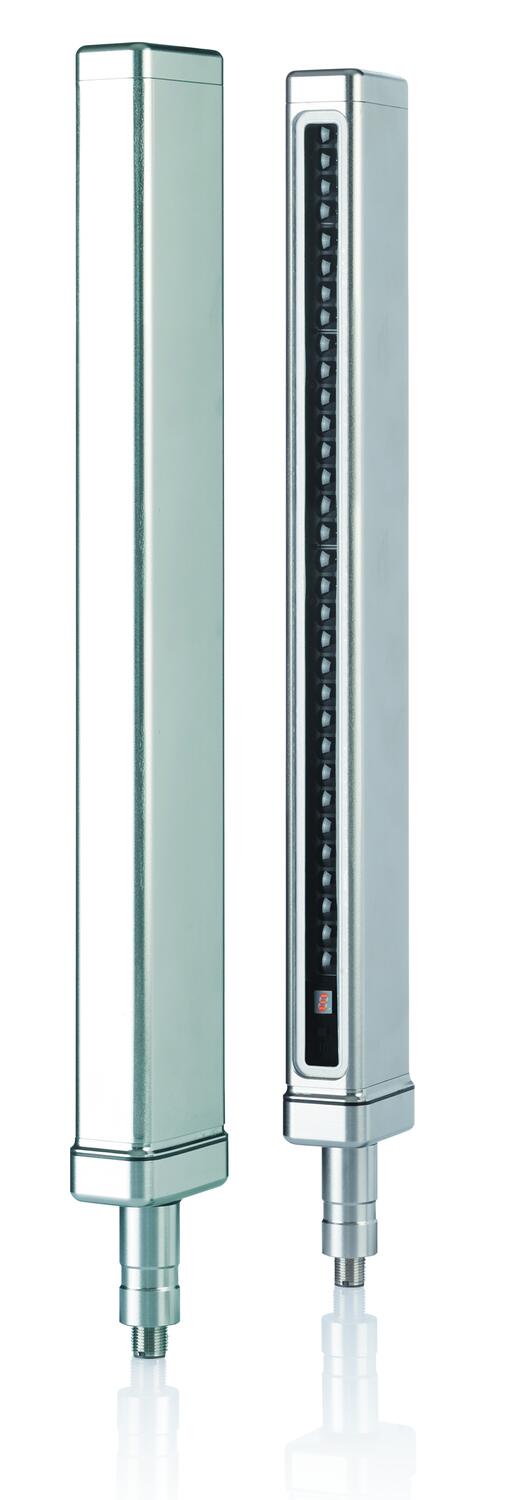

SG4-H safety light curtain offers finger protection with an IP69K stainless steel housing designed for the Pharma industry and a 6 metre range.
Â
This Type 4 light curtain maintains the highest safety level according to the latest safety standards EN ISO 13849-1 and EN 62061.
Â
SG4-H light curtain has two solid state safety outputs which are electronically monitored.
Â
Approvals | CE, cULus, TÜV |
---|---|

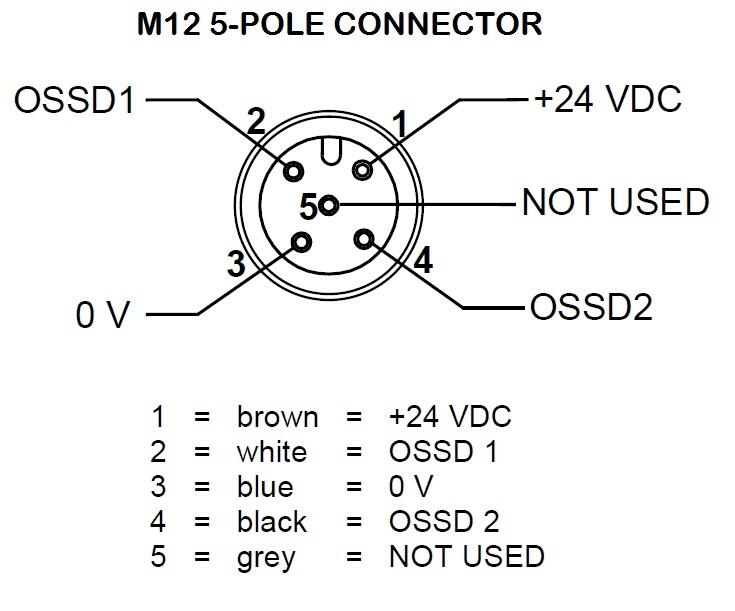

Cable connection receiver | M12, 5-pole |

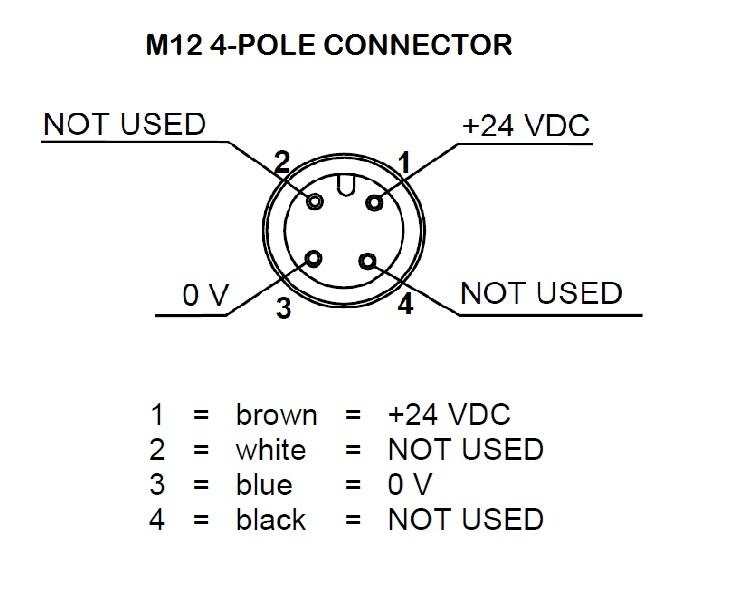

Cable connection transmitter | M12, 4-pole |
Cable length max | 50 m |
Contact current max | 0.5 A |
DC | 99 % |
Disconnection | 11 ms |
In compliance with | EMC, LVD, MD |
IP class | IP65 |
Material of body | Stainless steel 316L |
MTTFd | 444 year(s) |
Number of beams | 16 |
PL | e (EN ISO 13849-1) |
Power consumption | Transmitter 2,5W. Receiver 3,5W. (without load) |
Protection field | 150 mm |
Range | 0,2-6 m |
---|---|
Resolution | 14 mm |
Safe outputs | 2 OSSD |
SFF | 99,30 % |
SIL | 3 (EN IEC 62061) |
Storage temperature max | 70 °C |
Storage temperature min | -25 °C |
Supply voltage | 24 V DC, stabilized |
T1 (Life time in years) | 20 |
Temperature operational max | 55 °C |
Temperature operational min | -10 °C |
Type | 4 |
Voltage tolerance | ±20 % |
SG4-H safety light curtain offers finger protection with an IP69K stainless steel housing designed for the Pharma industry and a 6 metre range.
Â
This Type 4 light curtain maintains the highest safety level according to the latest safety standards EN ISO 13849-1 and EN 62061.
Â
SG4-H light curtain has two solid state safety outputs which are electronically monitored.
Â
New signal lights from Auer Signal are now available! The first products to be launched in this series are the Smart Dot 50 in the Basic and Standard versions, as well as the Smart Indicator 50 in the Basic version.Â
Optimise your production line with encoders, inclinometers, displays and slip rings
Designed for high-performance safety applications such as material handling, conveyors, robotics, and system integration. OEM Automatic is excited to announce its latest supplier partnership with Hokuyo
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
ATEX ensures that both equipment and work processes are designed to minimize these risks and create a safe working environment.
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Parts | Cable connection receiver | Cable connection transmitter | Disconnection | Number of beams | Power consumption | Protection field | Safe outputs | SFF | Supply voltage | Type | Price | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]()
Stainless steel Light Curtain
Art:
SG4-H14-015-OO-X-B
Copied
|
M12, 5-pole
|
M12, 4-pole
|
11 ms
|
16
|
Transmitter 2,5W. Receiver 3,5W. (without load)
|
150 mm
|
2 OSSD
|
99,30 %
|
24 V DC, stabilized
|
4
|
| ||
![]()
Stainless steel Light Curtain
Art:
SG4-H14-030-OO-X-B
Copied
|
M12, 5-pole
|
M12, 4-pole
|
15 ms
|
32
|
Transmitter 2,5W. Receiver 3,5W. (without load)
|
300 mm
|
2 OSSD
|
99,30 %
|
24 V DC, stabilized
|
4
|
| ||
![]()
Stainless steel Light Curtain
Art:
SG4-H14-045-OO-X-B
Copied
|
M12, 5-pole
|
M12, 4-pole
|
18 ms
|
48
|
Transmitter 2,5W. Receiver 3,5W. (without load)
|
450 mm
|
2 OSSD
|
99,30 %
|
|
4
|
| ||
|
|
11 ms
|
16
|
|
150 mm
|
|
|
|
|
| |||
|
|
15 ms
|
32
|
|
300 mm
|
|
|
|
|
| |||
|
|
18 ms
|
48
|
|
450 mm
|
|
|
|
|
|
Select a variant in the list
