Kuebler - Wire Encoders D135

The Kübler wire generators are designed for demanding applications, for example within the machine building segment. The systems are robustly built with aluminum housing resistant to tough environments, they can handle high speed and have long life. The D135 series comes with analogue, incremental or absolute (SSI / BiSS, CANopen, Profibus, EtherCAT, Profinet or DeviceNet) outputs, and up to 42 500mm drag wires.

Read more
  • Max measuring length 40000 mm
  • -20° to +85°C
  • Ready speeds up to 10 m / s
  • Titan-anodized aluminum housing

Selected variant

Available in several variants

Selected variant

Technical data

Product description

The Kübler wire generators are designed for demanding applications, for example within the machine building segment. The systems are robustly built with aluminum housing resistant to tough environments, they can handle high speed and have long life. The D135 series comes with analogue, incremental or absolute (SSI / BiSS, CANopen, Profibus, EtherCAT, Profinet or DeviceNet) outputs, and up to 42 500mm drag wires.

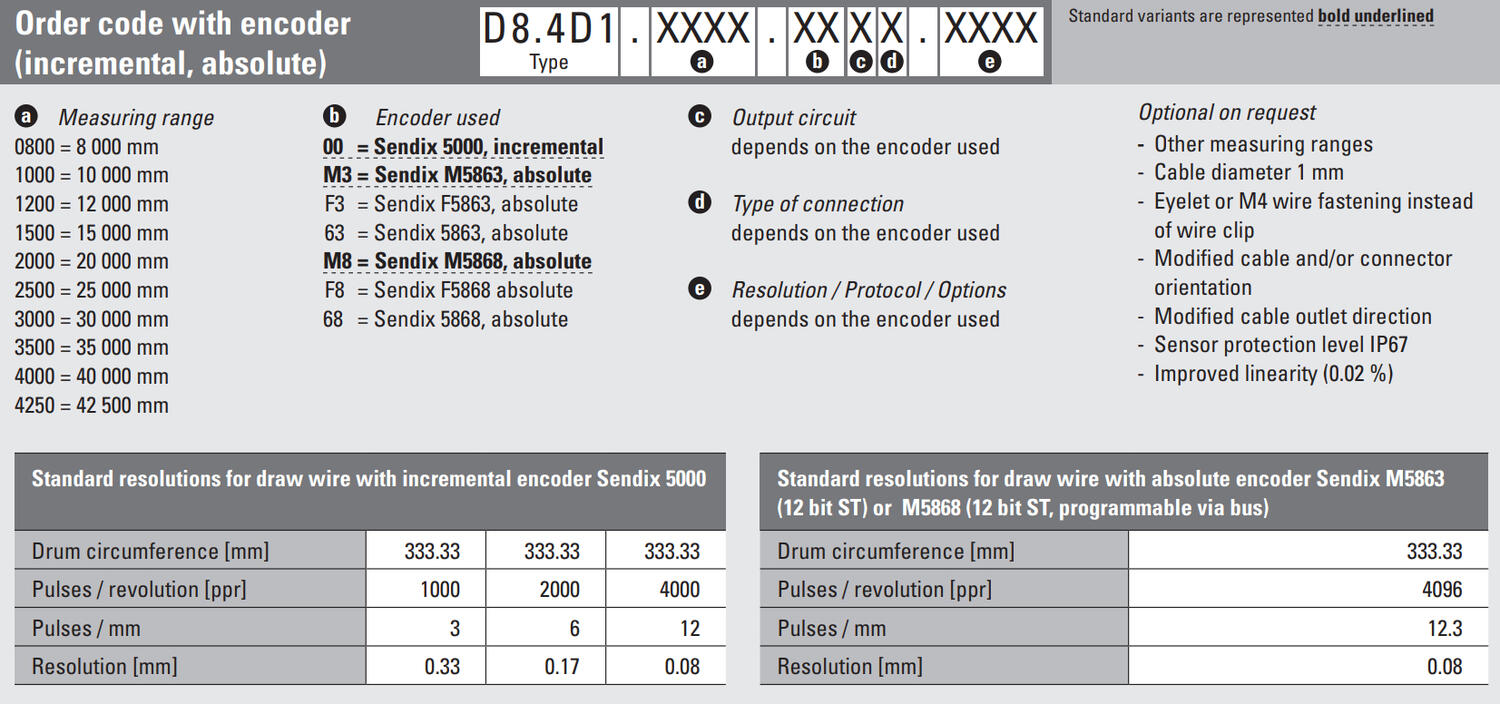

Ordering information

Please refer to the images below for ordering information.

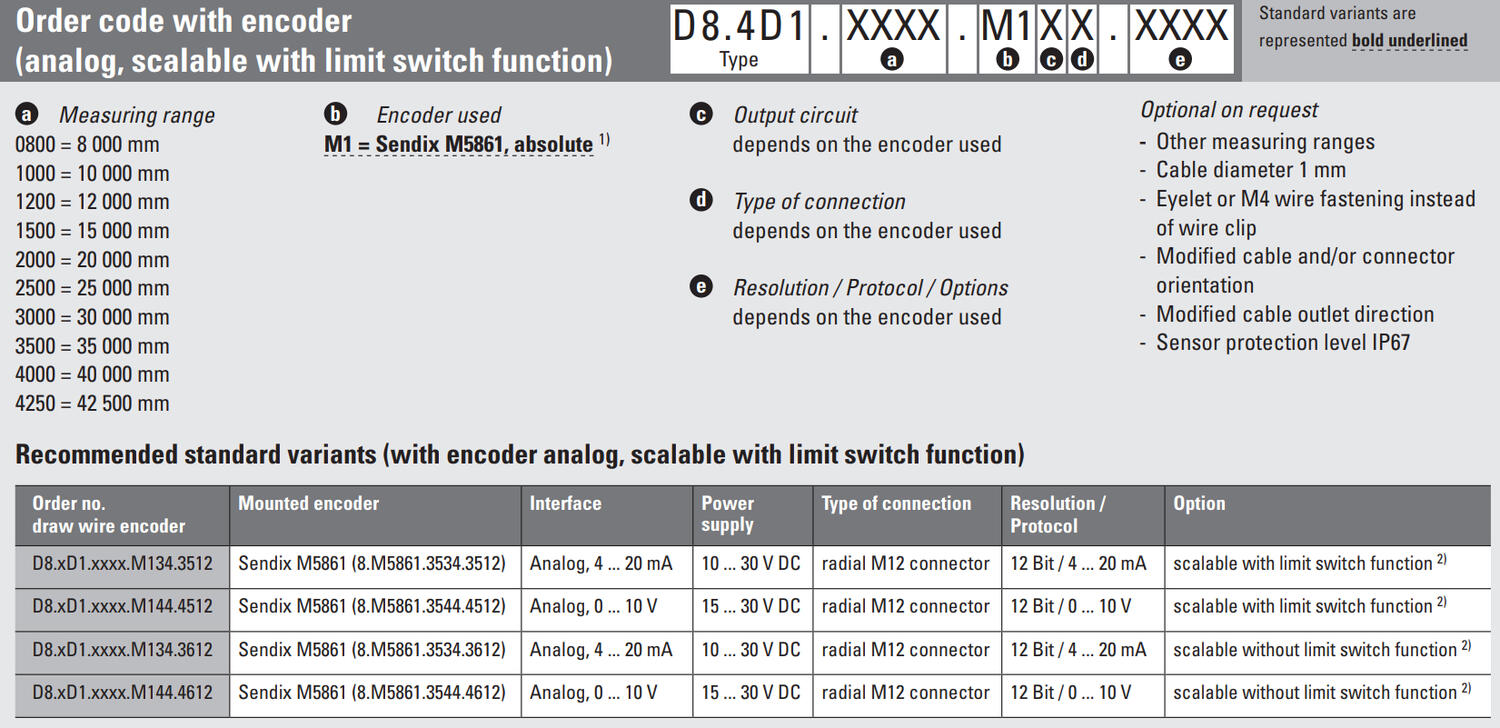

d135 1.png

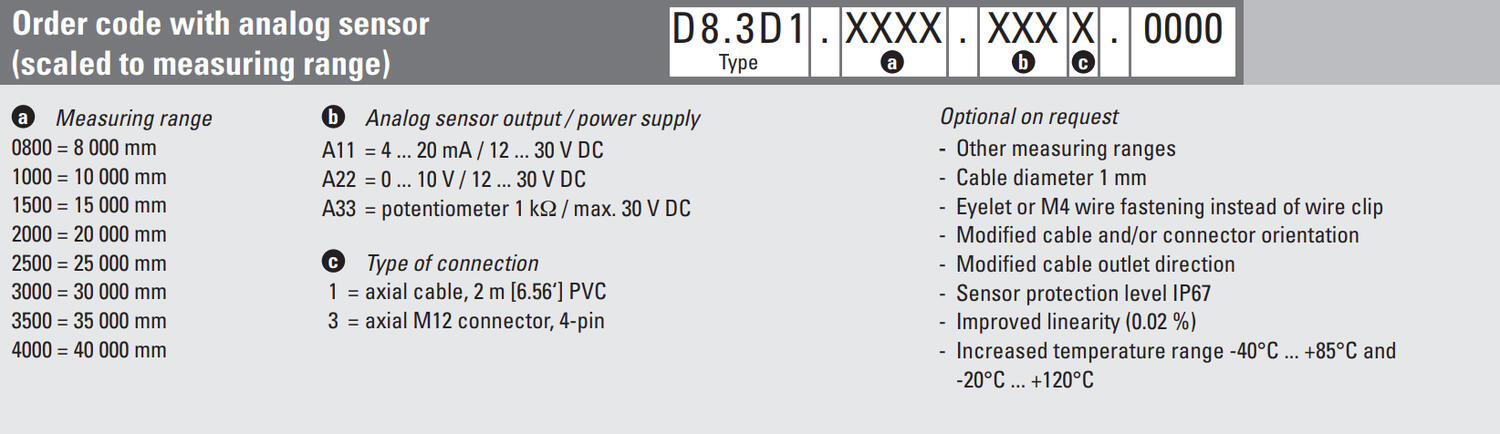

d135 2.png
