KÜBLER
Kuebler - Absolute-coded Angular Transmitter Sendix M3661R, Magnetic, Analogue, Ø36 mm
Sendix M3661R is a magnetically encoded absolute encoder with the latest in multi-color technology with "Energy Harvesting". Energy Harvesting technology is based on magnetic recharging, eliminating both battery and gear.
In addition to multi-color technology, the M3661R has been equipped with extra strong ball bearings and secure attachments, also known as "Safety-Lockplus ™".
A unique multifarve pulse sensor with high IP classifications: IP66, IP67 and IP69K, available in stainless steel (V4A).
- Housing diameter Ø36 mm
- Analogue output
- IP66, IP67, IP69K
- Stainless steel model
Selected variant
Technical data

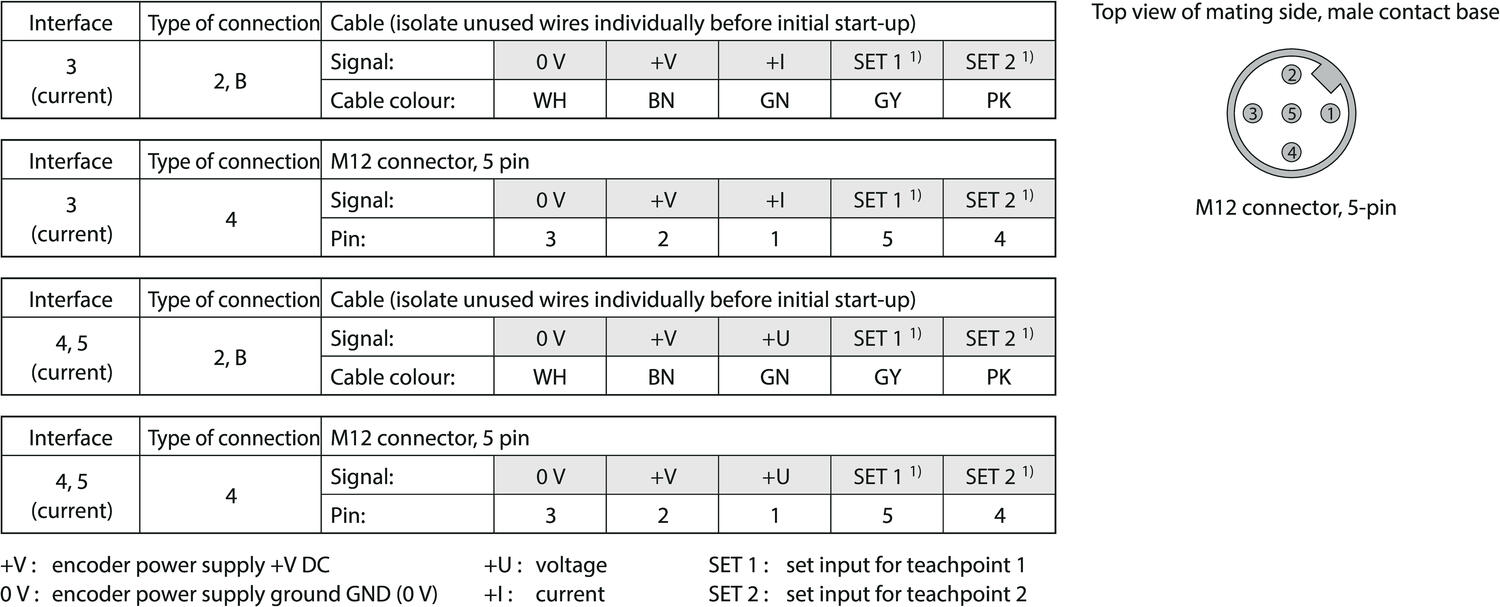

| Connection | Cable, M12 |
|---|---|
| Housing diameter | 36 mm |
| IP class | IP66, IP67, IP69K |
| Mounting | Shoulder |
| Output | Analog |
| Resolution | 4-20 mA: 12 bit, 0-10 V: 12 bit, 0-5 V: 11 bit |
| Sensor type | Absolute |
| Shaft diameter max | 10 mm |
| Shaft diameter min | 6 mm |
|---|---|
| Supply voltage dc max | 30 V DC |
| Supply voltage dc min | 10 V DC |
| Temperature operational max | 85 °C |
| Temperature operational min | -40 °C |
| Version | Multiturn |
Product description
Sendix M3661R is a magnetically encoded absolute encoder with the latest in multi-color technology with "Energy Harvesting". Energy Harvesting technology is based on magnetic recharging, eliminating both battery and gear.
In addition to multi-color technology, the M3661R has been equipped with extra strong ball bearings and secure attachments, also known as "Safety-Lockplus ™".
A unique multifarve pulse sensor with high IP classifications: IP66, IP67 and IP69K, available in stainless steel (V4A).

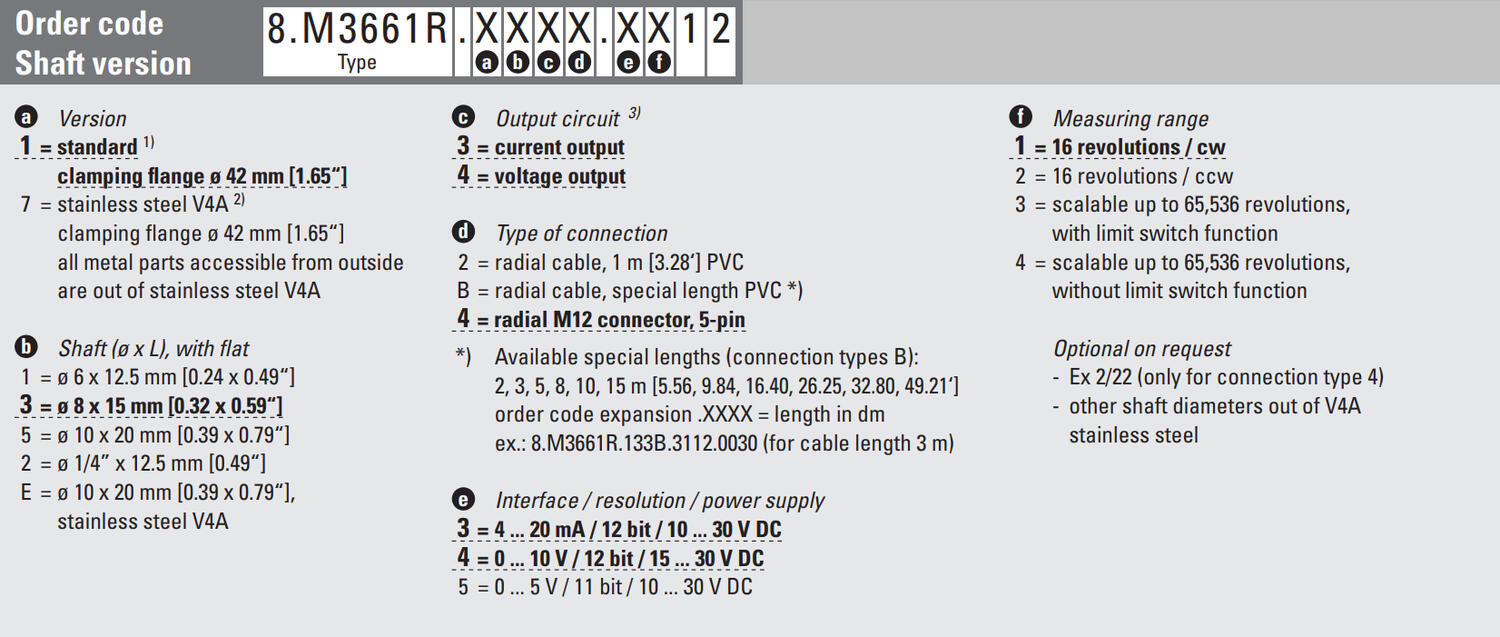

Ordering information
Please refer to the image below for ordering information.
