Cable diameter | 5,3 +0,30/-0,10 mm |
---|---|
Cable length | 2 m |

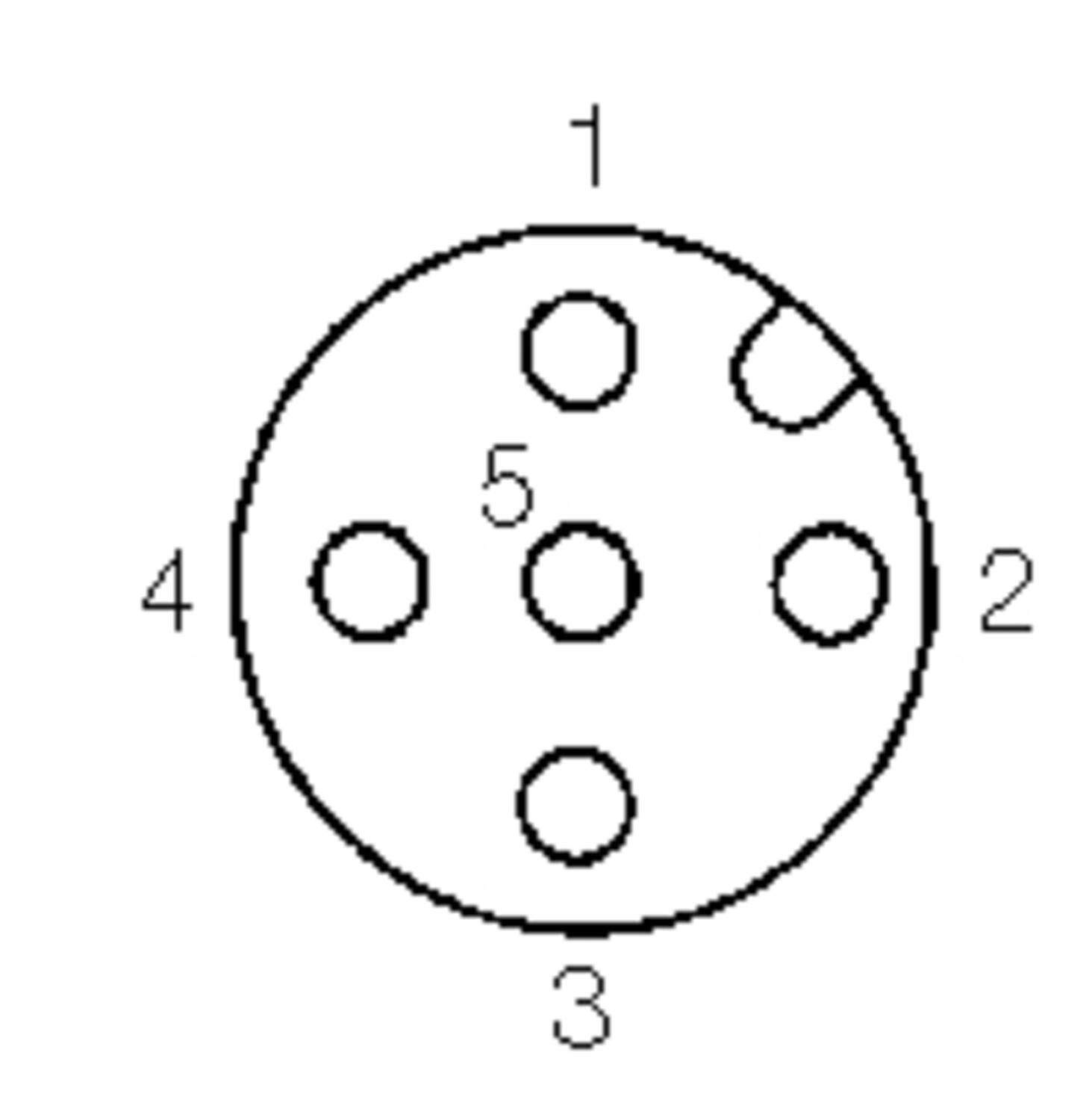

Coding | A |
Colour cable | Black |
Connection | Ultra-Lock |

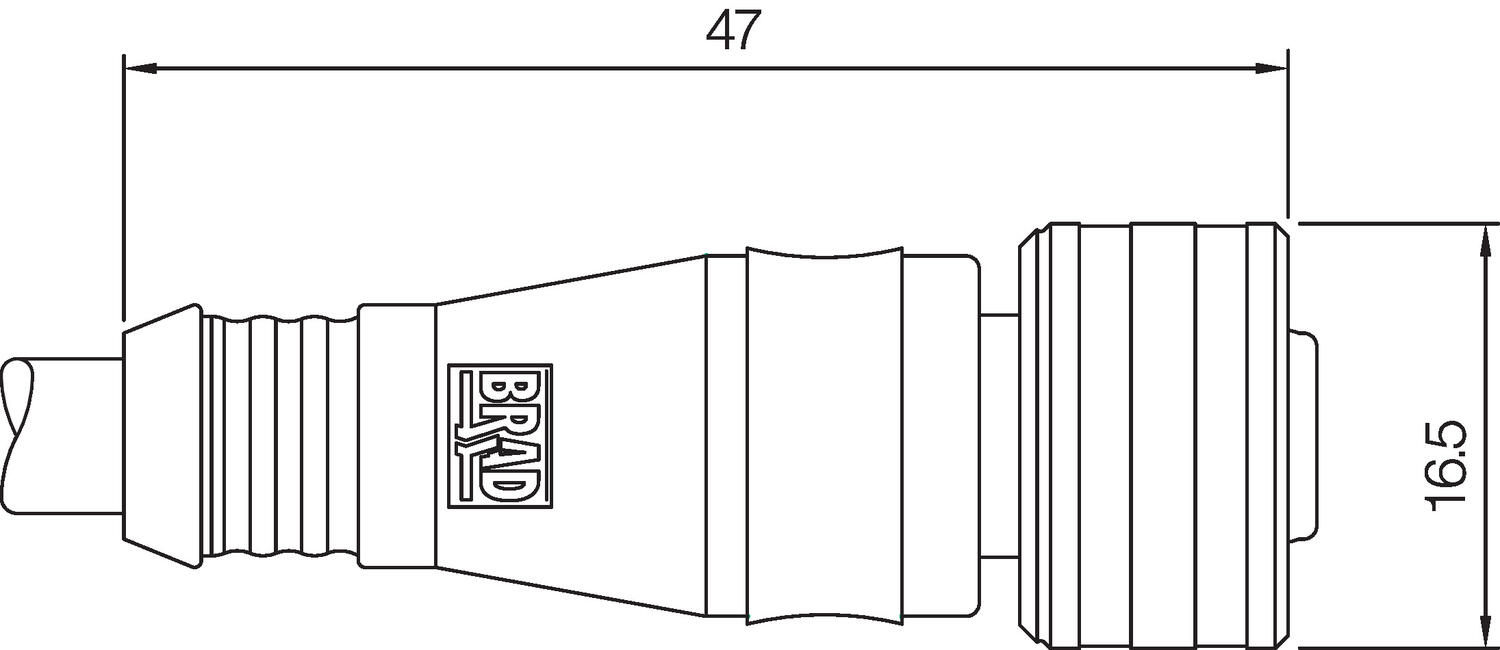

Contact embodiment | Straight female |
Drag Chain Tested | No |
IP class | IP67, IP68, IP69K |
LED indicator | No |
Material of connection | Metal |
Number of poles | 3 |
---|---|
Rated current | 4 A |
Rated wire cross section | 0.34 mm² |
Shielded | No |
Temperature range fixed use from | -30 °C |
Temperature range flexible use from | -5 °C |
Temperature range flexible use to | 80 °C |
Voltage max | 250 V |
Whether you're working with opaque materials or transparent items like glass or plastic, these sensors deliver reliable performance across a wide range of applications.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
New signal lights from Auer Signal are now available! The first products to be launched in this series are the Smart Dot 50 in the Basic and Standard versions, as well as the Smart Indicator 50 in the Basic version.
Optimise your production line with encoders, inclinometers, displays and slip rings
Designed for high-performance safety applications such as material handling, conveyors, robotics, and system integration. OEM Automatic is excited to announce its latest supplier partnership with Hokuyo
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Parts | Cable length | Contact embodiment | Number of poles | Price | ||
---|---|---|---|---|---|---|
![]()
Cordset UL.12-F-ST-3p-2m
Art:
W03000P03M020
Copied
|
2 m
|
Straight female
|
3
|
| ||
![]()
Cordset UL.12-F-ST-3p-5m
Art:
W03000P03M050
Copied
|
5 m
|
Straight female
|
3
|
| ||
![]()
Cordset UL.12-F-ST-3p-10m
Art:
W03000P03M100
Copied
|
10 m
|
Straight female
|
3
|
| ||
![]()
Cordset UL.12-F-ST-4p-2m
Art:
W04000P03M020
Copied
|
2 m
|
Straight female
|
4
|
| ||
![]()
Cordset UL.12-F-ST-4p-5m
Art:
W04000P03M050
Copied
|
5 m
|
Straight female
|
4
|
| ||
![]()
Cordset U12 RAK 10m PUR
Art:
W04000P03M100
Copied
|
10 m
|
Straight female
|
4
|
| ||
![]()
Cordset U12 90° 2m PUR
Art:
W03001P03M020
Copied
|
2 m
|

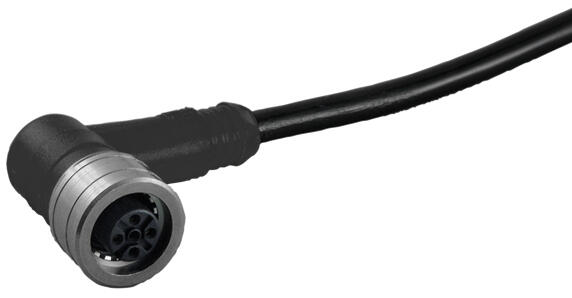

Angled female
|
3
|
| ||
![]()
Cordset UL.12-F-90-3p-5m
Art:
W03001P03M050
Copied
|
5 m
|
Angled female
|
3
|
| ||
![]()
Cordset U12 90° 10m PUR
Art:
W03001P03M100
Copied
|
10 m
|
Angled female
|
3
|
| ||
![]()
Cordset UL.12-F-90-4p-2m
Art:
W04001P03M020
Copied
|
2 m
|
Angled female
|
4
|
| ||
![]()
UL.M12-4P-FE-90-5M-PUR
Art:
W04001P03M050
Copied
|
5 m
|
Angled female
|
4
|
| ||
![]()
Cordset U12 90° 10m PUR
Art:
W04001P03M100
Copied
|
10 m
|
Angled female
|
4
|
|
Select a variant in the list
