General Data |
|
|---|---|
| Connection | 3/4 BSP |
| Flow factor / flow coefficient | 14 |
| IP class | IP65 |
Material Data |
|
| Material body | Aluminium |
| Material of seals | NBR |
Temperature Data |
|
| Temperature of media from | -20 °C |
| Temperature of media to | 85 °C |
Additional Data |
|
|---|---|
| Pressure max | 10 bar |
| Weight | 0.7 kg |
| Power consumption | 6 W |
| Throughput | 25 mm |
| Voltage AC | 230 V |
| Temperature operational min | -20 °C |
| Temperature operational max | 85 °C |
| Material coil | Epoxy |
| Differential air pressure max | 8.5 bar |
| Differential pressure min | 0.35 bar |
| Flow max | 233 l/min |
| Function 1 | 2/2 |
| Function 2 | Normally Closed |
| Material plunger | Stainless steel |
| Material short-circuit ring | Copper |
| Material spring | Stainless steel |
| Material membrane | TPE |
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Connection | Flow factor / flow coefficient | Weight | Power consumption | Throughput | Differential air pressure max | Differential pressure min | Flow max | Material membrane | Differential pressure max | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

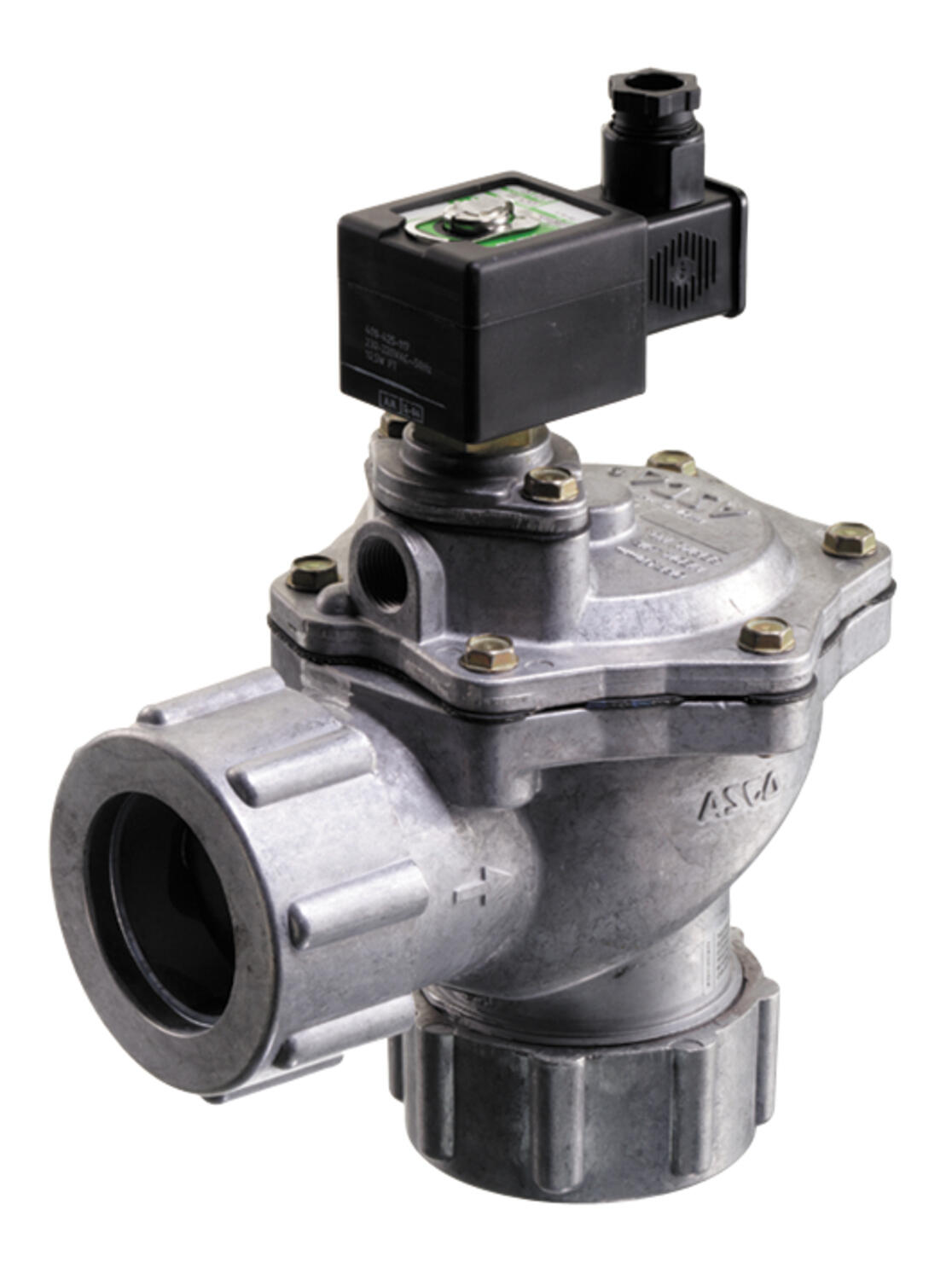

Solenoid pulse valve 2/2 NC 3/4" 230VAC Thread
Art:
SCG353A043
Copied
|
3/4 BSP
|
14
|
0.7 kg
|
6 W
|
25 mm
|
8.5 bar
|
0.35 bar
|
233 l/min
|
TPE
|
|
|
||
|
Solenoid pulse valve 2/2 NC 1" 230VAC Thread
Art:
SCG353A044
Copied
|
G1
|
17
|
0.65 kg
|
6 W
|
25 mm
|
8.5 bar
|
0.35 bar
|
283 l/min
|
TPE
|
|
|
||
|
Solenoid pulse valve 2/2 NC 1.1/2" 230VAC Thread
Art:
SCG353A047
Copied
|
1 1/2 BSP
|
44
|
1.4 kg
|
10.5 W
|
50 mm
|
8.5 bar
|
0.35 bar
|
733 l/min
|
Neoprene
|
|
|
||
Solenoid pulse valve 2/2 NC 3/4" 230/50 quick con
Art:
SCG353052
Copied
|
3/4 BSP, Compression fittings
|
14
|
0.85 kg
|
6 W
|
25 mm
|
8.5 bar
|
0.35 bar
|
233 l/min
|
TPE
|
|
|
||
|
Solenoid pulse valve 2/2 NC 1" 230/50 quick con
Art:
SCG353053
Copied
|
G1, Compression fittings
|
14
|
0.7 kg
|
6 W
|
25 mm
|
8.5 bar
|
0.35 bar
|
233 l/min
|
TPE
|
|
|
||
|
Solenoid pulse valve 2/2 NC 2" 230/50 thread
Art:
SCG353050
Copied
|
G2
|
77
|
2.9 kg
|
10.5 W
|
66 mm
|
8.5 bar
|
0.35 bar
|
1290 l/min
|
Neoprene
|
|
|
||
|
Solenoid pulse valve 2/2 NC 2.1/2" 230/50 thread
Art:
SCG353051
Copied
|
2 1/2 BSP
|
92
|
2.6 kg
|
10.5 W
|
66 mm
|
8.5 bar
|
0.35 bar
|
1540 l/min
|
Neoprene
|
|
|
||
|
Solenoid pulse valve 2/2 NC 3" 230/50 thread
Art:
SCG353060
Copied
|
G3
|
170
|
4.1 kg
|
10.5 W
|
76 mm
|
6 bar
|
1 bar
|
2833 l/min
|
Neoprene
|
6 bar
|
|
