Valco - Side Mount Level Switch- ML Series

The ML series level switches are a simple, reliable and economic solution for the control of level in applications where space and ease of installation are compulsory.

Polypropylene or PVDF materials
Working pressure up to 6 bar
Working temperature up to 130°C
Reed switch SPST or SPDT
IP65 Protection class

Selected variant

Save page as PDF

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

Current	0.5AC/0.7DC
Electrical connection	Pre-cabled 1.5m
Function	N/O & N/C
Manufacturer part no.	S1.PML.3D.GC-.Z.C1
Material of seals	FKM
Material of wetted parts	Polypropylene

Mounting	Horizontal
Pressure max	3 bar
Specific gravity	0.6
Temperature operational max	90 °C
Voltage	300AC/350DC

Downloads

Datablad Level switch S1.pdf

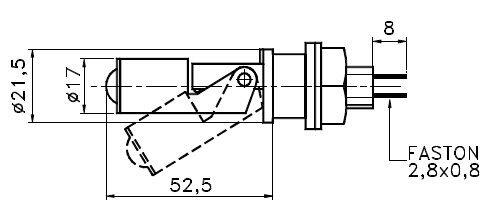

Measurements and connections

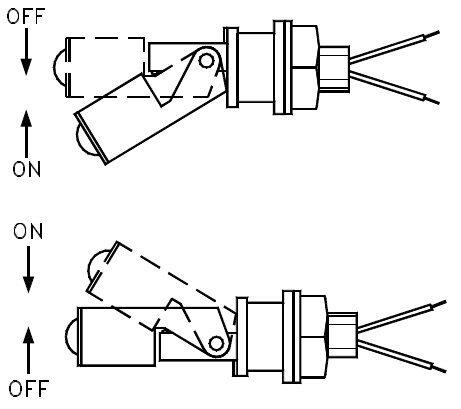

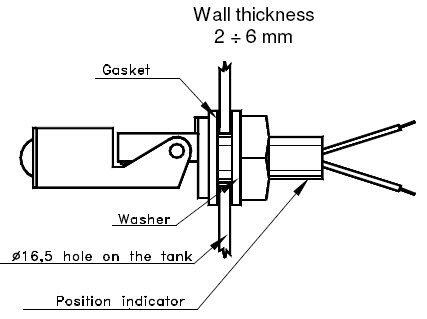

Technical illustrations

Product description

The ML series level switches are a simple, reliable and economic solution for the control of level in applications where space and ease of installation are compulsory.

Accessories

Related

SAMOA pumps

We offer air diaphragm pumps by SAMOA

Pumps are now officially part of our product offering! As we build our pump portfolio, we’re proud to announce that we are an official distributor of SAMOA Industrial, a well-established name in the fluid handling industry.

jungs process systems hyghspin

7 advantages of using HYGHSPIN twin screw pumps

This blog post demonstrates 7 strong reasons production plants choose the HYGHSPIN twin screw pump by Jung Process Systems

suco pressure switches

Select the pressure switch for you a step by step guide

When selecting a SUCO mechanical pressure switch, it's essential to consider several key factors...

emerson 327c

Product news Blog

Function test without opening the enclosure Emerson 327c

When it comes to solenoid valves, reliability and ease of maintenance are essential. That’s why our new Emerson, high flow solenoid valve is designed with unique features that streamline testing, commissioning, and ongoing operation.

IATECH, the industrial automation technology exhibition OEM automatic

Recap of IATECH

Did you get a chance to visit IATECH at The Leicester Marriott Hotel? We had over 33 exhibitors and 8 fantastic Tech Talks throughout the day, Read all about the day, here.

Valve actuation OEM automatic

Product news Company news

Our Valve Actuation Service

Did you know that OEM Automatic has been successfully providing valve actuation solutions?

	Parts	Electrical connection	Manufacturer part no.	Material of wetted parts	Pressure max	Specific gravity	Temperature operational max	Price
	53mm length, Polypropylene, NC/NO, 1.5M cable, Max 3 bar Art: 00.0002.5675 Copied	Pre-cabled 1.5m	S1.PML.3D.GC-.Z.C1	Polypropylene	3 bar	0.6	90 °C
	53mm length, Polypropylene, NC/NO, 3M cable, Max 3 bar Art: 00.0002.8284 Copied	Pre-cabled 3m	S1.PML.3D.GC-.Z.C2	Polypropylene	3 bar	0.6	90 °C
	53mm length, Polypropylene, NC/NO, 5M cable, Max 3 bar Art: 00.0002.7665 Copied	Pre-cabled 5m	S1.PML.3D.GC-.Z.C5M	Polypropylene	3 bar	0.6	90 °C
	53mm length, Polypropylene, NC/NO, 10M cable, Max 3 bar Art: 00.0002.9100 Copied	Pre-cabled 10m	S1.PML.3D.GC-.Z.C10M	Polypropylene	3 bar	0.6	90 °C
	53mm length, PVDF, NC/NO, 1.5M cable, Max 6 bar Art: 00.0002.8790 Copied	Pre-cabled 1.5m	S1.FML.3D.GC-.Z.C1	PVDF	6 bar	0.75	130 °C
	53mm length, PVDF, NC/NO, 3M cable, Max 6 bar Art: 00.0002.5910 Copied	Pre-cabled 3m	S1.FML.3D.GC-.Z.C2	PVDF	6 bar	0.75	130 °C
	53mm length, PVDF, NC/NO, 5M cable, Max 6 bar Art: 00.0002.7719 Copied	Pre-cabled 5m	S1.FML.3D.GC-.Z.C5M	PVDF	6 bar	0.75	130 °C
	53mm length, PVDF, NC/NO, 10M cable, Max 6 bar Art: 00.0002.9119 Copied	Pre-cabled 10m	S1.FML.3D.GC-.Z.C10M	PVDF	6 bar	0.75	130 °C
