TECNOPLASTIC

Tecnoplastic - Float switch - Fox

The FOX level switch is one of the most popular styles of level switch and is used throughout industry.  This level regulator is extremely cost effective and can be used in many ways for automated control of liquid levels in various applications.



  • Water pumps
  • Professional plumbing systems automation
  • Irrigation systems
Read more
  • Maximum depth of 10 metres
  • Single or double function
  • Up to 60°C
  • Cost effective

Selected variant

Available in several variants

Save page as PDF

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

Activation angle 45 °
Approvals CE, EAC, TÜV
Cable length 0.52 m
Cable type H07RN-F
Counterweight included No
Depth max 10 m
Function N/O & N/C
Insulation class I-II
IP class IP68
Material of float Polypropylene
Operating temperature to 50 °C
Rated current 8 A
Specific gravity 0.7 kg/dm³
Supply voltage 250 V

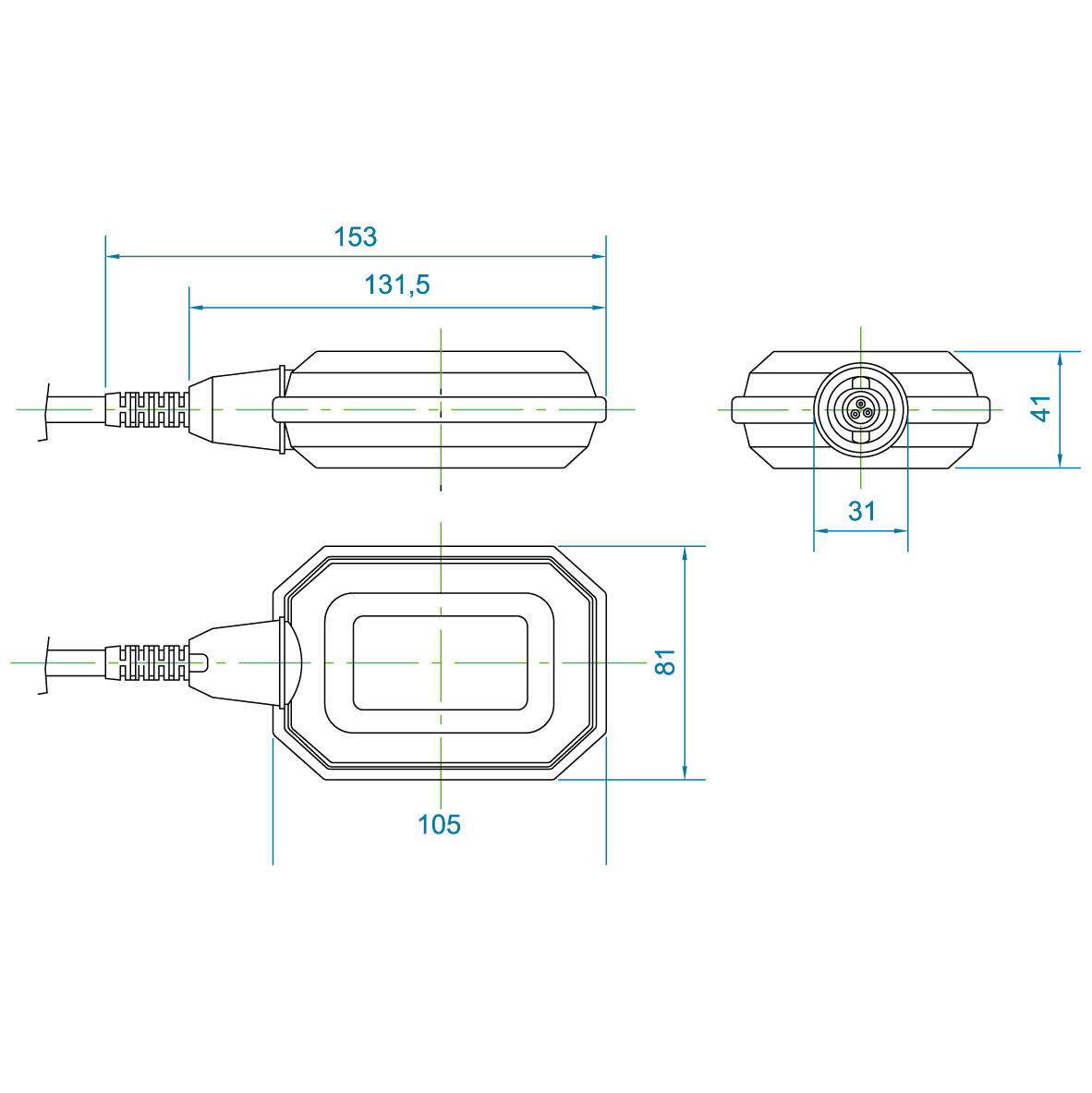

Measurements and connections

Technical illustrations

Product description

The FOX level switch is one of the most popular styles of level switch and is used throughout industry.  This level regulator is extremely cost effective and can be used in many ways for automated control of liquid levels in various applications.



  • Water pumps
  • Professional plumbing systems automation
  • Irrigation systems

Accessories

Related products

Parts Cable length Cable type Counterweight included Function Price
Fox.tif
Single function, H07 RNF, 0.52M cable
Art:
GFOH3G100NN01 Copied
0.52 m
H07RN-F
No
N/O & N/C
Fox.tif
Single function, H07 RNF, 3M cable
Art:
GFOH3G103NN01 Copied
3 m
H07RN-F
No
N/O & N/C
Fox.tif
Single function, H07 RNF, 5M cable
Art:
GFOH3G105NN01 Copied
5 m
H07RN-F
No
N/O & N/C
Fox.tif
Single function, H07 RNF, 10M cable
Art:
GFOH3G110NN01 Copied
10 m
H07RN-F
No
N/O & N/C
Fox.tif
Single function, H07 RNF, 15M cable
Art:
GFOH3G115NN01 Copied
15 m
H07RN-F
No
N/O & N/C
Fox.tif
Single function, H07 RNF, 20M cable
Art:
GFOH3G120NN01 Copied
20 m
H07RN-F
No
N/O & N/C

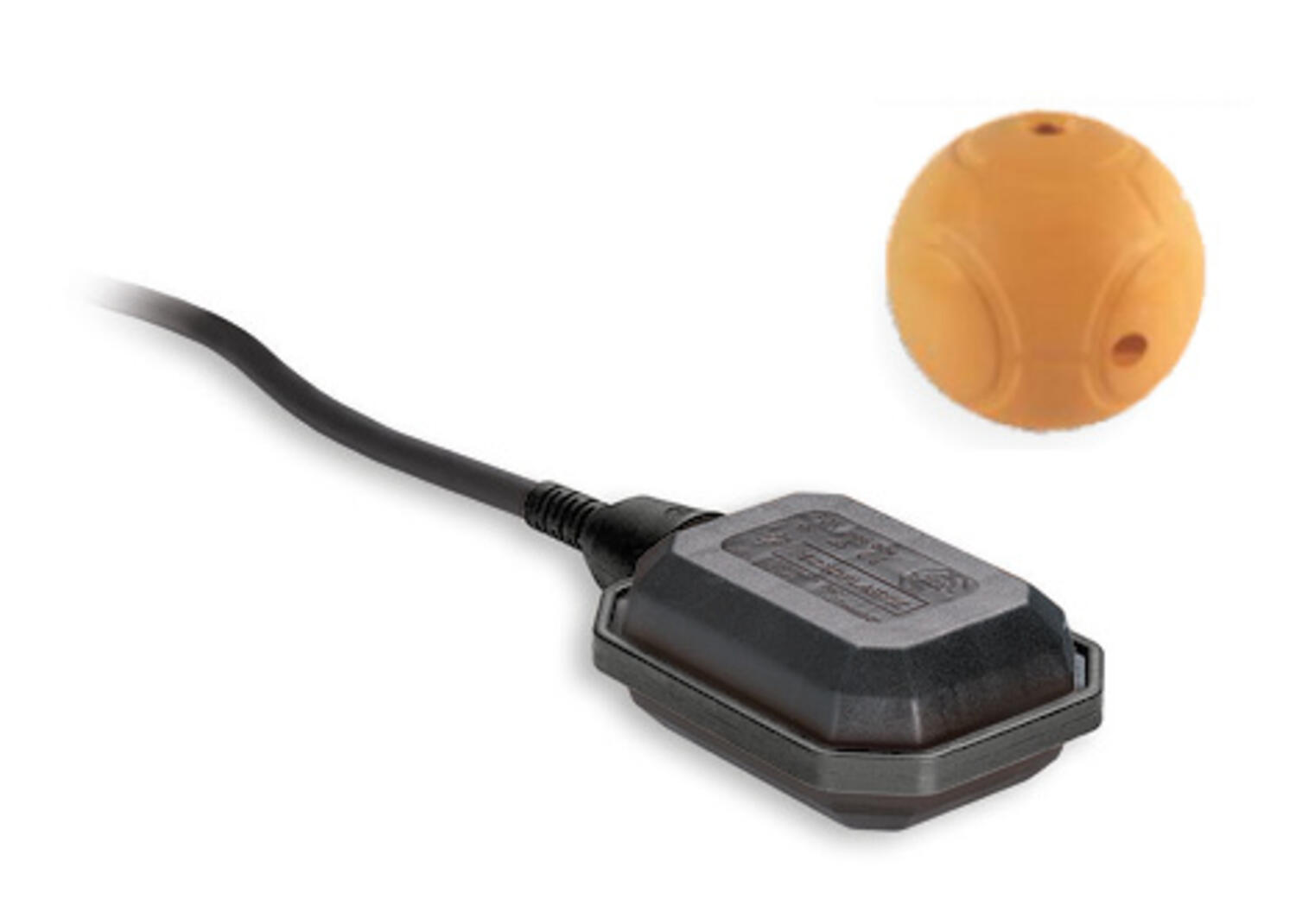

Single function, H07 RNF, 3M cable, counterweight
Art:
GFOH3G103NNC1 Copied
3 m
H07RN-F
Yes
N/O & N/C
Single function, H07 RNF, 5M cable, counterweight
Art:
GFOH3G105NNC1 Copied
5 m
H07RN-F
Yes
N/O & N/C
Single function, H07 RNF, 10M cable, counterweight
Art:
GFOH3G110NNC1 Copied
10 m
H07RN-F
Yes
N/O & N/C
Single function, H07 RNF, 15M cable, counterweight
Art:
GFOH3G115NNC1 Copied
15 m
H07RN-F
Yes
N/O & N/C
Single function, H07 RNF, 20M cable, counterweight
Art:
GFOH3G120NNC1 Copied
20 m
H07RN-F
Yes
N/O & N/C
Fox.tif
Double function, H05 RNF, 0.52M cable
Art:
GFO53X100NN01 Copied
0.52 m
H05RN-F
No
Changeover (SPDT)
Fox.tif
Double function, H05 RNF, 3M cable
Art:
GFO53X103NN01 Copied
3 m
H05RN-F
No
Changeover (SPDT)
Fox.tif
Double function, H05 RNF, 5M cable
Art:
GFO53X105NN01 Copied
5 m
H05RN-F
No
Changeover (SPDT)
Fox.tif
Double function, H05 RNF, 10M cable
Art:
GFO53X110NN01 Copied
10 m
H05RN-F
No
Changeover (SPDT)
Fox.tif
Double function, H05 RNF, 15M cable
Art:
GFO53X115NN01 Copied
15 m
H05RN-F
No
Changeover (SPDT)
Fox.tif
Double function, H05 RNF, 20M cable
Art:
GFO53X120NN01 Copied
20 m
H05RN-F
No
Changeover (SPDT)
Double function, H05 RNF, 3M cable, counterweight
Art:
GFO53X103NNC1 Copied
3 m
H05RN-F
Yes
Changeover (SPDT)
Double function, H05 RNF, 5M cable, counterweight
Art:
GFO53X105NNC1 Copied
5 m
H05RN-F
Yes
Changeover (SPDT)
Double function, H05 RNF, 10M cable, counterweight
Art:
GFO53X110NNC1 Copied
10 m
H05RN-F
Yes
Changeover (SPDT)
Double function, H05 RNF, 15M cable, counterweight
Art:
GFO53X115NNC1 Copied
15 m
H05RN-F
Yes
Changeover (SPDT)
Double function, H05 RNF, 20M cable, counterweight
Art:
GFO53X120NNC1 Copied
20 m
H05RN-F
Yes
Changeover (SPDT)
