WIKA
Wika Hydraulic Ring Load Cell F1607/F6116
Ring Force Transducer

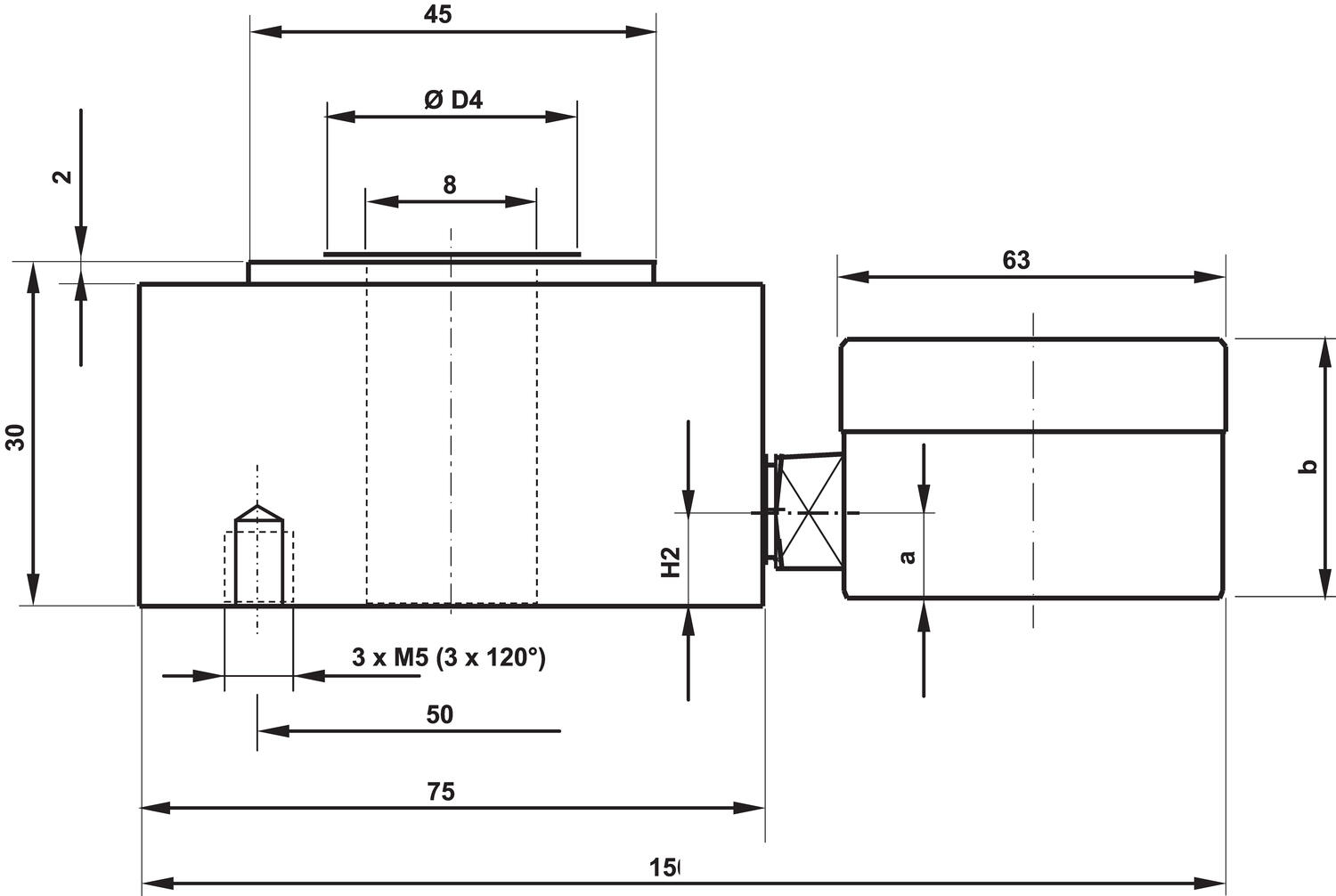

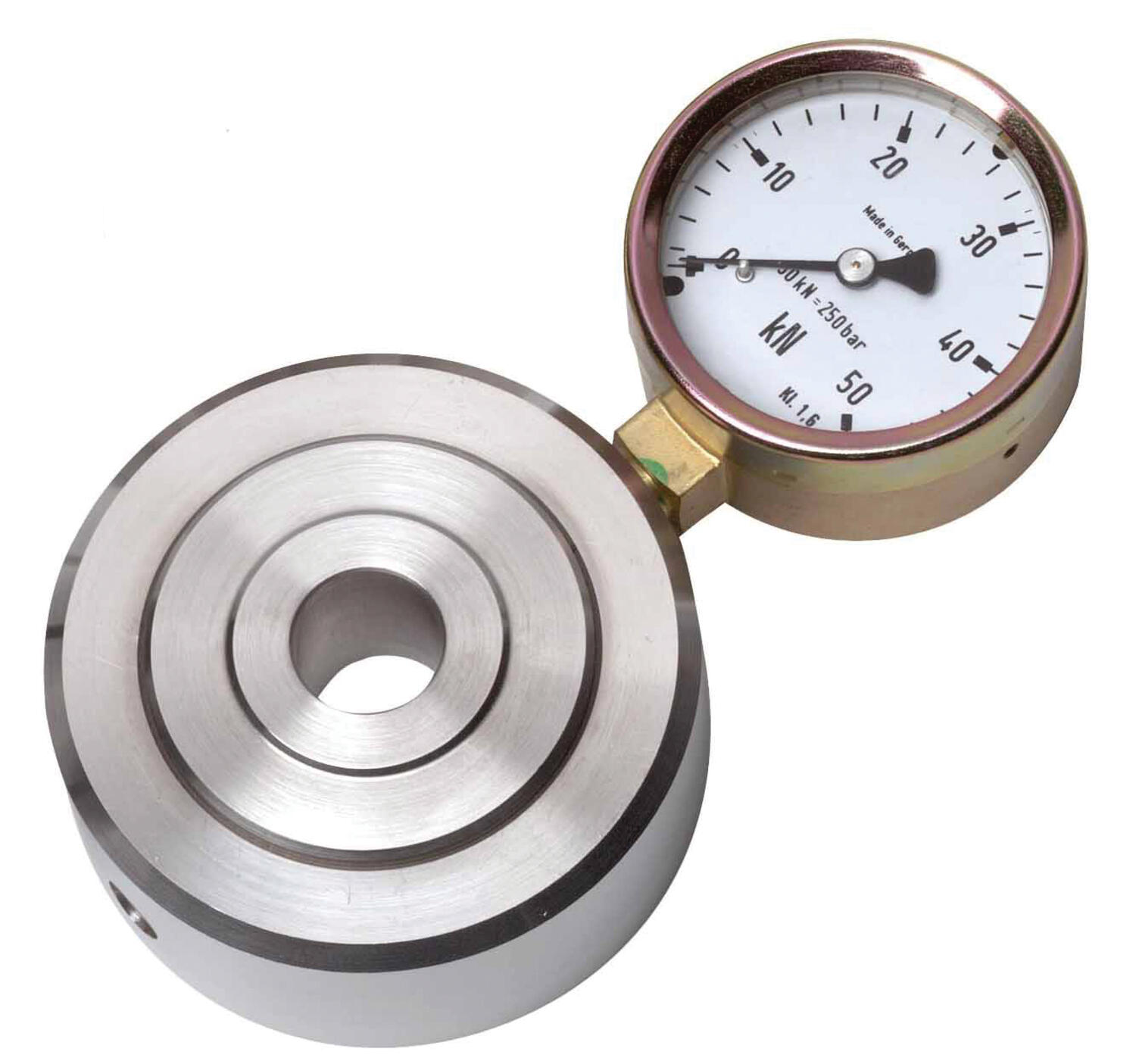

Mechanical load cell in ring design with directly mounted meter for local display of the force. Flexible design suitable for service control of both pulling and pushing forces in hanging loads or presses. The outer dimensions of the pressure plate from 75 up to 90 mm, depending on the force range.
- Operates without power supply
- Enables bolt penetration
- Accuracy ≤±1.6%
- Stainless steel pressure plate and piston
- Piston movement ≤0.5mm
Selected variant
Technical data
| Force range | 0-0,16 kN |
|---|---|
| Function | Pressure |
| IP class | IP65 |
| Material | Stainless steel |
| Nominal operating | 0.5 mm |
| Temperature operational max | 50 °C |
| Temperature operational min | -10 °C |
Downloads
Product description
Mechanical load cell in ring design with directly mounted meter for local display of the force. Flexible design suitable for service control of both pulling and pushing forces in hanging loads or presses. The outer dimensions of the pressure plate from 75 up to 90 mm, depending on the force range.
