SENSECA

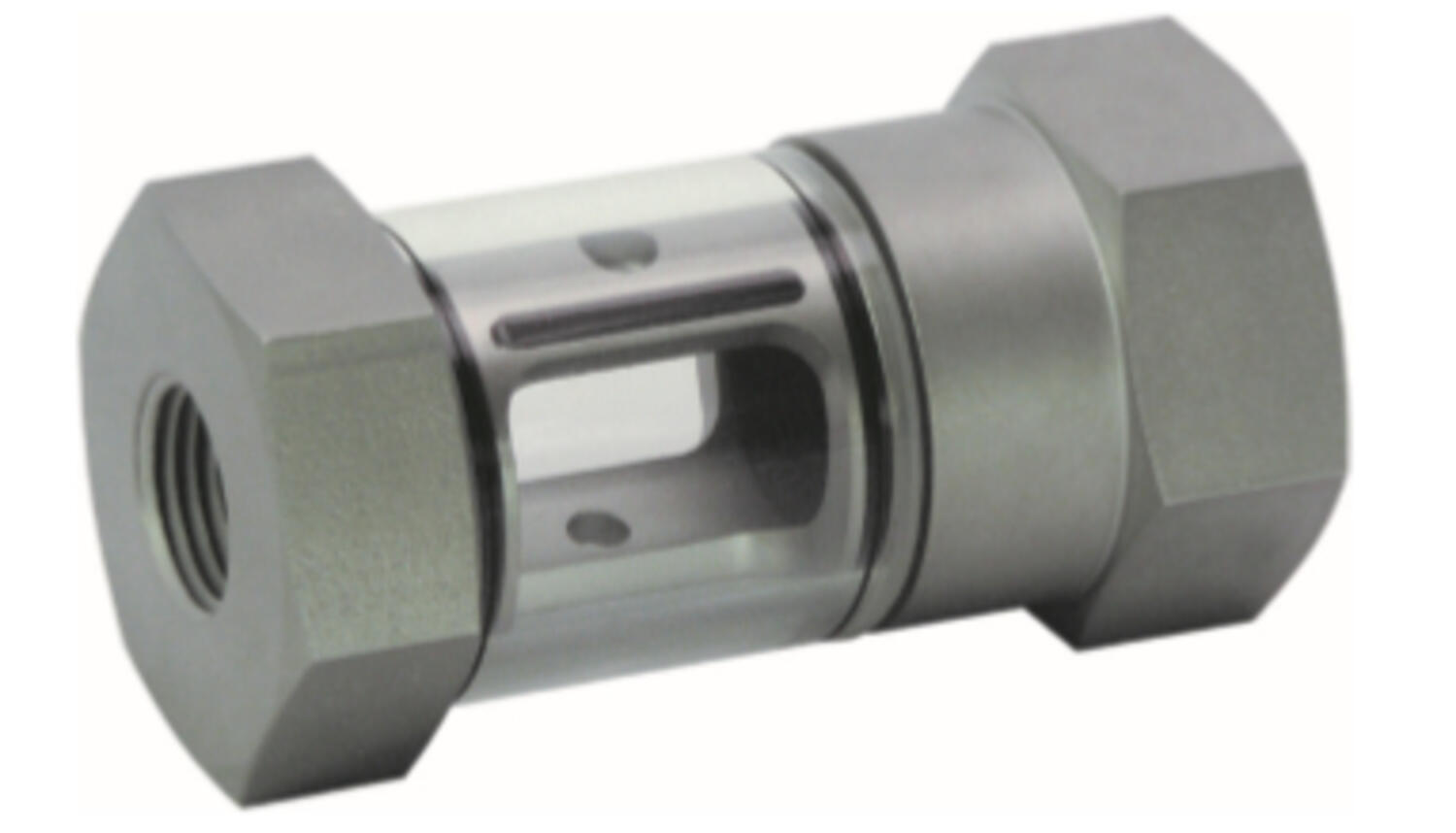

Honsberg - WO1 SERIES FLOW INDICATOR

Sight Glass

G ¼ - 151l/min - G1½ - 220l/min
Water , Oils
DN-8-G ¼ - DN40-G1½
Brass / Stainless Steel
16 Bar max

Selected variant

Save page as PDF

Technical data / Documents

Accessories & Related products

Selected variant

Technical data

Connection type	G1/4 FEMALE
Flow range max	15 l/min
Flow range min	0 l/min
Material of connection	Stainless steel
Material of glass tube	Borosilicate glass
Material of seals	FKM
Material wipers	FKM

Media	WATER, OILS
Pressure range max	16 bar
Temperature of media from	-20 °C
Temperature of media to	100 °C
Weight	1.5 kg

Downloads

Honsberg WO1 datasheet

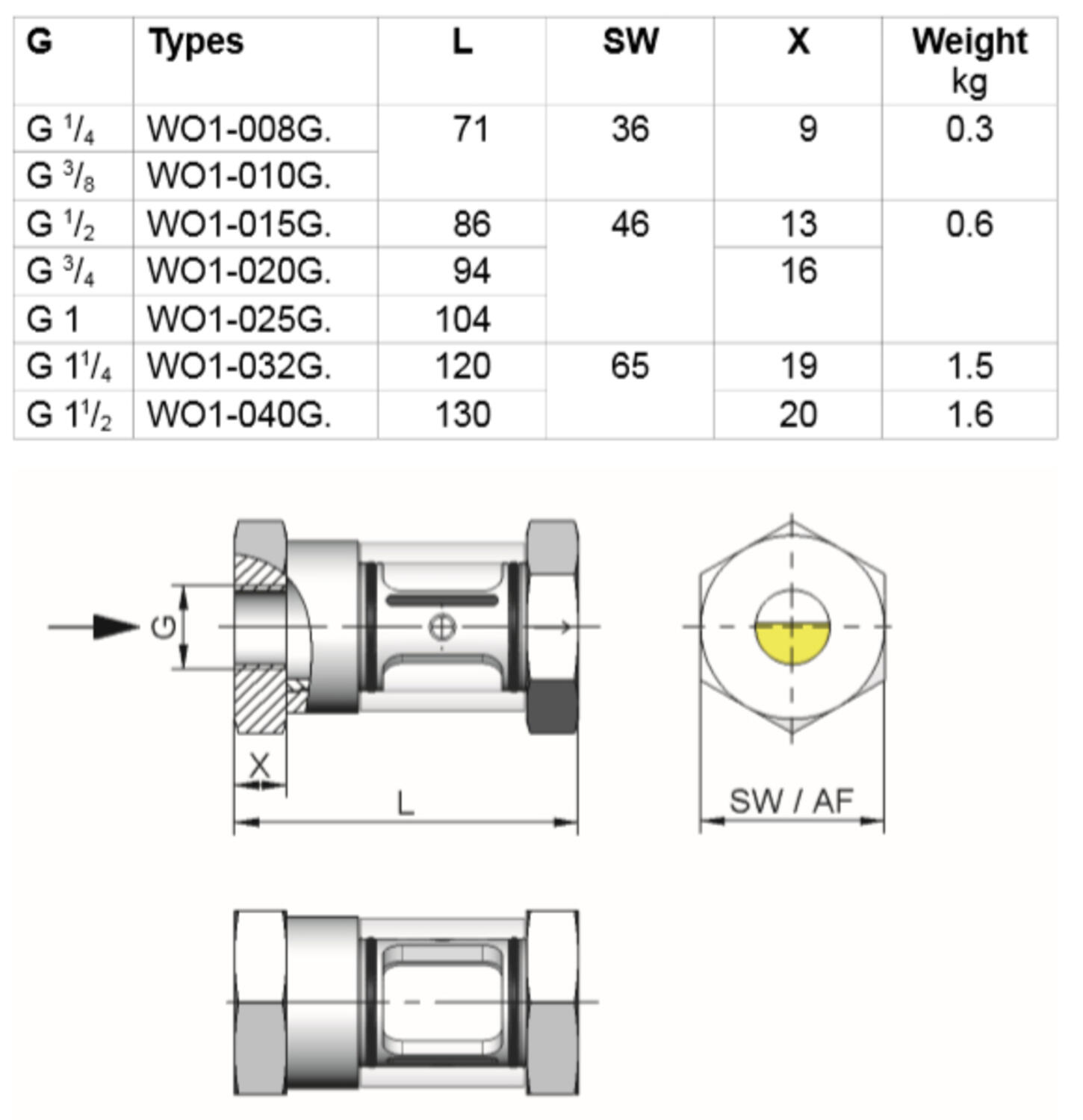

Measurements and connections

Accessories

Related

water treatment plant tank- water and wastewater - OEM Automatic Solutions

Water & Wastewater Solutions

OEM Automatics water and wastewater application specialists have gathered all our solutions in one place. Our products are used in everything from small municipal water works to larger regional plants.

Selection of pumps - understanding velocity and why it matters when choosing a pump

understanding viscosity - And Why It Matters When Choosing A Pump

Whether you’re pumping water, chocolate, oil or peanut butter knowing the product’s viscosity is essential to selecting the right pump. Find out more about viscosity and which pump may be suitable for your application!

Tecnoplastic float switch

Float switches built to perform and ready to ship

Whether you're looking to upgrade your current solution or secure a more robust float switch for your next project, Taurus delivers performance you can count on.

groups of pressure switches and sensors with reservoir background - pressure sensors or switches

How do I know if I need a pressure switch or a pressure sensor?

When choosing between a pressure switch and a pressure sensor, the key lies in understanding your application. Our Pressure Monitoring experts breaks down the two devices for you.

SAMOA pumps

We offer air diaphragm pumps by SAMOA

Pumps are now officially part of our product offering! As we build our pump portfolio, we’re proud to announce that we are an official distributor of SAMOA Industrial, a well-established name in the fluid handling industry.

Barcode scanner technology: choosing the right technology for your application

Barcode Scanner Technology: Choosing The Right Technology For Your Application

OEM Automatic's barcode scanner experts have broken down barcode technology to help you choose the right scanner for your application!

	Parts	Connection type	Flow range max	Material of connection	Material of seals	Material wipers	Weight	Price
	15l/min,G1/4, S/S Art: WO1-008GK Copied	G1/4 FEMALE	15 l/min	Stainless steel	FKM	FKM	1.5 kg
	15l/min,G1/4, Brass Art: WO1-008GM Copied	G1/4 FEMALE	15 l/min	Brass	NBR	NBR	1.5 kg
	20l/min, G3/8, S/S Art: WO1-010GK Copied	G3/8 FEMALE	20 l/min	Stainless steel	FKM	FKM	0.3 kg
	20l/min, G3/8, Brass Art: WO1-010GM Copied	G3/8 FEMALE	20 l/min	Brass	NBR	NBR	0.3 kg
	Art: WO1-015GK Copied	G1/2 FEMALE	30 l/min	Stainless steel	FKM	FKM	0.6 kg
	30l/min, G1/2, Brass Art: WO1-015GM Copied	G1/2 FEMALE	30 l/min	Brass	NBR	NBR	0.6 kg
	60l/min, G3/4, S/S Art: WO1-020GK Copied	G3/4 FEMALE	60 l/min	Stainless steel	FKM	FKM	0.6 kg
	60l/min, G3/4, Brass Art: WO1-020GM Copied	G3/4 FEMALE	60 l/min	Brass	NBR	NBR	0.6 kg
	Art: WO1-025GK Copied	G1 FEMALE	90 l/min	Stainless steel	FKM	FKM	0.6 kg
	Art: WO1-025GM Copied	G1 FEMALE	90 l/min	Brass	NBR	NBR	0.6 kg
	150l/min, G1 1/4, S/S Art: WO1-032GK Copied	G1 1/4 FEMALE	150 l/min	Stainless steel	FKM	FKM	1.5 kg
	150l/min, G1 1/4, Brass Art: WO1-032GM Copied	G1 1/4 FEMALE	150 l/min	Brass	NBR	NBR	1.5 kg
	220l/min, G1 1/2, S/S Art: WO1-040GK Copied	G1 1/2 FEMALE	220 l/min	Stainless steel	FKM	FKM	1.6 kg
	Art: WO1-040GM Copied	G1 1/2 FEMALE	220 l/min	Brass	NBR	NBR	1.6 kg
