Molex - mPm DIN Form B Industrial IP67 moulded cable connector 162N3N1006P | OEM Automatic Ltd

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

Cable length	1000 mm
Circuit	No circuit
Colour cable	Black
Colour LED	No LED
Current max	5 A
Housing Colour	Black
IP class	IP67
LED indicator	No
Manufacturer part no.	1210400820
Material cable	PVC

Material packing	NBR
Number of poles	2 + earth
Rated wire cross section	0.75 mm²
Rated voltage	250 V
Screw and gasket	NBR integrated gasket assembled + IP67 screw
Screw size	M3x29
Temperature operational max	90 °C
Temperature operational min	-40 °C

Downloads

Molex mpm E16x DIN B ind.pdf

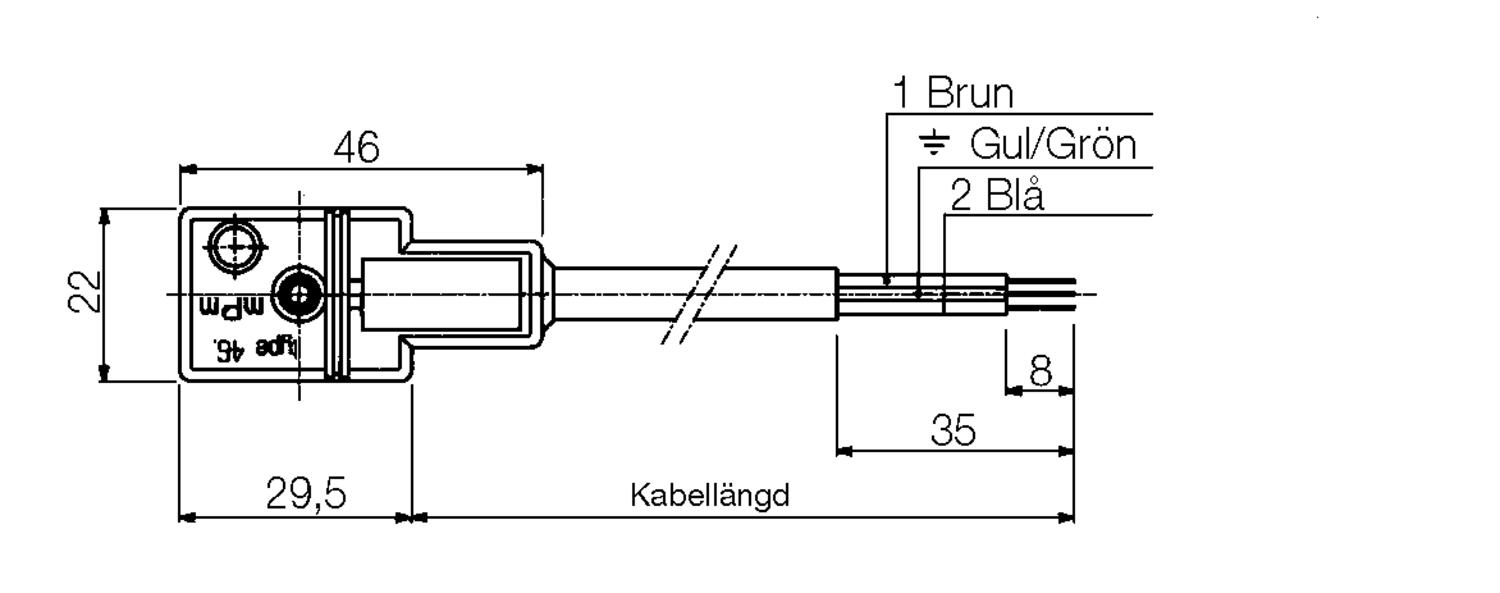

Measurements and connections

Product description

DIN Valve Connectors with moulded cable, IP67 rated.

Accessories

Related products

	Parts	Cable length	Circuit	Colour LED	Contact resistance	IP class	LED indicator	Manufacturer part no.	Material cable	Rated voltage	Screw and gasket	Screw size	Temperature operational max	Temperature operational min	Price
	DINB 2p+earth h6 1m PVC Art: 162N3N1006P Copied	1000 mm	No circuit	No LED		IP67	No	1210400820	PVC	250 V	NBR integrated gasket assembled + IP67 screw	M3x29	90 °C	-40 °C
	Form Ind, 2P+Earth, H05, 3m Length, H6, Integrated Gasket Art: 162N3N3006P Copied	3000 mm	No circuit	No LED	≤15 mΩ	IP67	No		PVC	250 V	NBR integrated gasket assembled + IP67 screw	M3x29	90 °C	-40 °C
	Form Ind, 2P+Earth, H05, 5m Length, H6, Integrated Gasket Art: 162N3N5006P Copied	5000 mm	No circuit	No LED		IP67	No	1210400822	PVC	250 V	NBR integrated gasket assembled + IP67 screw	M3x27	70 °C	-20 °C
	Form Ind, 2P+Earth, PUR, 1m Length, H6, Integrated Gasket Art: 162P3N1006P Copied	1000 mm	No circuit	No LED	≤15 mΩ	IP67	No		PUR	250 V	NBR integrated gasket assembled + IP67 screw	M3x29	90 °C	-40 °C
	Form Ind, 2P+Earth, PUR, 3m Length, H6, Integrated Gasket Art: 162P3N3006P Copied	3000 mm	No circuit	No LED	≤15 mΩ	IP67	No		PUR	250 V	NBR integrated gasket assembled + IP67 screw	M3x29	90 °C	-40 °C
	Form Ind, 2P+Earth, PUR, 5m Length, H6, Integrated Gasket Art: 162P3N5006P Copied	5000 mm	No circuit	No LED	≤15 mΩ	IP67	No		PUR	250 V	NBR integrated gasket assembled + IP67 screw	M3x29	90 °C	-40 °C
	Form Ind, 2P+Earth, H05 PVC, 1m, H6, C4, 24V, IP67, Yellow Art: 462N3N1006PC4H Copied	1000 mm	C4: LED & varistor	Yellow		IP67	Yes		PVC	24 V AC/DC	NBR integrated gasket assembled + IP67 screw	M3x29	90 °C	-40 °C
	DINB 1m PVC-cable 2p+earth C4 24V AC/DC Art: 462N3N1002PC4H Copied	1000 mm	C4: LED & varistor	Yellow	≤15 mΩ	IP67	Yes		PVC	24 V AC/DC	NBR integrated gasket assembled + IP67 screw	M3x29	90 °C	-40 °C
	Form Ind, 2P+Earth, H05 PVC, 3m, H12, C4, 24V, Yellow Art: 462N3N30021C4H Copied	3000 mm	C4: LED & varistor	Yellow	≤15 mΩ	IP65	Yes		PVC	24 V AC/DC	Profile NBR gasket & screw	M3x29	90 °C	-40 °C
	Form Ind, 2P+Earth, H05 PVC, 3m, H6, C4, 24V, IP67, Yellow Art: 462N3N3006PC4H Copied	3000 mm	C4: LED & varistor	Yellow	≤15 mΩ	IP67	Yes		PVC	24 V AC/DC	NBR integrated gasket assembled + IP67 screw	M3x29	90 °C	-40 °C
	Form Ind, 2P+Earth, H05 PVC, 3m, H6, C4, 230V, IP67, Yellow Art: 462N3N3006PC4M Copied	3000 mm	C4: LED & varistor	Yellow	≤15 mΩ	IP67	Yes		PVC	230 V AC/DC	NBR integrated gasket assembled + IP67 screw	M3x29	90 °C	-40 °C
	Form Ind, 2P+Earth, H05 PVC, 5m, H6, C4, 24V, IP67, Yellow Art: 462N3N5006PC4H Copied	5000 mm	C4: LED & varistor	Yellow		IP67	Yes		PVC	24 V AC/DC	NBR integrated gasket assembled + IP67 screw	M3x27	90 °C	-40 °C
	Form Ind, 2P+Earth, H05 PVC, 1m, H6, C4, 24V, IP67, Yellow Art: 462P3N1006PC4H Copied	1000 mm	C4: LED & varistor	Yellow	≤15 mΩ	IP67	Yes		PUR	24 V AC/DC	NBR integrated gasket assembled + IP67 screw	M3x29	90 °C	-40 °C
	Form Ind, 2P+Earth, H05 PVC, 3m, H6, C4, 24V, IP67, Yellow Art: 462P3N3006PC4H Copied	3000 mm	C4: LED & varistor	Yellow	≤15 mΩ	IP67	Yes		PUR	24 V AC/DC	NBR integrated gasket assembled + IP67 screw	M3x29	90 °C	-40 °C
	Form Ind, 2P+Earth, H05 PVC, 3m, H6, C4, 230V, IP67, Yellow Art: 462P3N3006PC4M Copied	3000 mm	C4: LED & varistor	Yellow	≤15 mΩ	IP67	Yes		PUR	230 V AC/DC	NBR integrated gasket assembled + IP67 screw	M3x29	90 °C	-40 °C
	Form Ind, 2P+Earth, H05 PVC, 5m, H6, C4, 24V, IP67, Yellow Art: 462P3N5006PC4H Copied	5000 mm	C4: LED & varistor	Yellow	≤15 mΩ	IP67	Yes	1210502228	PUR	24 V AC/DC	NBR integrated gasket assembled + IP67 screw	M3x27	90 °C	-40 °C
