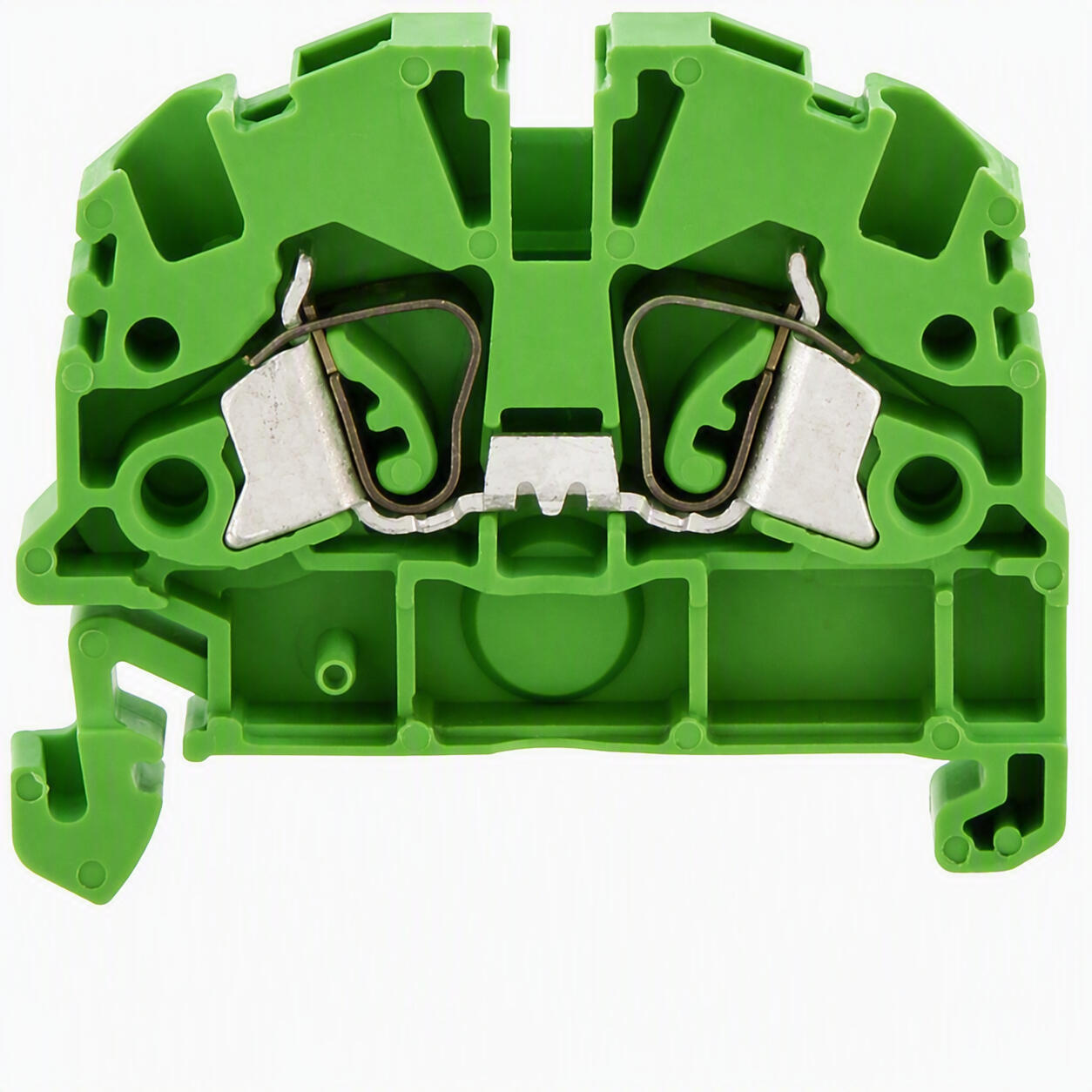

General data |
|
---|---|
Rated wire cross section | 2.5 mm² |
Colour | Green |
Rated voltage IEC | 800 V |
Rated current IEC | 24 A |
Load current max | 24 A |
Mounting | TS 35 |
Rated impulse voltage | 8 kV |
Overvoltage category | III |
Contamination degree | 3 |
Approvals | UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC |
Dimensions |
|
Length | 43.5 mm |
Width | 5.1 mm |
Height TS 35/7.5 | 36.5 mm |
Connection data |
|
Connections | 2 |
Number of levels | 1 Â |
Plug gauge acc. EN 60 947-1 | A3 |
Cross connect channels | 1 Â |
Number of test pick off options | 2 Â |
Cross section single wire from | 0.5 mm² |
Cross section single wire to | 4 mm² |
Cross section stranded wire from | 0.5 mm² |
Cross section stranded wire to | 4 mm² |
Cross section stranded with ferrule from | 0.5 mm² |
Cross section stranded with ferrule to | 2.5 mm² |
Rated wire cross section from (AWG) | 20 |
Rated wire cross section to (AWG) | 12 |
*Invisible Heading* |
|
---|---|
Stripping length | 10 mm |
Materials |
|
Insulation material | Polyamide 6.6 |
Flammability class | UL94-V0 |
Operating temperature from | -40 °C |
Operating temperature to | 120 °C |
Approvals |
|
Rated voltage UL | 300 V |
Rated current UL | 20 A |
UL test standard | UL 1059 |
Rated voltage CSA | 300 V |
Rated current CSA | 20 A |
CSA test standard | C22.2 No 158 |
Rated voltage CSAus | 300 V |
Rated current CSAus | 20 A |
CSAus test standard | UL 1059 |
Rated voltage cUL | 300 V |
Rated current cUL | 20 A |
cUL test standard | C22.2 No 158 |
GL test standard | IEC 60947-7-1:2009 |
EAC test standard | TR ZU 004/2011 |
KEMA KEUR test standard | EN 60947-7-1:2009 |
Additional data |
|
Tariff code | 85369010 |
Country of origin | CZ |
Weight | 5.4 g |
Pack size | 100 Â |
This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations
Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems
Choosing the right circuit breaker is important for protecting DC circuits. Two primary forms of protection are MCBs and ECBs. The experts at OEM Automatic breakdown the two circuit breakers for you!
New signal lights from Auer Signal are now available! The first products to be launched in this series are the Smart Dot 50 in the Basic and Standard versions, as well as the Smart Indicator 50 in the Basic version.Â
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Parts | Colour | Rated voltage IEC | Rated current IEC | Load current max | Mounting | Rated impulse voltage | Approvals | Length | Height TS 35/7.5 | Height TS 15/5.5 | Connections | Rated voltage UL | Rated current UL | Rated voltage CSA | Rated current CSA | Rated voltage CSAus | Rated current CSAus | Rated voltage cUL | Rated current cUL | GL test standard | KEMA KEUR test standard | Weight | Price | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]()
KDS-DE 2x 4-5 Grey Insert Max 5mmø
Art:
3583.1
Copied
|
Green
|
800 V
|
24 A
|
24 A
|
TS 35
|
8 kV
|
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
|
43.5 mm
|
36.5 mm
|
|
2
|
300 V
|
20 A
|
300 V
|
20 A
|
300 V
|
20 A
|
300 V
|
20 A
|
IEC 60947-7-1:2009
|
EN 60947-7-1:2009
|
5.4 g
|
| ||
![]()
ZSRK 2.5/2A Beige, 2.5mm² Compact tension spring, feed through
Art:
3583.2
Copied
|
Beige
|
800 V
|
24 A
|
24 A
|
TS 35
|
8 kV
|
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
|
43.5 mm
|
36.5 mm
|
|
2
|
300 V
|
20 A
|
300 V
|
20 A
|
300 V
|
20 A
|
300 V
|
20 A
|
IEC 60947-7-1:2009
|
EN 60947-7-1:2009
|
5.4 g
|
| ||
![]()

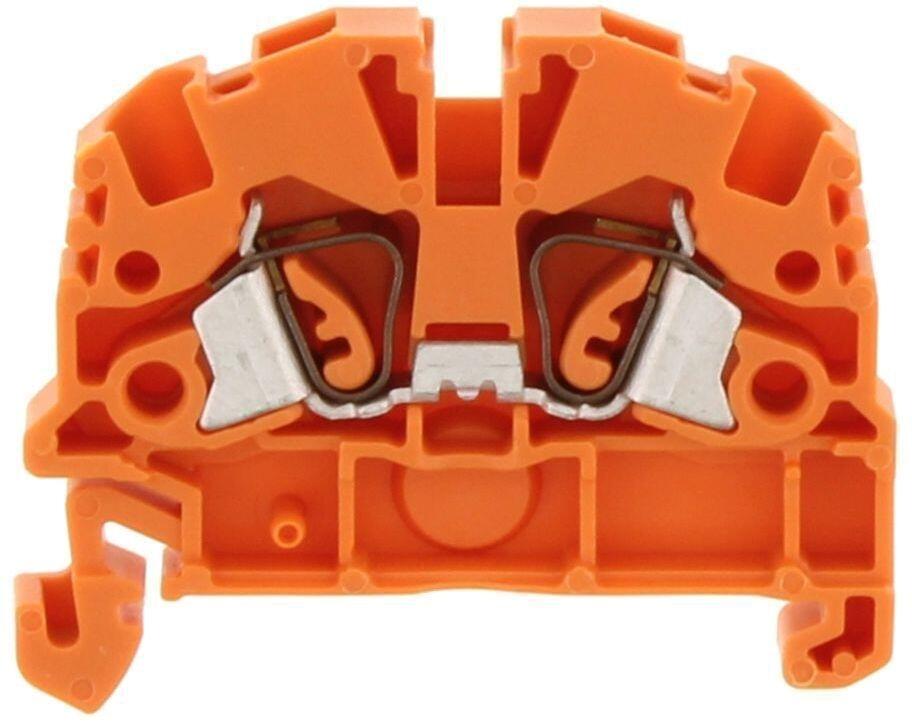

ZSRK 2.5/2A Orange, 2.5mm² Compact tension spring, feed through
Art:
3583.3
Copied
|
Orange
|
800 V
|
24 A
|
24 A
|
TS 35
|
8 kV
|
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
|
43.5 mm
|
36.5 mm
|
|
2
|
300 V
|
20 A
|
300 V
|
20 A
|
300 V
|
20 A
|
300 V
|
20 A
|
IEC 60947-7-1:2009
|
EN 60947-7-1:2009
|
5.4 g
|
| ||
![]()

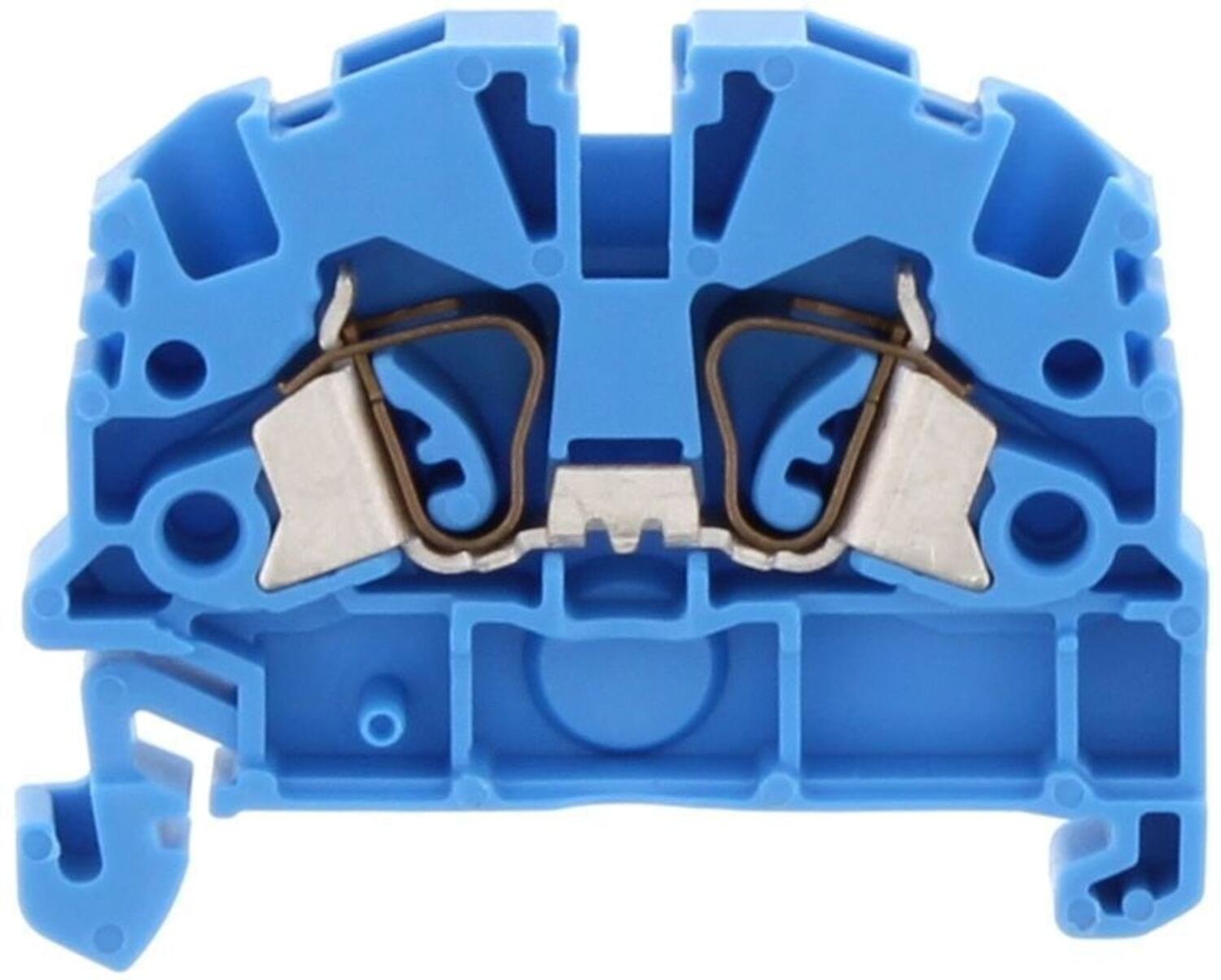

ZSRK 2.5/2A Blue, 2.5mm² Compact tension spring, feed through
Art:
3583.5
Copied
|
Blue
|
800 V
|
24 A
|
24 A
|
TS 35
|
8 kV
|
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
|
43.5 mm
|
36.5 mm
|
|
2
|
300 V
|
20 A
|
300 V
|
20 A
|
300 V
|
20 A
|
300 V
|
20 A
|
IEC 60947-7-1:2009
|
EN 60947-7-1:2009
|
5.86 g
|
| ||
![]()

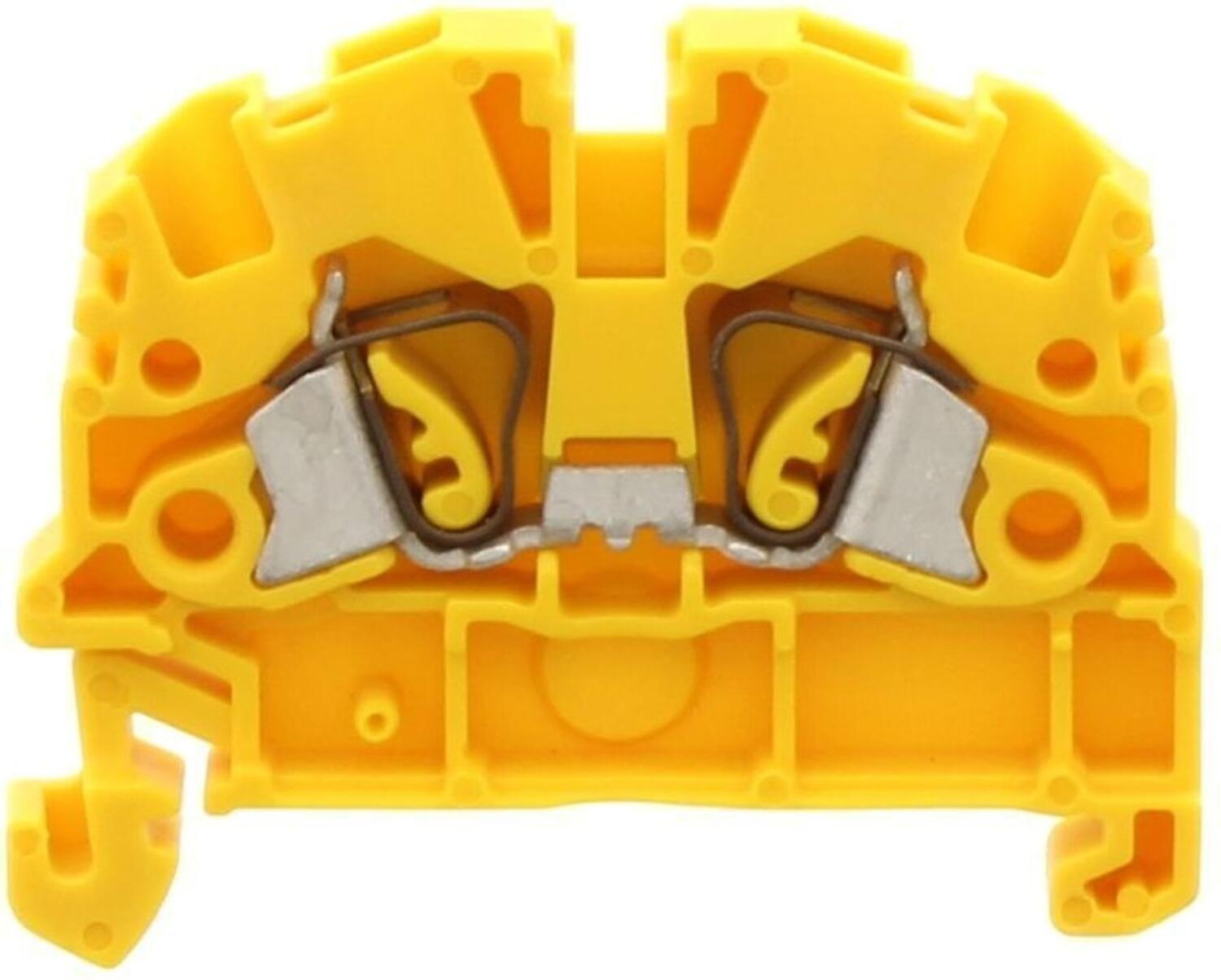

ZSRK 2.5/2A Yellow, 2.5mm² Compact tension spring, feed through
Art:
3583.8
Copied
|
Yellow
|
800 V
|
24 A
|
24 A
|
TS 35
|
8 kV
|
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
|
43.5 mm
|
36.5 mm
|
|
2
|
300 V
|
20 A
|
300 V
|
20 A
|
300 V
|
20 A
|
300 V
|
20 A
|
IEC 60947-7-1:2009
|
EN 60947-7-1:2009
|
5.4 g
|
| ||
![]()

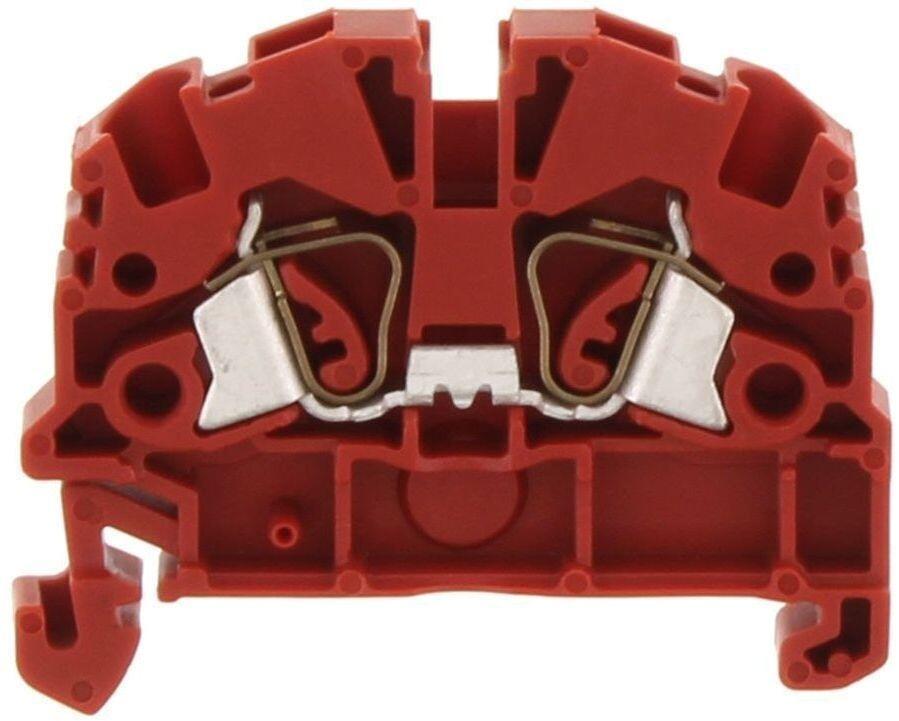

ZSRK 2.5/2A Red, 2.5mm² Compact tension spring, feed through
Art:
3583.9
Copied
|
Red
|
800 V
|
24 A
|
24 A
|
TS 35
|
8 kV
|
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
|
43.5 mm
|
36.5 mm
|
|
2
|
300 V
|
20 A
|
300 V
|
20 A
|
300 V
|
20 A
|
300 V
|
20 A
|
IEC 60947-7-1:2009
|
EN 60947-7-1:2009
|
5.4 g
|
| ||
![]()
ZSLN 2,5/2A GNYE
Art:
3584.2
Copied
|
Green/yellow
|
|
|
|
TS 35
|
|
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
|
43.5 mm
|
36.5 mm
|
|
2
|
|
|
|
|
|
|
|
|
IEC 60947-7-2:2009
|
EN 60947-7-2:2009
|
7 g
|
| ||
![]()
ZSRK 2.5/2A/15 Green, 2.5mm² Compact tension spring, feed through, TS15
Art:
3585.1
Copied
|
Green
|
800 V
|
24 A
|
24 A
|
TS 15
|
8 kV
|
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
|
40 mm
|
|
34 mm
|
2
|
300 V
|
20 A
|
300 V
|
20 A
|
300 V
|
20 A
|
300 V
|
20 A
|
IEC 60947-7-1:2009
|
EN 60947-7-1:2009
|
5.4 g
|
| ||
![]()

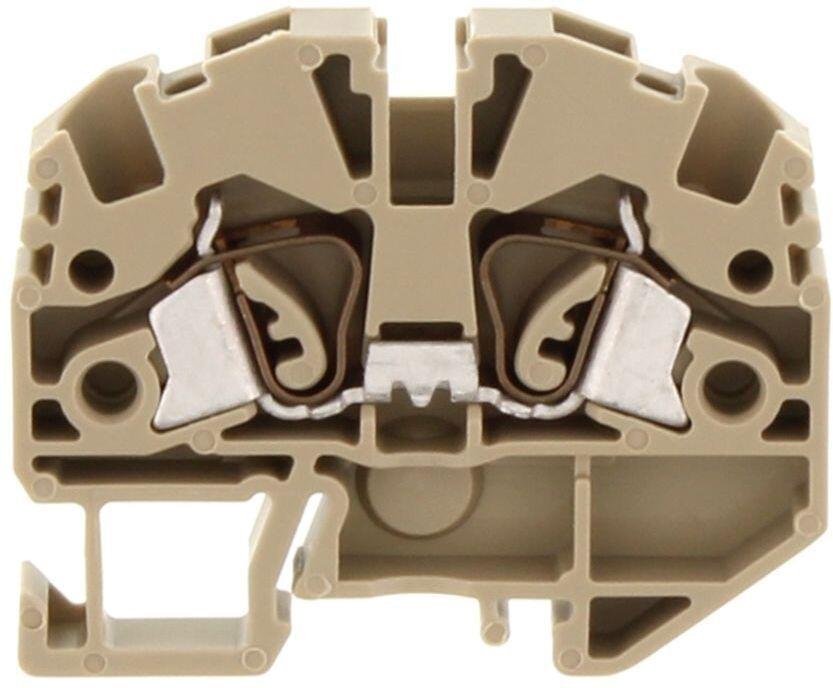

ZSRK 2.5/2A/15 Beige, 2.5mm² Compact tension spring, feed through, TS15
Art:
3585.2
Copied
|
Beige
|
800 V
|
24 A
|
24 A
|
TS 15
|
8 kV
|
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
|
40 mm
|
|
34 mm
|
2
|
300 V
|
20 A
|
300 V
|
20 A
|
300 V
|
20 A
|
300 V
|
20 A
|
IEC 60947-7-1:2009
|
EN 60947-7-1:2009
|
5.4 g
|
| ||
![]()

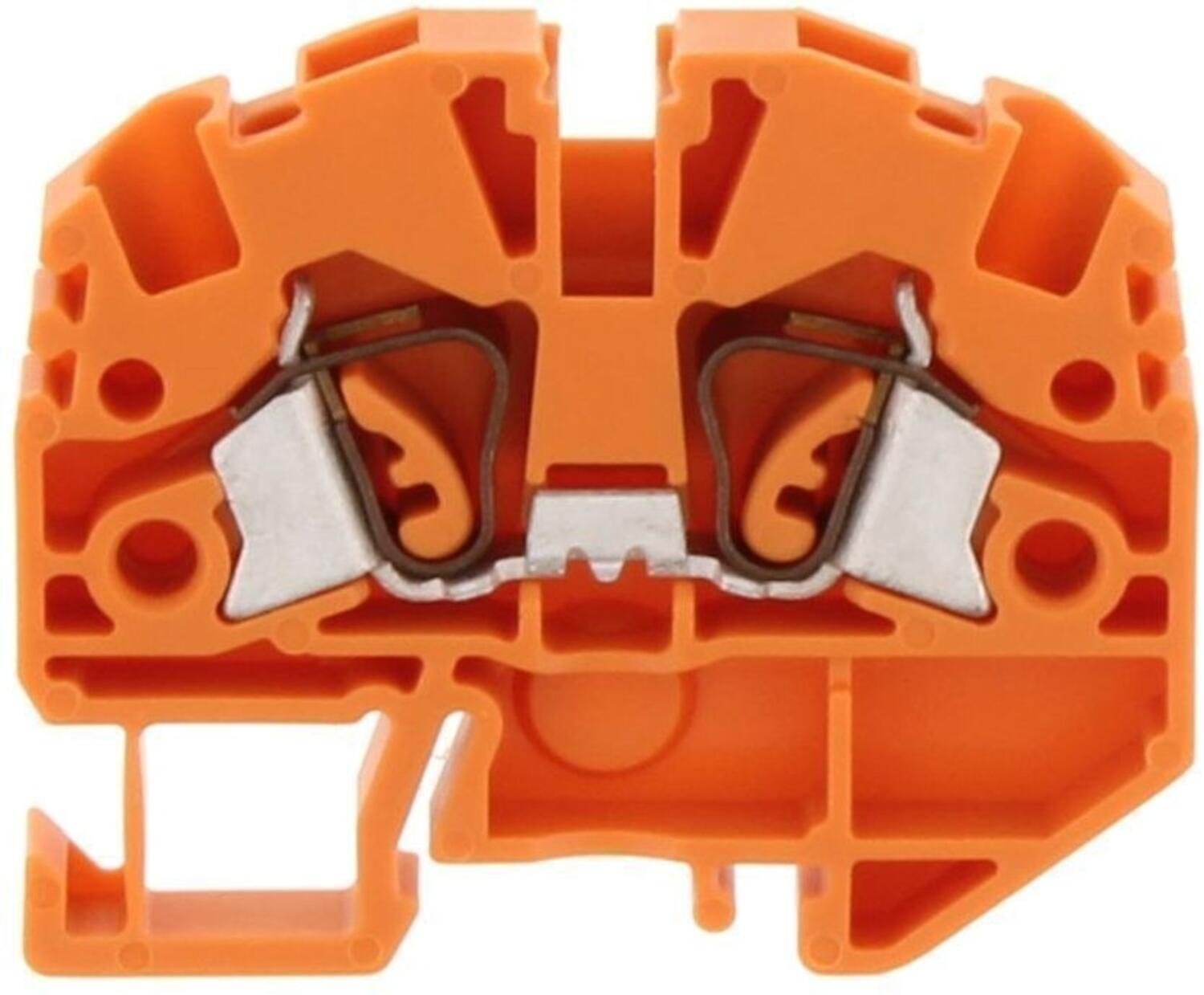

ZSRK 2.5/2A/15 Orange, 2.5mm² Compact tension spring, feed through, TS15
Art:
3585.3
Copied
|
Orange
|
800 V
|
24 A
|
24 A
|
TS 15
|
8 kV
|
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
|
40 mm
|
|
34 mm
|
2
|
300 V
|
20 A
|
300 V
|
20 A
|
300 V
|
20 A
|
300 V
|
20 A
|
IEC 60947-7-1:2009
|
EN 60947-7-1:2009
|
5.4 g
|
| ||
![]()

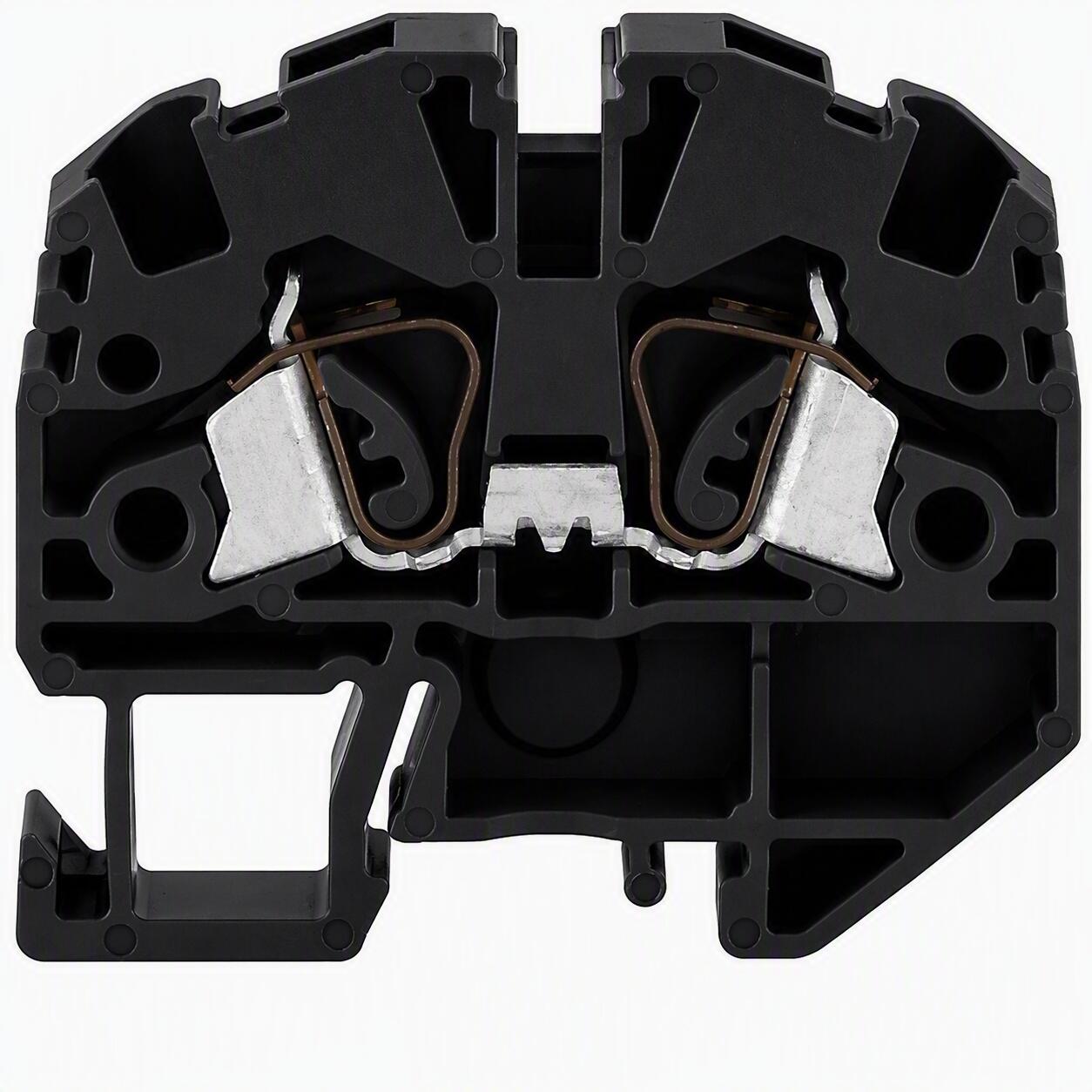

ZSRK 2.5/2A/15 Black, 2.5mm² Ex Compact tension spring, feed through, TS15
Art:
3585.4
Copied
|
Black
|
800 V
|
24 A
|
24 A
|
TS 15
|
8 kV
|
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
|
40 mm
|
|
34 mm
|
2
|
300 V
|
20 A
|
300 V
|
20 A
|
300 V
|
20 A
|
300 V
|
20 A
|
IEC 60947-7-1:2009
|
EN 60947-7-1:2009
|
5.4 g
|
| ||
![]()

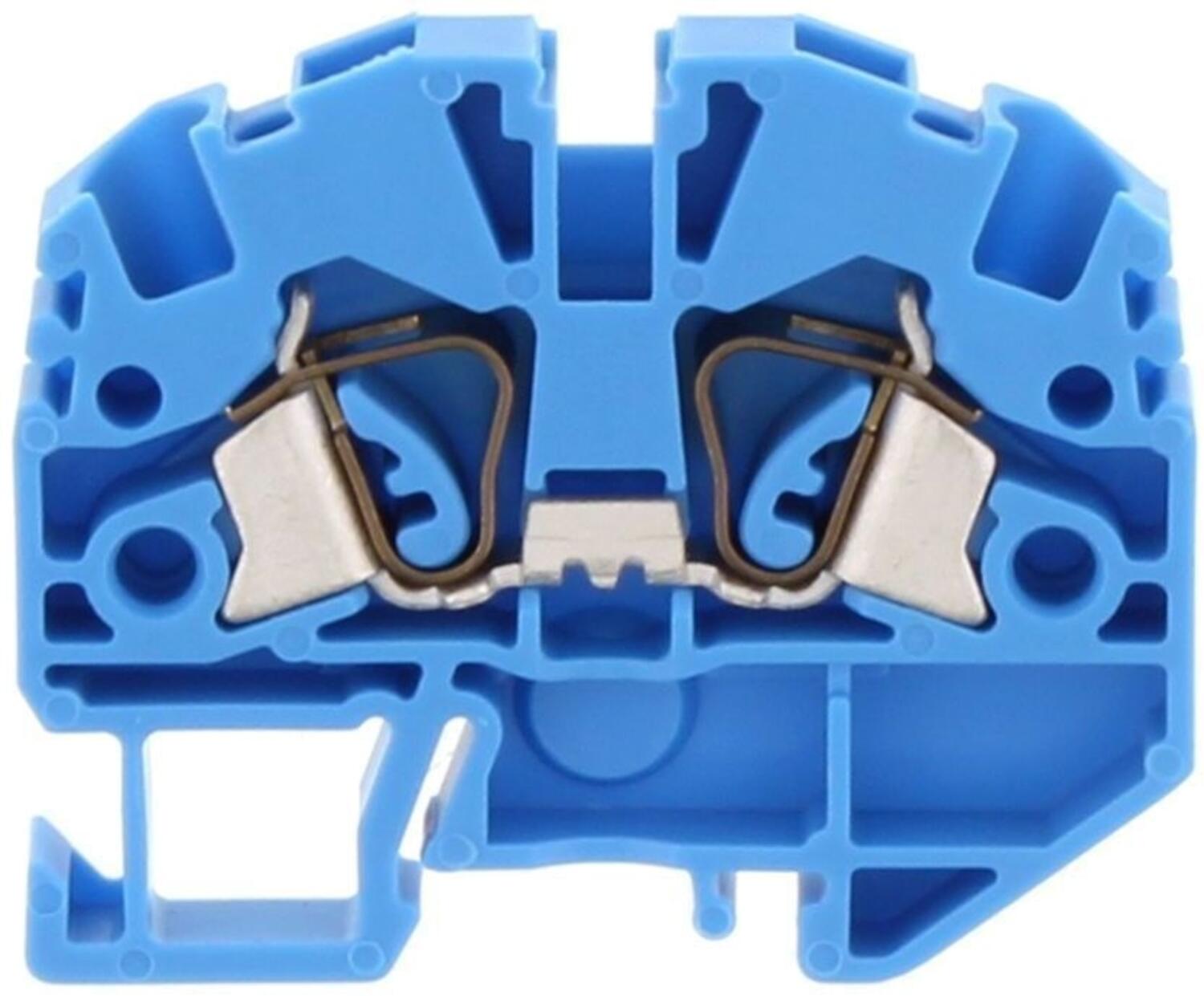

ZSRK 2.5/2A/15 Blue, 2.5mm² Compact tension spring, feed through, TS15
Art:
3585.5
Copied
|
Blue
|
800 V
|
24 A
|
24 A
|
TS 15
|
8 kV
|
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
|
40 mm
|
|
34 mm
|
2
|
300 V
|
20 A
|
300 V
|
20 A
|
300 V
|
20 A
|
300 V
|
20 A
|
IEC 60947-7-1:2009
|
EN 60947-7-1:2009
|
5.4 g
|
| ||
![]()

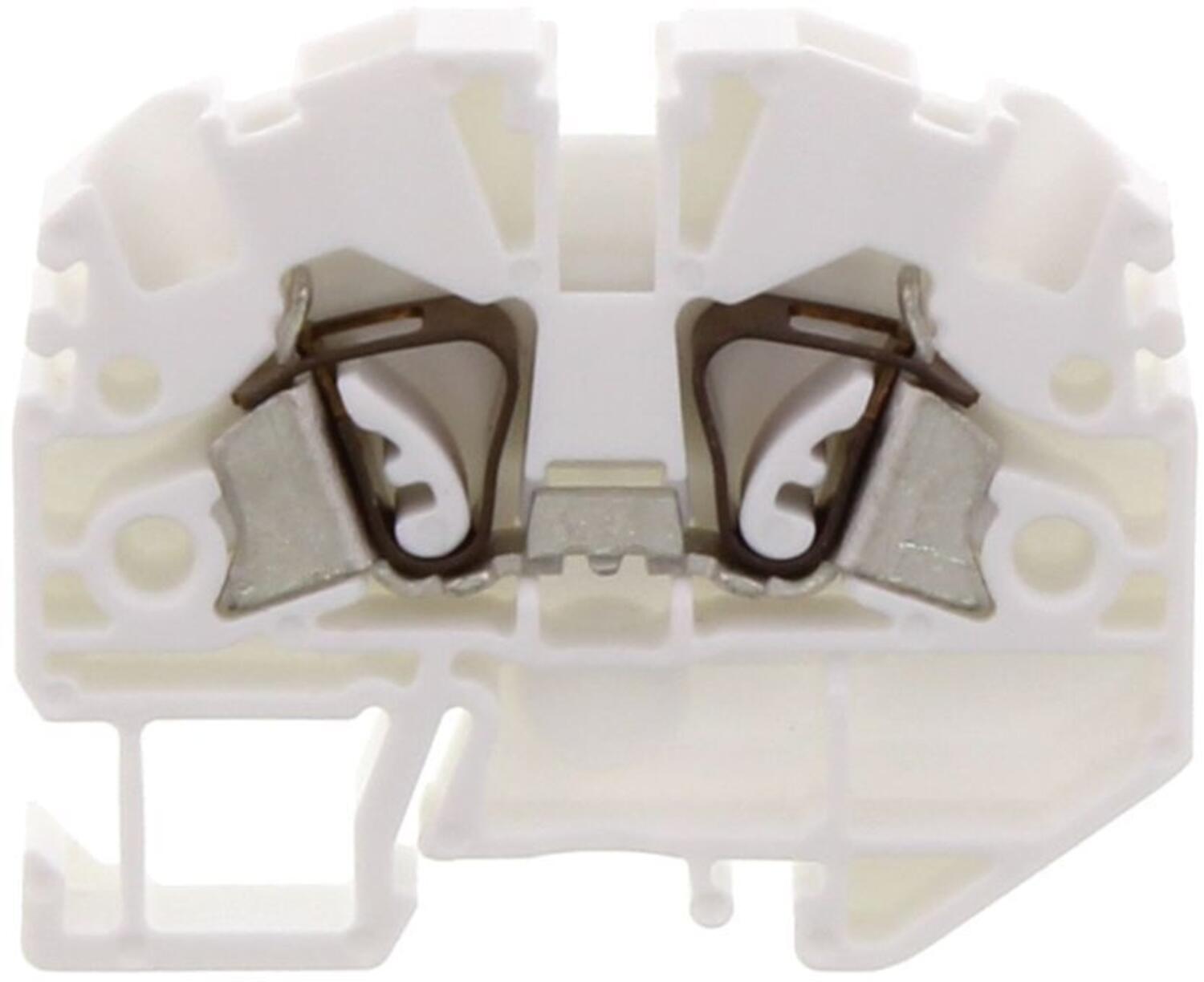

ZSRK 2.5/2A/15 White, 2.5mm² Ex Compact tension spring, feed through, TS15
Art:
3585.7
Copied
|
White
|
800 V
|
24 A
|
24 A
|
TS 15
|
8 kV
|
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
|
40 mm
|
|
34 mm
|
2
|
300 V
|
20 A
|
300 V
|
20 A
|
300 V
|
20 A
|
300 V
|
20 A
|
IEC 60947-7-1:2009
|
EN 60947-7-1:2009
|
5.4 g
|
| ||
![]()

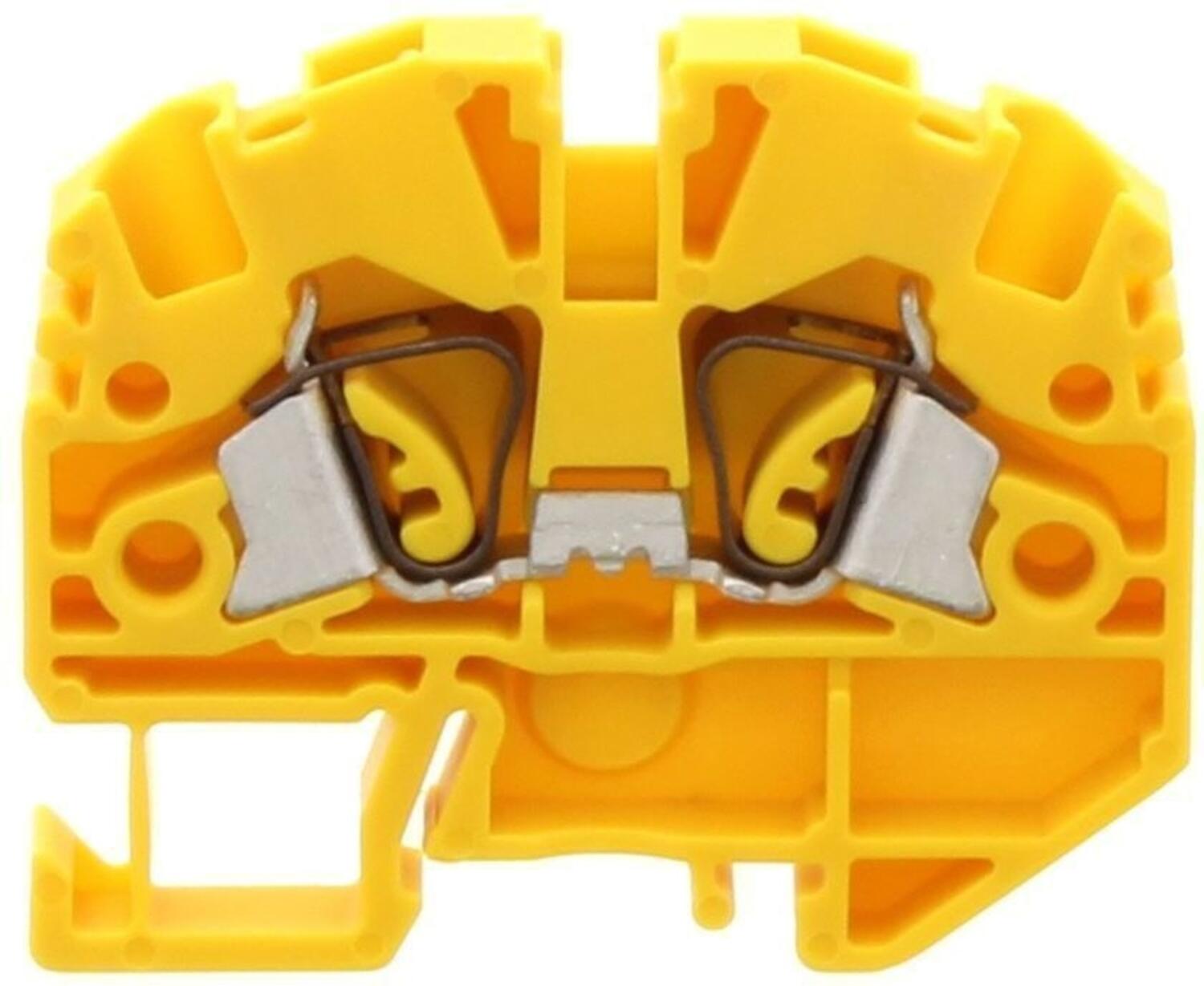

ZSRK 2.5/2A/15 Yellow, 2.5mm² Compact tension spring, feed through, TS15
Art:
3585.8
Copied
|
Yellow
|
800 V
|
24 A
|
24 A
|
TS 15
|
8 kV
|
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
|
40 mm
|
|
34 mm
|
2
|
300 V
|
20 A
|
300 V
|
20 A
|
300 V
|
20 A
|
300 V
|
20 A
|
IEC 60947-7-1:2009
|
EN 60947-7-1:2009
|
5.4 g
|
| ||
![]()
ZSRK 2.5/2A/15 Red, 2.5mm² Compact tension spring, feed through, TS15
Art:
3585.9
Copied
|
Red
|
800 V
|
24 A
|
24 A
|
TS 15
|
8 kV
|
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
|
40 mm
|
|
34 mm
|
2
|
300 V
|
20 A
|
300 V
|
20 A
|
300 V
|
20 A
|
300 V
|
20 A
|
IEC 60947-7-1:2009
|
EN 60947-7-1:2009
|
5.4 g
|
| ||
![]()

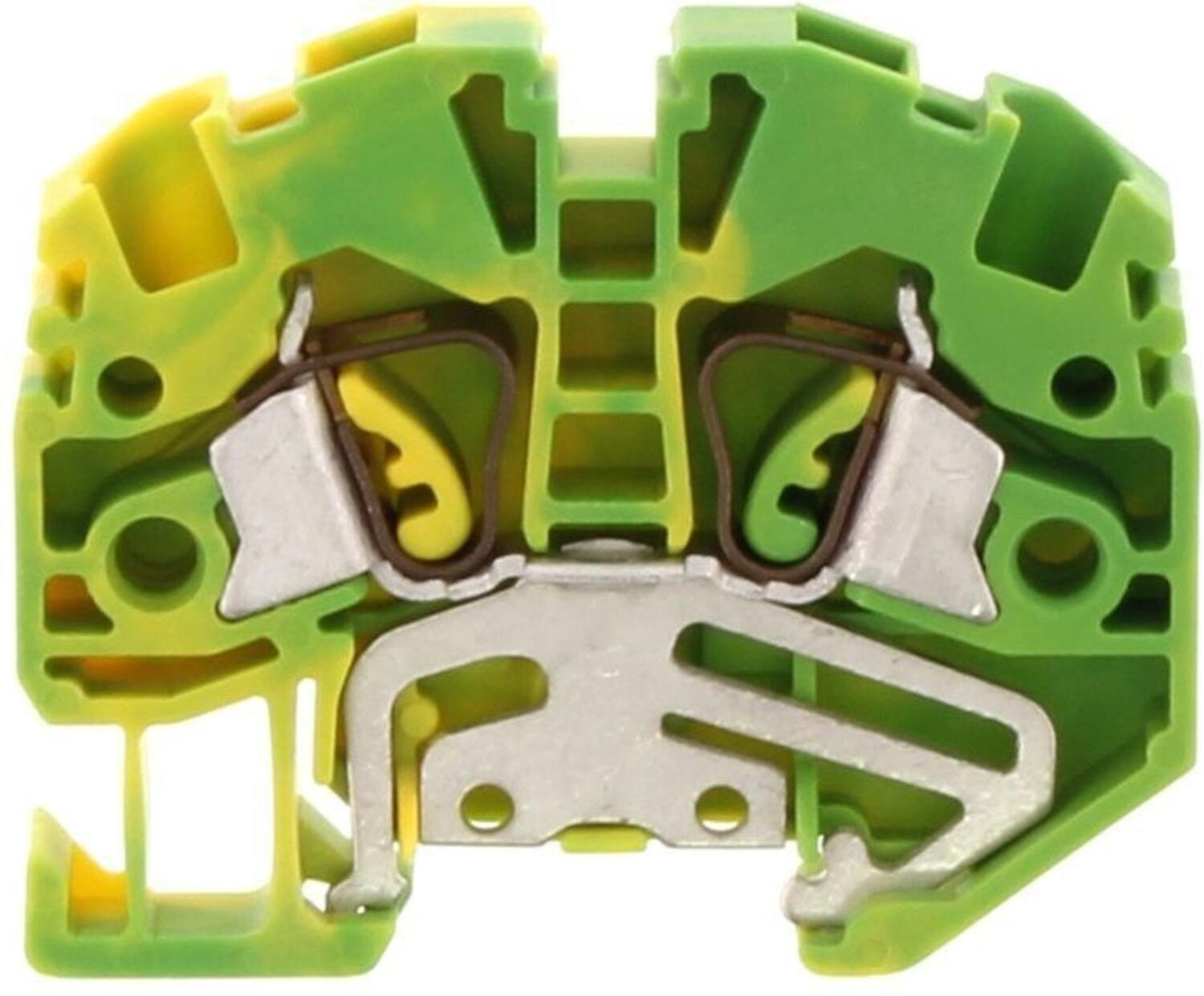

ZSLN 2,5/2A/15 GNYE
Art:
3586.2
Copied
|
Green/yellow
|
|
|
|
TS 15
|
|
UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
|
40 mm
|
|
34 mm
|
2
|
|
|
|
|
|
|
|
|
IEC 60947-7-2:2009
|
EN 60947-7-2:2009
|
7 g
|
| ||
![]()
ZSRK 2.5/3A/15 Green, 2.5mm² Compact tension spring, feed through, 1 in, 2 out, TS15
Art:
3599.1
Copied
|
Green
|
800 V
|
24 A
|
24 A
|
TS 15
|
8 kV
|
UL, CSA, CSA US, cUL, KEMA KUR, EAC
|
52 mm
|
|
34 mm
|
3
|
300 V
|
20 A
|
300 V
|
20 A
|
300 V
|
20 A
|
300 V
|
20 A
|
|
EN 60947-7-1:2009
|
8.06 g
|
| ||
![]()
ZSRK 2.5/3A/15 Beige, 2.5mm² Compact tension spring, feed through, 1 in, 2 out, TS15
Art:
3599.2
Copied
|
Beige
|
800 V
|
24 A
|
24 A
|
TS 15
|
8 kV
|
UL, CSA, CSA US, cUL, KEMA KUR, EAC
|
52 mm
|
|
34 mm
|
3
|
300 V
|
20 A
|
300 V
|
20 A
|
300 V
|
20 A
|
300 V
|
20 A
|
|
EN 60947-7-1:2009
|
8.06 g
|
| ||
![]()

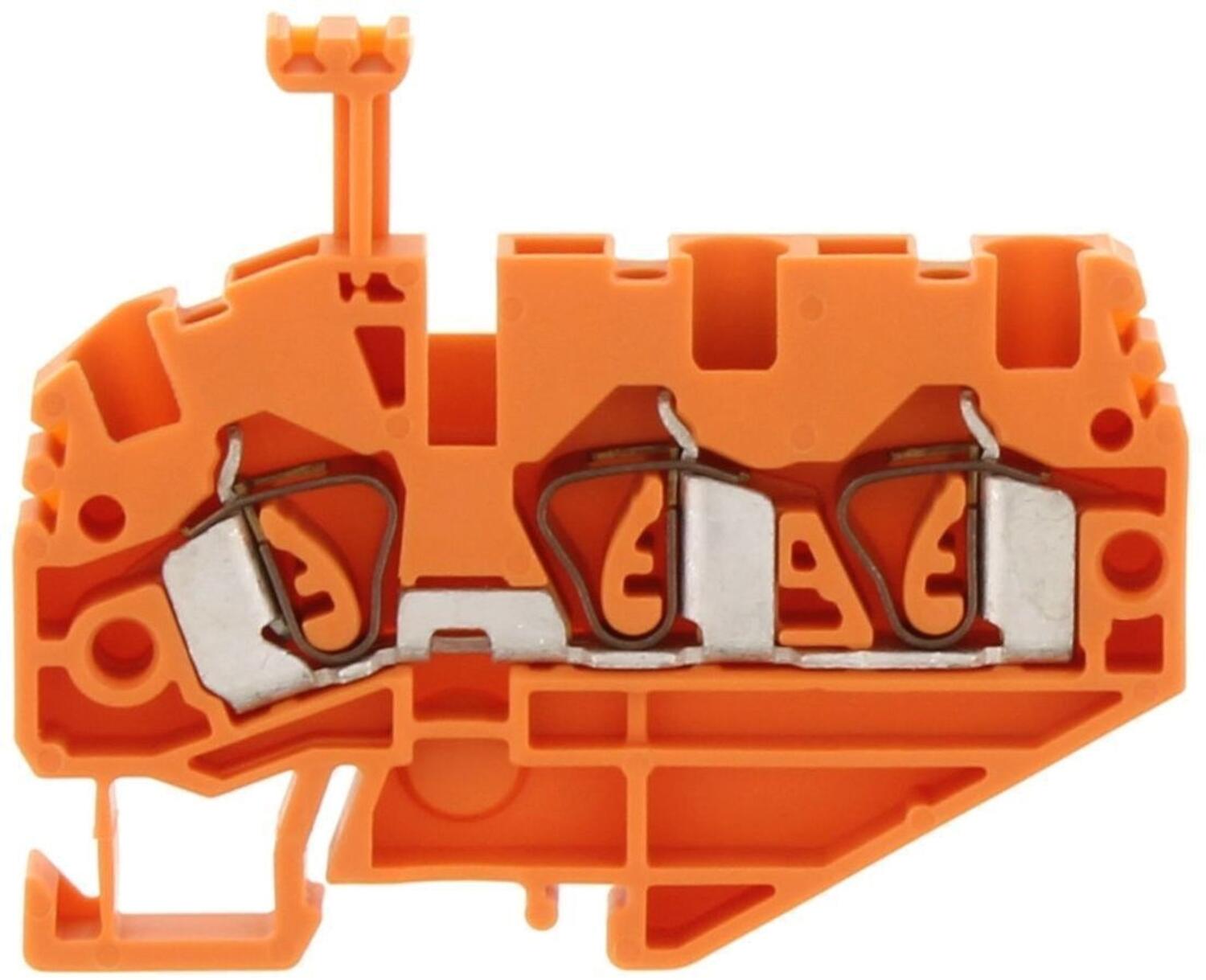

ZSRK 2.5/3A/15 Orange, 2.5mm² Compact tension spring, feed through, 1 in, 2 out, TS15
Art:
3599.3
Copied
|
Orange
|
800 V
|
24 A
|
24 A
|
TS 15
|
8 kV
|
UL, CSA, CSA US, cUL, KEMA KUR, EAC
|
52 mm
|
|
34 mm
|
3
|
300 V
|
20 A
|
300 V
|
20 A
|
300 V
|
20 A
|
300 V
|
20 A
|
|
EN 60947-7-1:2009
|
8.06 g
|
| ||
![]()

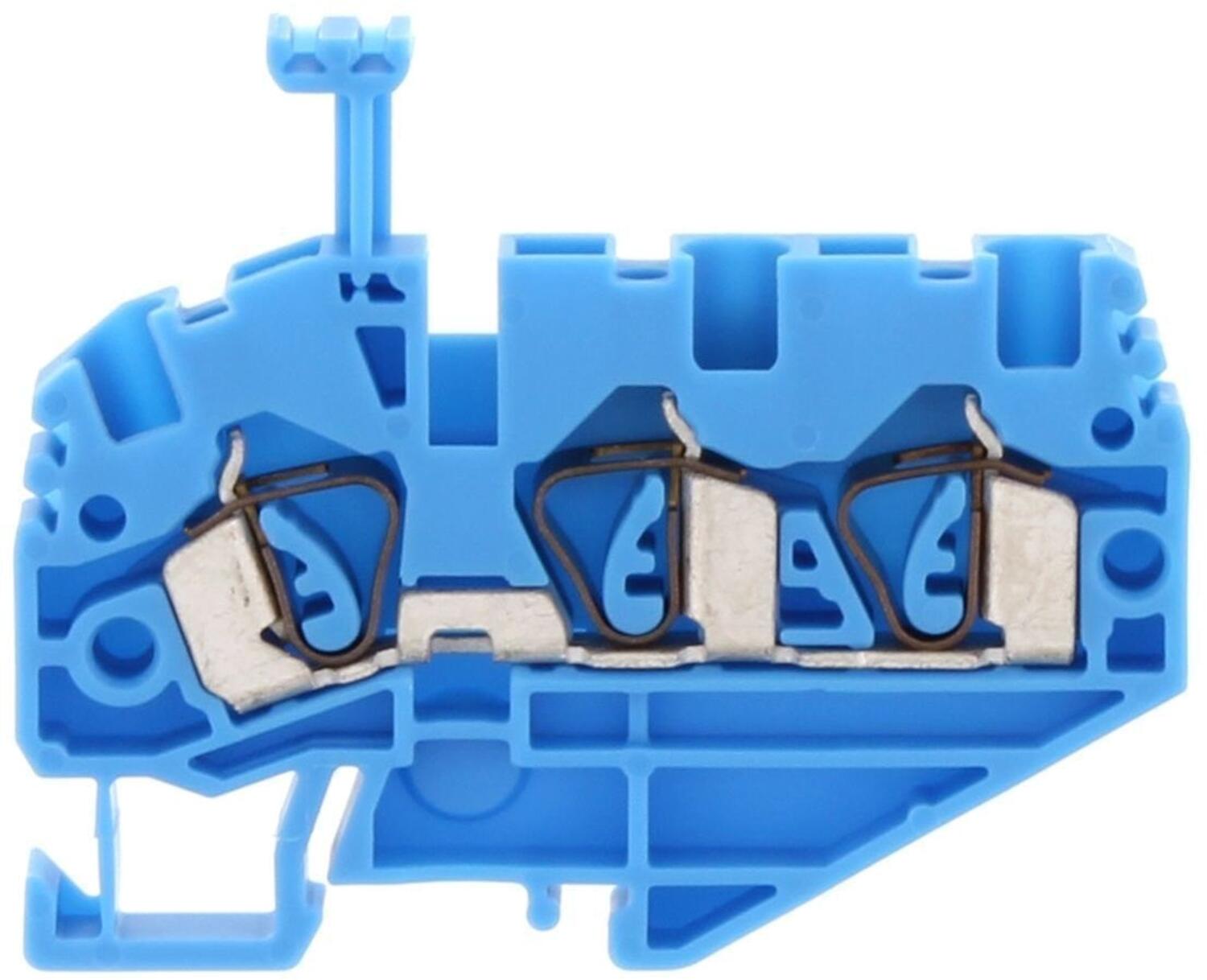

ZSRK 2.5/3A/15 Blue, 2.5mm² Compact tension spring, feed through, 1 in, 2 out, TS15
Art:
3599.5
Copied
|
Blue
|
800 V
|
24 A
|
24 A
|
TS 15
|
8 kV
|
UL, CSA, CSA US, cUL, KEMA KUR, EAC
|
52 mm
|
|
34 mm
|
3
|
300 V
|
20 A
|
300 V
|
20 A
|
300 V
|
20 A
|
300 V
|
20 A
|
|
EN 60947-7-1:2009
|
8.06 g
|
| ||
![]()

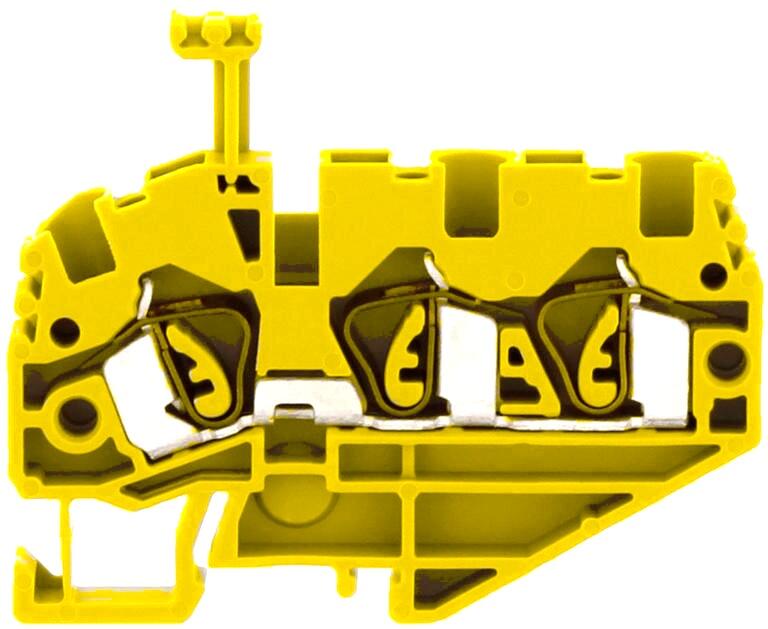

ZSRK 2.5/3A/15 Yellow, 2.5mm² Compact tension spring, feed through, 1 in, 2 out, TS15
Art:
3599.8
Copied
|
Yellow
|
800 V
|
24 A
|
24 A
|
TS 15
|
8 kV
|
UL, CSA, CSA US, cUL, KEMA KUR, EAC
|
52 mm
|
|
34 mm
|
3
|
300 V
|
20 A
|
300 V
|
20 A
|
300 V
|
20 A
|
300 V
|
20 A
|
|
EN 60947-7-1:2009
|
8.06 g
|
| ||
![]()

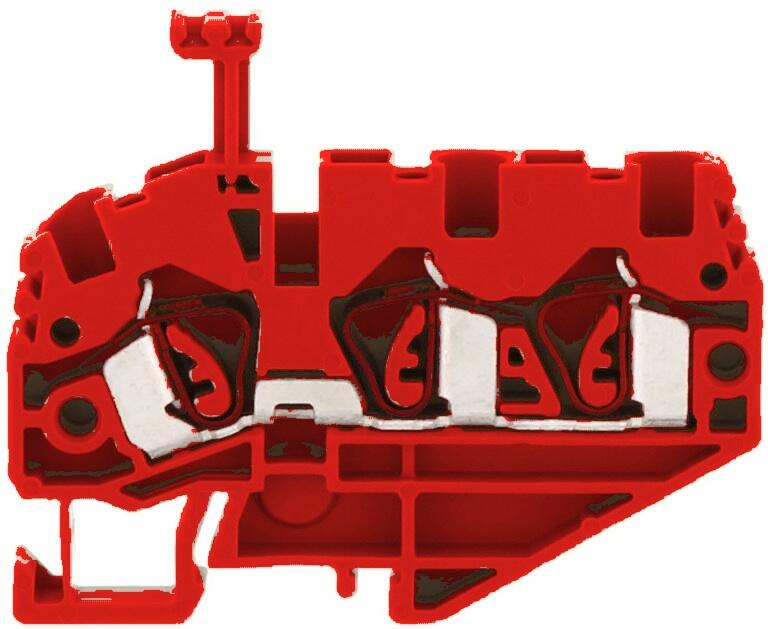

ZSRK 2.5/3A/15 Red, 2.5mm² Compact tension spring, feed through, 1 in, 2 out, TS15
Art:
3599.9
Copied
|
Red
|
800 V
|
24 A
|
24 A
|
TS 15
|
8 kV
|
UL, CSA, CSA US, cUL, KEMA KUR, EAC
|
52 mm
|
|
34 mm
|
3
|
300 V
|
20 A
|
300 V
|
20 A
|
300 V
|
20 A
|
300 V
|
20 A
|
|
EN 60947-7-1:2009
|
8.06 g
|
| ||
![]()

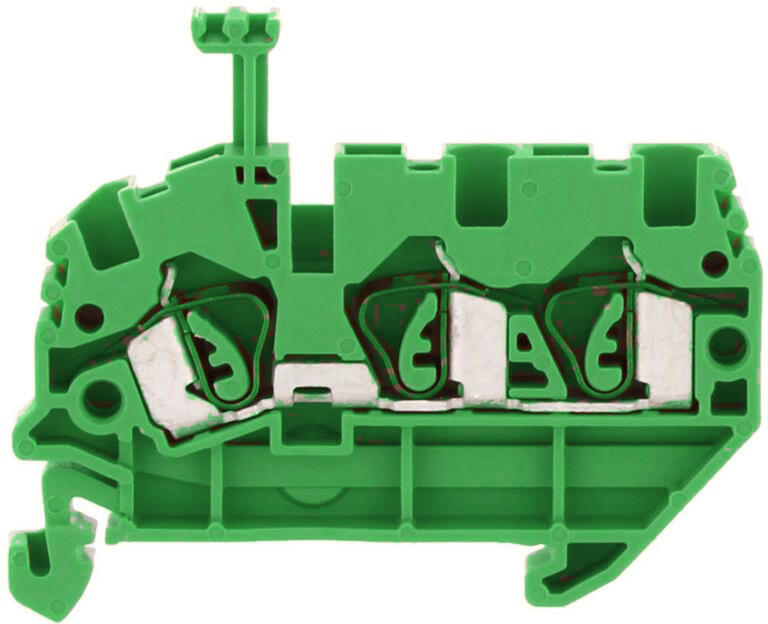

KDS-DEG 32-33 Grey Insert Max 33mmø
Art:
3600.1
Copied
|
Green
|
800 V
|
24 A
|
24 A
|
TS 35
|
8 kV
|
UL, CSA, CSA US, cUL, KEMA KUR, EAC
|
55 mm
|
36.5 mm
|
|
3
|
300 V
|
20 A
|
300 V
|
20 A
|
300 V
|
20 A
|
300 V
|
20 A
|
|
EN 60947-7-1:2009
|
8.06 g
|
| ||
![]()
ZSRK 2.5/3A Beige, 2.5mm² Compact tension spring, feed through, 1 in, 2 out
Art:
3600.2
Copied
|
Beige
|
800 V
|
24 A
|
24 A
|
TS 35
|
8 kV
|
UL, CSA, CSA US, cUL, KEMA KUR, EAC
|
55 mm
|
36.5 mm
|
|
3
|
300 V
|
20 A
|
300 V
|
20 A
|
300 V
|
20 A
|
300 V
|
20 A
|
|
EN 60947-7-1:2009
|
8.06 g
|
| ||
![]()

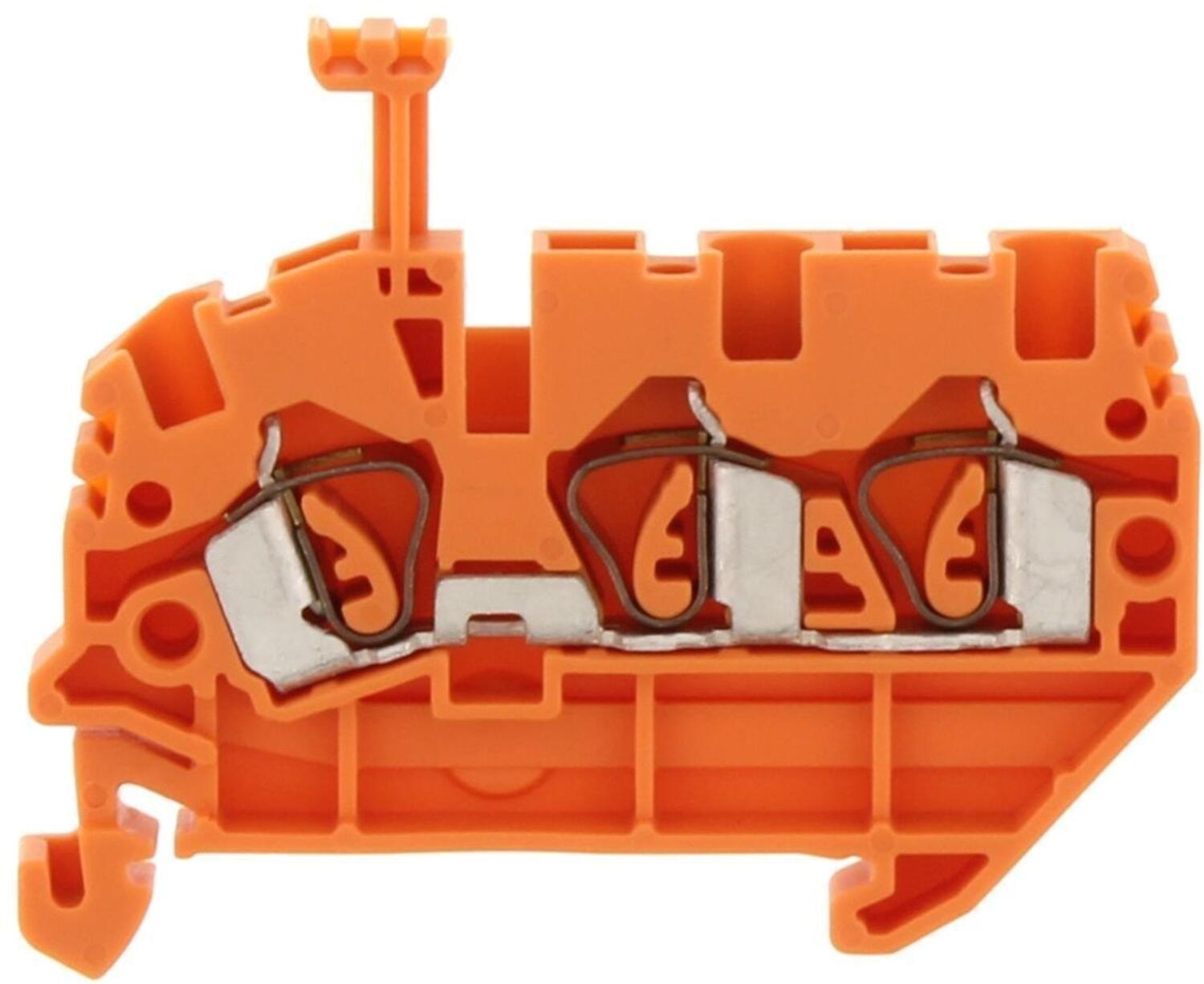

ZSRK 2.5/3A Orange, 2.5mm² Compact tension spring, feed through, 1 in, 2 out
Art:
3600.3
Copied
|
Orange
|
800 V
|
24 A
|
24 A
|
TS 35
|
8 kV
|
UL, CSA, CSA US, cUL, KEMA KUR, EAC
|
55 mm
|
36.5 mm
|
|
3
|
300 V
|
20 A
|
300 V
|
20 A
|
300 V
|
20 A
|
300 V
|
20 A
|
|
EN 60947-7-1:2009
|
8.06 g
|
| ||
![]()

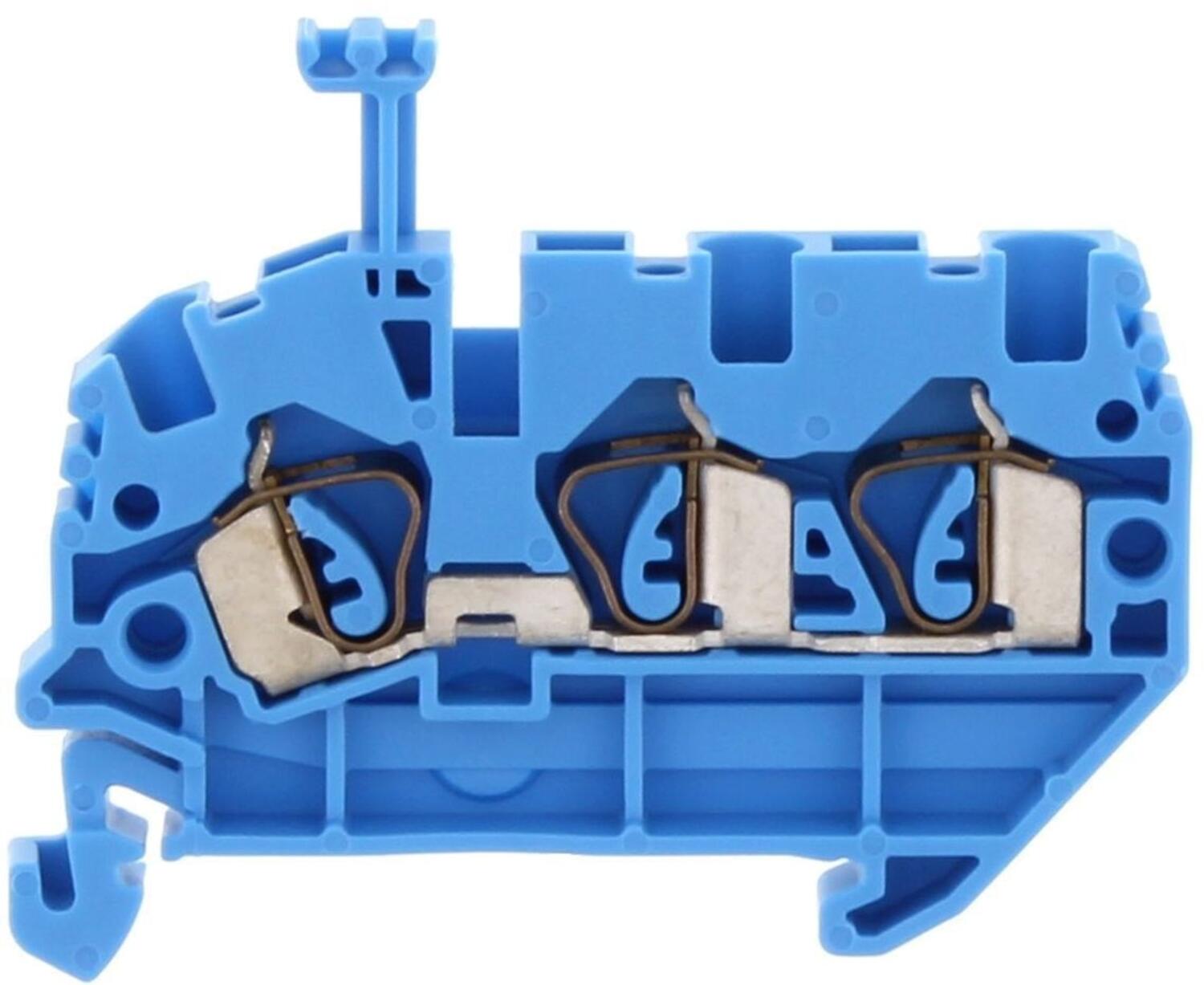

ZSRK 2.5/3A Blue, 2.5mm² Compact tension spring, feed through, 1 in, 2 out
Art:
3600.5
Copied
|
Blue
|
800 V
|
24 A
|
24 A
|
TS 35
|
8 kV
|
UL, CSA, CSA US, cUL, KEMA KUR, EAC
|
55 mm
|
36.5 mm
|
|
3
|
300 V
|
20 A
|
300 V
|
20 A
|
300 V
|
20 A
|
300 V
|
20 A
|
|
EN 60947-7-1:2009
|
8.06 g
|
| ||
![]()

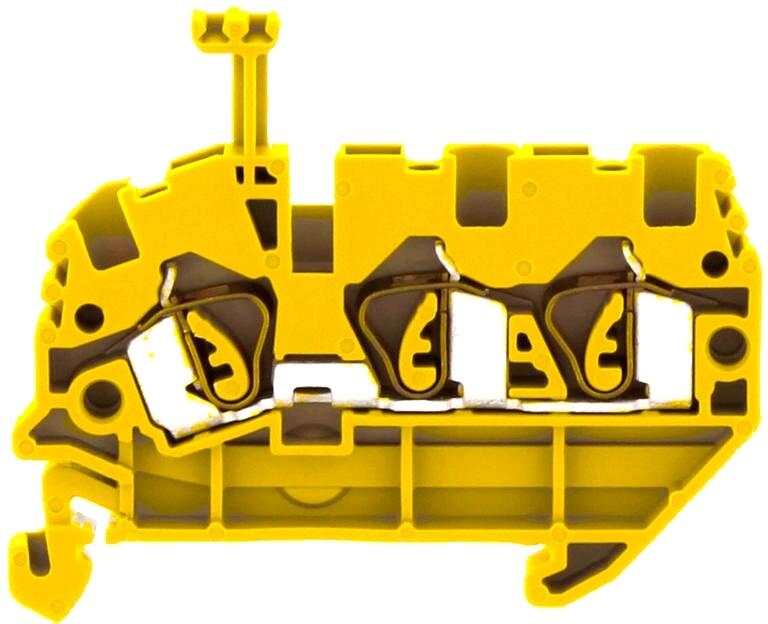

KDS-DE 2x 5-6 Grey Insert Max 6mmø
Art:
3600.8
Copied
|
Yellow
|
800 V
|
24 A
|
24 A
|
TS 35
|
8 kV
|
UL, CSA, CSA US, cUL, KEMA KUR, EAC
|
55 mm
|
36.5 mm
|
|
3
|
300 V
|
20 A
|
300 V
|
20 A
|
300 V
|
20 A
|
300 V
|
20 A
|
|
EN 60947-7-1:2009
|
8.06 g
|
| ||
![]()

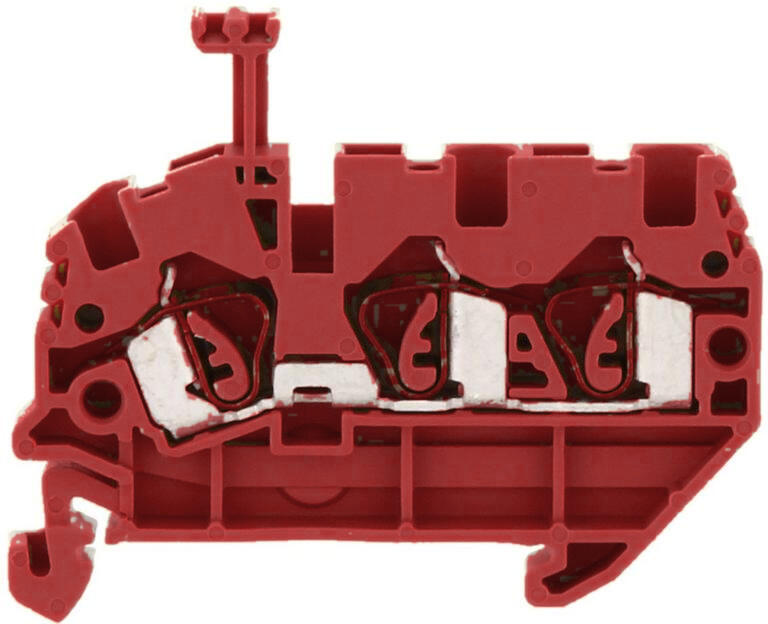

KDS-DE 4x 3-4 Grey Insert Max 4mmø
Art:
3600.9
Copied
|
Red
|
800 V
|
24 A
|
24 A
|
TS 35
|
8 kV
|
UL, CSA, CSA US, cUL, KEMA KUR, EAC
|
55 mm
|
36.5 mm
|
|
3
|
300 V
|
20 A
|
300 V
|
20 A
|
300 V
|
20 A
|
300 V
|
20 A
|
|
EN 60947-7-1:2009
|
8.06 g
|
| ||
![]()

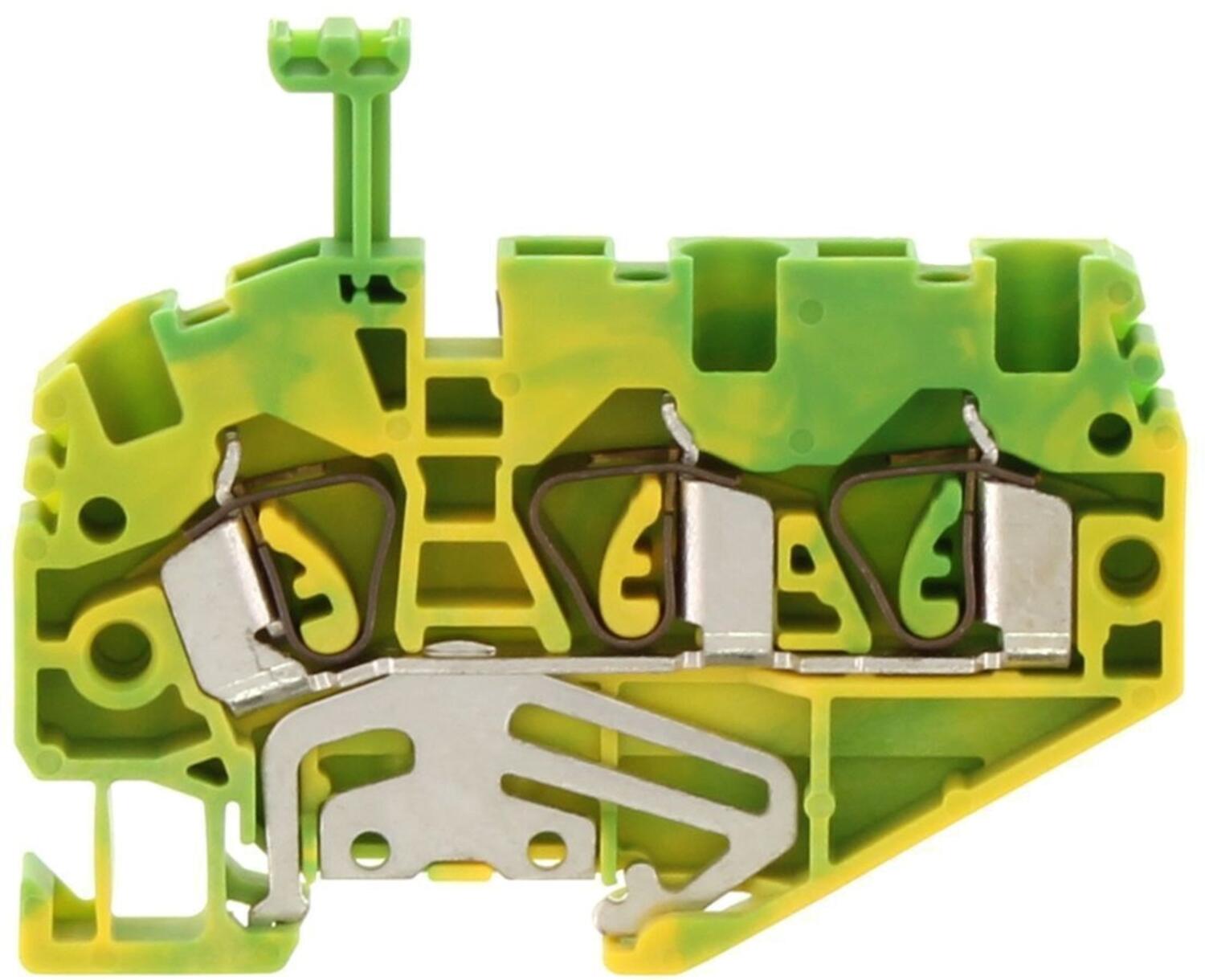

ZSLN 2,5/3A/15 GNYE
Art:
3601.2
Copied
|
Green/yellow
|
|
|
|
TS 15
|
|
UL, CSA, CSA US, cUL, KEMA KUR, EAC
|
52 mm
|
|
34 mm
|
3
|
|
|
|
|
|
|
|
|
|
EN 60947-7-2:2009
|
10 g
|
| ||
![]()
ZSLN 2,5/3A GNYE
Art:
3602.2
Copied
|
Green/yellow
|
|
|
|
TS 35
|
|
UL, CSA, CSA US, cUL, KEMA KUR, EAC
|
55 mm
|
36.5 mm
|
|
3
|
|
|
|
|
|
|
|
|
|
EN 60947-7-2:2009
|
7.65 g
|
|
Select a variant in the list
