COMATRELECO

Sockets for C5 industrial relays

3-pole

Both DIN and EN connection numbering
Semi-protected
Integrated retaining bow
Logic connection

Selected variant

Save page as PDF

Technical data / Documents

Accessories & Related products

Selected variant

Technical data

Output Data
Breaking Voltage	400 V
Breaking capacity current	16 A

General Data
Isolation connection/connection	4000 V
Isolation connection/rail	4000 V
Material	Lexan
Torque connection	1
Mounting	DIN-rail
Screw size	M3.5, Pozi
Connection area single wire	6 mm² / 2x2,5 mm²
Connection area multiple conductors	1,5-6 mm²
Temperature operational min	-40 °C
Storage temperature min	-40 °C
Storage temperature max	80 °C
Temperature operational max	60 °C
Weight	92 g

Downloads

S5M.pdf

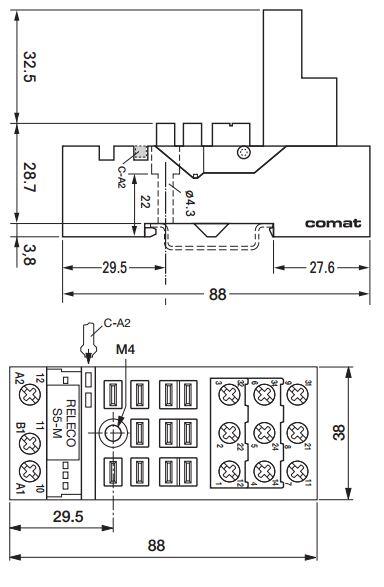

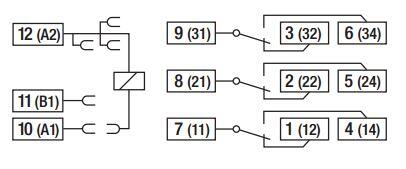

Measurements and connections

Accessories

	Parts	Isolation connection/connection	Isolation connection/rail	Torque connection	Mounting	Screw size	Connection area single wire	Connection area multiple conductors	Weight	Price
	Socket For C5 Relay 11 Pin Screw Art: S5M Copied	4000 V	4000 V	1	DIN-rail	M3.5, Pozi	6 mm² / 2x2,5 mm²	1,5-6 mm²	92 g

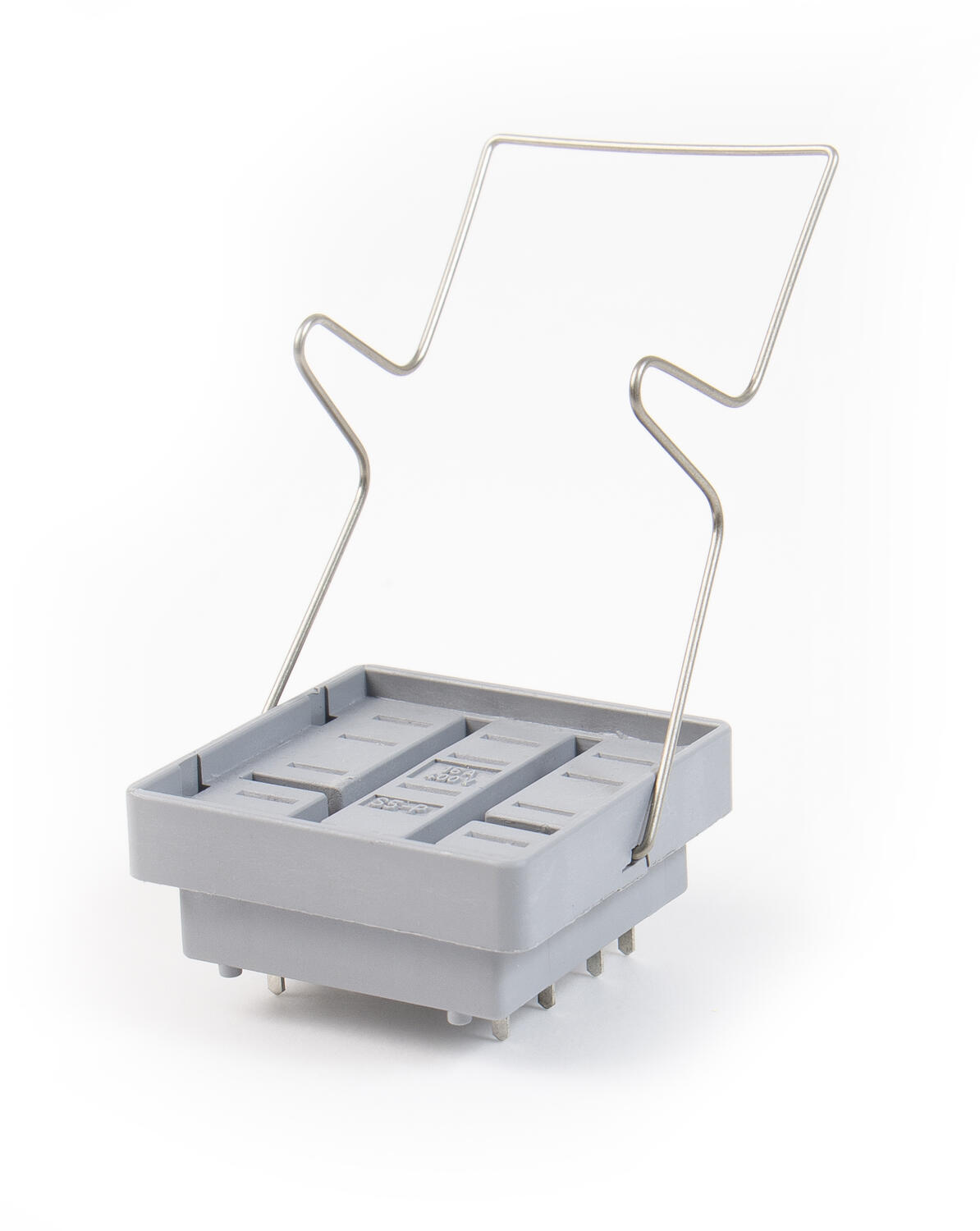

	Socket For C5 Relay 11 Pin PCB Art: S5P Copied				PCB				20 g
