CSS Solid state interface relay

Input Data
Control voltage dc max	48 V
Control voltage dc min	5 V
Voltage drop max	0.14
Input current at nominal voltage, typ	4 mA
Response time	0.06 ms
Output Data
Number of contacts	1
Load voltage dc max	48 V
Load voltage dc min	5 V
Breaking capacity current	6 A
Recommended min load	1 mA

Input Data

Control voltage dc max

48 V

Control voltage dc min

5 V

Voltage drop max

0.14

Input current at nominal voltage, typ

4 mA

Response time

0.06 ms

Output Data

Number of contacts

Load voltage dc max

48 V

Load voltage dc min

5 V

Breaking capacity current

6 A

Recommended min load

1 mA

Invisible Heading
Peak current	40 A / 10ms
Release time	0.06 ms
General Data

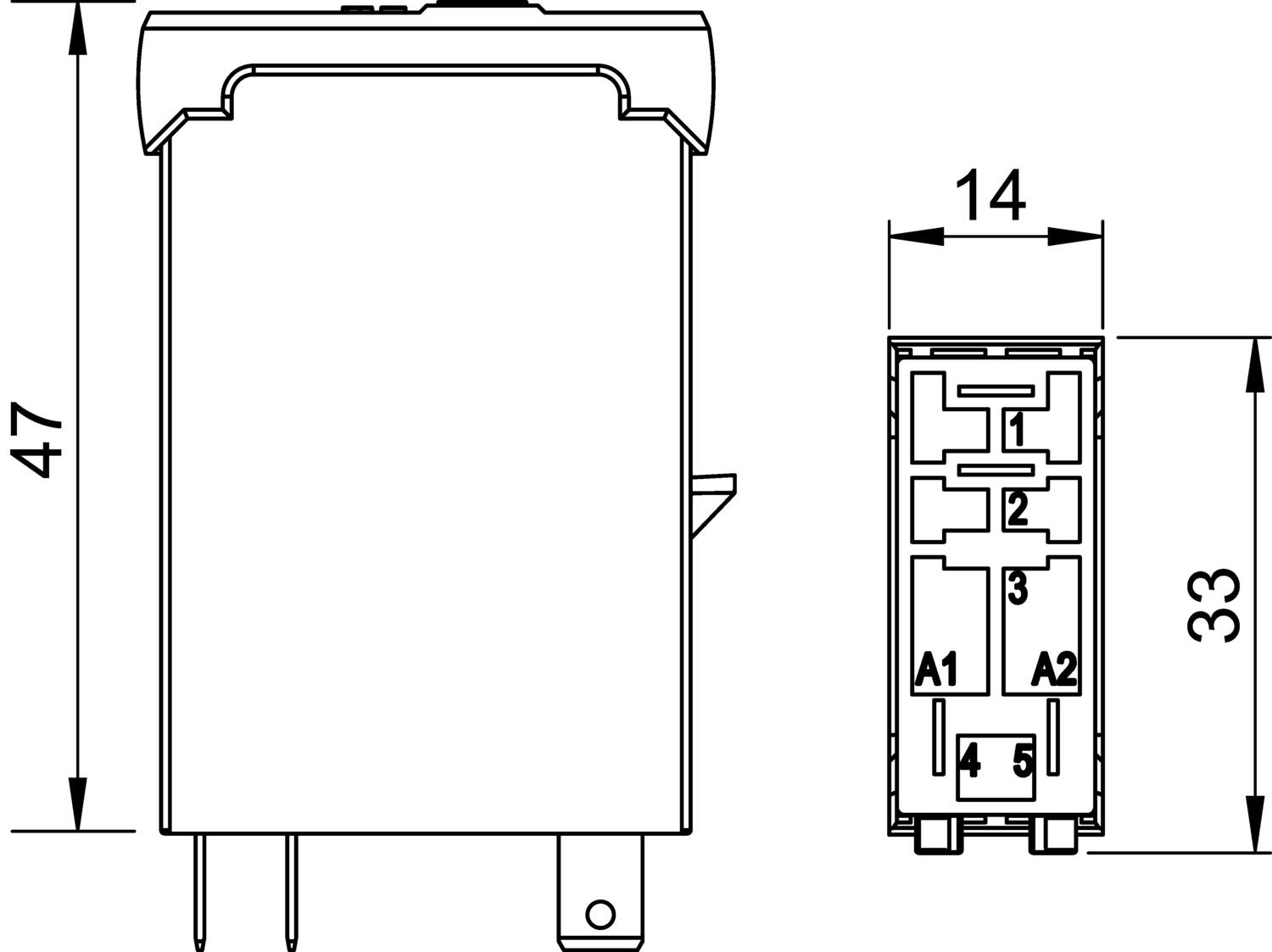

Width	14 mm
Temperature operational min	-40 °C
Storage temperature min	-40 °C
Storage temperature max	85 °C
Temperature operational max	70 °C
Weight	28 g

Invisible Heading

Peak current

40 A / 10ms

Release time

0.06 ms

General Data

Width

14 mm

Temperature operational min

-40 °C

Storage temperature min

-40 °C

Storage temperature max

85 °C

Temperature operational max

70 °C

Weight

28 g

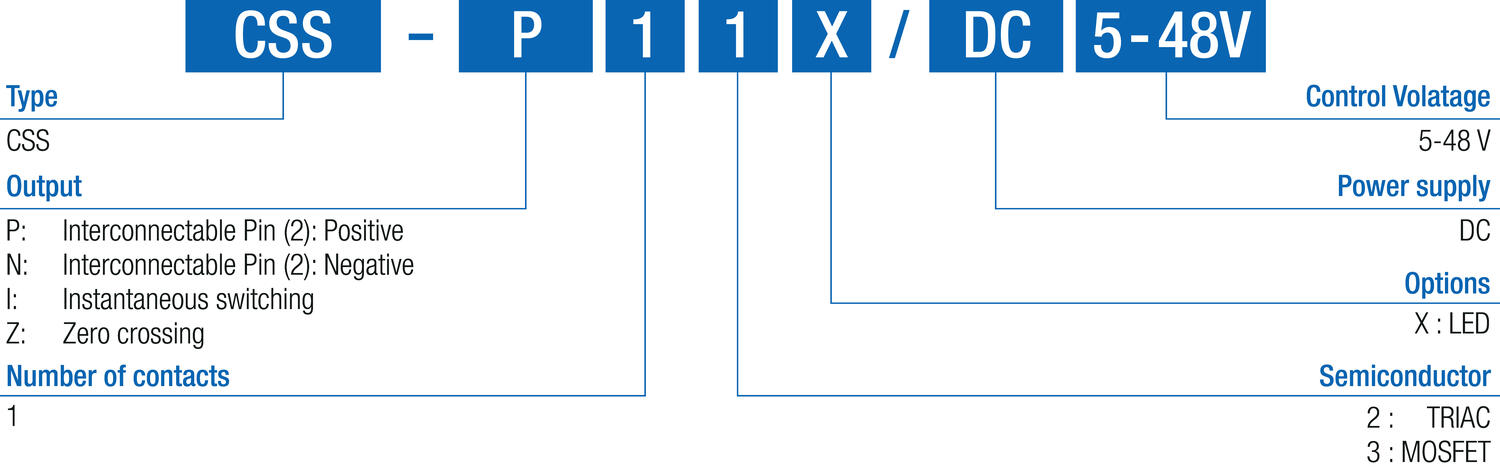

Parts	Voltage drop max	Input current at nominal voltage, typ	Response time	Load voltage ac max	Load voltage ac min	Load voltage dc max	Load voltage dc min	Breaking capacity current	Recommended min load	Peak current	Release time	I2t value

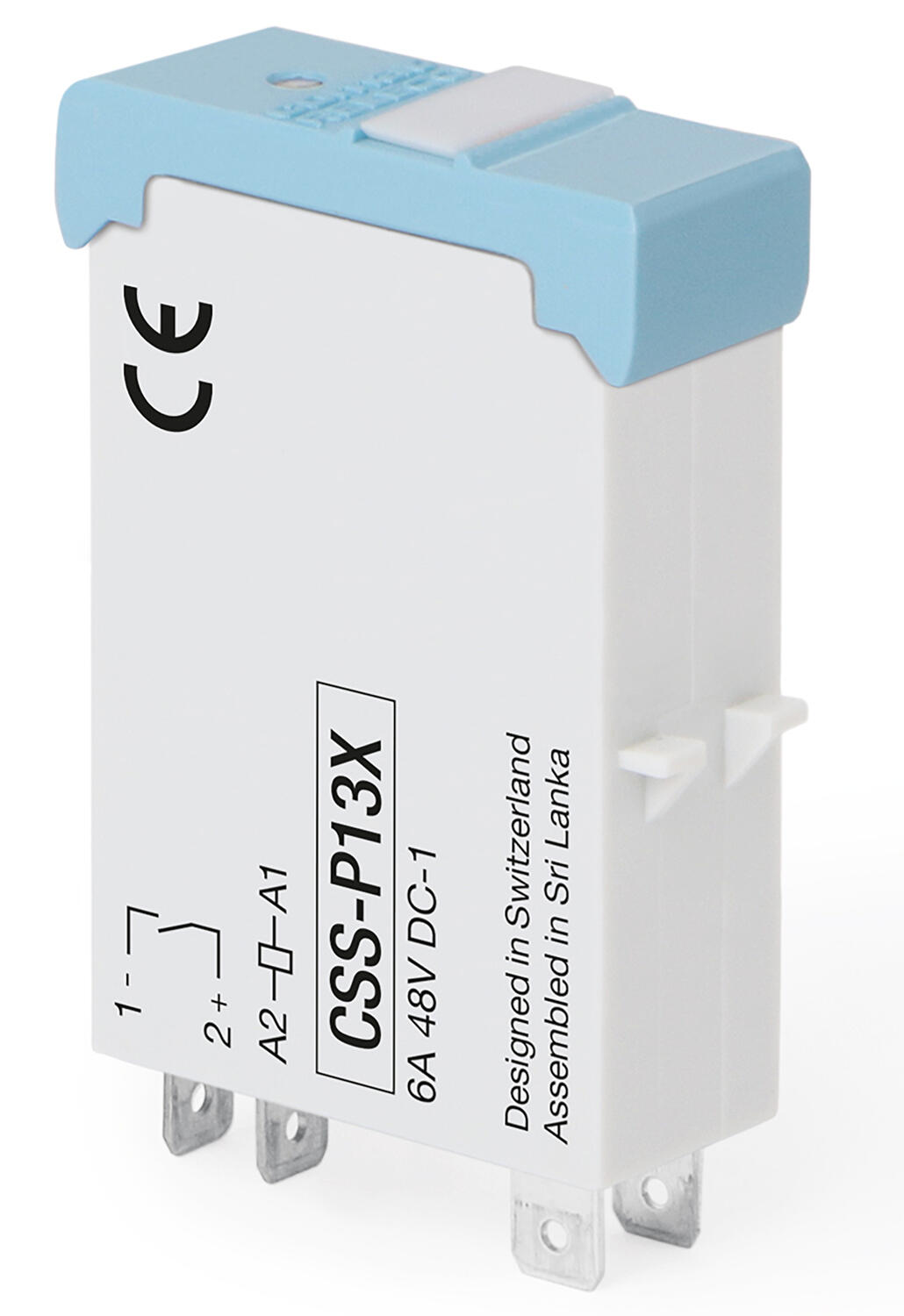

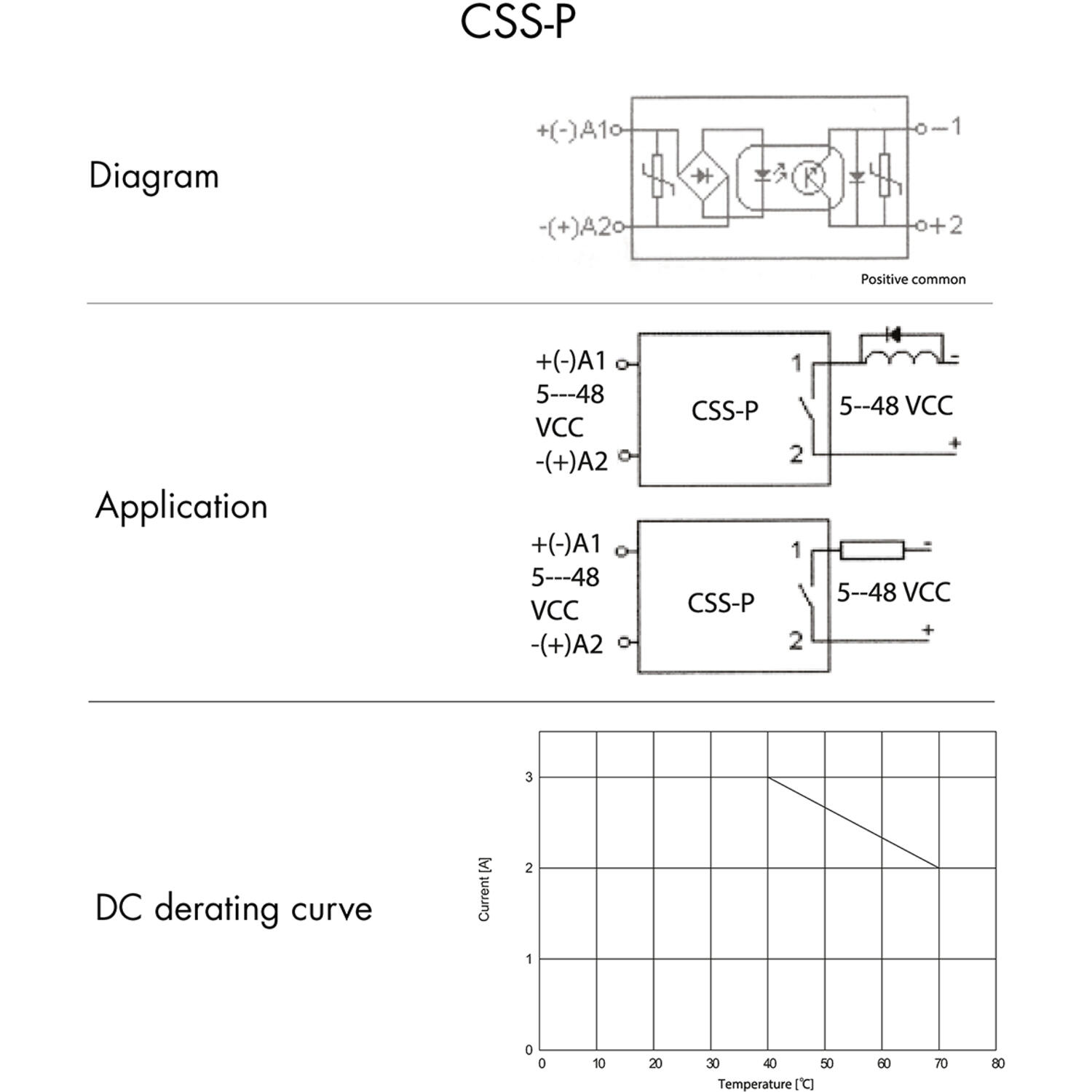

SSR 5 Pin 5-48V dc 6A 5-48V dc PNP Art: CSS-P13X Copied	0.14	4 mA	0.06 ms			48 V	5 V	6 A	1 mA	40 A / 10ms	0.06 ms

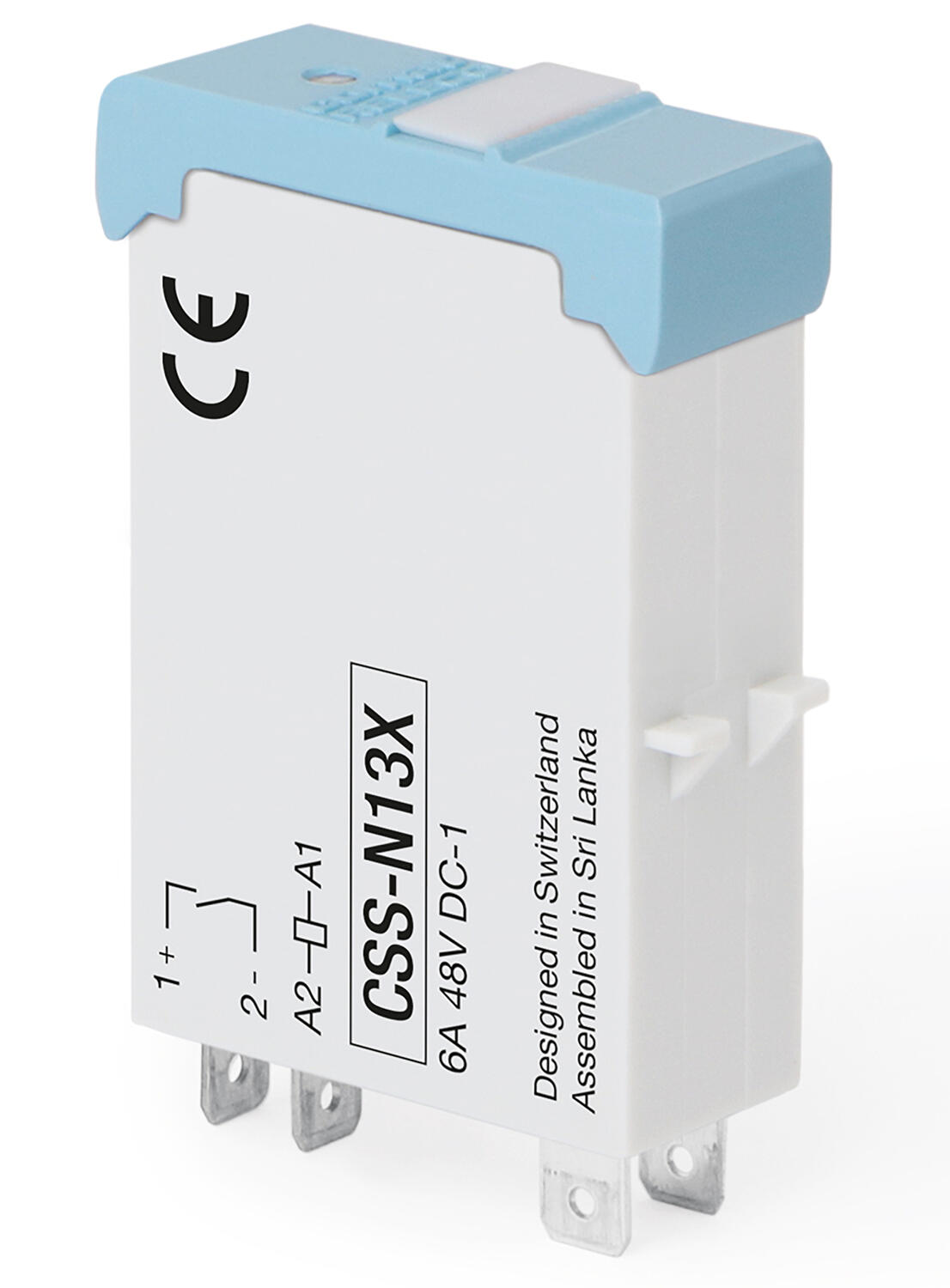

SSR 5 Pin 5-48V dc 6A 5-48V dc NPN Art: CSS-N13X Copied	0.14	4 mA	0.06 ms			48 V	5 V	6 A	1 mA	40 A / 10ms	0.06 ms

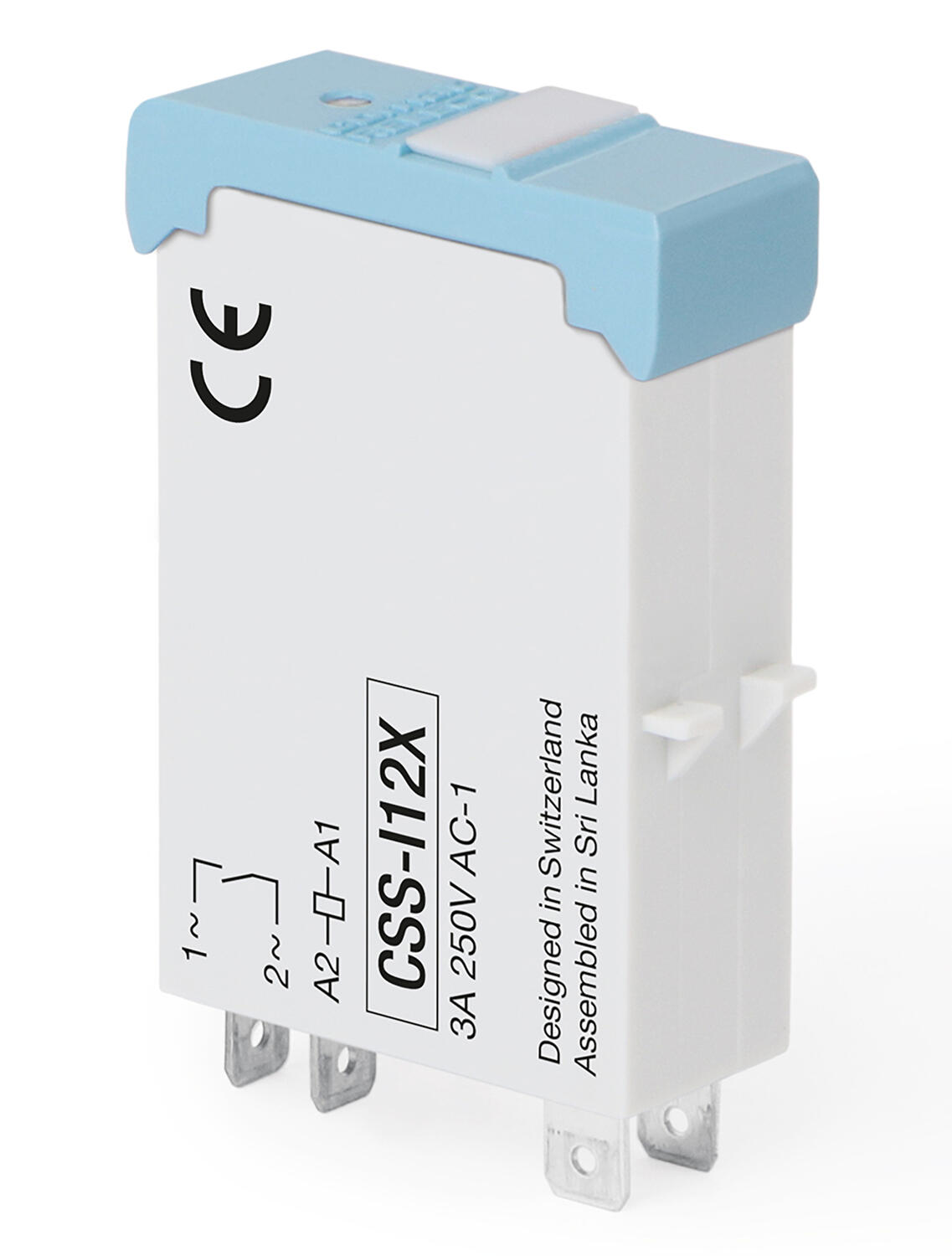

SSR 5 Pin 5-48V dc 3A 24-250V ac Art: CSS-I12X Copied		10 mA	10 ms	250 V	24 V			3 A	35 mA	150 A / 10ms	10 ms	210 A²s

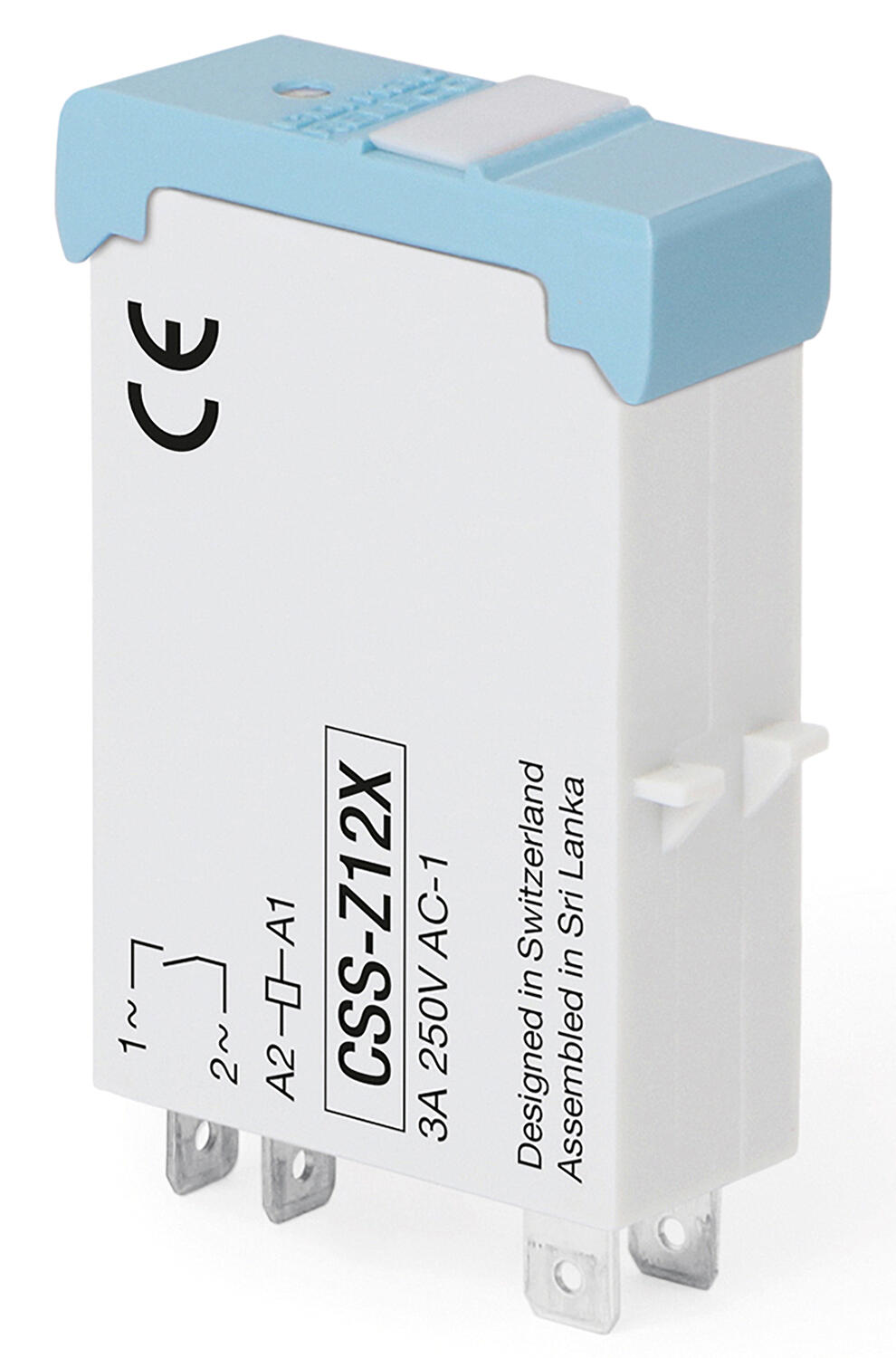

SSR 5 Pin 5-48V dc 3A 24-250V ac Zero Cross Art: CSS-Z12X Copied		10 mA	10 ms	250 V	24 V			3 A	35 mA	150 A / 10ms	10 ms	210 A²s
