DELTA ELECTRONICS
Input data |
|
|---|---|
| Input voltage ac | 100-240 V |
| Input voltage ac min | 85 V AC |
| Input voltage ac max | 264 V AC |
| Inrush current at 230 V ac typical | 40 A |
Output data |
|
| Output voltage | 48 V DC |
| Output voltage min | 43.2 V DC |
| Output voltage max | 55 V DC |
| Output current | 1.25 A |
| Power | 60 W |
Efficiency / Lifetime / MTBF |
|
| Efficiency | 90 % |

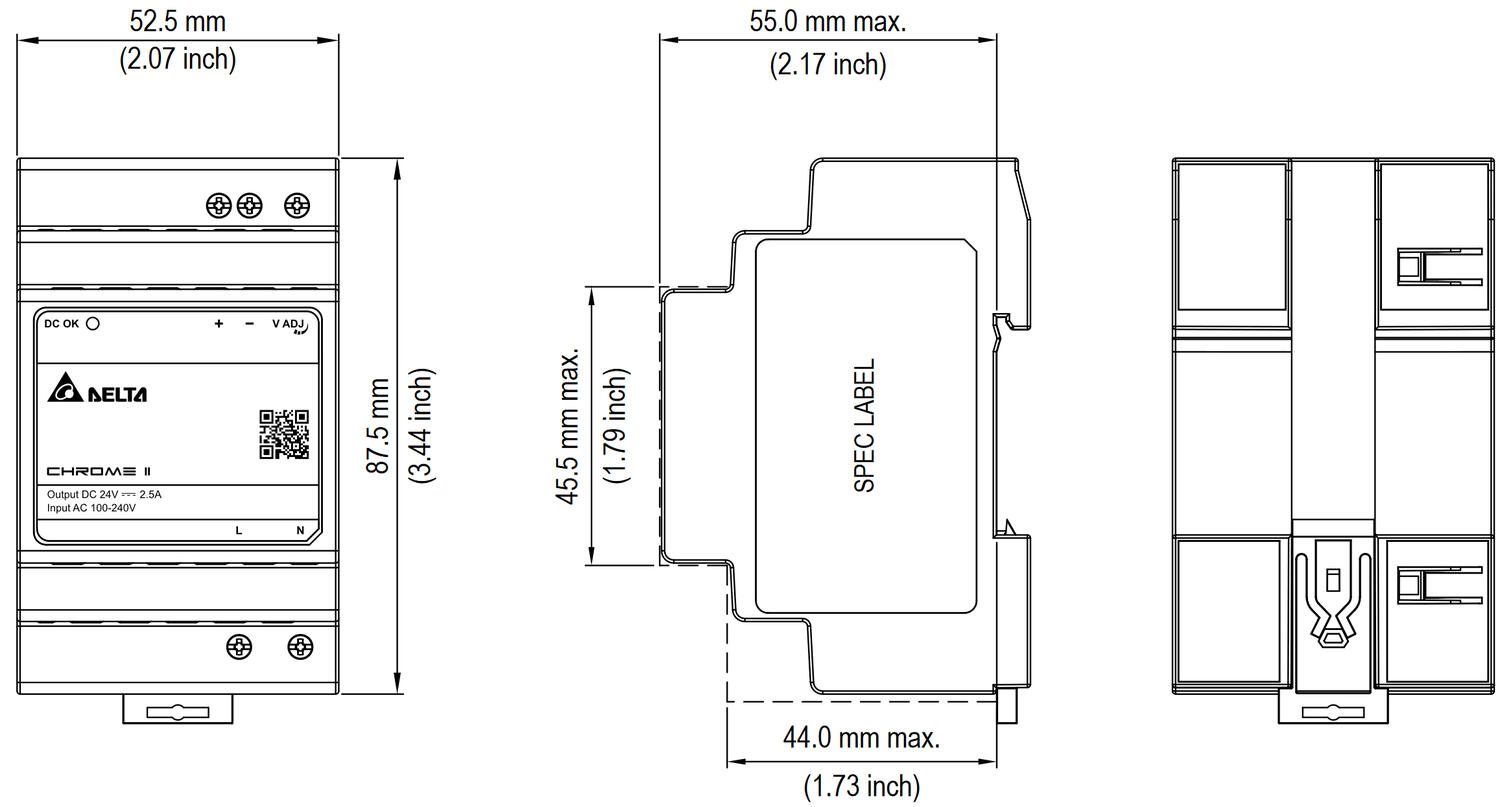

Dimensions |
|
| Width | 52.5 mm |
| Height | 87.5 mm |
| Depth | 55 mm |
*Invisible Heading* |
|
|---|---|
| Weight | 0.17 kg |
Other |
|
| Approvals | BSMI, CB, CCC, CE, UKCA, NEC Class 2, REACH, RoHS, TÜV, UL |
| Hold time at 120 V ac, typical full load | 16 ms |
| Hold time at 230 V ac, typical full load | 80 ms |
| IP class | IP20 |
| Clamp type | Screw |
| Material protection | Plastic |
| Supply frequency | 50-60 Hz |
| Power consumption 120 V ac | 1.1 A |
| Power consumption 230 V ac | 0.7 A |
| Temperature min without derating | -30 °C |
| Temperature max without derating | 70 °C |
Have you ever wondered if there's any difference between cable coils and cable reels?
Our cable experts take you through the advantages of using cable coils.
What tri-rated cable are you currently using? Does the product or service you receive leave you wanting more? It’s time to ask the question. Because now, you’ve got options.
This innovative push-in connection system enables time savings of up to 50%, whether you're wiring control panels or managing complex installations
Solar energy has become a pillar of the global energy transition. The experts at OEM Automatic have broken down the role of photovoltaic fuses and their contribution to solar systems, as well as, how to choose the right solution for you.
Ultra fast-acting fuse links engineered specifically to shield delicate semiconductor devices.
Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Inrush current at 230 V ac typical | Output current | Power | Efficiency | Width | Weight | Hold time at 120 V ac, typical full load | Hold time at 230 V ac, typical full load | Power consumption 120 V ac | Power consumption 230 V ac | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Art:
DRC-48V060W1RZ
Copied
|
40 A
|
1.25 A
|
60 W
|
90 %
|
52.5 mm
|
0.17 kg
|
16 ms
|
80 ms
|
1.1 A
|
0.7 A
|
|
||
Art:
DRC-48V100W1RZ
Copied
|
70 A
|
1.92 A
|
92.16 W
|
89.5 %
|
70 mm
|
0.23 kg
|
12 ms
|
60 ms
|
1.8 A
|
1.2 A
|
|
Select a variant in the list
