General Data |
|
|---|---|
| Colour | Black |
| Number of poles | 2 |
| Pitch | 3,5 mm |
| Type | Header |
| Approvals | UL, cUL, VDE |
Ratings |
|
| Rated impulse voltage | 2,5 kV |
| Contamination degree | 3 |
| Rated current | 8 A |
| Rated voltage | 125 V |
| Overvoltage category | III |
Dimensions |
|
| Width right | 1,75 mm |
| Drillhole diameter | 1,3 mm |
| Length | 2,7 mm |
| Length of pin | 3,5 mm |
| Width | 7 mm |
| Width left | 1,75 mm |
| Height | 9 mm |
| Diameter of the connection pin | 1 mm |
Connection Data |
|
| Number of plugin rows | 1 Â |
| Connector version | Fixed |
| Connector type/principle | Pin header |
Materials |
|
| Flammability class | UL94-V0 |
| Operating temperature from | -30 °C |
| Operating temperature to | 105 °C |
| Housing material | Polyamide 6.6 |
| Contact pin | Brass |
Approvals |
|
|---|---|
| UL test standard | UL 1059 |
| Rated voltage VDE | 125 V |
| Rated current UL | 9 A |
| Rated current cUL | 9 A |
| Rated current VDE | 8 A |
| Rated voltage UL | 150 V |
| Rated voltage cUL | 150 V |
| VDE test standard | DIN EN 61984 |
| cUL test standard | CSA 22.2 No.158 |
| Plug-in cycles acc. to standard | 100 |
| Recommended wave solder duration max | 4 s |
| Recommended wave solder duration min | 3 s |
| Recommended wave soldering temperature | 265 °C |
| Tariff code | 85366990 |
| Pack size | 50 Â |
| Weight | 0,2 g |
| Angle circuit board / contact | 90° (vertically upwards) |
| Country of origin | QU |
| Current creepage resistance | CTI 175 |
| Glow wire flammability index (GWFI) | GWFI 850 |
| Glow wire ignition temperature (GWIT) | GWIT 775 |
| GWFI after-glow time | 30 s |
| GWIT exposure time | 5 s |
| Insulation resistance | 1*10^15 Ω x cm |
Optimise your production line with encoders, inclinometers, displays and slip rings
Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.
The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.
Do you require signalling devices and beacons in your production process? Download our latest whitepaper!
Here, our customer requires control boxes for electricity metering systems. We leveraged our expertise to deliver easy-to-install, ready-to-use assemblies. We look forward to creating more of these bespoke control boxes for our customer.
This blog talks all things DC circuit protection including the key components: electronic circuit breakers, fuses and current monitoring devices. As well as how to choose the right protection.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Parts | Number of poles | Length | Length of pin | Width | Height | Weight | Angle circuit board / contact | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|
STL 1350/2/3,50-V BK
Art:
13911.4
Copied
|
2
|
2,7 mm
|
3,5 mm
|
7 mm
|
9 mm
|
0,2 g
|
90° (vertically upwards)
|
| ||
STL 1350/2/3,50-H BK
Art:
13934.4
Copied
|
2
|
12,4 mm
|
4,4 mm
|
7 mm
|
4 mm
|
0,28 g
|
0°/180° (horizontal)
|
| ||
|
STL 1350/3/3,50-V BK
Art:
13912.4
Copied
|
3
|
2,7 mm
|
3,5 mm
|
10,5 mm
|
9 mm
|
0,3 g
|
90° (vertically upwards)
|
| ||
|
STL 1350/3/3,50-H BK
Art:
13935.4
Copied
|
3
|
12,4 mm
|
4,4 mm
|
10,5 mm
|
4 mm
|
0,42 g
|
0°/180° (horizontal)
|
| ||
|
STL 1350/4/3,50-V BK
Art:
13913.4
Copied
|
4
|
2,7 mm
|
3,5 mm
|
14 mm
|
9 mm
|
0,4 g
|
90° (vertically upwards)
|
| ||
|
STL 1350/4/3,50-H BK
Art:
13936.4
Copied
|
4
|
12,4 mm
|
4,4 mm
|
14 mm
|
4 mm
|
0,56 g
|
0°/180° (horizontal)
|
| ||
|
STL 1350/5/3,50-V BK
Art:
13914.4
Copied
|
5
|
2,7 mm
|
3,5 mm
|
17,5 mm
|
9 mm
|
0,51 g
|
90° (vertically upwards)
|
| ||
|
STL 1350/5/3,50-H BK
Art:
13937.4
Copied
|
5
|
12,4 mm
|
4,4 mm
|
17,5 mm
|
4 mm
|
0,71 g
|
0°/180° (horizontal)
|
| ||
|
STL 1350/6/3,50-V BK
Art:
13915.4
Copied
|
6
|
2,7 mm
|
3,5 mm
|
21 mm
|
9 mm
|
0,62 g
|
90° (vertically upwards)
|
| ||
|
STL 1350/6/3,50-H BK
Art:
13938.4
Copied
|
6
|
12,4 mm
|
4,4 mm
|
21 mm
|
4 mm
|
0,85 g
|
0°/180° (horizontal)
|
| ||
|
STL 1350/7/3,50-V BK
Art:
13916.4
Copied
|
7
|
2,7 mm
|
3,5 mm
|
24,5 mm
|
9 mm
|
0,72 g
|
90° (vertically upwards)
|
| ||
|
STL 1350/7/3,50-H BK
Art:
13939.4
Copied
|
7
|
12,4 mm
|
4,4 mm
|
24,5 mm
|
4 mm
|
0,99 g
|
0°/180° (horizontal)
|
| ||
|
STL 1350/8/3,50-V BK
Art:
13917.4
Copied
|
8
|
2,7 mm
|
3,5 mm
|
28 mm
|
9 mm
|
0,83 g
|
90° (vertically upwards)
|
| ||
|

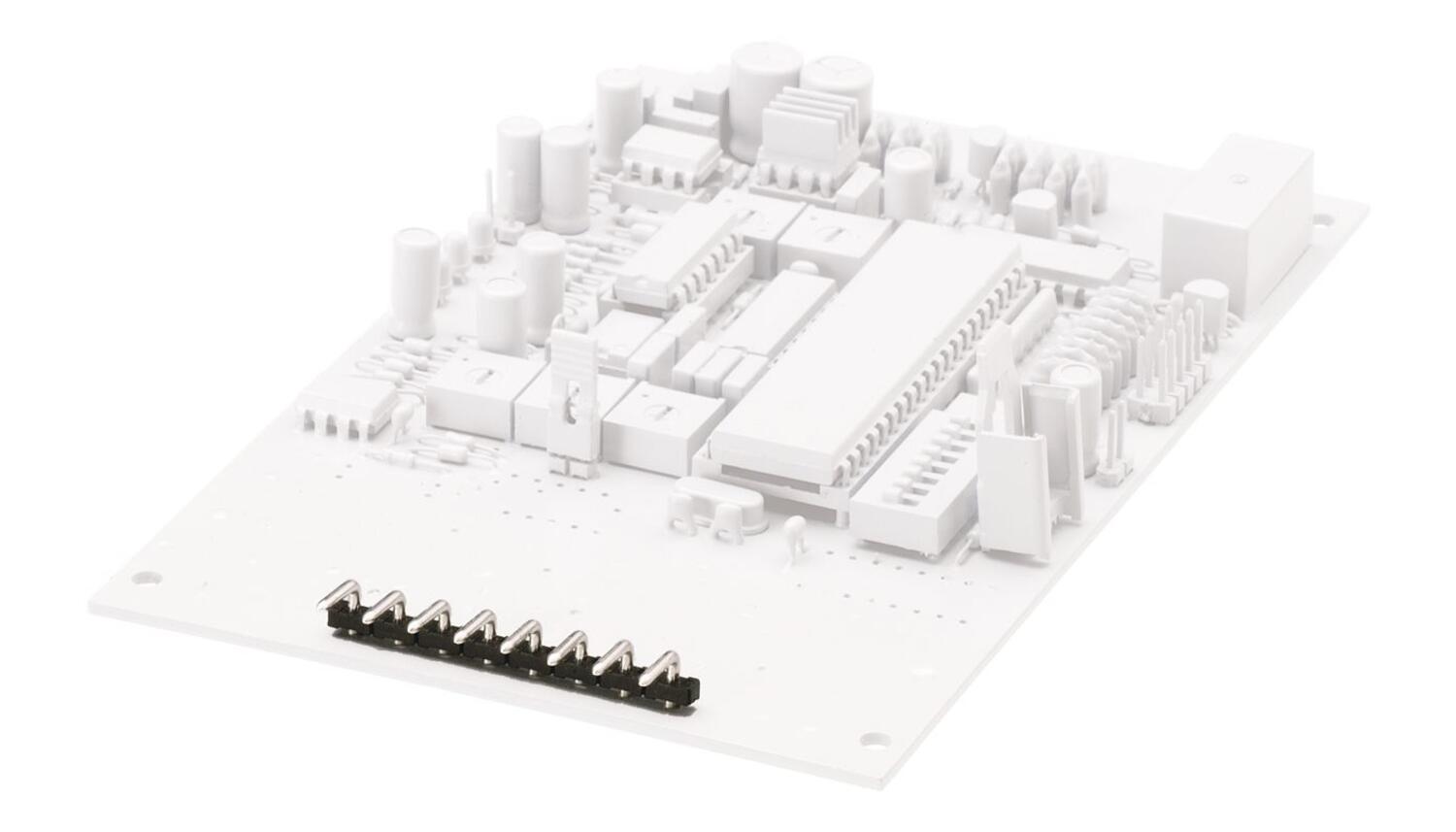

STL 1350/8/3,50-H BK
Art:
13940.4
Copied
|
8
|
12,4 mm
|
4,4 mm
|
28 mm
|
4 mm
|
1,13 g
|
0°/180° (horizontal)
|
| ||
|
STL 1350/9/3,50-V BK
Art:
13918.4
Copied
|
9
|
2,7 mm
|
3,5 mm
|
31,5 mm
|
9 mm
|
0,93 g
|
90° (vertically upwards)
|
| ||
|
STL 1350/9/3,50-H BK
Art:
13941.4
Copied
|
9
|
12,4 mm
|
4,4 mm
|
31,5 mm
|
4 mm
|
1,27 g
|
0°/180° (horizontal)
|
| ||
|
STL 1350/10/3,50-V BK
Art:
13919.4
Copied
|
10
|
2,7 mm
|
3,5 mm
|
35 mm
|
9 mm
|
1,04 g
|
90° (vertically upwards)
|
| ||
|
STL 1350/10/3,50-H BK
Art:
13942.4
Copied
|
10
|
12,4 mm
|
4,4 mm
|
35 mm
|
4 mm
|
1,41 g
|
0°/180° (horizontal)
|
| ||
|
STL 1350/11/3,50-V BK
Art:
13920.4
Copied
|
11
|
2,7 mm
|
3,5 mm
|
38,5 mm
|
9 mm
|
1,14 g
|
90° (vertically upwards)
|
| ||
|
STL 1350/11/3,50-H BK
Art:
13943.4
Copied
|
11
|
12,4 mm
|
4,4 mm
|
38,5 mm
|
4 mm
|
1,55 g
|
0°/180° (horizontal)
|
| ||
|
STL 1350/12/3,50-V BK
Art:
13921.4
Copied
|
12
|
2,7 mm
|
3,5 mm
|
42 mm
|
9 mm
|
1,25 g
|
90° (vertically upwards)
|
| ||
|
STL 1350/12/3,50-H BK
Art:
13944.4
Copied
|
12
|
12,4 mm
|
4,4 mm
|
42 mm
|
4 mm
|
1,7 g
|
0°/180° (horizontal)
|
| ||
|
STL 1350/13/3,50-V BK
Art:
13922.4
Copied
|
13
|
2,7 mm
|
3,5 mm
|
45,5 mm
|
9 mm
|
1,35 g
|
90° (vertically upwards)
|
| ||
|
STL 1350/13/3,50-H BK
Art:
13945.4
Copied
|
13
|
12,4 mm
|
4,4 mm
|
45,5 mm
|
4 mm
|
1,84 g
|
0°/180° (horizontal)
|
| ||
|
STL 1350/14/3,50-V BK
Art:
13923.4
Copied
|
14
|
2,7 mm
|
3,5 mm
|
49 mm
|
9 mm
|
1,46 g
|
90° (vertically upwards)
|
| ||
|
STL 1350/14/3,50-H BK
Art:
13946.4
Copied
|
14
|
12,4 mm
|
4,4 mm
|
49 mm
|
4 mm
|
1,98 g
|
0°/180° (horizontal)
|
| ||
|
STL 1350/15/3,50-V BK
Art:
13924.4
Copied
|
15
|
2,7 mm
|
3,5 mm
|
52,5 mm
|
9 mm
|
1,56 g
|
90° (vertically upwards)
|
| ||
|
STL 1350/15/3,50-H BK
Art:
13947.4
Copied
|
15
|
12,4 mm
|
4,4 mm
|
52,5 mm
|
4 mm
|
2,12 g
|
0°/180° (horizontal)
|
| ||
|
STL 1350/16/3,50-V BK
Art:
13925.4
Copied
|
16
|
2,7 mm
|
3,5 mm
|
56 mm
|
9 mm
|
1,67 g
|
90° (vertically upwards)
|
| ||
|
STL 1350/16/3,50-H BK
Art:
13948.4
Copied
|
16
|
12,4 mm
|
4,4 mm
|
56 mm
|
4 mm
|
2,26 g
|
0°/180° (horizontal)
|
| ||
|
STL 1350/17/3,50-V BK
Art:
13926.4
Copied
|
17
|
2,7 mm
|
3,5 mm
|
59,5 mm
|
9 mm
|
1,77 g
|
90° (vertically upwards)
|
| ||
|
STL 1350/17/3,50-H BK
Art:
13949.4
Copied
|
17
|
12,4 mm
|
4,4 mm
|
59,5 mm
|
4 mm
|
2,4 g
|
0°/180° (horizontal)
|
| ||
|
STL 1350/18/3,50-V BK
Art:
13927.4
Copied
|
18
|
2,7 mm
|
3,5 mm
|
63 mm
|
9 mm
|
1,88 g
|
90° (vertically upwards)
|
| ||
|
STL 1350/18/3,50-H BK
Art:
13950.4
Copied
|
18
|
12,4 mm
|
4,4 mm
|
63 mm
|
4 mm
|
2,55 g
|
0°/180° (horizontal)
|
| ||
|
STL 1350/19/3,50-V BK
Art:
13928.4
Copied
|
19
|
2,7 mm
|
3,5 mm
|
66,5 mm
|
9 mm
|
1,98 g
|
90° (vertically upwards)
|
| ||
|
STL 1350/19/3,50-H BK
Art:
13951.4
Copied
|
19
|
12,4 mm
|
4,4 mm
|
66,5 mm
|
4 mm
|
2,69 g
|
0°/180° (horizontal)
|
| ||
|
STL 1350/20/3,50-V BK
Art:
13929.4
Copied
|
20
|
2,7 mm
|
3,5 mm
|
70 mm
|
9 mm
|
2,08 g
|
90° (vertically upwards)
|
| ||
|
STL 1350/20/3,50-H BK
Art:
13952.4
Copied
|
20
|
12,4 mm
|
4,4 mm
|
70 mm
|
4 mm
|
2,83 g
|
0°/180° (horizontal)
|
| ||
|
STL 1350/21/3,50-V BK
Art:
13930.4
Copied
|
21
|
2,7 mm
|
3,5 mm
|
73,5 mm
|
9 mm
|
2,19 g
|
90° (vertically upwards)
|
| ||
|
STL 1350/21/3,50-H BK
Art:
13953.4
Copied
|
21
|
12,4 mm
|
4,4 mm
|
73,5 mm
|
4 mm
|
2,97 g
|
0°/180° (horizontal)
|
| ||
|
STL 1350/22/3,50-V BK
Art:
13931.4
Copied
|
22
|
2,7 mm
|
3,5 mm
|
77 mm
|
9 mm
|
2,29 g
|
90° (vertically upwards)
|
| ||
|
STL 1350/22/3,50-H BK
Art:
13954.4
Copied
|
22
|
12,4 mm
|
4,4 mm
|
77 mm
|
4 mm
|
3,11 g
|
0°/180° (horizontal)
|
| ||
|
STL 1350/23/3,50-V BK
Art:
13932.4
Copied
|
23
|
2,7 mm
|
3,5 mm
|
80,5 mm
|
9 mm
|
2,4 g
|
90° (vertically upwards)
|
| ||
|
STL 1350/23/3,50-H BK
Art:
13955.4
Copied
|
23
|
12,4 mm
|
4,4 mm
|
80,5 mm
|
4 mm
|
3,25 g
|
0°/180° (horizontal)
|
| ||
|
STL 1350/24/3,50-V BK
Art:
13933.4
Copied
|
24
|
2,7 mm
|
3,5 mm
|
84 mm
|
9 mm
|
2,5 g
|
90° (vertically upwards)
|
| ||
|
STL 1350/24/3,50-H BK
Art:
13956.4
Copied
|
24
|
12,4 mm
|
4,4 mm
|
84 mm
|
4 mm
|
3,4 g
|
0°/180° (horizontal)
|
|
Select a variant in the list
