STEGO
Filter fan for outdoor use - Old Version
FF 018

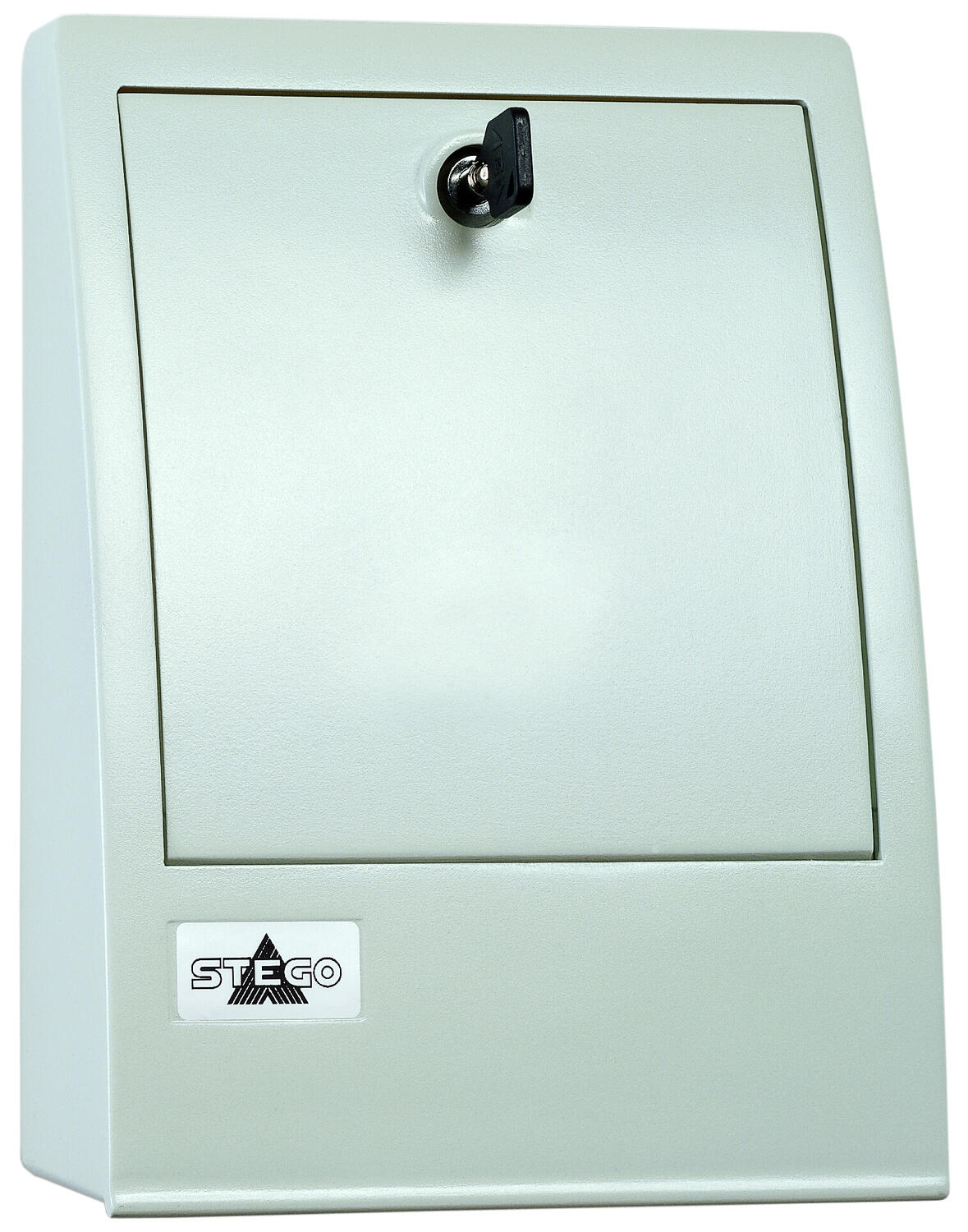

This filter fan FF018OUT / EF018OUT, is used mainly in outdoor outdoor appliances to ventilate excess heat. The hood is made of impact resistant plastic that is UV resistant and resistant to weather and wind.

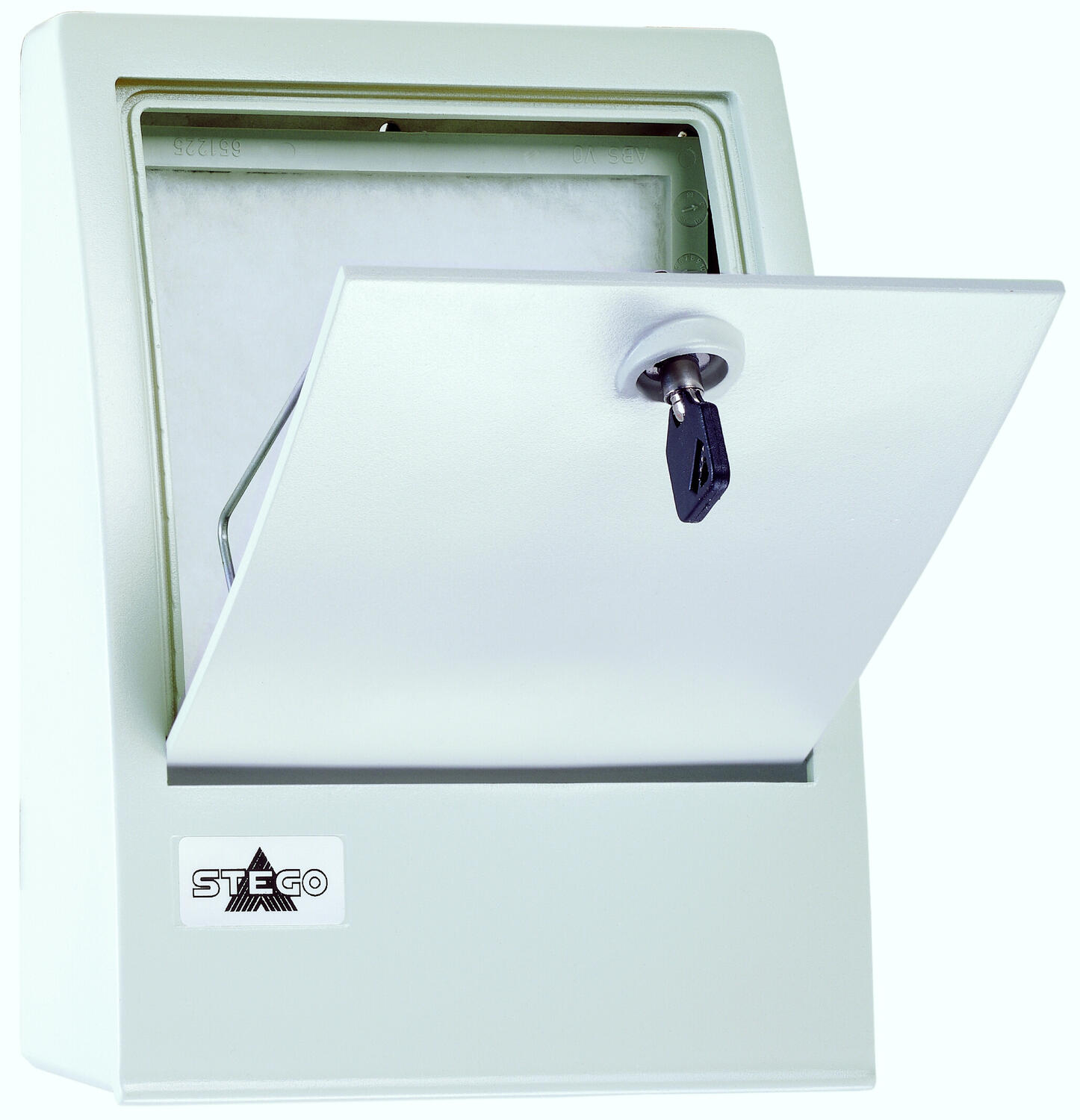

By opening the lockable cover, the filter is for cleaning or replacement, and the protection class is due to the filter quality and the hood's design IP55.
- Lockable lid
- Replaceable filter from the outside
- Protected against wind and weather
- IP55
Selected variant
Technical data
General Data |
|
|---|---|
| Air capacity | 23 m³/h |
| Air volume free blowing | 23 m³/h |
| Air volume free blowing with F5 filter | 14 m³/h |
| Number of fans | 1 |
| Sound level | 40 dB |

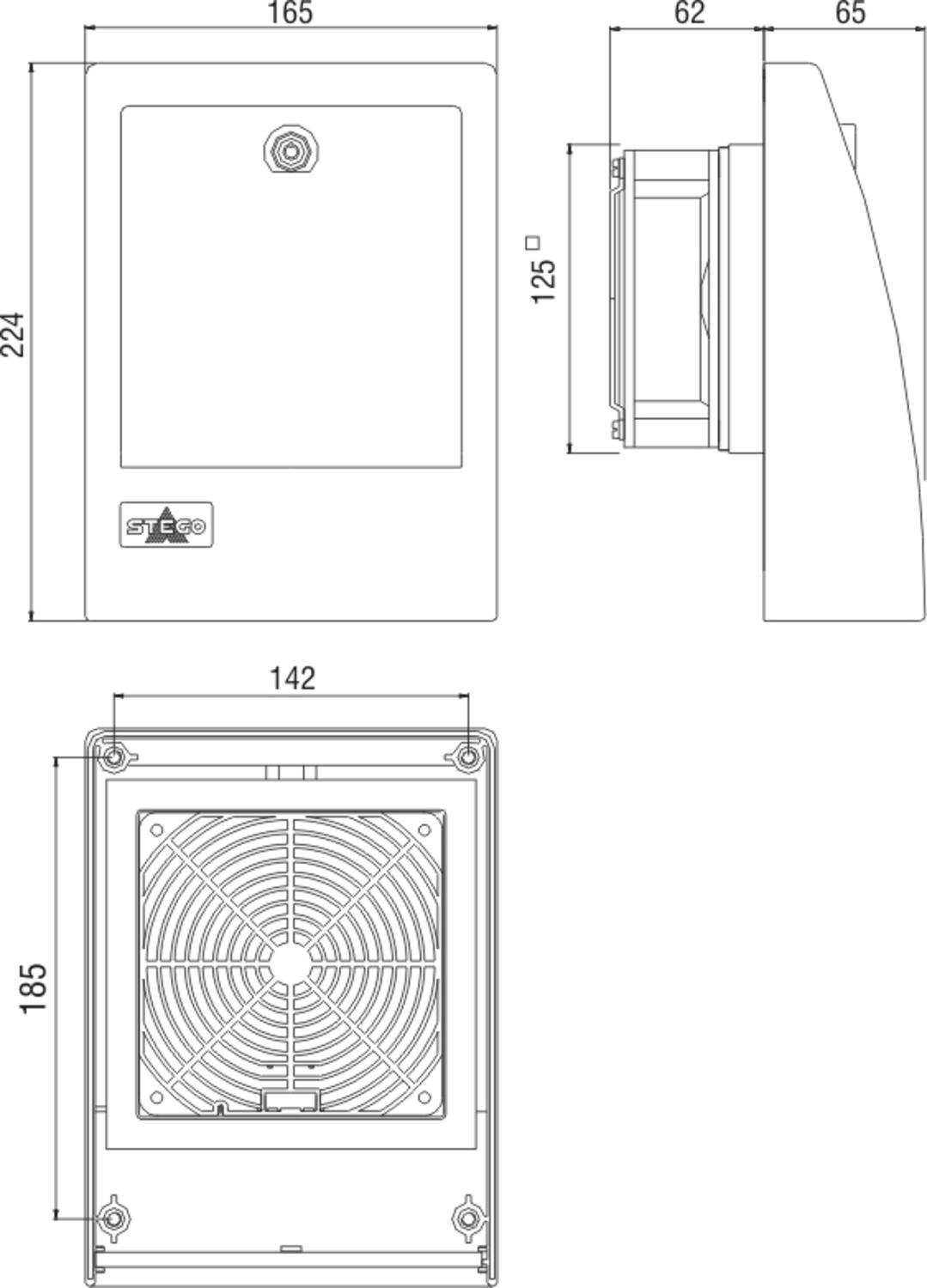

Dimensions |
|
| Width | 165 mm |
| Height | 224 mm |
| Depth | 127 mm |
| Behind panel depth | 65 mm |
| Hole size | 125x125 mm |
| Weight | 1.2 kg |
Materials |
|
| Colour | Light grey |
| Material plastic housing | Plastic |
| Flammability class | UL94-V0 |
| Materials fan | Aluminium |
*Invisible Heading* |
|
|---|---|
| Material of rotor | Plastic |
| Filter grade | 98 % |
Rated Operating Conditions |
|
| Voltage max | 120 V ac |
| Voltage min | 120 V ac |
| Frequency | 60 Hz |
| Power consumption | 15 W |
| Life span | 50000 h |
| Storage temperature | -40°C ... +70°C |
| Operational temperature | -10°C ... +70°C |
| Operating humidity | < 90% RH |
| Humidity storage | <90% RH |
Safety and Approvals |
|
| IP class | IP55 |
| Approvals | CE, cULus, EAC, RoHS, UL, UL E234324, UV - UL746C (f1) |
Product description
This filter fan FF018OUT / EF018OUT, is used mainly in outdoor outdoor appliances to ventilate excess heat. The hood is made of impact resistant plastic that is UV resistant and resistant to weather and wind.
By opening the lockable cover, the filter is for cleaning or replacement, and the protection class is due to the filter quality and the hood's design IP55.
