RQW 90º elbow, quick-type

RQW connectors are IP68 rated plastic quick-type connectors for ROHRflex conduits. The connector end has an integrated snap-in sleeve with sealing, metric thread on the other end.



RQW-1 connectors are rated IP66, conically sealed. Both types made of polyamide, also available in grey color.

Read more
  • Metric
  • Connector with 90º elbow

Selected variant

Available in several variants
FLEXA.tif

Save page as PDF

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Technical data

Approvals CSA 22.2, cRUus, Lloyd´s, UL, VDE
Colour Black
Hose dimension AD 10
IP class IP66
Material Polyamide
Pack size 50
Temperature operational max 120 °C
Temperature operational min -40 °C
Thread M10x1,0
Weight kg / 100 ± 10% 0.4

Downloads

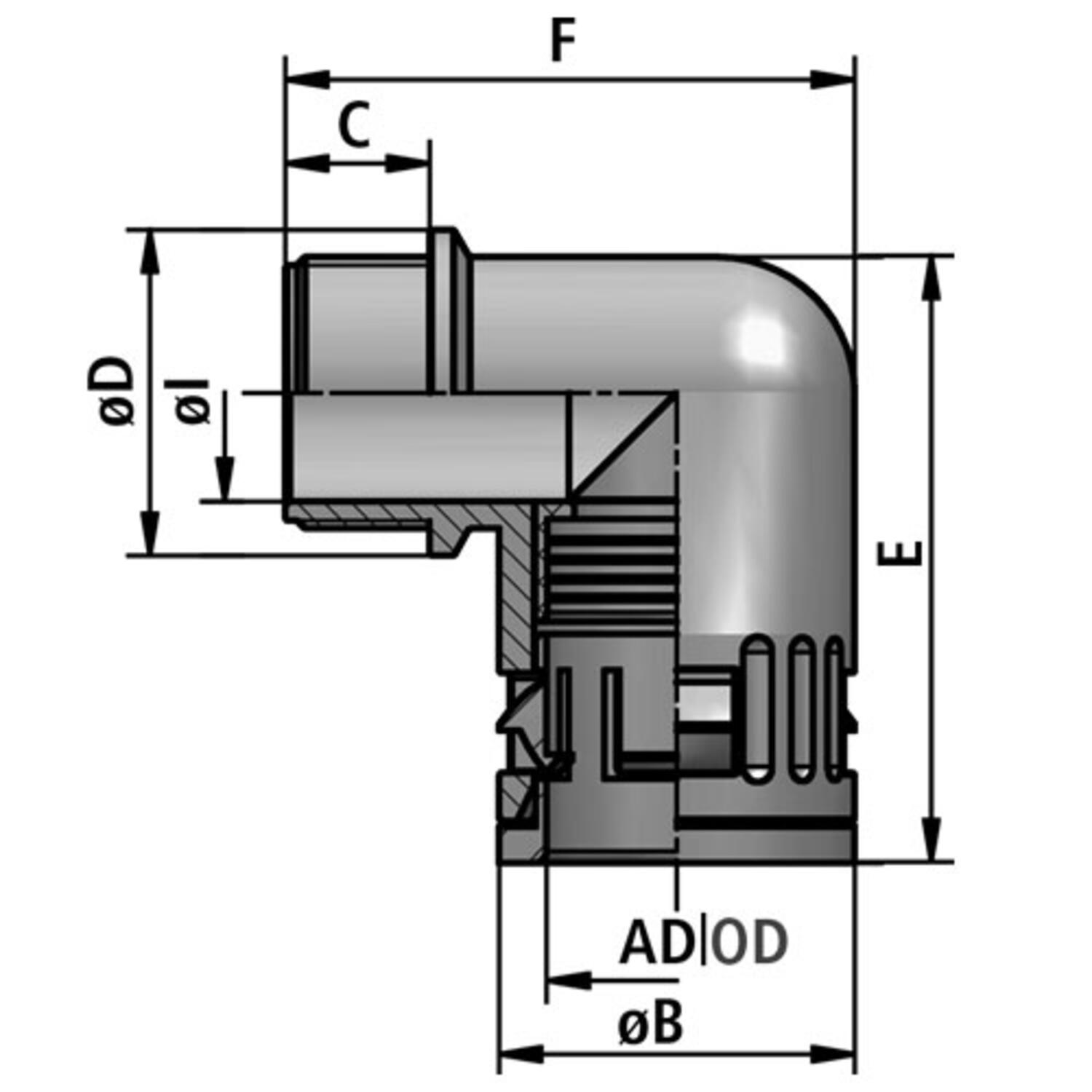

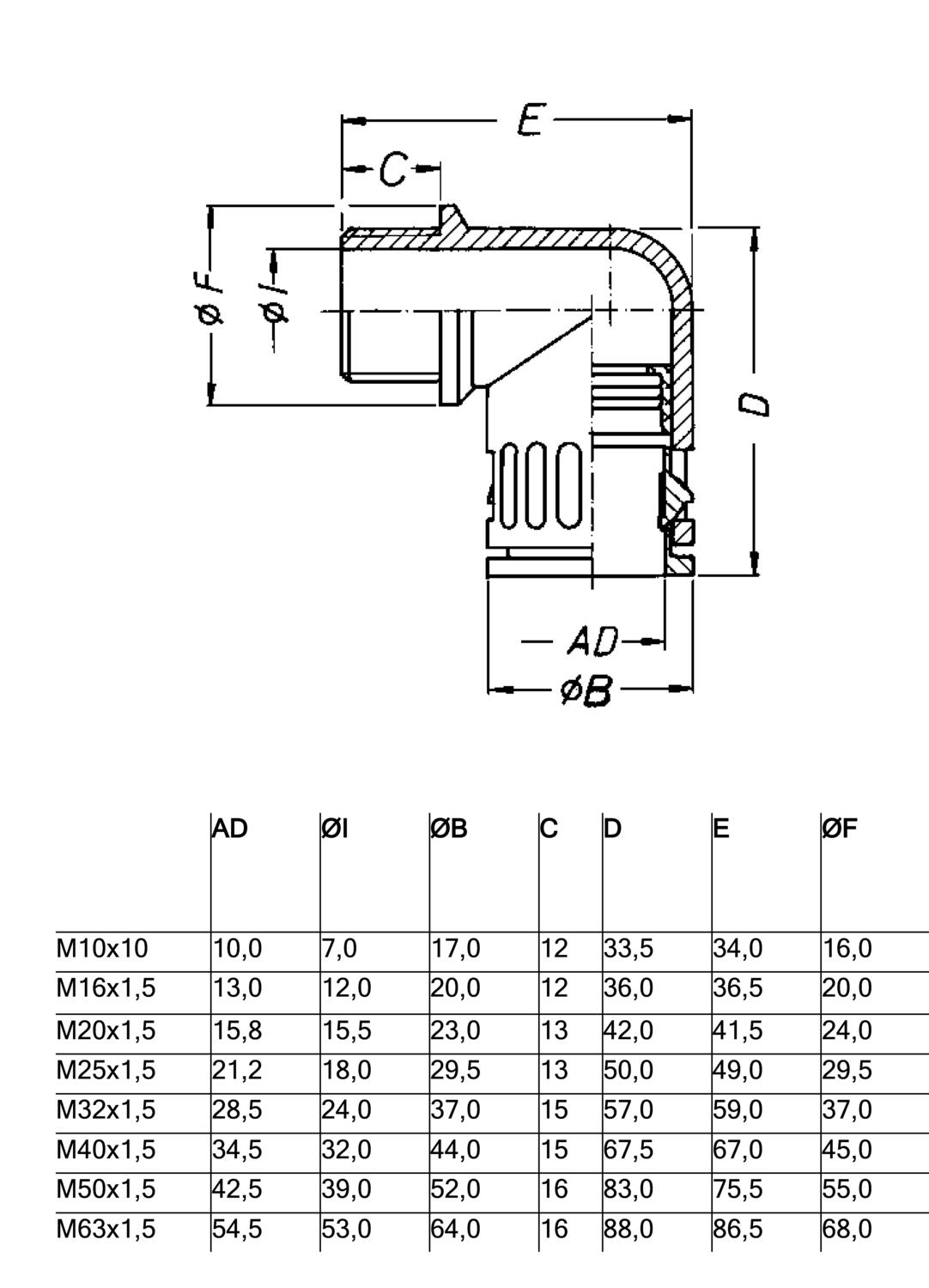

Measurements and connections

Product description

RQW connectors are IP68 rated plastic quick-type connectors for ROHRflex conduits. The connector end has an integrated snap-in sleeve with sealing, metric thread on the other end.



RQW-1 connectors are rated IP66, conically sealed. Both types made of polyamide, also available in grey color.

Accessories

Related products

Related

Dehn yellowline
Product news

Lightning and surge protection for DC and control signals

Do you need reliable protection for measuring and control equipment? DEHN YellowLine delivers voltage surge protection tailored for building, measuring, and control systems

Signal lights auer
Product news

Signal Lights For You

New signal lights from Auer Signal are now available! The first products to be launched in this series are the Smart Dot 50 in the Basic and Standard versions, as well as the Smart Indicator 50 in the Basic version.

Kubler slip rings encoders
Blog Product news

Optimise your production line with sensors

Optimise your production line with encoders, inclinometers, displays and slip rings

contaclip kds sr90
Product news

Every angle covered with 90 degree cable entry system

Engineers and technicians are seeking solutions that streamline assembly whilst maintaining high levels of protection and flexibility. KDS-SR90 angled screw frames and inlays bring a new level of efficiency to cable routing with a unique 90° entry design.

crouzet millenium slim on limited time discount
Product news

The smallest logic controller ever on limited time discount

The smallest logic controller by Crouzet is now 20% off for a limited time only! A powerhouse packed into just 17.5mm! Efficiency, adaptability, and seamless integration with free software.

11 questions to get the right signalling device with Auer Signal & OEM Automatic
Blog Learning hub

11 questions to get the right signalling device – a whitepaper

Do you require signalling devices and beacons in your production process? Download our latest whitepaper!

Parts Approvals Hose dimension AD IP class Pack size Thread Weight kg / 100 ± 10% Price
Photo at slanted clutch.
RQW1-M AD10 M10x1,5 elbow 90° black
Art:
5020.051.210 Copied
CSA 22.2, cRUus, Lloyd´s, UL, VDE
10
IP66
50
M10x1,0
0.4
Photo at slanted clutch.
RQW1-M AD13 M16x1,5 elbow 90° black
Art:
5020.051.216 Copied
CSA 22.2, cRUus, Lloyd´s, UL, VDE
13
IP66
50
M16,1,5
0.72
Photo at slanted clutch.
RQW1-M AD15,8 M20x1,5 elbow 90° black
Art:
5020.051.220 Copied
CSA 22.2, cRUus, Lloyd´s, UL, VDE
15.8
IP66
50
M20x1,5
1.1
Photo at slanted clutch.
RQW1-M AD21,2 M25x1,5 elbow 90° black
Art:
5020.051.225 Copied
CSA 22.2, cRUus, Lloyd´s, UL, VDE
21.2
IP66
50
M25x1,5
1.98
Photo at slanted clutch.
RQW1-M AD28,5 M32x1,5 elbow 90° black
Art:
5020.051.232 Copied
CSA 22.2, cRUus, Lloyd´s, UL, VDE
28.5
IP66
25
M32x1,5
3.04
Photo at slanted clutch.
RQW1-M AD34,5 M40x1,5 elbow 90° black
Art:
5020.051.240 Copied
CSA 22.2, cRUus, Lloyd´s, UL, VDE
34.5
IP66
10
M40x1,5
4.4
Photo at slanted clutch.
RQW1-M AD42,5 M50x1,5 elbow 90° black
Art:
5020.051.250 Copied
CSA 22.2, cRUus, Lloyd´s, UL, VDE
42.5
IP66
10
M50x1,5
7.3
Photo at slanted clutch.
RQW1-M AD54,5 M63x1,5 elbow 90° black
Art:
5020.051.263 Copied
CSA 22.2, cRUus, Lloyd´s, UL, VDE
54.5
IP66
5
M63x1,5
10.6
Photo at slanted clutch.
RQW1-P AD10 PG7 elbow 90° black
Art:
5020.050.207 Copied
CSA 22.2, cRUus, Lloyd´s, UL, VDE
10
IP66
50
PG 7
0.56
Photo at slanted clutch.
RQW1-P AD13 PG9 elbow 90° black
Art:
5020.050.209 Copied
CSA 22.2, cRUus, Lloyd´s, UL, VDE
13
IP66
50
PG 9
0.7
Photo at slanted clutch.
RQW1-P AD15,8 PG11 elbow 90° black
Art:
5020.050.211 Copied
CSA 22.2, cRUus, Lloyd´s, UL, VDE
15.8
IP66
50
PG 11
1.04
Photo at slanted clutch.
RQW1-P AD18,5 PG13,5 elbow 90° black
Art:
5020.050.213 Copied
CSA 22.2, cRUus, Lloyd´s, UL, VDE
18.5
IP66
50
PG 13,5
1.4
Photo at slanted clutch.
RQW1-P AD21,2 PG16 elbow 90° black
Art:
5020.050.216 Copied
CSA 22.2, cRUus, Lloyd´s, UL, VDE
21.2
IP66
50
PG 16
1.86
Photo at slanted clutch.
RQW1-P AD28,5 PG21 elbow 90° black
Art:
5020.050.221 Copied
CSA 22.2, cRUus, Lloyd´s, UL, VDE
28.5
IP66
25
PG 21
2.8
Photo at slanted clutch.
RQW1-P AD34,5 PG29 elbow 90° black
Art:
5020.050.229 Copied
CSA 22.2, cRUus, Lloyd´s, UL, VDE
34.5
IP66
10
PG 29
4.2
Photo at slanted clutch.
RQW1-P AD42,5 PG36 elbow 90° black
Art:
5020.050.236 Copied
CSA 22.2, cRUus, Lloyd´s, UL, VDE
42.5
IP66
10
PG 36
7.2
Photo at slanted clutch.
RQW1-P AD54,5 PG48 elbow 90° black
Art:
5020.050.248 Copied
CSA 22.2, cRUus, Lloyd´s, UL, VDE
54.5
IP66
5
PG 48
10.2
Photo at slanted clutch.
RQW-M AD10 M10x1,5 elbow 90° black
Art:
5020.064.210 Copied
CSA 22.2, cRUus, DB, Lloyd´s, UL, VDE
10
IP68, IP69K
50
M10x1,0
0.6
Photo at slanted clutch.
RQW-M AD10 M32x1,5 elbow 90° black
Art:
5020.064.232 Copied
CSA 22.2, cRUus, DB, Lloyd´s, UL, VDE
34.5
IP68, IP69K
10
M32x1,5
4.8
Photo at slanted clutch.
RQW-M AD13 M16x1,5 elbow 90° black
Art:
5020.036.216 Copied
CSA 22.2, cRUus, DB, Lloyd´s, UL, VDE
13
IP68, IP69K
50
M16x1,5
1.08
Photo at slanted clutch.
RQW-M AD15,8 M20x1,5 elbow 90° black
Art:
5020.036.220 Copied
CSA 22.2, cRUus, DB, Lloyd´s, UL, VDE
15.8
IP68, IP69K
50
M20x1,5
1.06
Photo at slanted clutch.
RQW-M AD21,2 M25x1,5 elbow 90° black
Art:
5020.036.225 Copied
CSA 22.2, cRUus, DB, Lloyd´s, UL, VDE
21.2
IP68, IP69K
50
M25x1,5
1.94
Photo at slanted clutch.
RQW-M AD28,5 M32x1,5 elbow 90° black
Art:
5020.036.232 Copied
CSA 22.2, cRUus, DB, Lloyd´s, UL, VDE
28.5
IP68, IP69K
25
M32x1,5
3.04
Photo at slanted clutch.
RQW-M AD34,5 M40x1,5 elbow 90° black
Art:
5020.036.240 Copied
CSA 22.2, cRUus, DB, Lloyd´s, UL, VDE
34.5
IP68, IP69K
10
M40x1,5
4.4
Photo at slanted clutch.
RQW-M AD42,5 M50x1,5 elbow 90° black
Art:
5020.036.250 Copied
CSA 22.2, cRUus, DB, Lloyd´s, UL, VDE
42.5
IP68, IP69K
10
M50x1,5
7.3
Photo at slanted clutch.
RQW-P AD42,5 PG36 elbow 90° black
Art:
5020.028.236 Copied
CSA 22.2, cRUus, DB, Lloyd´s, UL, VDE
42.5
IP68, IP69K
10
PG 36
7.2
Photo at slanted clutch.
RQW-P AD10 PG7 elbow 90° black
Art:
5020.028.207 Copied
CSA 22.2, cRUus, DB, Lloyd´s, UL, VDE
10
IP68, IP69K
50
PG 7
0.56
Photo at slanted clutch.
RQW-P AD13 PG9 elbow 90° black
Art:
5020.028.209 Copied
CSA 22.2, cRUus, DB, Lloyd´s, UL, VDE
13
IP68
50
PG 9
0.68
Photo at slanted clutch.
RQW-P AD15,8 PG11 elbow 90° black
Art:
5020.028.211 Copied
CSA 22.2, cRUus, DB, Lloyd´s, UL, VDE
15.8
IP68, IP69K
50
PG 11
1
Photo at slanted clutch.
RQW-P AD18,5 PG13,5 elbow 90° black
Art:
5020.028.213 Copied
CSA 22.2, cRUus, DB, Lloyd´s, UL, VDE
18.5
IP68, IP69K
50
PG 13,5
1.4
Photo at slanted clutch.
RQW-P AD21,2 PG16 elbow 90° black
Art:
5020.028.216 Copied
CSA 22.2, cRUus, DB, Lloyd´s, UL, VDE
21.2
IP68, IP69K
50
PG 16
1.8
Photo at slanted clutch.
RQW-P AD28,5 PG21 elbow 90° black
Art:
5020.028.221 Copied
CSA 22.2, cRUus, DB, Lloyd´s, UL, VDE
28.5
IP68, IP69K
25
PG 21
2.84
Photo at slanted clutch.
RQW-P AD34,5 PG29 elbow 90° black
Art:
5020.028.229 Copied
CSA 22.2, cRUus, DB, Lloyd´s, UL, VDE
34.5
IP68, IP69K
10
PG 29
4.2
Photo at slanted clutch.
RQW-P AD44,5 PG48 elbow 90° black
Art:
5020.028.248 Copied
CSA 22.2, cRUus, DB, Lloyd´s, UL, VDE
54.5
IP68, IP69K
5
PG 48
10.2
